1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your GIVI Monolock 45-liter top case. Please read these instructions carefully before use to ensure safe and efficient handling of the product. This top case is designed to be compatible with various motorcycles and scooters equipped with a rear luggage rack.
2. Product Features
- Capacity: 45 liters, capable of holding two full-face or jet helmets.
- Material: Durable black plastic with satin silver painted inserts.
- Mounting System: Monolock system, includes a universal plate for easy attachment to existing rear racks.
- Accessories: Equipped with an elastic cargo net for securing items, a passenger backrest for comfort, and a protective bottom mat for the interior.
Image 2.1: The GIVI Monolock 45L top case, showcasing its black finish, silver inserts, and elastic cargo net. A balaclava is also shown, included as a gift.
3. Package Contents
Please verify that all components are present in the package:
- GIVI Monolock 45-liter Top Case (Black with silver inserts)
- Universal Mounting Plate
- Universal Fitting Kit (for plate installation)
- Elastic Cargo Net
- Passenger Backrest
- Internal Bottom Mat
- Keys (set of 2)
- Bonus: Full-face Balaclava
Image 3.1: The complimentary full-face balaclava included with the top case.
4. Setup and Installation
The GIVI Monolock top case requires a rear luggage rack on your motorcycle or scooter for installation. If your vehicle does not have one, a compatible rack must be installed first (sold separately).
4.1. Installing the Universal Plate
- Identify a suitable position on your vehicle's rear luggage rack for the universal plate. Ensure it does not obstruct the rider or passenger, and allows for proper opening of the top case.
- Use the provided universal fitting kit (brackets, screws, washers) to securely attach the plate to the luggage rack. Follow the specific instructions provided with the fitting kit for your vehicle type.
- Tighten all fasteners firmly, but do not overtighten. Periodically check the tightness of the fasteners, especially after the first few rides.
4.2. Attaching the Top Case
- Align the bottom of the top case with the universal plate, ensuring the locking mechanism on the case engages with the plate.
- Press down firmly until you hear a click, indicating the case is securely locked onto the plate.
- Verify the case is securely attached by gently pulling upwards. It should not lift off the plate.
- To remove the top case, insert the key into the lock, turn it, and press the release button (usually located near the lock) while lifting the case.

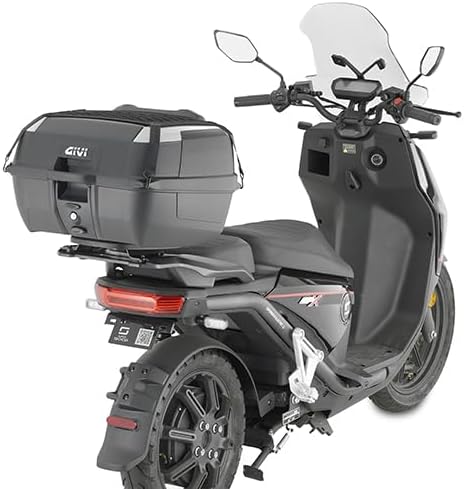

Image 4.1: The GIVI Monolock top case securely mounted on the rear rack of a scooter, demonstrating typical installation.
5. Operating Instructions
5.1. Opening and Closing the Top Case
- To Open: Insert the key into the lock and turn it to the unlock position. Press the release button (if applicable) or lift the lid.
- To Close: Lower the lid firmly until it clicks shut. Ensure the lock is engaged by attempting to lift the lid without the key. For security, always remove the key after locking.
5.2. Using the Internal Features
- Elastic Cargo Net: The integrated elastic net on the lid can be used to secure lightweight items or documents, preventing them from shifting during transit.
- Bottom Mat: The removable bottom mat provides a protective layer for your items and helps reduce noise from vibrations.
- Passenger Backrest: The padded backrest offers additional comfort for a passenger.

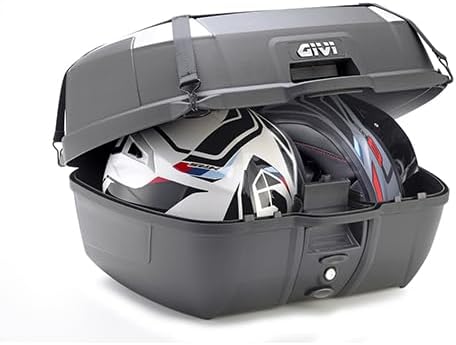

Image 5.1: The top case shown open, demonstrating its capacity to comfortably store two full-face helmets.
Image 5.2: View of the top case interior, highlighting the protective bottom mat.
6. Maintenance and Care
- Cleaning: Clean the top case with mild soap and water. Avoid abrasive cleaners or solvents that could damage the plastic or painted surfaces. Use a soft cloth for drying.
- Lock Mechanism: Periodically lubricate the lock mechanism with a small amount of graphite powder or a silicone-based lubricant to ensure smooth operation.
- Fasteners: Regularly check all mounting fasteners for tightness, especially after long rides or off-road use.
- Storage: When not in use, store the top case in a cool, dry place away from direct sunlight to prevent material degradation.
7. Troubleshooting
- Case not locking onto plate: Ensure the universal plate is correctly installed and not obstructed. Check for any debris in the locking mechanism. Apply light lubricant if stiff.
- Lid not closing properly: Verify that no items inside the case are obstructing the lid. Check the hinges for damage or misalignment.
- Excessive vibration/noise: Ensure the top case is securely mounted to the plate and the plate is tightly fastened to the luggage rack. Reduce heavy loads if necessary.
- Key stuck in lock: Do not force the key. Apply a small amount of lubricant to the lock and gently try to turn and remove the key.
8. Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | farbrothersonline |
| Brand | farbrothersonline |
| Manufacturer Reference | B45+NMAL|160 |
| Color | Black |
| Material | Plastic |
| Vehicle Service Type | Scooter, Motorcycle |
| Pattern | Solid (Black) and Solid (Satin Silver) |
| Capacity | 45 Liters (approx. 2 full-face helmets) |
9. Warranty and Customer Support
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact the seller directly.
For any questions, technical assistance, or support regarding your GIVI Monolock top case, please contact farbrothersonline customer service through your purchase platform or their official website. Please have your model number (B45+NMAL|160) and purchase details ready when contacting support.
