Introduction
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your Mytoys MT908 Electric Scooter. Please read this manual thoroughly before using the scooter to ensure proper function and to prevent injury or damage.
The Mytoys MT908 is a compact and lightweight electric scooter designed for commuting and travel. It features a durable aluminum body, a foldable design, and large wheels for a stable ride. Key features include a 750W brushless motor, 15Ah battery, dual suspension, front and rear disc brakes, and an LCD display.
Safety Information
- Always wear a helmet and appropriate safety gear when riding.
- Do not ride in wet conditions, heavy rain, or on slippery surfaces.
- Adhere to local traffic laws and regulations.
- Ensure all components are securely fastened before each ride.
- Do not exceed the maximum load capacity of 150 kg.
- Avoid riding on steep inclines or rough terrain that exceeds the scooter's climbing ability.
- Keep hands and feet away from moving parts.
- Children under the age of 14 should not operate this scooter.
What's in the Box
Upon unpacking, please verify that all the following items are included:
- Mytoys MT908 Electric Scooter
- Removable Seat
- Battery Charger
- Tool Kit
- User Manual (this document)
Product Overview
Familiarize yourself with the main components of your Mytoys MT908 Electric Scooter.
Image: Side view of the Mytoys MT908 Electric Scooter, showing the main body, handlebars, wheels, and removable seat.
Image: Front view of the Mytoys MT908 Electric Scooter, highlighting the triple LED headlights and front suspension.
- Handlebars: Adjustable for height, with controls for acceleration, braking, and display.
- LCD Display: Shows speed, cruise control status, battery level, total travel distance, and speed mode.
- Triple LED Headlights: For illumination during night riding.
- Front and Rear Suspension: Provides a smoother ride over varied terrain.
- Disc Brakes: Front and rear disc brakes for effective stopping power.
- Motor: 750W brushless motor located in the rear wheel.
- Battery: Integrated lithium battery within the deck.
- Off-road Tires: 10-inch inflatable tires suitable for various surfaces.
- Removable Seat: For comfortable riding, adjustable for height.
- Folding Mechanism: Allows for compact storage and transport.
- Tail Light/Brake Light: Enhances visibility from the rear.
Setup
1. Unpacking and Initial Inspection
Carefully remove all components from the packaging. Inspect the scooter for any signs of damage during transit. Ensure all parts listed in "What's in the Box" are present.
2. Handlebar Assembly and Adjustment
- Unfold the main stem of the scooter until it locks into place. Ensure the double locking system is engaged.
- Attach the handlebars to the stem, ensuring all cables are clear and not pinched. Secure them using the provided tools.
- Adjust the handlebar height to a comfortable position using the quick-release lever. Ensure it is securely locked before riding.
3. Seat Installation (Optional)
- Insert the seat post into the designated slot on the scooter's deck.
- Adjust the seat height for comfort and secure it with the clamping mechanism.

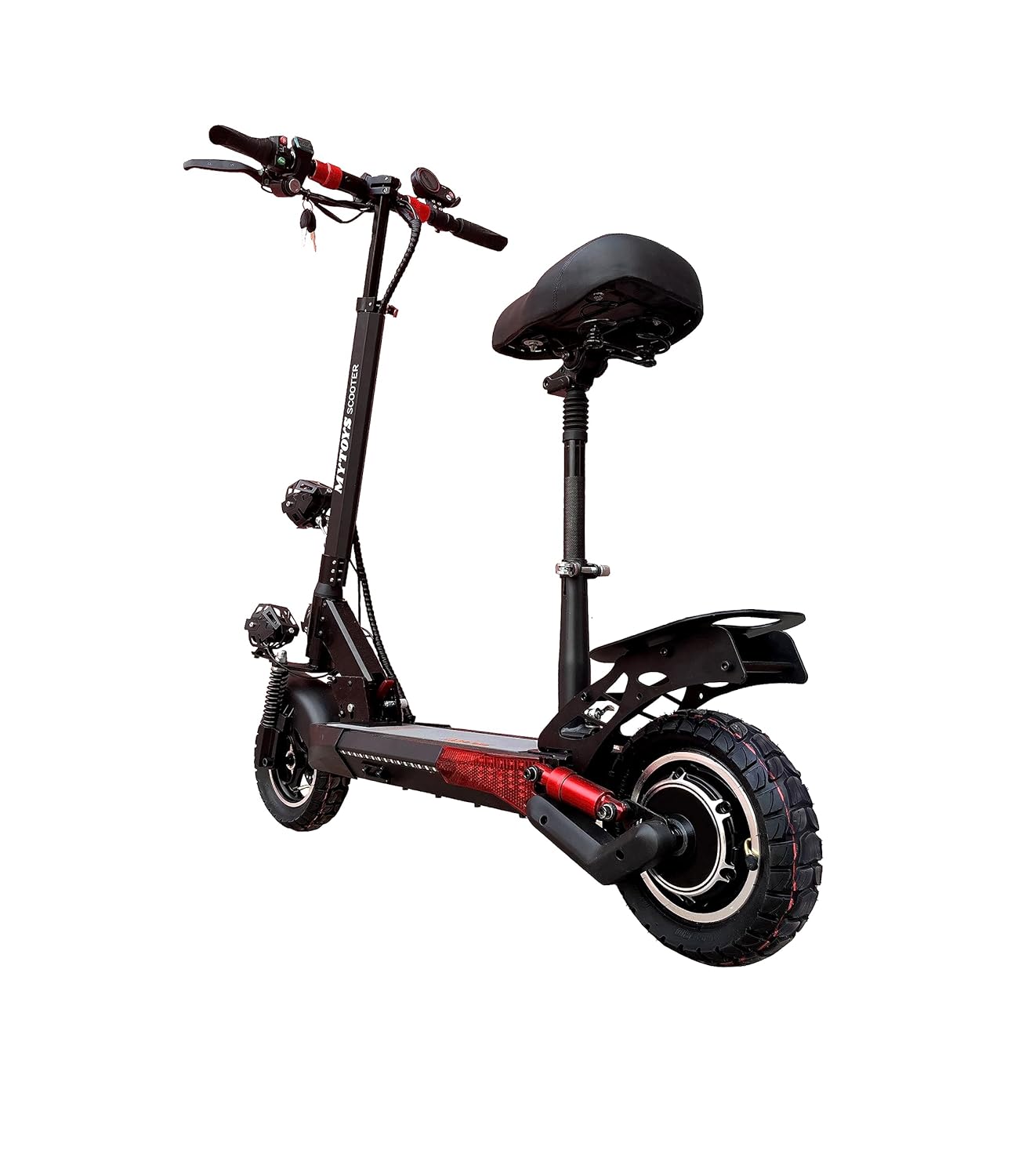

Image: Rear view of the Mytoys MT908 Electric Scooter with the removable seat installed, showing the rear wheel and brake light.
4. Initial Charging
Before first use, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The charging indicator on the charger will change color (e.g., red to green) when fully charged. Initial charging typically takes 5-8 hours.
Operating Instructions
1. Powering On/Off
Press and hold the power button on the LCD display to turn the scooter on or off.
2. LCD Display Functions
The LCD display provides real-time information:
- Travel Speed: Current riding speed.
- Battery Status: Indicates remaining battery charge.
- Total Travel: Odometer reading.
- Speed Switching Function: Allows selection of different speed modes.
- Cruise Control: Activates a constant speed setting.
3. Riding the Scooter
- Place one foot on the deck and push off with the other foot to gain initial momentum.
- Once moving, gently press the accelerator lever on the handlebar to engage the motor.
- Maintain balance and keep both hands on the handlebars.
- To brake, release the accelerator and gently squeeze the brake levers. The dual braking system provides instant stopping power.
- Use the triple LED headlights and tail light for visibility, especially in low-light conditions.
4. Folding Mechanism
To fold the scooter for transport or storage, disengage the double locking system on the main stem and fold the stem downwards until it clicks into its folded position. Ensure it is securely latched.
Maintenance
1. Battery Care
- Charge the battery regularly, even if the scooter is not in use, to prolong its lifespan.
- Avoid completely draining the battery before recharging.
- Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures.
- Use only the original charger provided with the scooter.
2. Tire Maintenance
- Regularly check the tire pressure of the 10-inch inflatable tires. Maintain recommended pressure for optimal performance and safety.
- Inspect tires for wear, punctures, or damage before each ride.
3. Cleaning
Clean the scooter with a damp cloth. Do not use high-pressure water jets or immerse the scooter in water, as this can damage electrical components. The scooter has an IPX5 water-proof grade, suitable for drizzle, but not heavy rain or submersion.
4. Brake Inspection
Periodically check the front and rear disc brakes for proper function and wear. Adjust or replace brake pads as necessary. Ensure brake levers operate smoothly and return to their original position.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; Loose battery connection; Faulty power button | Charge the battery; Check battery connections; Contact support if issue persists |
| Reduced range or speed | Low tire pressure; Overloaded scooter; Battery degradation; Riding uphill frequently | Inflate tires to recommended pressure; Reduce load; Ensure full charge; Adjust riding style |
| Brakes feel weak | Worn brake pads; Loose brake cable; Air in hydraulic system (if applicable) | Inspect and replace brake pads; Adjust brake cable tension; Seek professional service |
| Unusual noises during operation | Loose components; Debris in wheels; Motor issue | Check all fasteners; Inspect wheels for obstructions; Contact support |
Specifications
Detailed technical specifications for the Mytoys MT908 Electric Scooter:
Image: Table displaying detailed product specifications for the Mytoys MT908 Electric Scooter.
| Model | MT908 |
| Motor Type | DC Brushless Motor |
| Rated Output Power | 750W |
| Maximum Speed | Up to 55 km/h |
| Battery Type | Lithium Battery |
| Battery Voltage | 36V/48V (Standard) |
| Battery Capacity | 15000mAh (15Ah) |
| Mileage (Range) | 35-40 km |
| Charging Time | 5-8 hours |
| Tire Size | 10 inch |
| Tire Type | Inflatable Off-road Tires |
| Brake System | Front and Rear Disc Brake |
| Suspension | Dual Suspension |
| Maximum Load | 150 kg |
| Climbing Ability | 15-20 degrees |
| Scooter Weight | 20 kg (including battery) |
| Frame Material | Aluminium |
| Waterproof Level | IPX5 (suitable for drizzle) |
| Outline Dimensions (LxWxH) | 117 x 56 x 120 cm |
| Product Dimensions (LxWxH) | 118 x 61 x 125 cm |
| Recommended Age Range | Adult (14-50 Years Old) |
| Included Components | Electric Scooter, Seat, Charger, Tool Kit, User Manual |
Image: Diagram illustrating the dimensions (length, width, height) of the Mytoys MT908 Electric Scooter.
Warranty and Support
For any service, warranty claims, or technical support, please contact Mytoys customer service. We have a dedicated team available to assist you with after-sales service.
Please refer to your purchase documentation for specific warranty terms and contact details.
