Carlinkit 5.0 Wireless CarPlay & Android Auto Adapter User Manual

1. Introduction

The Carlinkit 5.0 Wireless CarPlay & Android Auto Adapter is designed to convert your car's existing wired CarPlay or wired Android Auto system into a wireless connection. This device offers a seamless and convenient way to access your smartphone's features on your car's infotainment screen without the need for cables. It supports both Apple CarPlay and Android Auto, providing an enhanced driving experience with navigation, music, and communication.

2. Safety Information

• Always prioritize safe driving. Do not operate the device or your smartphone in a way that distracts you from the road.
• Ensure the device is securely placed and does not obstruct your view or interfere with vehicle controls.
• Avoid exposing the device to extreme temperatures, direct sunlight, or moisture.
• Do not attempt to disassemble or repair the device yourself. Contact customer support for assistance.

3. What's in the Box

Please check the contents of your package:

• Carlinkit 5.0 Adapter (1 unit)
• USB-A to USB-C Cable (1 unit)
• USB-C to USB-C Cable (1 unit)
• User Manual (1 unit)

Image: Contents of the Carlinkit 5.0 package, including the adapter, two types of USB cables, and the user manual.

4. Setup Guide

Follow these steps for initial setup:

1. Connect the Adapter: Plug the Carlinkit 5.0 adapter into your car's existing USB port that supports wired CarPlay or Android Auto. Use the appropriate USB cable provided (USB-A to USB-C or USB-C to USB-C). The red signal light on the adapter will illuminate.
2. Enable Bluetooth and Wi-Fi on your Phone: On your iPhone (iOS 10+) or Android phone (Android 11.0+), ensure both Bluetooth and Wi-Fi are turned on.
3. Pair with the Adapter: Go to your phone's Bluetooth settings and connect to the device named "Autokit_***".
4. Automatic Connection: After successful Bluetooth pairing, the CarPlay or Android Auto icon on your car's screen will light up. The car screen will then display the connection interface and automatically enter the wireless CarPlay or Android Auto environment.

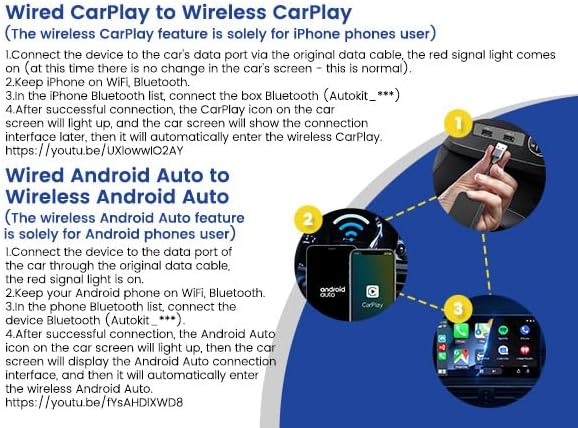

Image: Visual guide illustrating the three simple steps to set up the Carlinkit 5.0 adapter.

Image: Diagram showing the Carlinkit 5.0 adapter's function of converting wired CarPlay and Android Auto to wireless.

5. Operating Instructions

Once connected, the Carlinkit 5.0 adapter allows you to use your car's original controls, including touchscreens, steering wheel buttons, and voice commands (Hey Google, Hi Siri) to interact with CarPlay or Android Auto.

5.1 Wireless CarPlay (for iPhone users)

After connecting the adapter and pairing your iPhone via Bluetooth, your car's screen will display the familiar CarPlay interface. You can access various apps such as Maps, Music, Messages, and more directly from your car's display.

5.2 Wireless Android Auto (for Android phone users)

Similarly, once your Android phone is paired, the Android Auto interface will appear on your car's screen. This allows you to use navigation, stream music, make calls, and utilize other compatible Android Auto applications.

Image: A visual comparison of the Wireless CarPlay and Wireless Android Auto interfaces as displayed on a car's infotainment screen.

Image: Flowcharts detailing the process of converting wired CarPlay and Android Auto to their wireless counterparts using the adapter.

6. Compatibility

The Carlinkit 5.0 adapter is compatible with:

• Cars: Original cars equipped with factory-installed wired CarPlay or wired Android Auto (model years 2016-2025).
• iPhones: iPhone 6 and above models running iOS 10 and above.
• Android Phones: Android phones running Android 11.0 and above.

Note: This product is NOT compatible with Tesla and BMW models. HUAWEI phones may also have compatibility issues.

Image: Visual representation of the Carlinkit 5.0's compatibility requirements for both vehicles and smartphones.

7. Maintenance

To ensure the longevity and optimal performance of your Carlinkit 5.0 adapter:

• Keep the device clean and free from dust. Use a soft, dry cloth for cleaning.
• Avoid dropping the device or subjecting it to strong impacts.
• Store the device in a cool, dry place when not in use.
• Do not expose the device to water or other liquids.

8. Troubleshooting

If you encounter issues with your Carlinkit 5.0 adapter, try the following solutions:

• No Connection:
  • Ensure your car has factory-wired CarPlay or Android Auto.
  • Verify that Bluetooth and Wi-Fi are enabled on your phone.
  • Check if the adapter's signal light is on.
  • Try unplugging and re-plugging the adapter.
  • Restart your phone and your car's infotainment system.
• Intermittent Connection/Lag:
  • Ensure there are no other strong Wi-Fi or Bluetooth signals interfering.
  • Keep your phone close to the adapter for optimal signal strength.
  • Check for firmware updates (see Online Updates section below).
• Audio Issues:
  • Verify your car's audio input is set correctly.
  • Adjust volume levels on both your phone and car system.

8.1 Online Updates (OTA)

The Carlinkit 5.0 supports Over-The-Air (OTA) upgrades. This allows for online feedback and prompt solutions to potential issues, ensuring your device remains up-to-date with the latest features and bug fixes.

To check for updates:

1. Connect your mobile phone to the product's Wi-Fi.
2. Open a web browser and enter the background setting address: 192.168.50.2
3. Follow the on-screen prompts to check for and install updates.

Image: Screenshot of the Carlinkit online update interface accessible via a web browser on your phone.

9. Specifications

Image: Detailed specifications and physical dimensions of the Carlinkit 5.0 adapter.

10. Warranty and Support

Carlinkit is committed to providing excellent customer service and product support.

• 1 Month: If there is a product-related problem within one month of purchase, you can contact customer service for replacement or a fast refund (non-artificial damage).
• 1 Year: We provide one year FREE after-sale guarantee service. For support, please email: support@carlinkit.com
• 24 Hours: If you encounter product problems, please feel free to contact customer service; we will reply within 24 hours.

Image: Summary of Carlinkit's warranty and support policies.

For further assistance, please refer to the official Carlinkit store or contact the seller directly.
