1. Introduction
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your SMETA SWF-180A13LBM 5.5 Cu. Ft. Front Load Washing Machine. Please read this manual thoroughly before using the appliance and retain it for future reference.
The SMETA SWF-180A13LBM is a high-capacity front-load washing machine designed for household use, featuring a 5.5 cubic feet stainless steel drum, 12 wash cycles, steam function, and a quiet inverter motor for stable and efficient performance.
Figure 1.1: Overview of the SMETA SWF-180A13LBM Front Load Washing Machine. This image displays the full front view of the white washing machine with its control panel and large front-loading door.
2. Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury to persons.
- Read all instructions before using the appliance.
- Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances.
- Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
- Do not reach into the appliance if the tub or agitator is moving.
- Do not install or store this appliance where it will be exposed to the weather.
- Do not tamper with controls.
- Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
2.1 Important: Remove Shipping Bolts
Before operating the washing machine, it is critical to remove the four shipping bolts located at the rear of the unit. Failure to remove these bolts will cause severe vibration, noise, and potential damage to the appliance during operation.
Figure 2.1: Illustration showing the location of the four shipping bolts on the rear of the washing machine. The image highlights the bolts with red circles and arrows, emphasizing the warning to remove them before use to prevent violent shaking.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including the base packaging. Inspect the washing machine for any damage during transit. Report any damage to your retailer immediately.
3.2 Removing Shipping Bolts
Refer to Section 2.1 and Figure 2.1. Use a wrench to loosen and remove the four shipping bolts from the back of the washing machine. Keep these bolts for future transport of the appliance.
3.3 Location and Leveling
Place the washing machine on a firm, level floor. Ensure there is adequate space around the unit for ventilation and connections. The dimensions of the unit are approximately 34 inches deep, 27 inches wide, and 40 inches high.
Figure 3.1: Diagram illustrating the dimensions of the washing machine. The image shows the front and side views with measurements: 27 inches wide, 34 inches deep, and 40 inches high.
Adjust the leveling feet at the bottom of the machine until the appliance is stable and level. Use a spirit level to confirm.
3.4 Water Supply Connection
Connect the hot and cold water inlet hoses to the corresponding hot and cold water valves on your wall and to the back of the washing machine. Ensure all connections are tight to prevent leaks.
3.5 Drain Hose Connection
Securely attach the drain hose to the drain outlet at the back of the machine and route it into a standpipe or laundry tub. Ensure the drain hose is properly secured to prevent it from dislodging during the drain cycle.
3.6 Electrical Connection
Plug the power cord into a grounded 120V, 60Hz electrical outlet. Do not use extension cords or adapters.
4. Operating Instructions
4.1 Control Panel Overview
The washing machine features an LED intelligent touch control panel for easy selection and adjustment of functions.

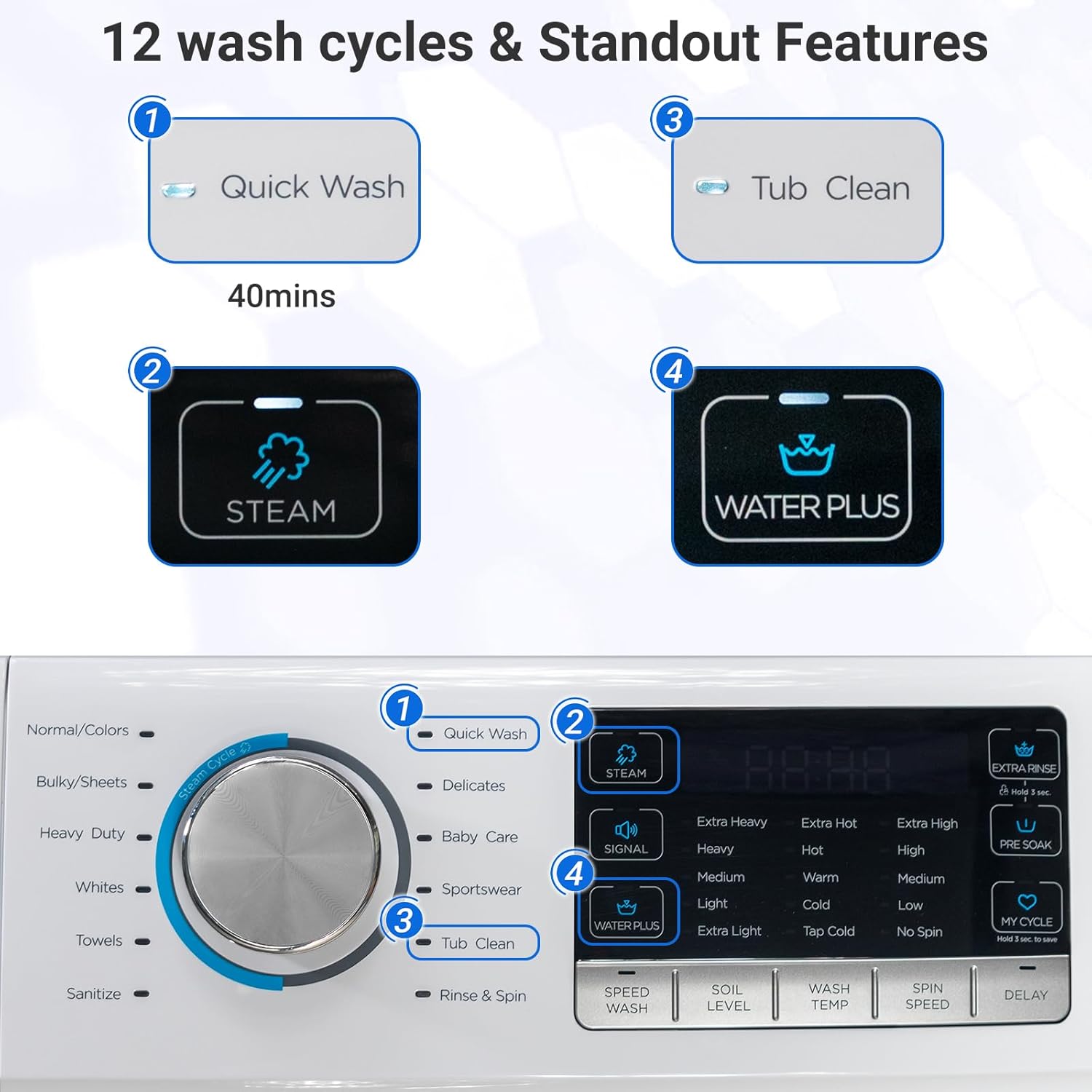

Figure 4.1: Detailed view of the washing machine's control panel, highlighting the cycle selector knob and various button functions such as Quick Wash, Steam, Tub Clean, and Water Plus. The image shows the digital display and indicators for wash settings.
Figure 4.2: Collage of washing machine features, including close-ups of the steam function, quick wash (40 minutes), touch control panel, child lock, maximum spin speed (1300 RPM), add garments feature, tub clean, and delay start (24 hours). This image provides visual cues for various operational aspects.
4.2 Loading Laundry
Open the door and load clothes into the drum. Do not overload the machine. The 5.5 cu. ft. capacity can accommodate large loads, including king-size comforters, up to 40 lbs.
Figure 4.3: The washing machine with its door open, showing a large load of white laundry inside the drum. This illustrates the substantial capacity of the appliance, suitable for family-sized loads.
4.3 Adding Detergent and Additives
Add the appropriate amount of detergent and any fabric softeners or other additives to the dispenser drawer. Refer to your detergent's instructions for dosage.
4.4 Selecting a Wash Cycle
Turn the cycle selector knob or press the corresponding button on the control panel to choose one of the 12 available wash cycles:
- Normal/Colors
- Bulky/Sheets
- Heavy Duty
- Whites
- Sanitize
- Quick Wash (approx. 40 minutes)
- Delicates
- Baby Care
- Sportswear
- Tub Clean
- Rinse & Spin
- Drain & Spin
4.5 Adjusting Wash Settings
After selecting a cycle, you can customize settings using the touch buttons:
- Wash Temp: Select from various temperature options (e.g., Tap Cold, Cold, Warm, Hot, Extra Hot).
- Spin Speed: Adjust the spin speed up to 1300 RPM.
- Soil Level: Choose the soil level for appropriate wash intensity.
- Special Features:
- Steam: Activates the steam function for enhanced cleaning and stain removal.
- Water Plus: Adds more water to the wash cycle.
- Pre-Soak: Soaks clothes before the main wash cycle.
- Extra Rinse: Adds an additional rinse cycle.
- Child Lock: Locks the control panel to prevent accidental changes (hold for 3 seconds).
- Delay: Delays the start of the wash cycle for up to 24 hours.
- Add Garments: Allows you to pause the cycle and add forgotten items.
4.6 Starting a Wash
Press the 'Start/Pause' button to begin the selected wash cycle. The machine will automatically detect unbalancing and adjust as needed.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your washing machine.
5.1 Cleaning the Dispenser Drawer
Periodically remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse it under warm water and dry before reinserting.
5.2 Cleaning the Drum (Tub Clean)
Use the dedicated 'Tub Clean' cycle regularly (e.g., once a month) to clean the interior of the drum and remove any detergent or fabric softener residue. Follow the instructions for the 'Tub Clean' cycle on your control panel.
5.3 Cleaning the Exterior
Wipe the exterior surfaces of the washing machine with a soft, damp cloth. Avoid abrasive cleaners or solvents.
5.4 Cleaning the Drain Pump Filter
Locate the drain pump filter, usually behind a small access panel at the bottom front of the machine. Open the panel, place a shallow pan underneath to catch water, and carefully unscrew the filter. Clean any lint or debris from the filter and housing, then reassemble.
6. Troubleshooting
Before contacting customer support, review the following common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Door not closed properly; Child Lock activated. | Ensure power cord is securely plugged in; Close door firmly; Deactivate Child Lock (hold for 3 seconds). |
| Excessive vibration/noise | Shipping bolts not removed; Machine not level; Uneven load. | Remove shipping bolts (refer to Section 2.1); Level the machine; Redistribute laundry evenly in the drum. |
| Water not draining | Drain hose kinked or blocked; Drain pump filter clogged. | Check drain hose for kinks or obstructions; Clean the drain pump filter (refer to Section 5.4). |
| Water leaks | Hose connections loose; Detergent overdose; Drain hose improperly installed. | Tighten all water inlet hose connections; Use correct amount of detergent; Ensure drain hose is securely placed. |
| Clothes not clean | Overloading; Incorrect cycle/temperature; Insufficient detergent. | Reduce load size; Select appropriate cycle and temperature; Use recommended detergent amount. |
7. Product Specifications
| Feature | Specification |
|---|---|
| Brand | SMETA |
| Model Number | SWF-180A13LBM |
| Capacity | 5.5 Cubic Feet |
| Dimensions (D x W x H) | 34 x 27 x 40 inches |
| Item Weight | 232 pounds |
| Max Spin Speed | 1300 RPM |
| Standard Cycles | 12 |
| Voltage | 120 Volts (AC) |
| Material (Drum) | Stainless Steel |
| Control Console | Touch |
| Special Features | Child Lock, Drum Clean, High Efficiency, Temperature Control, Steam, Quick Wash, Pre-Soak, Delay, Add Garments, Auto Unbalancing Detection |
| Efficiency | High Efficiency, Energy Star Certified |
8. Warranty and Support
8.1 Warranty Information
This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact SMETA customer support. Contact details can typically be found on the manufacturer's website or on your purchase documentation.
