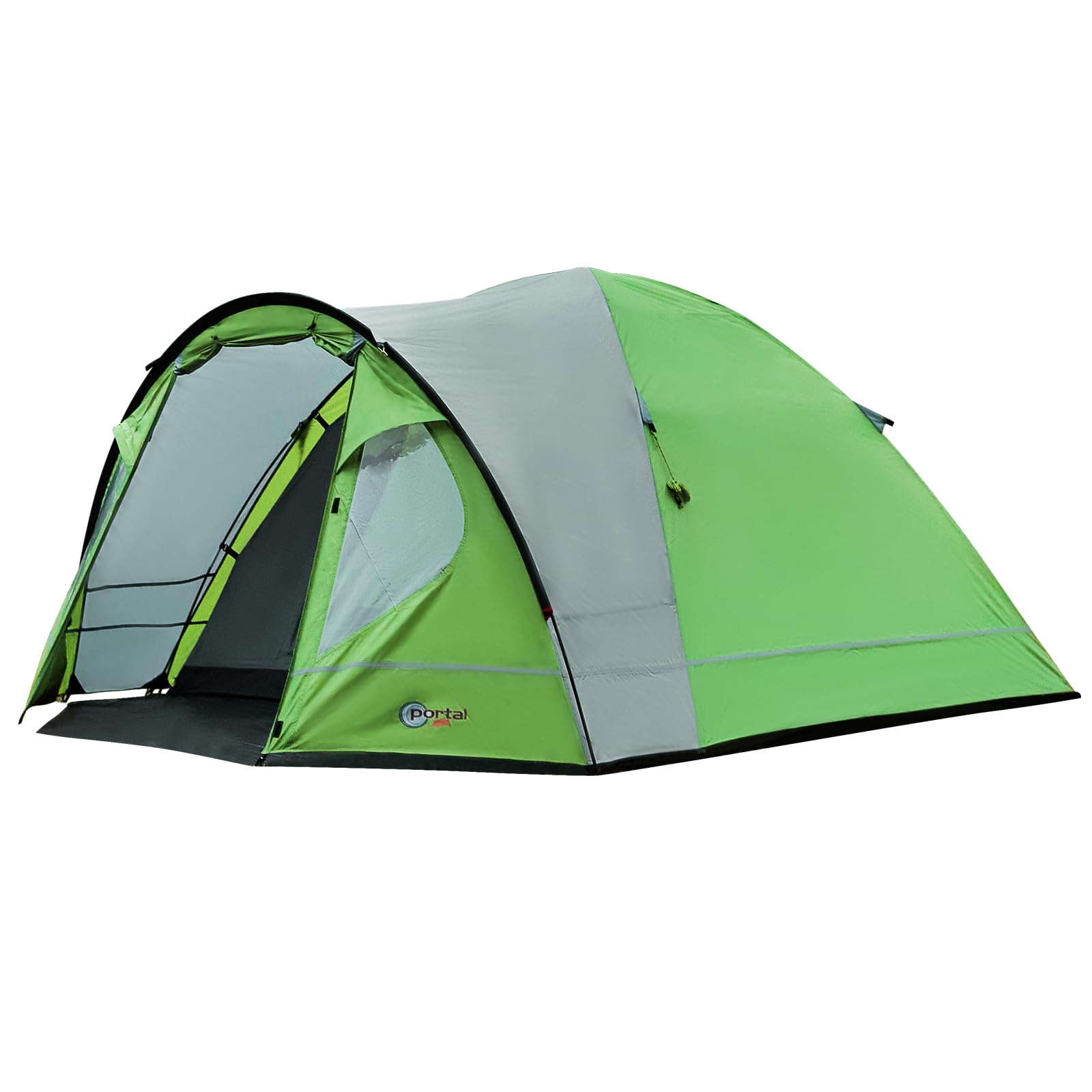

Portal 3-4 Person Dome Tent Instruction Manual

Introduction

Thank you for choosing the Portal 3-4 Person Dome Tent. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your tent. Please read these instructions carefully before use and retain them for future reference.

This tent is designed for camping, travel, trekking, and garden use, offering protection from the elements with its 4000mm waterproof rating.

Safety Information

• Keep all flame and heat sources away from the tent fabric. The tent is made of flame-resistant fabric, but it is not fireproof.
• Do not use fuel-burning appliances inside the tent.
• Ensure proper ventilation to avoid suffocation.
• Do not pitch the tent under trees with dead branches or in areas prone to rockfalls or landslides.
• Secure the tent properly with all stakes and guy ropes to prevent collapse in windy conditions.
• Avoid setting up the tent near open water sources without proper precautions.

Package Contents

Before assembly, verify that all components are present:

• Tent body (inner tent)
• Rainfly (outer tent)
• Fiberglass tent poles (typically 2-3 main poles)
• Tent stakes
• Guy ropes
• Carry bag

Note: The exact number of poles, stakes, and ropes may vary slightly.

Setup Instructions

Estimated assembly time: 10 minutes.

Step 1: Prepare the Site

Choose a flat, clear area free of sharp objects. Lay out the tent body (inner tent) on the ground.

Image: The tent components, including the tent body, poles, and rainfly, are spread out on a grassy area near a body of water, ready for assembly.

Step 2: Assemble the Poles

Connect the fiberglass pole sections by inserting them into each other. Ensure all sections are fully seated.

Image: A diagram illustrating the tent's dimensions (240cm width, 210cm length, 130cm height) and packed size (66x20x22cm), along with weight (5.4kg) and waterproof rating (4000mm).

Step 3: Insert Poles into Tent Body

Slide the assembled poles through the sleeves on the tent body. Once through, insert the ends of the poles into the grommets located at the corners of the tent base. Secure the tent body to the poles using the attached clips or ties.

Step 4: Attach the Rainfly

Drape the rainfly over the erected tent body. Align the doors and vents. Secure the rainfly to the tent body and poles using the attached buckles, hooks, or ties. Ensure the rainfly is taut and evenly distributed over the tent.

Step 5: Stake Down the Tent and Guy Ropes

Secure the tent corners to the ground using stakes. Extend the guy ropes from the designated points on the rainfly and stake them firmly into the ground at an appropriate angle (approximately 45 degrees) to provide stability, especially in windy conditions.

For a visual guide, please refer to the setup video below:

Operating Instructions

Entry and Exit

Use the zippered doors for entry and exit. Always zip the doors closed when not in use to prevent insects and moisture from entering.

Ventilation

The tent features mesh windows and vents to promote airflow and reduce condensation. Open these as needed for optimal ventilation. The tent's design allows for good sight and ventilation.

Image: A view from inside the tent, looking out through the open mesh door, revealing a scenic landscape with mountains and a lake, highlighting the tent's ventilation and view.

Awning/Anteroom Use

The tent includes an awning area (anteroom) which can be used for storing gear, shoes, or as a sheltered space. This area is approximately 2.4 square meters.

Image: The anteroom of the tent, showing ample space for storing camping equipment, shoes, or luggage, with a small table and blanket inside.

Maintenance

Cleaning

Clean the tent with a soft sponge and mild soap. Do not use harsh detergents, bleach, or solvents, as these can damage the fabric's waterproof coating.

Drying

Always ensure the tent is completely dry before packing it away. Packing a wet tent can lead to mildew, odors, and damage to the waterproof coating. Hang the tent in a shaded, well-ventilated area to dry.

Storage

Store the clean, dry tent in its carry bag in a cool, dry place away from direct sunlight and extreme temperatures.

Waterproofing

The tent features a 4000mm PU waterproof coating. Over time, this coating may degrade. Re-apply a suitable tent waterproofing spray if you notice reduced water repellency.

Image: Close-up of water droplets beading and running off the tent fabric, demonstrating its 4000mm waterproof capability.

Troubleshooting

Condensation Inside Tent

Condensation is natural and occurs when warm, moist air inside the tent meets cooler air outside. To minimize condensation, ensure adequate ventilation by opening vents and mesh windows.

Water Leaks

Check for proper rainfly placement and tension. Ensure all zippers are fully closed. Inspect seams for damage; seam sealer can be applied if necessary. Verify that the tent is pitched on level ground to prevent water pooling.

Tent Instability in Wind

Ensure all tent stakes are firmly driven into the ground and all guy ropes are properly tensioned and secured. Adjust guy ropes to distribute tension evenly. Consider using heavier-duty stakes in very soft or sandy soil.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the official Portal website. Keep your purchase receipt as proof of purchase.

For additional resources and product information, you may visit the product page.
