1. Introduction
Thank you for choosing the AMEGAT Power Bank 140W 27600mAh (Model PBQ2610). This high-capacity portable charger is designed to provide fast and efficient power to your laptops, tablets, smartphones, and other USB-powered devices. Featuring PD 3.1 technology, a digital display, and multiple output ports, it ensures your devices stay charged on the go. Please read this manual carefully to ensure proper use and optimal performance.
2. Product Overview
2.1 Package Contents
- AMEGAT Power Bank 140W 27600mAh (Model PBQ2610)
- USB-C to USB-C Charging Cable (60cm)
- User Manual
2.2 Key Features
- 140W Power Delivery 3.1: Supports ultra-fast charging and recharging for compatible devices.
- 27600mAh High Capacity: Provides multiple charges for smartphones and tablets, and significant power for laptops.
- Multi-Port Output: Equipped with 2 USB-C ports and 1 USB-A port for simultaneous charging of up to three devices.
- Smart Digital Display: Real-time monitoring of input/output power, battery percentage, and estimated charging/recharging time.
- Comprehensive Safety Protection: Built-in EntireProtect system guards against overcharge, overheat, overcurrent, overvoltage, and short circuits.
- Airline Approved: Designed to meet airline regulations for carry-on luggage.
2.3 Product Diagram
Refer to the image below for an overview of the power bank's components and ports.
Image: Front view of the AMEGAT Power Bank, showing the digital display, power button, and port labels.
Image: Diagram illustrating the dimensions of the AMEGAT Power Bank (153mm x 53mm x 50mm) and the length of the included 60cm USB-C cable.
3. Setup
3.1 Initial Charge
Before first use, fully charge your AMEGAT Power Bank. This ensures optimal battery performance and calibration.
- Connect the included USB-C to USB-C cable to one of the power bank's USB-C ports (C1 or C2).
- Connect the other end of the cable to a compatible USB-C wall charger (not included) with a minimum output of 65W for fast charging. For optimal 140W input, use a 140W PD 3.1 compatible charger.
- The digital display will show the charging status, including input wattage and estimated time to full charge.
- A full charge from 0% typically takes approximately 2 hours with a 140W input charger.
Image: The AMEGAT Power Bank connected to a MacBook Pro 16-inch, demonstrating 140W single-port fast charging, achieving 50% charge in 40 minutes. Note: Use original USB-C to MagSafe cable for peak performance with MacBooks.
4. Operating Instructions
4.1 Charging Devices
The AMEGAT Power Bank can charge a wide range of devices, including laptops, tablets, smartphones, and other USB-powered gadgets.
- Connect your device to the power bank using an appropriate charging cable.
- For USB-C devices (laptops, tablets, modern smartphones): Use the USB-C ports (C1 or C2). These ports support up to 140W output individually.
- For USB-A devices (older smartphones, smartwatches, headphones): Use the USB-A port (A1). This port supports up to 22.5W output.
- The power bank will automatically detect the connected device and begin charging. The digital display will show the output wattage for each active port.
- To check the power bank's remaining battery, press the power button once.
Image: The AMEGAT Power Bank simultaneously charging three devices: a laptop (90W), a tablet (30W), and a smartphone (18W), demonstrating its multi-port capability.
4.2 Digital Display Functions
The intuitive digital display provides essential information about the power bank's status:
- Battery Percentage: Shows the current charge level of the power bank.
- Input/Output Wattage: Displays the power being drawn (input) or delivered (output) for each port (C1, C2, A1).
- Estimated Time: Indicates the approximate time remaining to fully charge the power bank or the estimated time the power bank can continue charging devices.
- Screen Display Time: Press the power button to cycle through display modes or adjust screen timeout settings.
Image: Close-up of the digital display, showing battery percentage, input/output wattage for each port, and options to view battery cycles or adjust screen display time.
4.3 Capacity and Compatibility
With its 27600mAh capacity, the power bank can provide significant power:
- Approximately 0.8 charges for a 16-inch MacBook Pro.
- Approximately 3.8 charges for a Samsung Galaxy S23 Ultra.
- Approximately 4.7 charges for an iPhone 14.
- Approximately 3.9 charges for a Nintendo Switch.
Image: The AMEGAT Power Bank positioned among a MacBook Pro 16", Galaxy S23 Ultra, iPhone 14, and Nintendo Switch, illustrating its massive 27600mAh capacity and approximate charge cycles for each device.

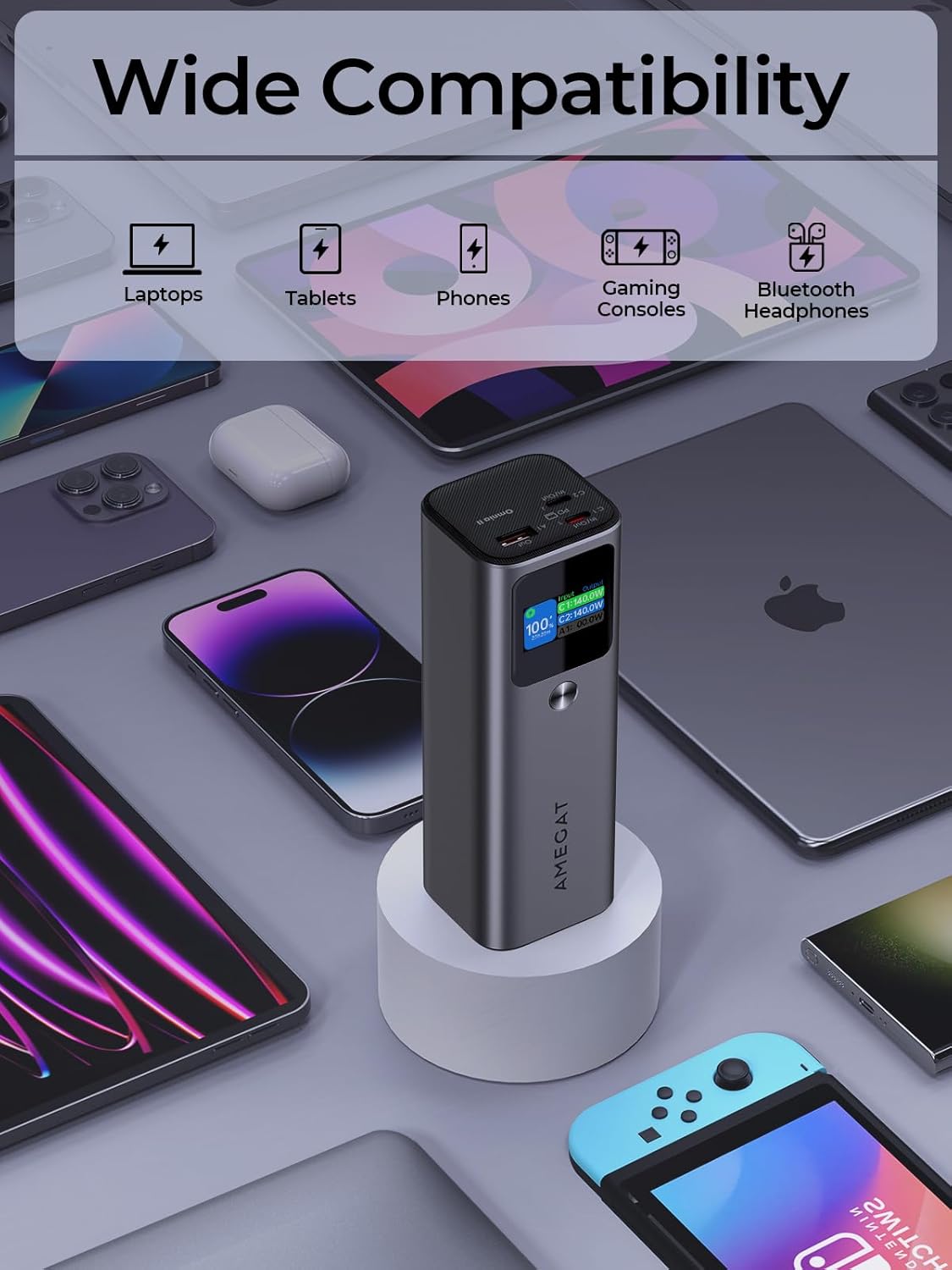

Image: The AMEGAT Power Bank surrounded by various devices including laptops, tablets, phones, gaming consoles, and Bluetooth headphones, highlighting its wide compatibility.
5. Maintenance
- Storage: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures.
- Cleaning: Use a soft, dry cloth to clean the exterior of the power bank. Do not use liquid cleaners or solvents.
- Battery Health: For optimal battery longevity, avoid fully discharging the power bank regularly. Recharge it when the battery level is low. If storing for extended periods, charge it to about 50-70% every 3-6 months.
- Avoid Drops: Protect the device from drops and impacts, which can damage internal components.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Power bank not charging |
|
|
| Device not charging from power bank |
|
|
| Digital display not working |
|
|
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | PBQ2610 |
| Brand | AMEGAT |
| Battery Capacity | 27600 mAh (99.36 Wh) |
| Battery Composition | Lithium-Polymer |
| Input (USB-C1/C2) | Up to 140W (PD 3.1) |
| Output (USB-C1/C2) | Up to 140W (PD 3.1) |
| Output (USB-A) | Up to 22.5W |
| Total Output (Max) | 140W (Dynamic Power Distribution) |
| Connector Type | USB Type A, USB Type C |
| Special Features | Digital Display, Fast Charging, Universal Compatibility |
| Color | Space Gray |
| Product Dimensions | 15.3 cm (L) x 5.3 cm (W) x 5.0 cm (H) |
| Number of Ports | 3 (2x USB-C, 1x USB-A) |
Note on Voltage: The 3.6 Volts listed in some specifications refers to the nominal internal cell voltage. The power bank outputs higher voltages (e.g., 5V, 9V, 12V, 15V, 20V) via Power Delivery for compatible devices.
8. Safety Information
- Do not expose the power bank to extreme temperatures (above 60°C/140°F or below 0°C/32°F), direct sunlight, or fire.
- Do not disassemble, modify, or attempt to repair the device.
- Keep away from water and high humidity.
- Do not use if the power bank is damaged, swollen, or leaking.
- Keep out of reach of children.
- Dispose of the power bank responsibly according to local regulations.
- The power bank features an "EntireProtect" system to prevent overcharge, overheat, overcurrent, overvoltage, and short circuits.
Image: A hand holding the AMEGAT Power Bank inside an airplane cabin, indicating its suitability for air travel (airline approved).
9. Warranty and Support
AMEGAT products come with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official AMEGAT website.
If you encounter any issues or have questions regarding your AMEGAT Power Bank, please contact our customer support team:
- Email: [Insert Customer Support Email Here]
- Website: [Insert Official Website URL Here]
- Please have your model number (PBQ2610) and purchase details ready when contacting support.
