1. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating the appliance.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
- Always supervise children when the appliance is in use.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Keep the appliance and its cord out of reach of children.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place the appliance against a wall or other appliances. Leave at least 10 cm free space on the back and sides and 10 cm free space above the appliance.
- Do not place anything on top of the appliance.
- Use the appliance only for its intended household purpose.
- Always unplug the appliance when not in use and before cleaning. Allow it to cool down before handling.
- The appliance has an automatic cut-off switch and overheating protection for safety.
2. Product Overview
The Mayer MMGAF539D Air Fryer is designed for efficient and healthy cooking with a 5.5L capacity and a convenient see-through window.

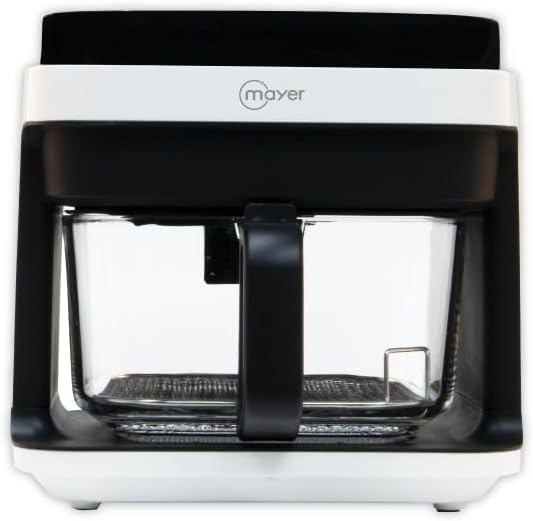

Figure 2.1: Front view of the Mayer MMGAF539D Air Fryer. This image shows the appliance from the front, highlighting the main body and the clear glass basket.
Figure 2.2: Side view of the Mayer MMGAF539D Air Fryer. This image provides a perspective of the appliance's depth and overall shape.
Components:
- Main Unit: Houses the heating element and control panel.
- Sensor Touch Control Panel with LED Display: For setting temperature, time, and selecting functions.
- See-through Glass Basket: 5.5L capacity, made of high heat-resistant food-grade borosilicate glass, allowing 360° visibility of food during cooking.
- Removable Stainless Steel Basket Tray: Sits inside the glass basket for food placement.
- Handle: For safely pulling out and inserting the glass basket.
- Non-slip Feet: For stability during operation.
3. Setup and First Use
- Unpacking: Remove all packaging materials, stickers, and labels from the appliance.
- Cleaning: Clean the glass basket and stainless steel tray with hot water, a mild detergent, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a moist cloth. Ensure all parts are completely dry before use.
- Placement: Place the air fryer on a stable, horizontal, and heat-resistant surface. Ensure there is at least 10 cm of free space around the appliance for proper ventilation.
- Power Connection: Plug the power cord into a grounded wall outlet.
- Initial Run (Optional but Recommended): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C to eliminate any manufacturing odors. A slight odor may be present, which is normal and will dissipate.
4. Operating Instructions
The Mayer MMGAF539D Air Fryer features a sensor touch control panel with an LED display for easy operation.

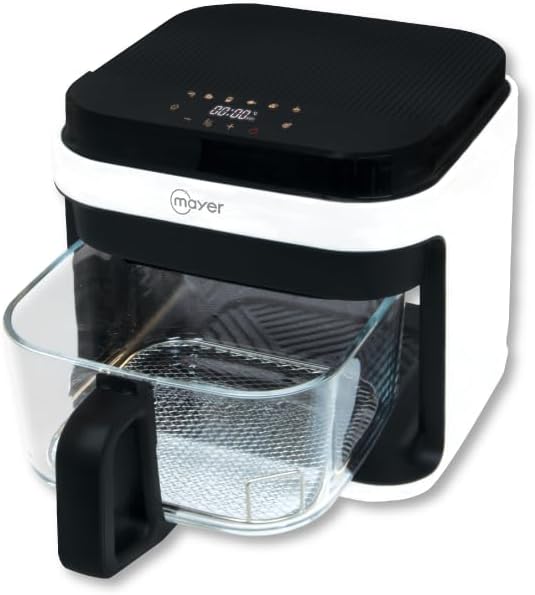

Figure 4.1: The air fryer with its glass basket pulled out, showing the removable stainless steel tray inside.
4.1 Basic Operation:
- Power On: Plug in the appliance. The power indicator will light up.
- Preheating: For best results, preheat the air fryer for 3-5 minutes at the desired cooking temperature.
- Loading Food: Carefully pull out the glass basket using the handle. Place ingredients onto the stainless steel tray inside the basket. Do not overfill.
- Insert Basket: Push the glass basket back into the appliance until it clicks into place.
- Select Function: Choose from 7 preset functions or use the DIY mode.
- Adjust Settings: Use the touch controls to set the desired temperature (40-200°C) and cooking time (up to 60 minutes).
- Start Cooking: Press the start button to begin the cooking process.
- Monitoring: The see-through glass basket allows you to monitor food without opening the basket.
- Shaking/Turning: For even cooking, some foods may require shaking or turning halfway through the cooking time. Carefully pull out the basket, shake/turn, and reinsert. The appliance will pause and resume automatically.
- Completion: The timer will sound when cooking is complete. Carefully pull out the basket and remove the cooked food.

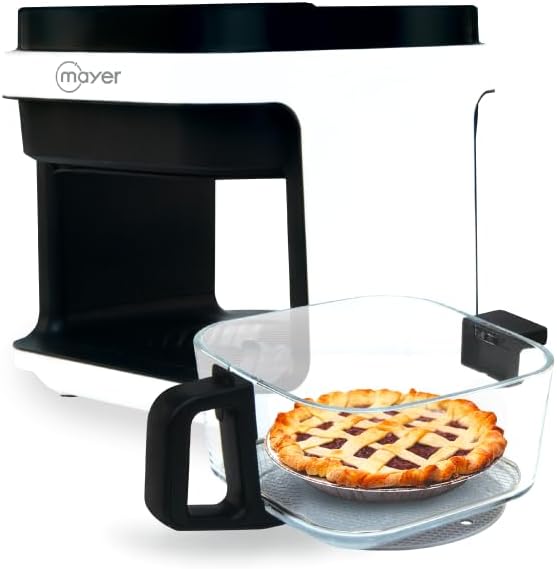

Figure 4.2: The air fryer in use, showing a pie cooking inside the transparent glass basket, demonstrating the visibility feature.
4.2 Preset Functions:
The air fryer includes 7 preset functions for common dishes. Refer to the control panel for specific icons. Selecting a preset will automatically set a recommended temperature and time, which can then be adjusted manually if needed.
4.3 DIY Mode:
The DIY mode allows full manual control over temperature and time. Use the temperature and timer adjustment buttons to set your desired cooking parameters.
5. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.
- Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool down completely before cleaning.
- Glass Basket and Tray: The removable glass basket and stainless steel tray are dishwasher safe. Alternatively, wash them with hot water, a mild detergent, and a non-abrasive sponge. For stubborn food residues, soak them in hot water for about 10 minutes before cleaning.
- Interior: Wipe the interior of the appliance with a damp cloth and a mild detergent. Do not use abrasive cleaners or scouring pads.
- Exterior: Clean the exterior of the air fryer with a damp cloth.
- Storage: Ensure all parts are clean and dry before storing the appliance in a cool, dry place.
6. Troubleshooting
If you encounter issues with your Mayer MMGAF539D Air Fryer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in. Power outlet not working. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. |
| Food is not cooked evenly. | Basket is overloaded. Food not shaken/turned. | Do not overfill the basket. Shake or turn food halfway through cooking. |
| White smoke comes from the appliance. | Grease residue from previous use. Fatty ingredients. | Clean the basket and tray thoroughly after each use. Remove excess oil from ingredients. |
| Appliance smells during first use. | Manufacturing residue. | This is normal. Run the air fryer empty for 10-15 minutes at 180°C. Ensure good ventilation. |
7. Specifications
Technical details for the Mayer MMGAF539D Air Fryer:
- Model: MMGAF539D
- Capacity: 5.5 Liters
- Power: 1500 Watts
- Voltage: 220 Volts
- Temperature Range: 40-200°C
- Timer: Up to 60 minutes
- Control Method: Sensor Touch with LED Display
- Material: High heat-resistant food-grade borosilicate glass (basket), Stainless Steel (tray), Polypropylene (outer material)
- Product Dimensions (D x W x H): 29.7D x 35.6W x 28.4H centimetres
- Item Weight: 4.2 Kilograms
- Special Features: Automatic Shut-Off, Overheating Protection, Non-slip feet, See-through window
Figure 7.1: Diagram showing the dimensions of the Mayer MMGAF539D Air Fryer: 35.6cm width, 29.7cm depth, and 28.4cm height.
8. Warranty and Support
This Mayer MMGAF539D Air Fryer comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.
For technical support, service, or inquiries regarding your product, please contact Mayer customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (MMGAF539D) and purchase details ready.
