EBL MLI12-ST080B Lithium LiFePO4 Powersports Battery User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your EBL MLI12-ST080B Lithium LiFePO4 Powersports Battery. Please read it thoroughly before installation and operation. This battery is designed as a high-performance replacement for lead-acid batteries in various powersports vehicles.

Key features include:

• Lightweight design (approximately 1.2kg).
• High cranking power (480CA, 240CCA).
• Extended cycle life (over 3,000 charge cycles).
• Integrated Battery Management System (BMS) for protection.
• Wide operating temperature range (-76°F to 131°F / -30°C to 60°C).

2. Safety Information

Observe the following safety precautions to prevent injury or damage:

• Always confirm the battery model, size, terminal position, and cranking current are compatible with your vehicle before purchase and installation.
• It is recommended to charge the battery using a lithium-compatible charger before its first use. Do not use lead-acid battery chargers.
• Ensure battery connections are secure to prevent startup failures or electrical issues.
• Do not short-circuit the battery terminals.
• Avoid exposing the battery to extreme physical shock or puncture.
• Do not attempt to open or modify the battery casing.

3. Product Overview and Components

The EBL MLI12-ST080B battery features a robust design with integrated components for performance and safety.

Figure 3.1: Front view of the EBL MLI12-ST080B Lithium LiFePO4 Powersports Battery.

Figure 3.2: Detailed view of the battery's features, including pure copper terminals, a power indicator light, and a PC+ABS protective shell.

What's in the Box:

Figure 3.3: All items included in the product packaging.

• 1 x EBL Motorcycle Lithium Battery 12V 8Ah 480A Powersports Battery
• 2 x 12mm Spacers
• 2 x Top Cover Screws
• 4 x 12mm Spacer Screws
• 4 x 25mm Spacer Screws
• 2 x 12mm Side foam
• 1 x Screwdriver
• 1 x Product Manual
• 1 x Spacer Manual

4. Setup and Installation

The EBL MLI12-ST080B battery is designed for easy installation and compatibility with various powersports vehicles.

4.1. Preparing for Installation

• Ensure the vehicle's ignition is off and the old battery is disconnected.
• Wear appropriate safety gear, including gloves and eye protection.

4.2. Using Spacers for Fitment

The battery comes with adjustable spacers (12mm and 25mm) and foam to ensure a secure fit in various battery compartments. These allow for compatibility with many lead-acid battery models.

Figure 4.1: The battery's adjustable size feature, compatible with motorcycles, ATVs, UTVs, jet skis, snowmobiles, and motocross bikes.

Figure 4.2: Examples of how spacers can be used to adjust the battery's height for different compartments.

4.3. Terminal Connection

The battery features pure copper terminals for superior conductivity and corrosion resistance. It supports multiple connection methods:

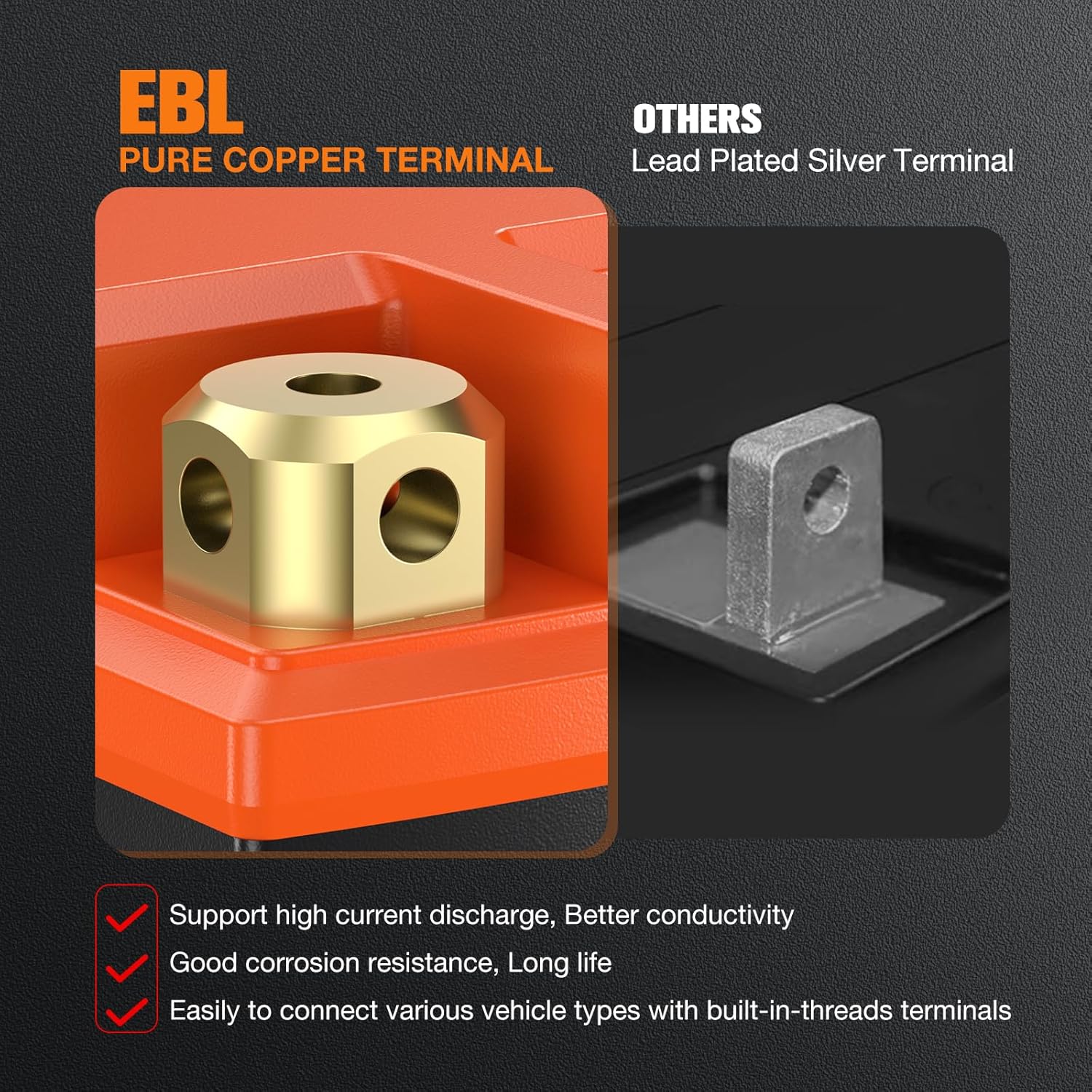

Figure 4.3: Detail of the pure copper terminal, designed for high current discharge and better conductivity.

Figure 4.4: Illustration of top, side, and front connection methods using the provided screws.

• Top Connection: Use the top cover screws to secure the terminal connectors.
• Side Connection: Utilize the internal threads on the side of the terminals with appropriate screws.
• Front Connection: Connect from the front using the internal threads.

Choose the most suitable connection method for your vehicle.

5. Operating Instructions

5.1. Initial Use

It is recommended to fully charge the battery before its first use to ensure optimal performance. Use only a charger specifically designed for lithium batteries.

5.2. Power Display

The battery is equipped with a power display on the top to monitor its charge status. Refer to this indicator to understand the remaining battery capacity.

5.3. Temperature Performance

The EBL LiFePO4 battery is designed to operate effectively across a wide temperature range, from -76°F (-30°C) to 131°F (60°C), providing reliable starting power in various climates.

Figure 5.1: The battery maintains performance in both cold (-76°F) and hot (131°F) conditions.

6. Maintenance

The EBL LiFePO4 battery is designed to be maintenance-free, offering advantages over traditional lead-acid batteries.

6.1. General Maintenance

• No activation, sulfation, acid, or water is required.
• Periodically check terminal connections for tightness.
• Keep the battery clean and free of debris.

6.2. Battery Management System (BMS)

The integrated Smart BMS protects the battery from various conditions, extending its lifespan and ensuring safe operation.

Figure 6.1: The BMS provides protection against short circuit, overvoltage, overdischarge, overcurrent, and overcharge.

Figure 6.2: The advanced BMS continuously monitors and manages battery performance.

When the BMS detects a hazardous condition (e.g., overcharging, over-discharging, short circuit, or overheating), it will automatically disconnect the circuit to protect the battery from permanent damage.

7. Troubleshooting

If you encounter issues with your EBL MLI12-ST080B battery, consider the following:

• Startup Failure: If the vehicle does not start, first check that the battery connections are secure and properly tightened. Attempt to start again.
• Battery Not Charging: Ensure you are using a lithium-compatible charger. Verify charger connections and power supply.
• Sudden Power Loss: The BMS may have activated a protection feature (e.g., over-discharge, over-temperature). Allow the battery to cool down or recharge if necessary.
• Incorrect Fitment: If the battery does not fit correctly, utilize the provided spacers and foam to achieve a snug and secure installation.

For persistent issues, please contact EBL customer support.

8. Specifications

9. Warranty and Support

For any product inquiries, technical assistance, or warranty claims, please contact EBL customer service.

Email: service@eblofficial.com

Please have your model number (MLI12-ST080B) and purchase information ready when contacting support.
