Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and care of your Rattan LM/LF Pro 750W Electric Bike. Designed for adults, this foldable e-bike features a powerful 750W motor, a 48V 13AH removable battery, and 20" x 4.0 fat tires, making it suitable for various terrains and uses, including commuting and leisure rides. Please read this manual thoroughly before your first ride to ensure proper assembly and understanding of all functions and safety precautions.
Safety Information
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Regular inspection and maintenance are crucial for safe operation.
- Pre-Ride Check: Before each ride, inspect tires for proper inflation, brakes for functionality, and ensure all bolts and quick releases are securely tightened.
- Battery Safety: Only use the original charger provided. Do not expose the battery to extreme temperatures or puncture it. Ensure the battery is securely locked in place before riding.
- Braking: Practice braking in a safe area to understand the bike's stopping distance. Use both front and rear brakes simultaneously for optimal stopping power.
- Autocruise Control Warning: Be aware that the autocruise control feature, if activated, may not disengage immediately upon releasing the throttle. Always use the brakes to disengage cruise control to prevent unintended acceleration, especially in challenging terrain or traffic.
- Weight Limits: Do not exceed the maximum load capacity of 330 lbs (150 kg) for the bike and 110 lbs (50 kg) for the rear seat.
- Visibility: Use lights and reflective gear, especially when riding in low-light conditions.
Setup and Assembly
Your Rattan electric bike comes partially assembled. Follow these steps to complete the setup:
- Unpacking: Carefully remove the bike and all components from the packaging. Retain packaging for future transport or storage.
- Handlebar Installation: Unfold the handlebar stem and secure it in the upright position. Adjust the handlebar height and angle for comfortable riding, then tighten all fasteners.
- Pedal Installation: Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Ensure they are fully threaded and tightened.
- Seat Post Adjustment: Insert the seat post into the frame and adjust the height to allow for a slight bend in your knee when the pedal is at its lowest point. Secure with the quick-release lever.
- Battery Installation: Insert the 48V 13AH removable battery into its compartment and ensure it clicks securely into place. Use the key to lock it if applicable.
- Tire Inflation: Inflate the 20" x 4.0 fat tires to the recommended pressure indicated on the tire sidewall.
- Brake Check: Test both front and rear brakes to ensure they engage properly and stop the wheels effectively. Adjust cable tension if necessary.

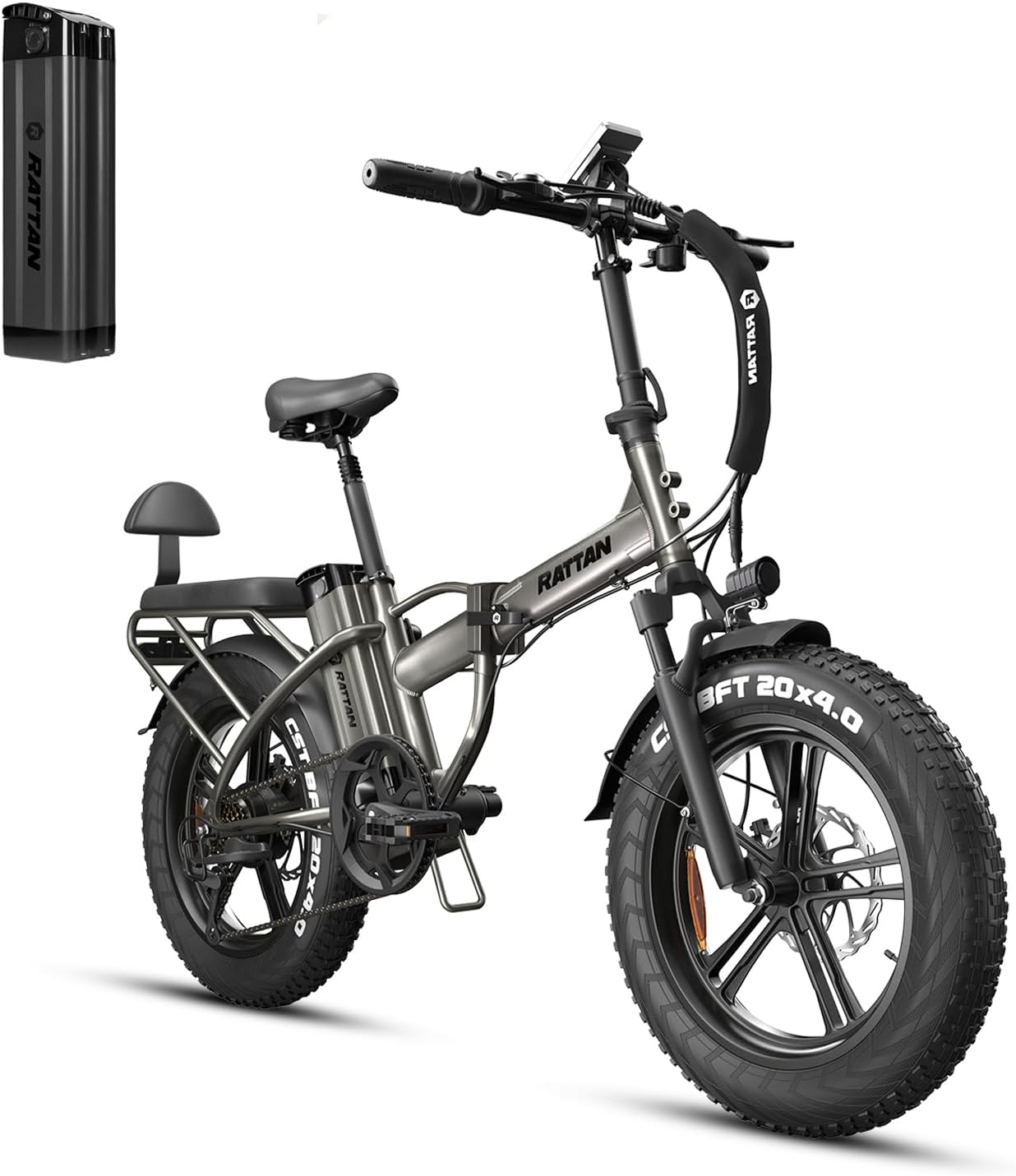

Figure 1: The Rattan LM/LF Pro Electric Bike, showcasing its foldable design and removable battery.
Operating Your Electric Bike
Familiarize yourself with the controls and functions of your Rattan e-bike for an enjoyable riding experience.
Powering On/Off
- To power on the bike, press and hold the power button on the display panel.
- To power off, press and hold the power button again until the display turns off.
Riding Modes
Your Rattan e-bike offers multiple riding modes:
- Pedal Assist System (PAS): Provides electric assistance as you pedal. Adjust the assist level (usually 1-5) using the '+' and '-' buttons on the control panel. Higher levels provide more assistance.
- Throttle Mode: Allows you to ride without pedaling by twisting the throttle. This mode provides full electric power.
- Manual Mode: Ride the bike like a traditional bicycle without any electric assistance.
Figure 2: The Rattan electric bike features a 750W motor, capable of reaching 28 MPH max speed and providing 80 N.M max torque.
Battery Usage
The 48V 13AH removable battery offers a range of 30-40+ miles on PAS1. The integrated BMS (Battery Management System) ensures safety and extends battery life.
- Charging: Connect the charger to the bike's charging port or directly to the removed battery. A full charge typically takes 4-6 hours. Do not overcharge.
- Battery Removal: To remove the battery, unlock it with the key and slide it out. This is useful for charging indoors or for security.

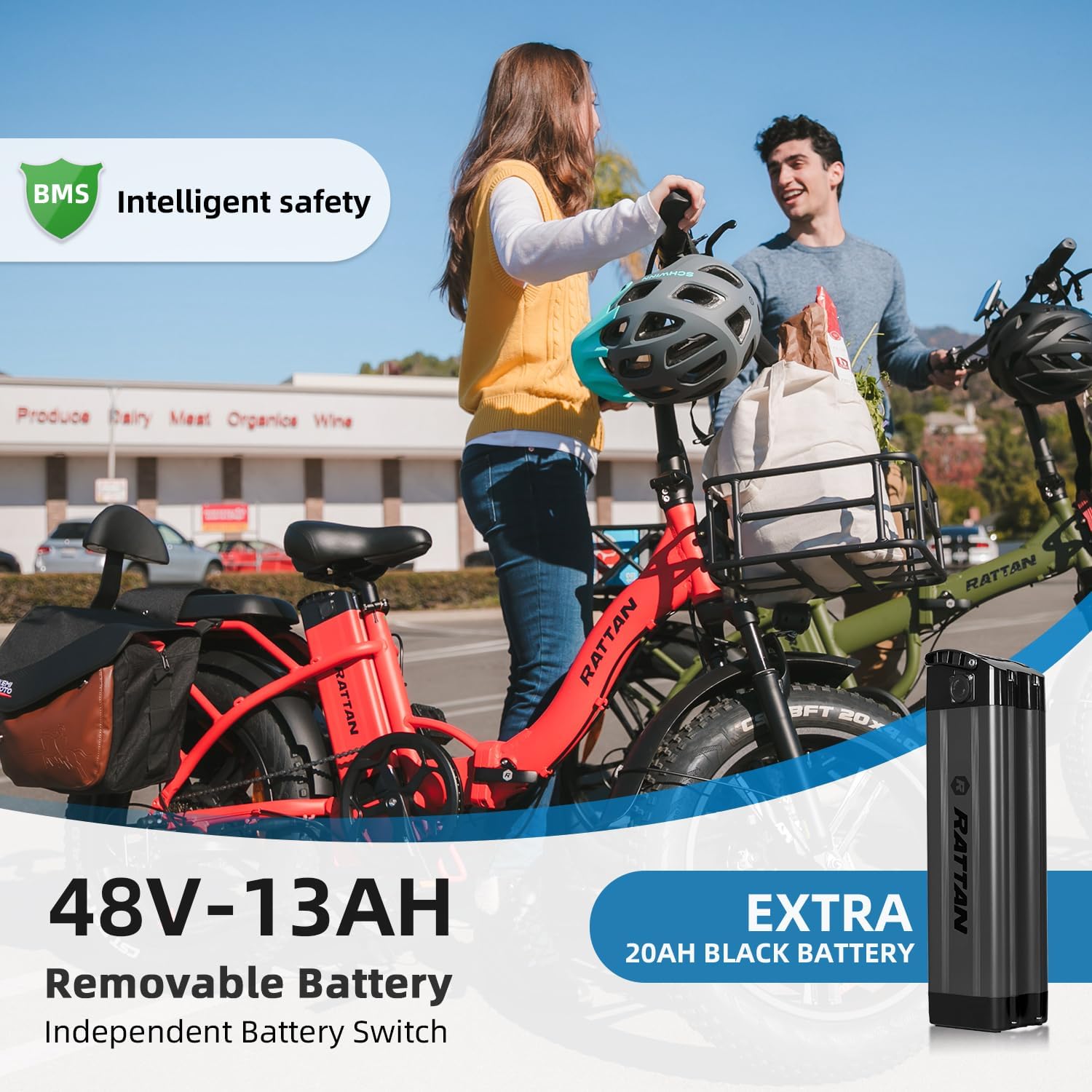

Figure 3: The 48V 13AH removable battery with BMS intelligent safety, ensuring longevity and performance.
Maintenance
Regular maintenance will prolong the life of your Rattan electric bike and ensure safe operation.
- Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Tire Care: Check tire pressure before each ride. The 20" x 4.0 fat tires are durable but can be punctured. Inspect for wear and tear.
- Brake Maintenance: Regularly check brake pads for wear and replace them when necessary. Ensure brake levers are responsive and cables are not frayed.
- Chain Lubrication: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
- Fastener Check: Periodically check and tighten all bolts and screws, especially on critical components like the handlebars, seat post, and wheels.
Figure 4: The 20" x 4.0 fat tires and integrated alloy wheels provide durability and shock resistance across various terrains.
Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike not powering on | Battery not charged or not properly seated; power button not pressed correctly. | Charge the battery fully. Ensure the battery is securely installed and locked. Press the power button firmly. |
| Motor not assisting | PAS level too low; loose motor connection; brake lever engaged. | Increase PAS level. Check motor cable connections. Ensure brake levers are fully released. |
| Brakes feel weak | Worn brake pads; loose brake cable; air in hydraulic system (if applicable). | Inspect and replace brake pads. Adjust brake cable tension. If hydraulic, consult a professional. |
| Unusual noises | Loose components; dry chain; rubbing brakes. | Check all fasteners. Lubricate the chain. Adjust brake calipers to prevent rubbing. |
Specifications
Detailed technical specifications for your Rattan LM/LF Pro Electric Bike:
| Feature | Detail |
|---|---|
| Bike Type | Electric Bike |
| Model Name | lm750 |
| Motor Power | 750W |
| Battery | 48V 13AH Removable Lithium Battery (624 Watt Hours) |
| Max Speed | 28 MPH |
| Max Torque | 80 N.M |
| Wheel Size | 20 Inches (20" x 4.0 Fat Tires) |
| Frame Material | Aluminum |
| Brake Style | Disc |
| Number of Speeds | 7 |
| Maximum Weight Recommendation | 330 Pounds (150 kg) |
| Rear Seat Max Load | 110 Pounds (50 kg) |
| Special Feature | Foldable |
| Folding Size (L x W x H) | 38.6 x 18 x 28 Inches |
| Recommended Height | 5'3" to 6'4" |
Figure 5: Detailed dimensions and recommended height/weight for the Rattan electric bike.
Warranty and Support
Rattan provides support for your electric bike:
- Warranty: Your Rattan electric bike comes with a 1-Year Limited Warranty. This warranty covers manufacturing defects in materials and workmanship. Please refer to the warranty card included with your purchase for full terms and conditions.
- Customer Support: For technical assistance, troubleshooting, or warranty claims, please contact Rattan customer support. Refer to the contact information provided in your purchase documentation or visit the official Rattan website.
