Yoolax Smart Dual Roller Shades GR-09 Instruction Manual

1. Product Overview

The Yoolax Smart Dual Roller Shades offer a versatile solution for window treatments, combining two layers of fabric to provide flexible light control and privacy. These motorized blinds are designed for convenience, allowing control via remote, app, or voice commands through compatible smart home devices.

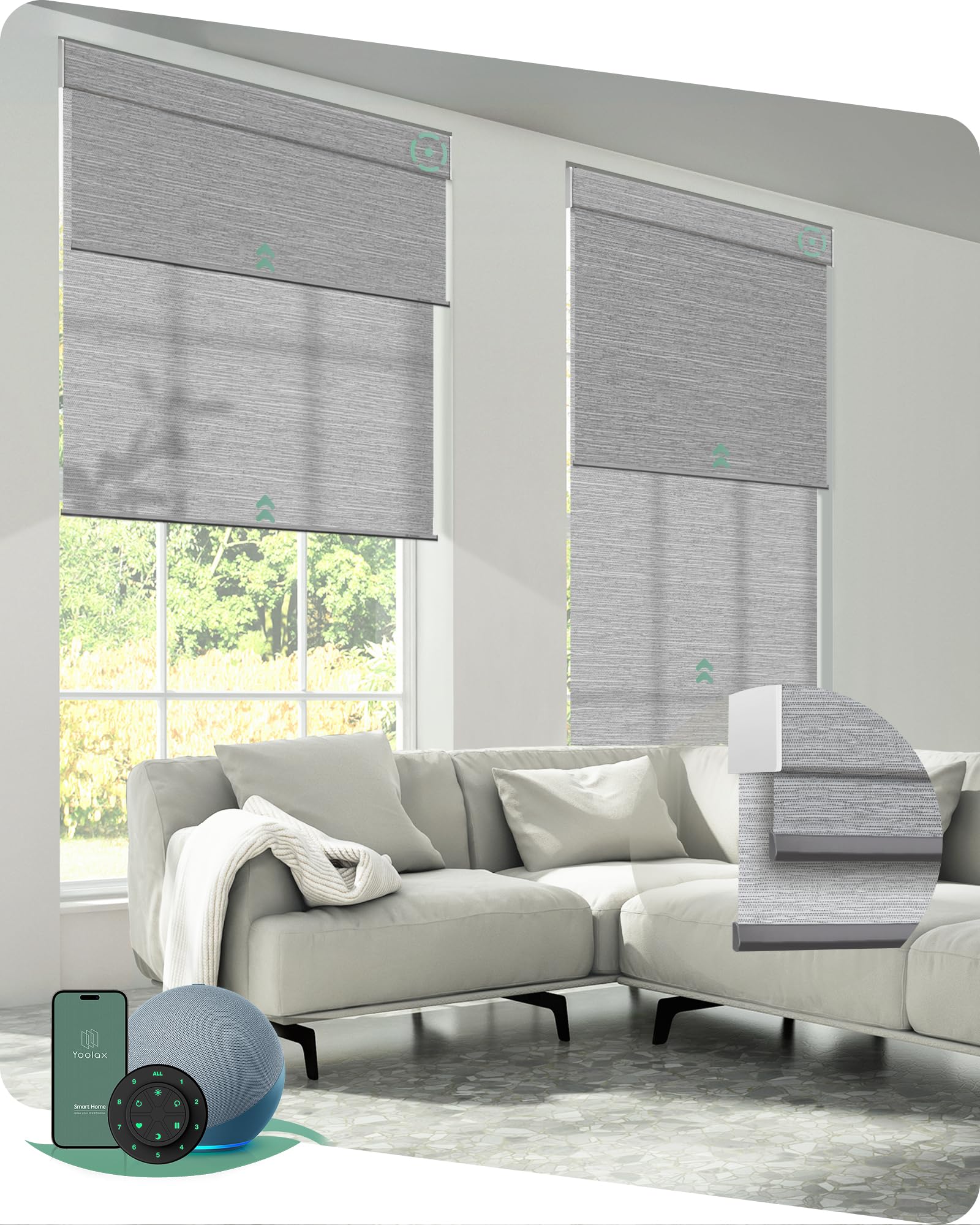

Image: Yoolax Smart Dual Roller Shades in Foggy Grey, showcasing the dual fabric layers.

Image: Diagram showing the '1+1=MORE' concept for dual shades, highlighting options for blackout and light filtering fabrics.

2. What's Included

Your Yoolax Smart Dual Roller Shades package includes the following components:

• Dual Roller Shades (pre-assembled)
• Motor (pre-installed)
• Accessories for installation (brackets, screws, wall plugs)
• Standard charging cable
• Instruction book
• Remote (Optional, depending on package)

3. Installation Guide

3.1. Preparation

Before beginning installation, ensure you have the following tools:

• Electric Drill with 0.2" (6mm) Drill Bit / Screwdriver
• Measuring Tape
• Pencil
• Gradometer (Level)

Unpack your shades and remove any signal blockers from the motors before proceeding with installation. Install the side covers onto the headrail.

3.2. Measuring for Installation

Image: Detailed diagram illustrating measurement techniques for both inside and outside window mounts.

Inside Mount

Measure the depth of the window frame. A minimum depth of 3.3 inches is required. Measure and submit the exact width and height inside the window frame. The submitted width and height are the finished product dimensions, including the top rail and bottom rod.

Outside Mount

Measure the width and height of the outside window frame. Add 3 to 6 inches to the exact width and height and submit. For outside mount blinds, it is recommended to add 3 to 6 inches to the exact width and height of the outside window frame to ensure no light leakage. This is a suggestion, and no additional size adjustments will be made automatically.

3.3. Mounting the Shades

For detailed visual instructions on mounting your Yoolax Dual Roller Shades, please refer to the video below:

4. Operation

4.1. Remote Control

The Yoolax Lightwirl Remote is compatible with all three kinds of Yoolax motors, offering convenient control for your shades. It can control up to 9 blinds and features various functions like group control and adjusting opening percentage. A 16-Channel Remote is also available, compatible with Z425 Motor and YL23 Motor, capable of controlling up to 16 blinds.

Image: Close-up of the Yoolax Lightwirl Remote Control, highlighting its intuitive design.

For detailed instructions on programming your Lightwirl Remote, please watch the video below:

4.2. Smart Motor & Voice Control

Yoolax remote blinds feature smart motors for enhanced control. With a Zigbee Motor, the blinds can connect directly to specific Alexa models (Echo Plus 2nd Gen, Echo Show 2nd Gen, Echo Studio, Echo Show 10, Echo 4th Gen, Echo Show 8 3rd Gen, Echo Hub) without needing a Smart Bridge. Bluetooth motors work directly with the Yoolax Home App without a Smart Bridge.

Image: Illustration of Alexa voice control for Yoolax Smart Dual Roller Shades.

Learn how to connect your Zigbee Motor to Alexa and Google Home:

For Bluetooth Motor programming, refer to this video:

5. Key Features

5.1. Dual Shades Design

Yoolax dual motorized blinds offer flexible options for shading and light filtering. You can lower the half-shading roller shades to enjoy gentle sunlight or lower the blackout roller shades for absolute privacy and to block heat and light.

Image: Dual shades demonstrating the half-shading and blackout fabric layers.

5.2. Performance & Scene Modes

These shades are designed to improve energy efficiency, provide privacy, offer UV protection, and reduce noise. Utilize various scene modes like Sleeping Mode, Full Privacy Mode, Leisure Mode, and Reading Mode for optimal comfort.

Image: Icons illustrating key performance features: improved energy efficiency, privacy protection, UV protection, room darkening/light filtering, and noise reduction.

Image: Diagram showing different scene modes: Sleeping Mode, Full Privacy Mode, Leisure Mode, and Reading Mode.

5.3. Customization & Accessories

Explore a wide selection of fabrics for dual blinds. The valance comes with a default fabric wrap that complements the front layer. For the bottom rod, you can choose between Yoolax Sleek Alloy Bar (white or grey) or a fabric-wrapped rod.

Image: Close-up view of the fabric texture and details of the Yoolax shades.

Image: Detail of the fabric-wrapped valance, showing its dimensions.

Image: Options for the bottom rod, including the Yoolax Sleek Alloy Bar and a fabric-wrapped rod.

6. Maintenance

To clean your Yoolax Smart Dual Roller Shades, use a spot clean method only. Avoid harsh chemicals or abrasive materials that could damage the fabric or motor components.

6.1. Charging

The built-in rechargeable battery motor allows the shades to be used for 4-6 months on a full charge. A 78-inch long USB charging wire extension is included. Solar panels can be purchased separately to charge your shades and save energy.

Image: Illustration of various charging methods: solar panel charger, USB charger, and power bank charger.

7. Troubleshooting

If you encounter issues with programming or operation, ensure the remote is in setting mode as per the instructions. For complex programming, customer service can provide assistance. Some users have noted that programming can be more challenging than installation, so careful attention to the programming videos and instructions is advised.

8. Specifications

9. Warranty & Support

Yoolax offers a 3-year warranty on all motors, controls, and other components from the date of purchase. For any questions, technical support, or warranty claims, please contact Yoolax customer service via Amazon message.
