Bosch Kitchen Machine MUM54251 User Manual

1. Introduction

Thank you for choosing the Bosch Kitchen Machine MUM54251. This appliance is designed to assist you with various kitchen tasks, offering powerful performance and versatile functionality. With its 900W motor, 7 speed settings, and a 3.9-liter stainless steel bowl, it is ideal for mixing, kneading, whipping, slicing, shredding, and more. Please read this manual carefully before first use to ensure safe and optimal operation.

2. Safety Instructions

Always observe the following safety precautions to prevent injury or damage to the appliance:

• Electrical Safety: Ensure the voltage indicated on the appliance matches your local mains voltage before connecting. Do not operate the appliance with a damaged cord or plug.
• Blade Safety: Blades and sharp edges of accessories are extremely sharp. Handle with extreme care to avoid injury. Always disconnect the appliance from the power supply before assembling, disassembling, or cleaning.
• Overheat Protection: The appliance is equipped with overheat protection. If the motor overheats, it will automatically shut off. Allow it to cool down before resuming operation.
• Stability: Always place the appliance on a stable, flat, and dry surface. The rubber suction feet provide increased stability during operation.
• Children and Supervision: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Moving Parts: Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury.
• Intended Use: Use the appliance only for its intended purpose as described in this manual.

3. Product Components

Your Bosch Kitchen Machine MUM54251 comes with a variety of accessories to enhance your cooking experience. Familiarize yourself with the main components:

• Main Unit with Multi-function Arm
• Stainless Steel Mixing Bowl (3.9 L capacity)
• Dough Hook
• Beater
• Whisk
• Continuous Shredder with 3 Stainless Steel Discs (reversible slicing thick/thin, reversible shredding coarse/fine, fine grating disc)
• Splash Guard with Filling Aperture
• Accessory Bag

Image 1: Continuous shredder attachment with reversible slicing disc, reversible shredding disc, fine grating disc, and the main mixing bowl.

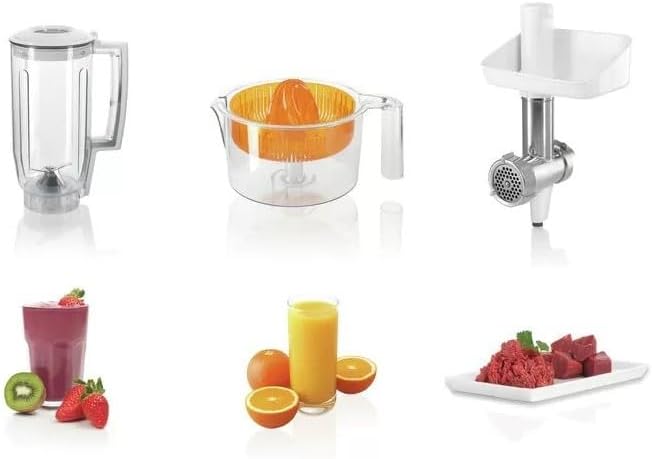

Image 2: Optional attachments including a blender, citrus press, and meat grinder, demonstrating the machine's versatility.

Image 3: Essential mixing tools: dough hook for heavy doughs, whisk for light mixtures, beater for creamy textures, and a convenient accessory bag for storage.

4. Setup

Follow these steps to set up your kitchen machine:

1. Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Clean: Before first use, clean all parts that will come into contact with food. Refer to the "Maintenance and Cleaning" section for details.
3. Placement: Place the main unit on a clean, stable, and level surface. Ensure the rubber suction feet are firmly attached to the countertop for maximum stability.
4. Attach Bowl: Place the stainless steel mixing bowl onto the base and turn it clockwise until it locks securely into place.
5. Raise Multi-function Arm: Press the "Easy Arm Lift" button to raise the multi-function arm.
6. Attach Tool: Select the desired tool (dough hook, beater, or whisk). Insert the tool into the drive shaft on the multi-function arm and turn it until it clicks into place.
7. Lower Multi-function Arm: Press the "Easy Arm Lift" button again to lower the arm until it locks into position over the bowl.
8. Attach Splash Guard: Place the splash guard onto the bowl, aligning the opening with the multi-function arm.

5. Operating Instructions

Operating your Bosch Kitchen Machine is straightforward:

1. Prepare Ingredients: Add your ingredients to the mixing bowl. Ensure the maximum fill levels are not exceeded.
2. Connect Power: Plug the appliance into a suitable power outlet (220-240V, 50/60Hz).
3. Select Speed: Use the rotary switch to select one of the 7 speed settings. Start with a lower speed and gradually increase as needed. The electronic speed control ensures a constant speed during operation.
4. Pulse Function: For short bursts of maximum power, turn the switch to the "P" (Pulse) setting and hold it. Release to stop.
5. Monitoring: The LED light indicates the operating status. If a fault occurs, the LED will signal it (refer to Troubleshooting).
6. Changing Attachments: To change attachments or add ingredients, press the "Easy Arm Lift" button to raise the multi-function arm. Always switch off the appliance and unplug it before changing accessories.
7. Switch Off: Once finished, turn the rotary switch to the "0" (Off) position and unplug the appliance from the power outlet.

Using the Continuous Shredder:

1. Attach the continuous shredder to the designated motor position on the multi-function arm.
2. Insert the desired stainless steel disc (slicing, shredding, or grating) into the disc holder.
3. Secure the lid.
4. Turn on the machine and feed ingredients through the chute using the food pusher.

6. Maintenance and Cleaning

Proper cleaning and maintenance will prolong the life of your kitchen machine:

• Before Cleaning: Always unplug the appliance from the power outlet before cleaning.
• Dishwasher Safe Parts: The stainless steel mixing bowl, dough hook, beater, whisk, continuous shredder attachments (discs and housing), and splash guard are generally dishwasher safe. For best results, place them on the top rack.
• Main Unit: Wipe the main unit with a damp cloth. Do not immerse the main unit in water or other liquids. Do not use abrasive cleaners or harsh chemicals.
• Drying: Ensure all parts are thoroughly dry before reassembling or storing.
• Cable Storage: The integrated cable storage allows for simple and quick storage of the power cord.

7. Troubleshooting

If you encounter issues with your kitchen machine, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Bosch customer support.

8. Specifications

9. Warranty and Support

Warranty Information:

This Bosch Kitchen Machine MUM54251 comes with a 2-year warranty from the date of purchase. The warranty covers manufacturing defects and material faults under normal household use. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, spare parts, or warranty inquiries, please contact Bosch customer service in your region. You can usually find contact details on the official Bosch website or in the separate warranty documentation included with your product.

When contacting support, please have your model number (MUM54251) and serial number (if applicable) ready.
