VONROC Scarifying Roller Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your VONROC Scarifying Roller, an accessory designed specifically for the VONROC SA501AC Scarifier/Aerator. The scarifying roller is used to remove thatch, moss, and dead grass from your lawn, promoting healthier growth and better nutrient absorption. Please read these instructions carefully before installation and operation.

2. General Safety Instructions

Always observe basic safety precautions when using garden power tools. This scarifying roller is an attachment and should only be used with the compatible VONROC SA501AC Scarifier/Aerator. Refer to the main SA501AC manual for comprehensive safety guidelines.

• Read all instructions: Familiarize yourself with the operation of the scarifier and this roller.
• Wear appropriate personal protective equipment (PPE): This includes safety glasses, sturdy footwear, and hearing protection.
• Disconnect power: Always unplug the scarifier from the power supply before installing, cleaning, or performing any maintenance on the roller.
• Inspect for damage: Before each use, check the roller for any signs of wear, damage, or loose parts. Do not use if damaged.
• Keep children and bystanders away: Ensure no one is in the immediate vicinity of the working area.
• Use only genuine VONROC parts: Using non-approved parts may void your warranty and compromise safety.

3. Package Contents

The VONROC Scarifying Roller package typically includes:

• 1 x VONROC Scarifying Roller (SA501AC-ROLLER)

Note: The VONROC SA501AC Scarifier/Aerator machine is sold separately.

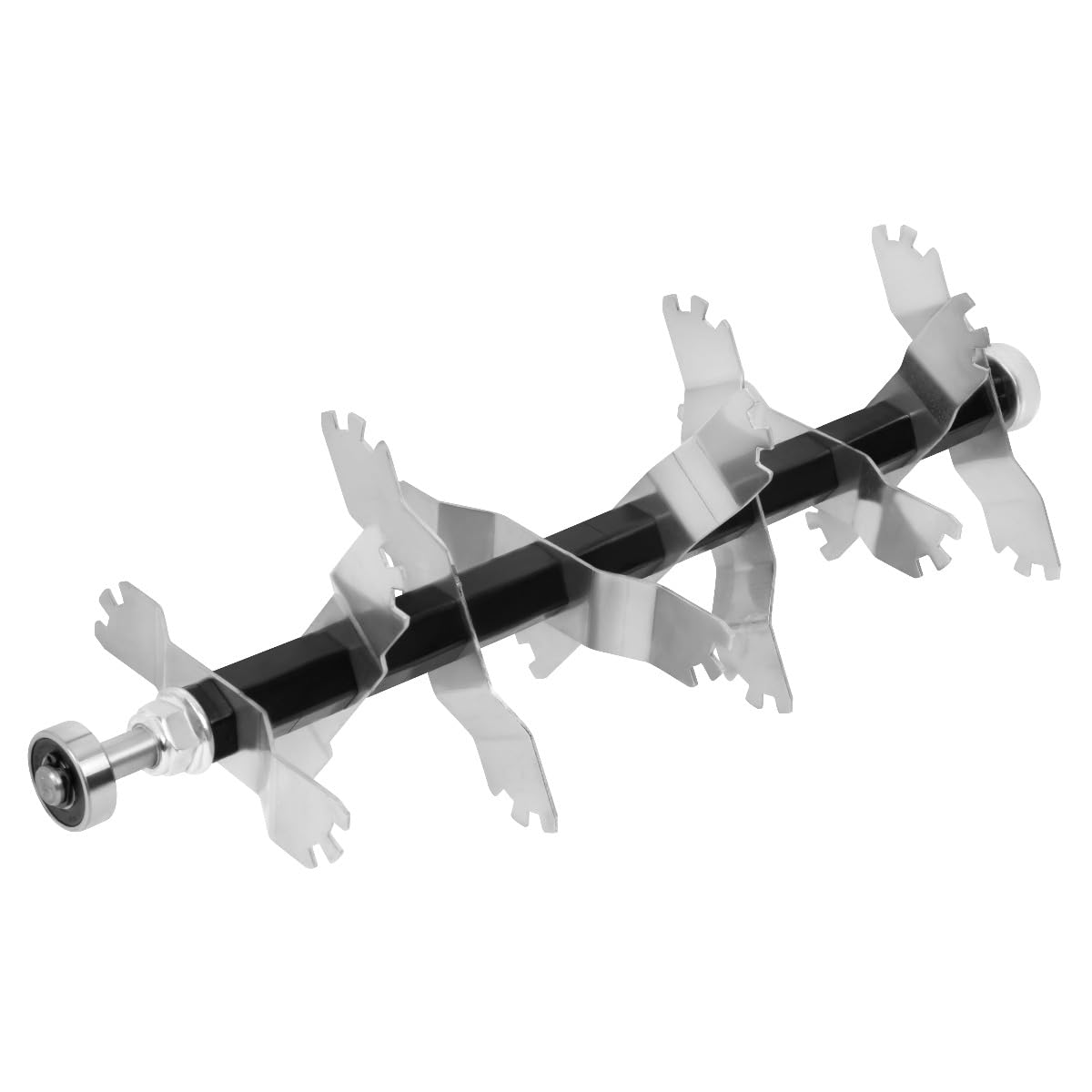

Image 1: The VONROC Scarifying Roller, featuring multiple sharp metal blades designed for effective thatch removal.

4. Setup and Installation

Follow these steps to install the scarifying roller onto your VONROC SA501AC Scarifier/Aerator. Always ensure the machine is unplugged from the power supply before beginning.

1. Prepare the Scarifier: Place the VONROC SA501AC scarifier on a stable, flat surface. Ensure it is unplugged from the mains power.
2. Remove Existing Roller (if applicable): If another roller (e.g., aerator roller) is currently installed, consult your SA501AC manual for instructions on how to safely remove it. Typically, this involves releasing retaining clips or bolts on either side of the roller shaft.
3. Install Scarifying Roller: Carefully align the ends of the scarifying roller shaft with the mounting points on the scarifier. Insert the shaft into the designated slots.
4. Secure the Roller: Re-engage any retaining clips or tighten bolts to firmly secure the scarifying roller in place. Ensure both ends are securely fastened and the roller can spin freely without excessive play.
5. Verify Installation: Gently rotate the roller by hand to confirm it is properly seated and moves smoothly. Double-check all fasteners are tight.

5. Operating Instructions

Once the scarifying roller is installed, you can begin scarifying your lawn. Refer to the main VONROC SA501AC manual for general operation of the machine, including starting, stopping, and handling.

• Adjust Scarifying Depth: The SA501AC machine has depth adjustment settings. For initial scarifying, start with a shallower depth and gradually increase if needed. Avoid setting the depth too aggressively, as this can damage your lawn.
• Best Time to Scarify: Scarify your lawn during active growth periods, typically in spring or early autumn, when the grass can recover quickly. Ensure the soil is moist but not waterlogged.
• Scarifying Technique: Push the scarifier steadily across the lawn in straight, overlapping lines. Avoid standing in one spot for too long. The scarifying roller will pull out thatch and moss, which should then be raked up and removed from the lawn.
• Post-Scarifying Care: After scarifying, it is beneficial to overseed, fertilize, and water your lawn to aid recovery and promote new growth.

6. Maintenance

Proper maintenance ensures the longevity and performance of your scarifying roller.

• Cleaning: After each use, disconnect the scarifier from power. Carefully remove any grass, thatch, or debris caught in the roller blades. Use a stiff brush or a wooden stick. Do not use water directly on the roller or machine.
• Inspection: Regularly inspect the roller blades for wear, bending, or damage. Worn blades will be less effective. If blades are significantly damaged, the roller may need replacement.
• Storage: Store the scarifying roller in a clean, dry place, away from direct sunlight and extreme temperatures. If storing separately from the machine, ensure it is protected from dust and moisture.

7. Troubleshooting

If you encounter issues with your scarifying roller, consider the following:

• Roller not spinning freely: Check for debris caught between the roller and the machine housing. Ensure the roller is correctly installed and secured.
• Poor scarifying performance: The depth setting might be too shallow. Increase the depth gradually. The blades might be worn and require replacement.
• Excessive vibration: This could indicate an unbalanced or damaged roller. Discontinue use and inspect the roller for bent or missing blades.

For further assistance, refer to the main SA501AC manual or contact VONROC customer support.

8. Specifications

9. Warranty and Support

VONROC is committed to providing high-quality tools and excellent customer service. Your scarifying roller is covered by VONROC's standard warranty policy. For specific warranty details, please refer to the documentation included with your VONROC SA501AC Scarifier/Aerator or visit the official VONROC website.

In most cases, VONROC aims to provide a replacement for defective products without requiring the return of the faulty item, thereby reducing unnecessary CO2 emissions. For support, spare parts, or warranty claims, please contact VONROC customer service through their official channels.
