1. Introduction and Overview
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Depuley 66-inch ceiling fan with integrated LED lighting. Designed for both indoor and outdoor environments, this modern ceiling fan features six durable ABS blades, a quiet DC motor, and convenient remote control functionality. Please read this manual thoroughly before beginning installation or operation to ensure proper use and longevity of your product.
Figure 1.1: Depuley 66-inch white ceiling fan with remote control in a modern living room setting.
2. Safety Information
Always follow basic safety precautions when installing and operating this appliance to reduce the risk of fire, electric shock, and personal injury.
- Ensure the power is turned off at the circuit breaker before installation or maintenance.
- All wiring must be in accordance with national and local electrical codes.
- The mounting structure must be capable of supporting the fan's weight (approximately 22 pounds).
- Do not operate the fan with damaged wiring or if it is not functioning properly.
- Keep hands, hair, and clothing clear of the fan blades when in operation.
3. Package Contents
Verify that all components are present and undamaged before beginning installation.
- Ceiling Fan Motor Housing
- 6 ABS Fan Blades
- Integrated Dimmable LED Light Kit
- Remote Control
- Downrods (7.87" and 3.94")
- Mounting Bracket and Hardware
- Installation Accessories
- Instruction Manual
4. Setup and Installation
Follow these steps for proper installation of your Depuley ceiling fan. Professional installation is recommended if you are unsure about any steps.
4.1. Choosing the Right Downrod
The fan comes with two downrod options to accommodate different ceiling heights. Use the 7.87-inch rod for high ceilings and the 3.94-inch rod for low ceilings to ensure optimal airflow and safety clearance.
Figure 4.1: Illustration of downrod options for high (7.87" rod) and low (3.94" rod) ceiling installations.
4.2. Motor and Blade Assembly
The fan features a reversible silent DC motor and six durable ABS fan blades. Ensure all connections are secure during assembly.
Figure 4.2: Exploded view of the fan components, highlighting the reversible silent DC motor, 6 ABS fan blades, matte black motor housing, frosted glass light cover, and stable ceiling canopy.
4.3. Installation Overview Video
Watch this official video for a visual guide on the installation process and key features of the Depuley 66-inch ceiling fan.
Video 4.1: Official product video demonstrating the features and aspects of the 66-inch Depuley ceiling fan with lights and remote control.
5. Operating Instructions
Your Depuley ceiling fan is controlled via the included remote. Familiarize yourself with its functions for optimal use.
5.1. Remote Control Functions
The remote allows for comprehensive control over fan speed, light settings, and directional airflow.
Figure 5.1: Remote control layout with buttons for ON/OFF Fan Switch, 1H/4H/8H Timing, Anti-theft function, Noiseless mode, Natural Wind, 1 to 6 fan speeds, Clockwise/Counter-clockwise switch, and ON/OFF Light Switch.
5.2. Fan Speed Control
The fan offers 6 speeds to suit various needs:
- Speeds 1-2: Provide a comfortable, gentle breeze, ideal for sleep.
- Speeds 3-4: Offer a natural wind sensation for everyday comfort.
- Speeds 5-6: Deliver strong wind for maximum air circulation.
5.3. Dimmable LED Lights
The integrated 12W LED light is dimmable (0%-100%) and allows for three color temperature changes: warm light (3000K), natural light (4000K), and cool light (6000K). Adjust the brightness and color to match your room's ambiance.
Figure 5.2: The fan's LED light can be adjusted to Warm Light (3000K), Natural Light (4000K), and Cool Light (6000K).
Figure 5.3: The dimmable LED light allows for brightness adjustment from 0% to 100% using the remote control.
5.4. Reversible Airflow
The fan's reversible DC motor allows you to change the direction of airflow for seasonal comfort. Use the remote control to switch between modes.
- Summer Mode: Downward airflow creates a cooling effect.
- Winter Mode: Upward airflow circulates warm air trapped near the ceiling.

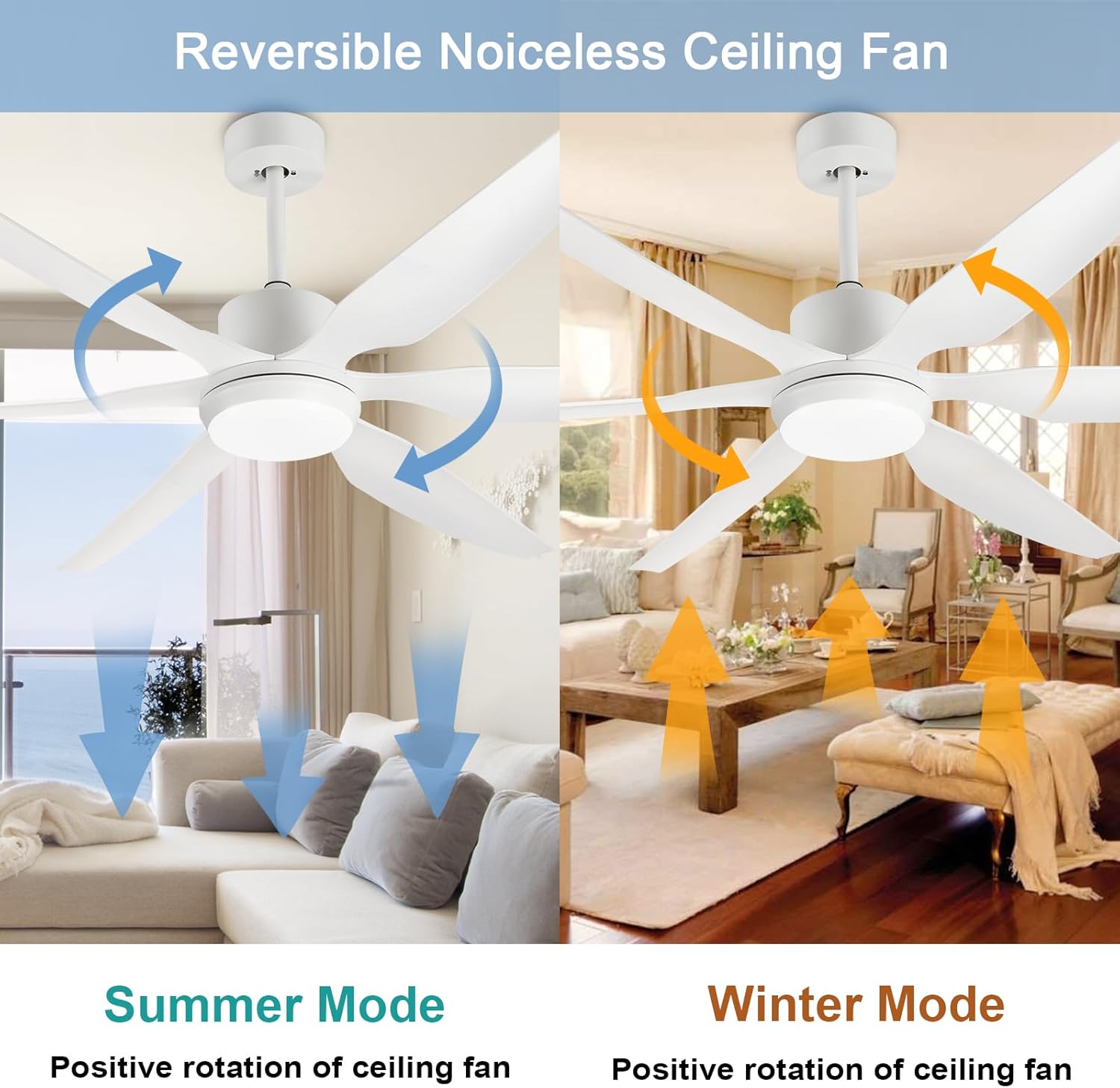

Figure 5.4: Reversible airflow modes for year-round comfort: Summer Mode (positive rotation for downward airflow) and Winter Mode (positive rotation for upward airflow).
6. Maintenance
Regular maintenance ensures the optimal performance and longevity of your ceiling fan.
- Cleaning: Wipe the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Blade Balance: Check for any wobbling. If present, ensure all blade screws are tightened. A balancing kit (not included) may be used if wobbling persists.
- Light Cover: The frosted glass light cover can be removed for cleaning if necessary. Ensure it is securely reattached.
- Annual Check: Periodically check all connections and mounting hardware for tightness.
7. Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wiring; Remote control battery low. | Check circuit breaker; Ensure all wire connections are secure; Replace remote control batteries. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Use a balancing kit; Ensure mounting bracket is securely fastened to the ceiling. |
| Light does not work | Loose light wire connection; LED driver issue. | Check light kit wiring connections; Contact customer support if LED driver is suspected. |
| Remote not responding | Remote battery low; Remote not paired; Obstruction. | Replace remote batteries; Refer to remote pairing instructions (if applicable); Remove any obstructions between remote and fan. |
8. Specifications
Detailed technical specifications for your Depuley ceiling fan.
- Brand: Depuley
- Model Name: WS-FPZ32-12B-WH
- Size: 66 Inch
- Color: White
- Electric Fan Design: Ceiling Fan
- Style: Industrial
- Product Dimensions: 31.5"D x 11.42"W x 10.83"H
- Room Type: Bedroom, Living Room, Office, Patio
- Special Feature: Remote Control
- Recommended Uses For Product: Air Circulation
- Wattage: 12 watts (LED Light)
- Finish Type: Brushed
- Number of Blades: 6
- Voltage: 120 Volts (AC)
- Switch Type: Remote
- Item Weight: 22.03 Pounds
- Included Components: Remote
- Indoor/Outdoor Usage: Outdoor
- Type of Bulb: LED
- Luminous Flux: 100 lumen
9. Warranty and Support
Your Depuley 66-inch ceiling fan comes with a 2-year after-sales service warranty. This warranty covers defects in materials and workmanship under normal use.
If you have any problems with installation, operation, or require technical assistance, please do not hesitate to contact Depuley customer support. Our team is always online to provide assistance and ensure your satisfaction.
For support, please refer to the contact information provided on the product packaging or the official Depuley website.
