Introduction
Thank you for choosing the Atvel F16 Pro Cordless 3-in-1 Wet-Dry Floor Cleaner. This device is designed to simplify your floor cleaning tasks by vacuuming, mopping, and collecting water simultaneously. Its cordless design offers freedom of movement, making it suitable for various floor types and cleaning challenges. Please read this manual carefully before first use to ensure safe and efficient operation.
Safety Instructions
- Always ensure the device is fully charged before use.
- Do not immerse the main unit in water or other liquids.
- Keep the device away from heat sources and open flames.
- Use only the original charger and accessories provided by Atvel.
- Do not use the device to pick up flammable or combustible liquids, or hot ashes.
- Ensure the dirty water tank is emptied and the clean water tank is filled before each use to maintain optimal performance.
- Keep children and pets away from the device during operation.
- If the device malfunctions, refer to the troubleshooting section or contact customer support. Do not attempt to repair it yourself.
Package Contents
Please check the package for the following items:
- Atvel F16 Pro Main Unit (with battery)
- Combi-roller (pre-installed)
- Brush roller (for carpets)
- Charging station with self-cleaning function
- Roller drying stand
- Cleaning brush
- Adapter
- User Manual
Image: Atvel F16 Pro main unit and its accessories, including different rollers, charging station, and cleaning tools.
Product Overview
The Atvel F16 Pro features a dual-tank design to keep clean and dirty water separate, ensuring effective cleaning. It is equipped with an LED display for status updates and offers UV cleaning for enhanced hygiene.
Image: The dual-tank system of the Atvel F16 Pro, highlighting the clean water and dirty water compartments.

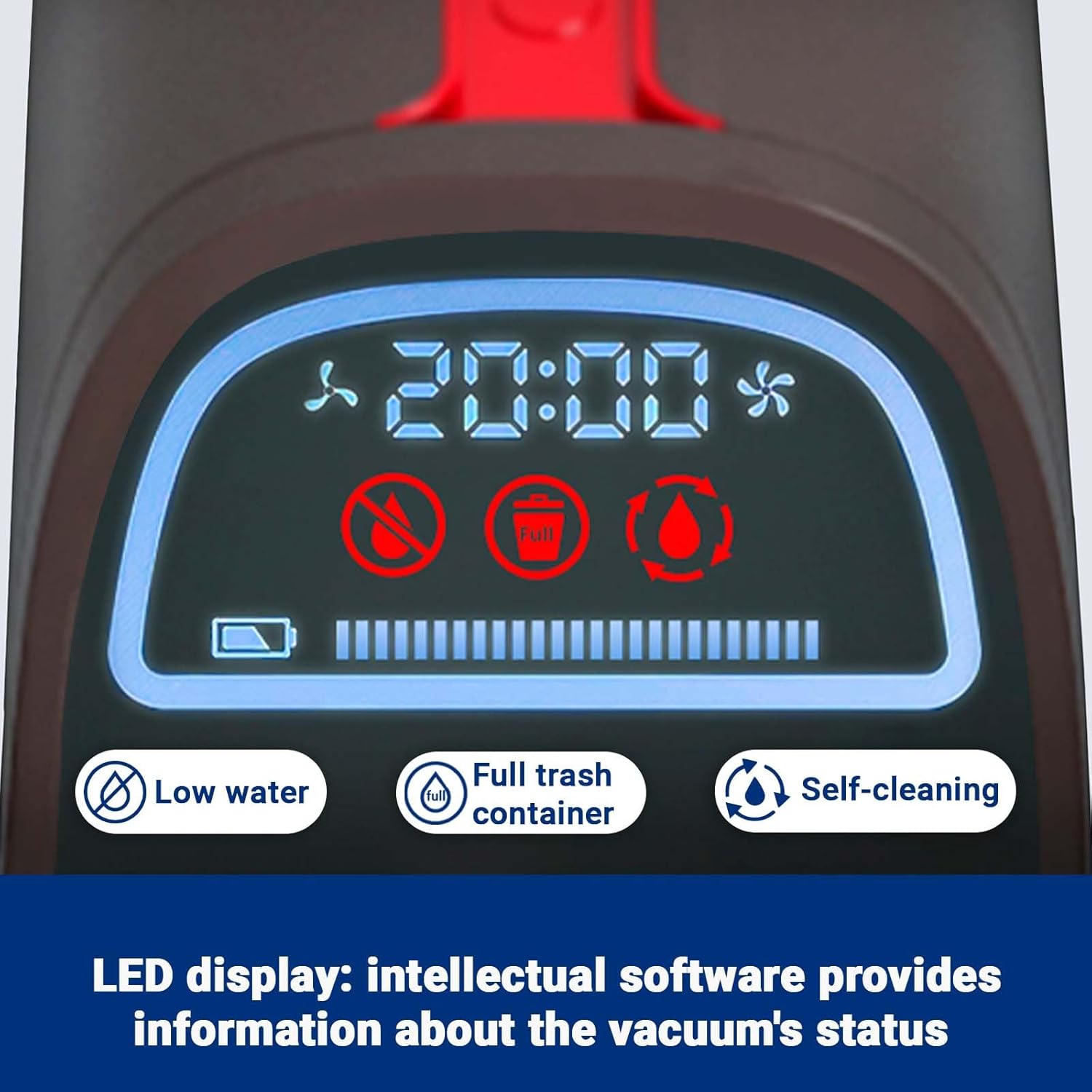

Image: The intelligent LED display providing real-time information on the device's status.
Setup
1. Assembly
- Unpack all components and ensure nothing is missing.
- Attach the handle to the main unit until it clicks into place.
- Ensure the combi-roller is correctly installed in the brush head.
2. Initial Charging
- Place the Atvel F16 Pro on its charging station.
- Connect the adapter to the charging station and plug it into a power outlet.
- For first use, charge the device for a minimum of 12 hours to ensure optimal battery life. The LED display will indicate charging status.
Image: The Atvel F16 Pro placed on its charging station.
Operating Instructions
1. Filling the Clean Water Tank
- Remove the clean water tank from the main unit.
- Fill it with clean tap water. You may add a small amount of non-foaming floor cleaning solution if desired. Do not exceed the MAX fill line.
- Securely reattach the clean water tank to the device.
2. Starting the Device
- Press the power button to turn on the Atvel F16 Pro.
- The device will start in dry vacuum mode. To activate wet cleaning (mopping), press the trigger button on the handle. This releases water onto the floor.
3. Cleaning Different Surfaces
The Atvel F16 Pro is suitable for various hard floors and carpets.
- Hard Floors (Tiles, Laminate, Marble, Hardwood, Vinyl, Linoleum): Use the standard combi-roller. For wet cleaning, press the trigger to dispense water.
- Carpets: Replace the combi-roller with the special brush roller included in the set. This roller is designed to effectively pick up fur and hair from carpets.
Image: The Atvel F16 Pro is designed to handle various types of dirt on multiple floor surfaces.
Image: Different rollers for optimal cleaning on hard floors and carpets.
4. Effective Cleaning
- Move the cleaner slowly over the area to be cleaned to allow the powerful suction and roller to work effectively.
- For stubborn stains or spills, pass over the area multiple times.
- The 5.5 kPa suction power ensures dry dirt removal and liquid absorption, leaving floors clean and dry without puddles.
Image: The Atvel F16 Pro performing cordless wet and dry cleaning simultaneously on a spill.
Image: Cleaning a sticky chocolate spill.
Image: Cleaning broken eggs from the floor.
Image: Cleaning a liquid spill in a tight spot.
Image: Cleaning dry oats from the floor.
5. UV Cleaning
The Atvel F16 Pro includes a UV cleaning function, particularly useful in households with children and pets, to help sanitize surfaces during cleaning.
Image: The UV cleaning function in action, providing enhanced hygiene.
Maintenance
1. Self-Cleaning Function
The Atvel F16 Pro features an automatic self-cleaning system to maintain the roller and nozzles. This function activates when the device is placed on the charging station.
- After cleaning, place the device on the charging station.
- Ensure there is sufficient clean water in the tank and the dirty water tank is empty.
- Press the self-cleaning button (indicated on the LED display or manual). The device will automatically clean the roller and internal components with fresh water.
- Empty the dirty water tank after the self-cleaning cycle is complete.
Image: The automatic self-cleaning function in operation.
2. Emptying the Dirty Water Tank
- After each use or self-cleaning cycle, remove the dirty water tank.
- Carefully empty the contents and rinse the tank with clean water.
- Ensure the tank is dry before reattaching it to prevent odors and bacterial growth.
3. HEPA Filter Maintenance
The Atvel F16 Pro uses a HEPA-class 12 filter to remove dust particles and allergens from the air. The filter can be washed as needed.
- Remove the HEPA filter from the device (refer to the diagram in the full manual for location).
- Rinse the filter under running water until clean.
- Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use the device with a wet filter.
Image: The washable HEPA filter.
4. Roller Cleaning and Drying
- Even with self-cleaning, it is recommended to periodically remove the roller and wash it manually under a tap with a brush, especially after cleaning oily spills.
- Place the cleaned roller on the provided drying stand to air dry completely.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on | Low battery; Not charged | Charge the device fully (at least 6 hours for a completely drained battery). |
| No water dispensed during wet cleaning | Clean water tank empty; Nozzle clogged | Fill the clean water tank. Check and clean the water nozzles. |
| Poor suction performance | Dirty water tank full; Filter clogged; Roller tangled | Empty the dirty water tank. Clean or replace the HEPA filter. Clean the roller from debris. |
| Self-cleaning function does not start | Low battery; Insufficient clean water; Dirty water tank full | Ensure battery has at least 2 bars. Fill clean water tank. Empty dirty water tank. |
| LED display shows an error code | Specific malfunction | Refer to the full manual for specific error code meanings or contact customer support. |
Specifications
| Feature | Specification |
|---|---|
| Brand | ATVEL |
| Model Number | Atvel Upright F16 Pro |
| Color | Gray |
| Product Dimensions | 29 x 25 x 115 cm |
| Item Weight | 3.5 kg |
| Power/Wattage | 150 watts |
| Voltage | 120 Volts |
| Noise Level | 70 Decibels |
| Run Time | Up to 31 minutes |
| Special Features | Automatic self-cleaning, Dual tank technology, Lightweight and comfortable, UV cleaning |
| Filter Type | HEPA filter |
| Surface Recommendation | All floors |
| Power Source | Battery |
| Wireless | Yes |
Warranty Information
Atvel products are manufactured to high-quality standards. For detailed warranty information, please refer to the warranty card included in your product packaging or visit the official Atvel website. Keep your purchase receipt as proof of purchase for any warranty claims.
Support
If you have any questions, require technical assistance, or need to order replacement parts, please contact Atvel customer support. Contact details can typically be found on the official Atvel website or on the warranty card.
