Alpicool S15 Portable Freezer User Manual

Introduction

The Alpicool S15 Portable Freezer is a versatile 12-volt refrigerator designed for various applications including outdoor camping, RV travel, truck use, and boating. With an 18-quart (16.8 liter) capacity, it offers fast cooling and a wide temperature range from -4℉ to 68℉ (-20℃ to 20℃), ensuring your food and beverages remain fresh or frozen as needed. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Alpicool S15 portable freezer.

Figure 1: Alpicool S15 Portable Freezer (Pink)

Safety Instructions

To ensure safe operation and prevent damage to the unit or injury to yourself and others, please read and follow all safety instructions carefully.

• Do not operate the unit if the power cord is damaged or if the unit is malfunctioning.
• Ensure proper ventilation around the unit. Do not block air vents.
• Keep the unit away from heat sources and direct sunlight.
• Do not immerse the unit in water or expose it to heavy rain.
• Use only the provided power cords (12/24V DC and 100-240V AC) for power input.
• Always disconnect power before cleaning or performing maintenance.
• Keep out of reach of children.
• Avoid placing hot items directly into the freezer. Allow them to cool first.
• Do not use abrasive cleaners or sharp objects inside the unit.

Product Features

The Alpicool S15 portable freezer is equipped with several features designed for convenience and performance:

• Capacity: 18 Quarts (16.8 Liters), capable of holding approximately 26 cans of soda.
• Temperature Range: Adjustable from -4℉ to 68℉ (-20℃ to 20℃).
• Cooling Modes:
  • MAX Mode: Provides fast and powerful cooling for quick temperature reduction.
  • ECO Mode: Energy-saving mode suitable for maintaining temperature and extending battery life.
• Power Input: Dual power cords for 12/24V DC (car cigarette lighter) and 100-240V AC (household outlet).
• Compressor: High-efficiency DC inverter compressor for reliable cooling performance.
• Control Panel: Intuitive LED high-definition display for temperature control and monitoring.
• Battery Protection: Three-stage battery protection mode (H, M, L) to prevent vehicle battery drain.
• Design: Lightweight yet durable plastic construction with reliable sealing and thick high-density foam insulation. Features include a magnetic door, recessed handles, and a removable door for easy cleaning.

Figure 2: Internal Capacity and Dimensions

Figure 3: ECO and MAX Cooling Modes

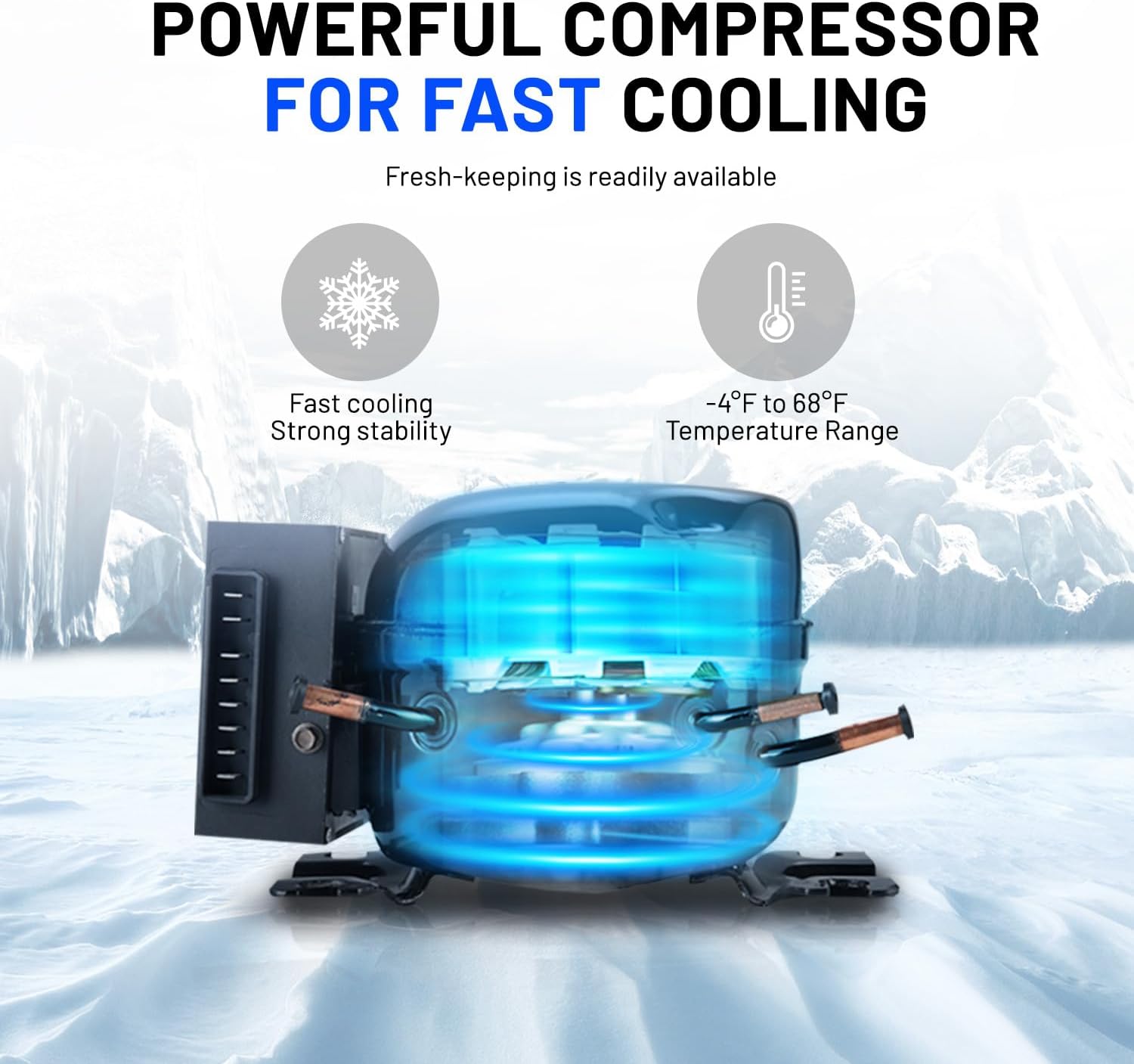

Figure 4: High-Efficiency Compressor

Setup

Before first use, ensure the unit is clean and free from any packaging materials. Allow the unit to stand upright for at least 6 hours before plugging it in, especially if it has been transported horizontally.

1. Power Connection:
   • For home or indoor use, connect the 100-240V AC power cord to the unit and then to a standard wall outlet.
   • For car, RV, truck, or boat use, connect the 12/24V DC power cord to the unit and then to your vehicle's cigarette lighter socket.
2. Placement: Place the portable freezer on a stable, level surface. Ensure there is adequate space around the unit for proper ventilation (at least 4 inches on all sides). Avoid placing it in direct sunlight or near heat-emitting appliances.
3. Initial Power On: Once connected to power, press the power button on the control panel to turn on the unit.

Figure 5: Home and Car Power Modes

Figure 6: Product Accessories

Operating Instructions

The control panel allows for easy adjustment of settings.

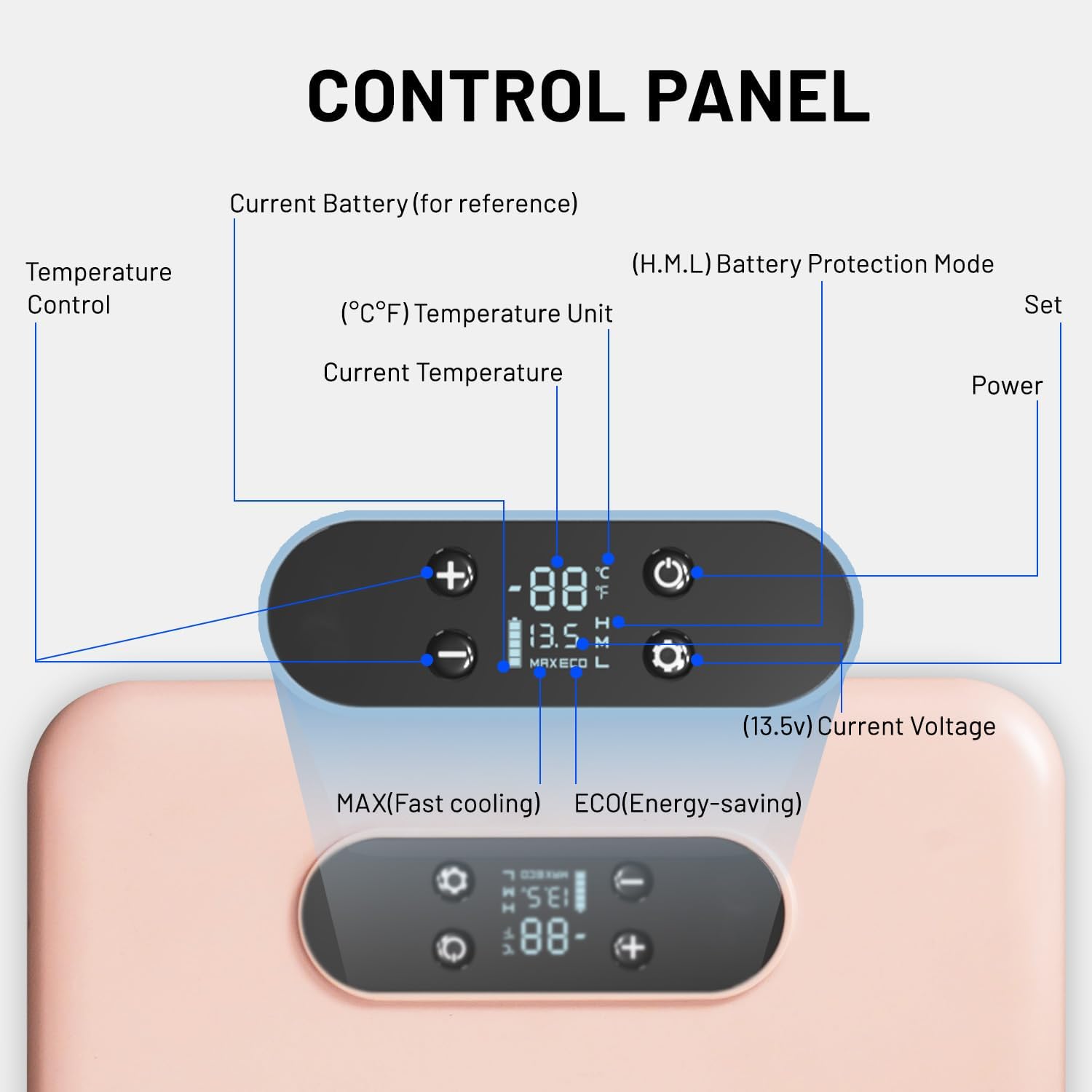

Figure 7: Control Panel Overview

1. Power On/Off: Press the Power button (usually a circle with a vertical line) to turn the unit on or off.
2. Temperature Adjustment:
   • Use the + and - buttons to set the desired temperature. The display will show the current internal temperature.
   • The temperature range is -4℉ to 68℉ (-20℃ to 20℃).
3. Mode Selection (MAX/ECO):
   • Press the Settings button (usually a gear icon) to cycle between MAX and ECO modes.
   • MAX Mode: For rapid cooling.
   • ECO Mode: For energy efficiency, ideal for maintaining temperature over longer periods or when powered by battery.
4. Battery Protection Mode:
   • Press and hold the Settings button for a few seconds to enter battery protection settings.
   • Use the + and - buttons to select between H (High), M (Medium), and L (Low) protection levels.
   • This feature prevents your vehicle's battery from draining completely. Higher settings (H) will shut off the unit sooner to protect the battery.
5. Temperature Unit (°C/°F) Switch: Refer to the specific user manual provided with your unit for instructions on switching between Celsius and Fahrenheit, as this often involves a combination of button presses.

Video Demonstration: Alpicool S15 Portable Car Fridge Freezer

Maintenance

Regular maintenance ensures the longevity and optimal performance of your portable freezer.

• Cleaning:
  • Always unplug the unit before cleaning.
  • Wipe the interior and exterior surfaces with a damp cloth and mild detergent.
  • Do not use abrasive cleaners, steel wool, or harsh chemicals.
  • The removable door cover can be detached for thorough cleaning.
  • Ensure the unit is completely dry before reconnecting power.
• Ventilation: Periodically check and clean the ventilation grilles to ensure they are free from dust and debris. Blocked vents can impair cooling efficiency.
• Sealing Strip: Inspect the door's sealing strip regularly for any damage or wear. A good seal is crucial for maintaining internal temperature. Clean the sealing strip with a damp cloth.
• Storage: When not in use for extended periods, ensure the unit is clean and dry. Store it in a cool, dry place with the lid slightly ajar to prevent odors and mold growth.

Figure 8: Sealing Strip

Figure 9: Removable Door

Troubleshooting

If you encounter issues with your Alpicool S15 portable freezer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Alpicool customer support for further assistance.

Specifications

Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Alpicool website. If you require technical support or have questions not covered in this manual, please contact Alpicool customer service through their official channels or the retailer from whom you purchased the product.

You can visit the Alpicool Store for more information: Alpicool Store on Amazon
