NUNET 3-in-1 Portable Ice Maker Water Dispenser Instruction Manual

Product Overview

The NUNET 3-in-1 Portable Ice Maker Water Dispenser is a versatile countertop appliance designed to provide efficient ice production, hot water, and cold water. It produces up to 44 pounds of bullet ice cubes daily and stores up to 4 pounds at a time. The unit supports multiple water supply methods and features a sleek stainless steel finish.

Image: NUNET 3-in-1 Portable Ice Maker Water Dispenser, showcasing its compact design and dispensing capabilities for ice, hot, and cold water.

Setup

Placement

Ensure your countertop has at least 19 inches of height clearance if using it as a countertop water/ice dispenser. The unit dimensions are 16.8"D x 10.94"W x 18.86"H. Allow adequate space around the unit for proper ventilation, especially near the exhaust fan located on the side.

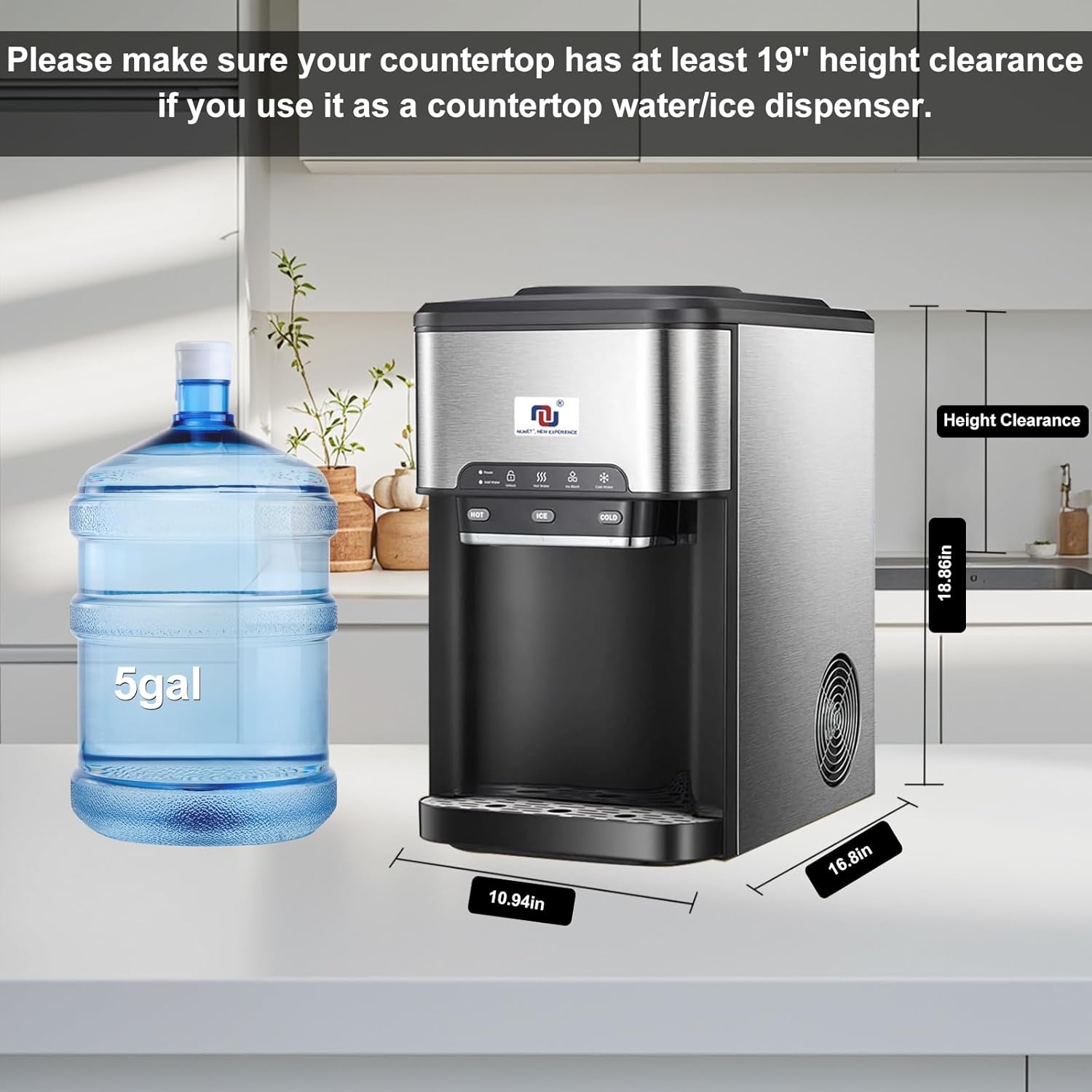

Image: NUNET Ice Maker Water Dispenser on a countertop, illustrating the required 19-inch height clearance for proper installation.

Water Supply

The NUNET water dispenser offers two primary methods for water supply:

1. Top-Loading Bottled Water: Place a 2, 3, or 5-gallon water jug directly onto the top loading port for a continuous water supply. Ensure the bottle's neck cap fits securely.
2. Manual Water Filling: For direct water filling, remove the top cover and pour pure water into the internal water tank (up to 0.8 gallons).
3. Direct Water Line Connection: The unit includes a 1/4-inch water line and fittings to connect directly to a filtered water supply, allowing for automatic refilling.

Image: Illustration showing two methods of water supply: a 5-gallon bottle for automatic supply and manual pouring into the water tank.

Initial Cleaning

Before first use, it is recommended to clean the unit. Refer to the Maintenance section for detailed cleaning steps.

Operating Instructions

Control Panel Overview

The control panel features indicator lights and buttons for various functions:

• Power Indicator: Shows if the unit is powered on.
• Add Water Indicator: Illuminates when water needs to be refilled.
• Unlock/Hot Water Lock: Child safety lock for hot water dispensing.
• Hot Water Indicator: Shows hot water heating status.
• Ice Block Indicator: Shows ice production status.
• Ice Full Indicator: Illuminates when the ice bin is full.
• Cold Water Indicator: Shows cold water cooling status.

Ice Production

The unit produces bullet-shaped ice cubes in cycles of 6-8 minutes, yielding 12 pieces per cycle. It can produce up to 44 pounds of ice daily and stores up to 4 pounds. Melted ice is recycled for subsequent ice-making cycles.

Image: Illustration of the NUNET Ice Maker's capacity to store 4 pounds of wet ice and automatically refill as ice melts.

Crushed Ice Function

To obtain crushed ice, manually transfer bullet ice cubes into the designated ice crusher compartment. Close the lid and press the 'Crush Ice' button to dispense crushed ice.

Water Dispensing

• Hot Water: Dispenses steaming hot water (up to 194°F or 90°C). A child safety lock button is integrated to prevent accidental dispensing. Press the unlock button, then the hot water button.
• Cold Water: Dispenses chilled water (≤46°F). Press the cold water button.

Maintenance

Cleaning Steps

Regular cleaning ensures optimal performance and water quality. The package includes a long-handle brush and ice machine cleaner for convenience.

1. Remove White Part: Twist and remove the white part from the water tank.
2. Clean Water Tank: Use the provided brush to clean the water tank, including the floating valve. Alternatively, rinse with high-pressure water.
3. Remove Drip Tray: Unlock and pull out the drip tray for cleaning.
4. Drain Water: Drain dirty water from both the cool water tank and hot water tank using their respective drain plugs.

Image: Visual guide detailing the cleaning steps for the NUNET Ice Maker Water Dispenser, including removing parts, brushing, and draining.

Specifications

Warranty and Support

All NUNET products come with hassle-free technical support and a one-year warranty from a US-based company. For assistance, please contact NUNET customer support.
