LMP WKB-1243 Wireless Keyboard User Manual

Introduction

The LMP WKB-1243 is a full-size wireless Bluetooth keyboard designed for seamless integration with multiple devices. Featuring a multi-host function, it allows connection to up to four different devices, including Mac, iOS, and Windows PCs, with quick switching capabilities. This keyboard includes a 110-key (ISO) layout with a numeric keypad and laser-engraved keycaps for durability. Its anodized aluminum top cover provides a robust and elegant design. The built-in rechargeable lithium-ion battery offers extended usage, and charging is facilitated via the included USB-C cable.

Key features include:

• Bluetooth connectivity for Mac, iOS, and PC devices.
• Multi-host function: Connects to up to 4 devices.
• Rechargeable lithium-ion battery for extended operation.
• Durable aluminum top cover and laser-engraved keys.
• Full-size 3-zone layout with numeric keypad.
• Mac-specific function keys and programmable F-keys.

Package Contents

Please ensure all items are present in the package:

• LMP WKB-1243 Wireless Keyboard
• USB-C Charging Cable (1m)
• User Manual (this document)

Setup

1. Charging the Keyboard

Before initial use, fully charge the keyboard. Connect the supplied USB-C cable to the keyboard's USB-C port and the other end to a 5V USB-C power source (e.g., a Mac's Thunderbolt 3 port or a standard USB-C charger). The Caps Lock LED will indicate the battery status. The USB-C cable is for charging only and does not support data transmission.

2. Pairing with Devices (Multi-Host Function)

The LMP WKB-1243 keyboard supports connecting to up to four different devices simultaneously via Bluetooth. Follow these steps to pair your devices:

1. Ensure the keyboard is powered on.
2. On the keyboard, press and hold the Fn key and one of the host keys (1, 2, 3, or 4) located on the numeric keypad for approximately 3-5 seconds until the corresponding host LED (above the numeric keypad) starts blinking rapidly. This indicates the keyboard is in pairing mode for that host channel.
3. On your device (Mac, iOS device, or Windows PC), navigate to the Bluetooth settings.
4. Search for available Bluetooth devices. The keyboard should appear as "LMP WKB-1243" or similar.
5. Select the keyboard to pair. Your device may prompt you to enter a code on the keyboard and press Enter. Follow the on-screen instructions.
6. Once paired, the host LED will stop blinking and remain solid, indicating a successful connection.
7. Repeat these steps for up to four different devices, assigning each to a different host key (1, 2, 3, or 4).

Figure 1: Multi-Host Connection Diagram. This diagram illustrates how the LMP WKB-1243 keyboard can be simultaneously connected to multiple devices, such as a laptop, desktop monitor, Mac mini, and iPad, allowing users to switch between them using the Fn key combined with the numeric keypad keys 1 through 4.

System Requirements:

• OS X 10.5 to 10.11
• macOS 10.12 and later
• iOS 13 and later
• iPad OS
• Windows OS 7 and later
• All devices must be Bluetooth compatible.

Note: FileVault is supported. However, system startup with key combinations (e.g., selecting the operating system by pressing the Alt key at startup) is not supported with this keyboard.

Operating Instructions

Switching Between Connected Devices

To switch between your paired devices, simply press the Fn key simultaneously with the corresponding host key (1, 2, 3, or 4) on the numeric keypad. The keyboard will instantly connect to the selected device.

Function Keys (F1-F19)

The keyboard features typical Mac-specific function keys for controlling brightness, media playback, volume, etc. These functions are activated directly. To use the standard F1-F19 functions instead of the special characters, press the Fn key simultaneously with the Esc key. This toggles the function key behavior.

Caps Lock LED

The Caps Lock LED indicates when Caps Lock is active. It also serves as a battery status indicator. When the battery is low, the LED may blink or change color (refer to specific behavior in troubleshooting if needed).

Figure 2: Top View of the LMP WKB-1243 Keyboard. This image displays the complete layout of the keyboard, including the main QWERTY section, the dedicated numeric keypad, and the row of function keys at the top.

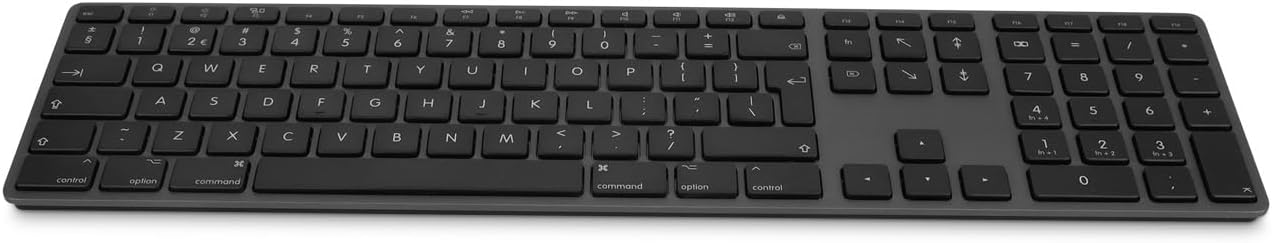

Figure 3: Angled Front View. This perspective showcases the keyboard's slim design and the ergonomic angle of the keys.

Figure 4: Side Profile. This image provides a clear view of the keyboard's thin side profile and the subtle slope of the key layout.

Figure 5: Rear View with USB-C Port. This view highlights the placement of the USB-C charging port on the back edge of the keyboard.

Figure 6: Keyboard in a Multi-Device Setup. This image shows the LMP WKB-1243 keyboard as part of a comprehensive workstation, connected to multiple displays and devices, illustrating its multi-host capability in a practical environment.

Maintenance

Battery Care

• To maximize battery life, avoid fully discharging the keyboard frequently.
• Charge the keyboard when the battery indicator (Caps Lock LED) suggests low power.
• If storing the keyboard for an extended period, charge it to approximately 50% before storage and recharge every few months to prevent deep discharge.

Cleaning

• Disconnect the keyboard from any power source before cleaning.
• Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution.
• Avoid using harsh chemicals, abrasive cleaners, or solvents.
• Do not spray liquids directly onto the keyboard.
• For cleaning between keys, use compressed air.

Troubleshooting

Specifications

Warranty and Support

For warranty information and technical support, please refer to the official LMP website or contact your local retailer. Keep your proof of purchase for warranty claims.

For further assistance, you may visit the LMP support page or contact their customer service directly. Contact details are typically available on the manufacturer's official website.
