1. Introduction
This manual provides detailed instructions for the proper installation, use, and maintenance of your Continental Grand Prix 5000 S TR 700x28 Tubeless Ready bicycle tires. Adhering to these guidelines will ensure optimal performance, safety, and longevity of your tires.
The Grand Prix 5000 S TR represents the new standard in road tubeless ready technology, offering a lighter, faster, and more robust design. These tires are engineered for improved comfort and increased puncture protection.
Key Features:
- Black Chili Compound: A unique tread compound, exclusively produced in Germany, providing an optimal balance of grip and rolling resistance.
- Active Comfort Technology: Integrated into the tire construction to absorb vibrations, enhancing ride comfort.
- Laser Grip: A laser micro-profile structure extending over the tire's shoulder for superior cornering performance.
- Vectran Breaker: A high-tech fiber offering exceptional puncture protection at a low weight.
- Tubeless Ready: Designed for tubeless setup, requiring sealant for optimal performance.

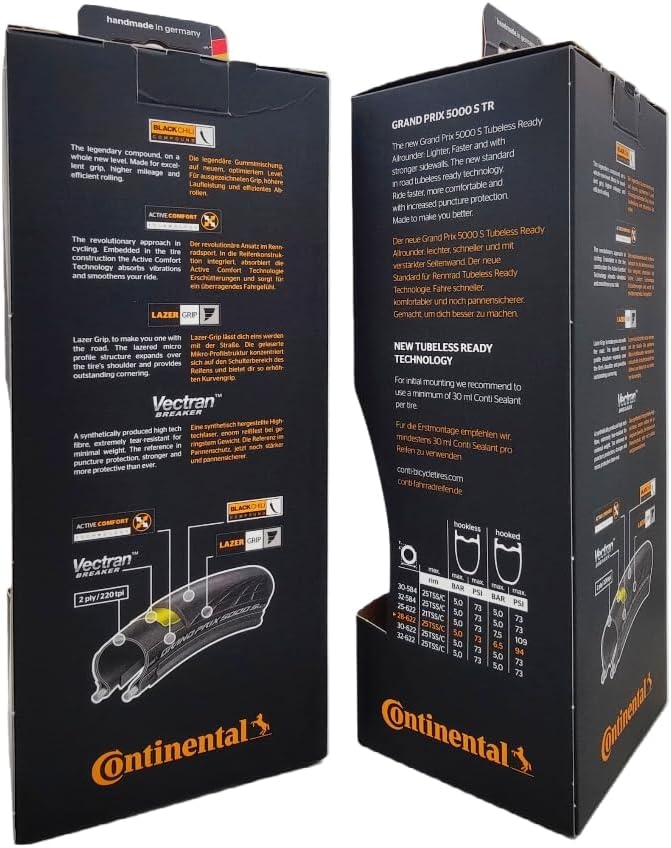

Image 1.1: Product packaging highlighting key features and specifications.
2. Setup and Installation
Proper installation is critical for the safety and performance of your tubeless ready tires. If you are unfamiliar with tubeless tire installation, it is recommended to seek assistance from a qualified bicycle mechanic.
2.1 Required Tools and Materials:
- Continental Grand Prix 5000 S TR Tubeless Ready Tires
- Tubeless compatible rims (hooked or hookless, refer to tire pressure guidelines)
- Tubeless rim tape (pre-installed or to be installed)
- Tubeless valves
- Tire levers (plastic recommended to avoid rim damage)
- Bicycle tire pump (floor pump with a large volume or an air compressor is highly recommended for seating tubeless tires)
- Tire sealant (e.g., Conti Sealant, approximately 30 ml per tire)
- Clean cloth
2.2 Installation Steps:
- Prepare the Rim: Ensure your rim is clean and has tubeless rim tape properly installed and sealed. Insert the tubeless valve through the rim tape and tighten the lock nut securely.
- Mount the First Bead: Carefully mount one side of the tire bead onto the rim. Ensure the tire is oriented correctly according to any directional arrows.
- Add Sealant: Before mounting the second bead, pour approximately 30 ml of tubeless sealant into the tire. Alternatively, sealant can be injected through the valve stem after the tire is fully seated.
- Mount the Second Bead: Mount the remaining side of the tire bead onto the rim. This can be challenging; start opposite the valve and work your way around. Use tire levers carefully if needed, avoiding pinching the sealant or rim tape.
- Seat the Tire: Inflate the tire rapidly using a floor pump or air compressor. You should hear a series of pops as the tire beads seat into the rim hooks (or bead seat for hookless rims). Continue inflating until the beads are fully seated.
- Check for Leaks: Once seated, inflate the tire to the recommended pressure (refer to section 3.1). Rotate and shake the wheel to distribute the sealant evenly. Check for any air leaks, especially around the beads and valve stem.
- Final Inspection: Ensure the tire is evenly seated around the entire circumference of the rim.
Image 2.1: Close-up view of the Continental Grand Prix 5000 S TR tire, showcasing the tread pattern and transparent sidewall.
3. Operating and Usage
The Continental Grand Prix 5000 S TR tires are designed for high-performance road cycling. Proper tire pressure is crucial for optimal handling, comfort, and puncture resistance.
3.1 Tire Pressure:
The maximum recommended pressure for these tires is 73 PSI (5.0 Bar). However, optimal pressure varies based on rider weight, road conditions, and rim type (hooked vs. hookless). Always refer to your rim manufacturer's recommendations for maximum pressure, especially for hookless rims.
- Hooked Rims: Typically allow for higher pressures up to the tire's maximum.
- Hookless Rims: Often have lower maximum pressure limits. Consult your rim manufacturer's guidelines.
Regularly check your tire pressure before each ride using an accurate gauge.
3.2 Performance Characteristics:
Image 3.1: Performance comparison chart illustrating the superior balance of grip, speed, and mileage offered by the Black Chili compound.
The Black Chili compound provides an excellent balance across grip, speed, and mileage, making these tires suitable for various road conditions and riding styles. The Active Comfort Technology and Laser Grip further enhance the riding experience by improving comfort and cornering stability.
4. Maintenance
Consistent maintenance will extend the life of your tires and ensure safe riding.
4.1 Regular Checks:
- Tire Pressure: Check and adjust tire pressure before every ride.
- Visual Inspection: Regularly inspect the tire tread and sidewalls for cuts, embedded debris, bulges, or excessive wear. Remove any sharp objects carefully.
- Tread Wear: Replace tires when the tread shows significant wear or when the wear indicators (if present) become visible.
- Sealant Level: For tubeless setups, sealant dries out over time. Check and replenish your tubeless sealant every 3-6 months, or as recommended by the sealant manufacturer.
4.2 Cleaning:
Clean your tires with mild soap and water. Avoid harsh chemicals or solvents, as these can degrade the rubber compound.
Image 4.1: Manufacturing process of Continental tires, highlighting the 'Handmade in Germany' quality.
5. Troubleshooting
This section addresses common issues you might encounter with your tubeless ready tires.
5.1 Loss of Air Pressure:
- Cause: Insufficient sealant, dried sealant, small puncture, improperly seated bead, or faulty valve.
- Solution: Check sealant level and replenish if necessary. Inspect the tire for punctures; sealant should seal small holes. Re-inflate the tire to ensure beads are fully seated. Check the valve core for tightness or damage.
5.2 Tire Not Seating Properly:
- Cause: Insufficient air volume, dry beads, or improper rim tape.
- Solution: Use an air compressor or a high-volume floor pump. Apply soapy water to the tire beads and rim edges to aid seating. Ensure rim tape is correctly installed and free of wrinkles.
5.3 Punctures Not Sealing:
- Cause: Puncture is too large for sealant, or sealant is old/dried.
- Solution: For larger punctures, a tire plug may be required. If the sealant is old, replenish it. In case of a severe puncture, install an inner tube as a temporary fix.
6. Specifications
| Specification | Detail |
|---|---|
| Brand | Continental |
| Model Name | Grand Prix 5000 S TR |
| Tire Type | Tubeless Ready |
| Size | 700 x 28 |
| ETRTO Size | 28-622 |
| Item Diameter | 622 Millimeters |
| Item Width | 28 Centimeters |
| Max Pressure | 73 PSI (5.0 Bar) |
| Weight | 278g (approximate) |
| Material | Synthetic Rubber (Black Chili Compound) |
| Bike Type | Road Bike |
| Color | Black / Transparent Sidewall |
| Part Number | 2x0101874 |
7. Warranty Information
Continental Grand Prix 5000 S TR tires come with a Limited Warranty. For specific terms, conditions, and duration of the warranty, please refer to the official Continental website or contact Continental customer support directly. Keep your proof of purchase for any warranty claims.
8. Support and Contact
For further assistance, technical questions, or support regarding your Continental Grand Prix 5000 S TR tires, please visit the official Continental website or contact their customer service department.
- Continental Website: www.continental-tires.com/bicycle/
- Customer Service: Refer to the contact section on the official website for regional support options.
