1. Introduction
This manual provides detailed instructions for the safe and effective use of your Berrcom ET005 Forehead and Ear Thermometer and Berrcom JXB182 Digital Forehead Thermometer. Please read this manual thoroughly before using the devices and retain it for future reference.
Image 1.1: The Berrcom ET005 Forehead and Ear Thermometer (left) and the Berrcom JXB182 Digital Forehead Thermometer (right).
2. Safety Information
Always follow basic safety precautions when using medical devices. This includes:
- Do not use the thermometer for purposes other than measuring human body temperature.
- Keep the device out of reach of children and pets.
- Do not drop the thermometer or expose it to strong impacts.
- Avoid direct sunlight, high temperatures, or corrosive environments.
- Consult a physician if you have concerns about temperature readings.
- Do not attempt to disassemble or repair the device yourself.
3. Product Overview
3.1 Berrcom ET005 Forehead and Ear Thermometer
The ET005 is a versatile thermometer designed for both forehead and ear temperature measurements. It features a quick measurement time and an automatic shut-off function to conserve battery life.
Image 3.1: Front view of the Berrcom ET005 Forehead and Ear Thermometer.
3.2 Berrcom JXB182 Digital Forehead Thermometer
The JXB182 is a non-contact infrared thermometer providing rapid temperature readings. It includes a quiet vibration alert and memory storage for tracking temperature changes.

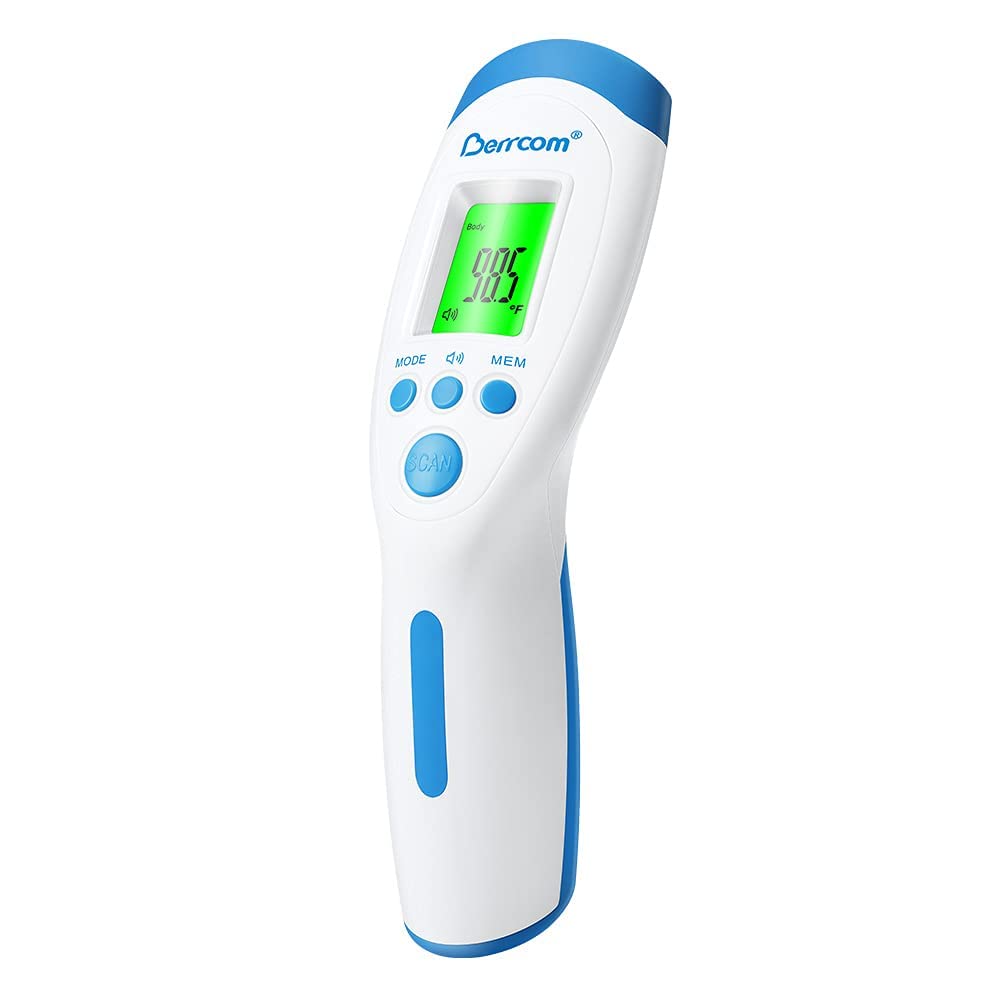

Image 3.2: Front view of the Berrcom JXB182 Digital Forehead Thermometer.
4. Setup
4.1 Battery Installation
Both thermometers require batteries for operation. Locate the battery compartment, typically on the handle or back of the device. Insert the specified battery type (e.g., AAA batteries) according to the polarity indicators (+/-). Close the battery compartment securely.
4.2 Initial Settings
Upon first use or after battery replacement, you may need to set the temperature unit (Celsius ℃ or Fahrenheit ℉). Refer to the operating instructions for each model on how to switch between units.
5. Operating Instructions
5.1 Berrcom ET005 Forehead and Ear Thermometer
The ET005 offers two measurement modes:
- Forehead Mode: Ensure the protective cap is on. Position the thermometer 3-5 cm from the center of the forehead. Press the measurement button to take a reading.
Image 5.1: Using the Berrcom ET005 for forehead temperature measurement on a baby.
- Ear Mode: Remove the protective cap to expose the ear probe. Gently insert the probe into the ear canal. Press the measurement button.
Image 5.2: Using the Berrcom ET005 for ear temperature measurement on a baby.
The ET005 features a 1-second measurement and an automatic shut-off after 30 seconds of inactivity to save energy. Temperature units (℃/℉) are easily switchable.
5.2 Berrcom JXB182 Digital Forehead Thermometer
The JXB182 is a non-contact thermometer:
- Measurement: Hold the thermometer 2-5 cm from the center of the forehead. Press the 'SCAN' button. The reading will appear in approximately 1 second.
- Vibration Alert: The device provides a quiet vibration alert upon completion of measurement.
- Memory Function: The thermometer can store up to 32 sets of temperature readings, allowing you to track historical changes. Use the 'MEM' button to access stored readings.
- Temperature Unit Switching: ℃ and ℉ are easily switchable via the 'MODE' button.
- Backlight Indicator: The display backlight changes color based on the temperature reading:
- Green: Normal temperature (e.g., < 37.4 ℃)
- Yellow: Slightly elevated temperature (e.g., 37.5 ℃ - 38.5 ℃)
- Red: High temperature/fever (e.g., > 38.6 ℃), often accompanied by an alarm.
Image 5.3: The JXB182 display showing different backlight colors for temperature ranges.
Image 5.4: Using the Berrcom JXB182 for non-contact forehead temperature measurement on a sleeping child.
The JXB182 can also be used to measure the temperature of objects (like milk) or rooms. Switch to the appropriate mode using the 'MODE' button.
Image 5.5: The Berrcom JXB182 can measure forehead, milk, and room temperatures.
6. Maintenance
6.1 Cleaning
To clean your thermometer, wipe the device with a soft cloth slightly dampened with alcohol or a mild disinfectant. Do not immerse the thermometer in water or any other liquid. Ensure the probe is clean before each use, especially for the ear thermometer.
6.2 Storage
Store the thermometer in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use to prevent damage.
7. Troubleshooting
If your thermometer is not functioning correctly, consider the following:
- No Power: Check if the batteries are correctly installed and have sufficient charge. Replace batteries if necessary.
- Inaccurate Readings: Ensure the thermometer is used according to the instructions (correct distance for non-contact, proper ear insertion). Environmental factors can affect readings; ensure the room temperature is stable.
- Display Errors: If an error code appears, refer to the specific model's detailed manual (if provided separately) or contact customer support.
- Slow Response: Ensure the sensor is clean and free from debris.
If problems persist, contact Berrcom customer support for assistance.
8. Specifications
8.1 Berrcom ET005 Forehead and Ear Thermometer
- Measurement Modes: Forehead, Ear
- Measurement Time: 1 second
- Accuracy: ±0.2℃ (35℃~42℃)
- Temperature Units: ℃ / ℉ Switchable
- Auto Shut-off: 30 seconds
- Power Source: Battery Powered (e.g., 2x AAA, not specified in input but common)
- Outer Material: Plastic
- Display Type: Digital
- Product Care: Wipe Clean
- Reusability: Reusable
8.2 Berrcom JXB182 Digital Forehead Thermometer
- Measurement Mode: Non-Contact Forehead, Object, Room
- Measurement Time: 1 second
- Accuracy: ±0.2℃ (35℃~42℃)
- Temperature Units: ℃ / ℉ Switchable
- Memory: 32 sets of readings
- Special Features: Non-Contact, Vibration Alert, Color Backlight
- Power Source: Battery Powered (e.g., 2x AAA, not specified in input but common)
- Outer Material: Plastic
- Display Type: Digital
- Product Care: Wipe Clean
- Reusability: Reusable
9. Warranty and Support
Berrcom products are designed for reliability and performance. For warranty information or technical support, please refer to the documentation included with your purchase or visit the official Berrcom website. Keep your purchase receipt as proof of purchase.
