1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Rinnai REU-E430 FER E43 Digital Gas Water Heater. Please read this manual thoroughly before installation and use, and retain it for future reference.
The Rinnai REU-E430 FER E43 is a high-capacity digital gas water heater designed for natural gas (GN) systems. It features advanced technology for precise temperature control and energy efficiency.
Figure 1: Front view of the Rinnai REU-E430 FER E43 Digital Gas Water Heater with its remote control.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Professional Installation Required: This appliance must be installed only by qualified professionals in accordance with local codes and the ABNT NBR 13103 standard.
- Gas Type: This model is designed exclusively for Natural Gas (GN). Do not attempt to use it with any other type of gas. Verify your gas supply type before installation.
- Ventilation: Ensure adequate permanent ventilation in the installation area as required by safety standards for gas appliances.
- Exhaust System: The unit features a forced exhaust system (Type B23). The exhaust ducting must be correctly installed and maintained to safely remove combustion products.
- Integrated Safety Systems: The water heater is equipped with multiple safety devices and sensors that will interrupt operation in case of detected faults. Do not bypass or tamper with these systems.
3. Setup and Installation
Installation of the Rinnai REU-E430 FER E43 water heater requires specialized knowledge and must be performed by a certified technician. This section provides an overview of key considerations.
3.1 Pre-Installation Checks
- Gas Supply: Confirm that the available gas supply is Natural Gas (GN) and that the pressure is within the appliance's operating range.
- Location: The installation site must comply with all local regulations regarding gas appliances, including ventilation requirements and proximity to combustible materials.
- Water Supply: Ensure adequate water pressure and flow rate for optimal performance.
- Electrical Supply: The unit requires a Bivolt (automatic voltage selection) electrical connection.
3.2 Included Components
The product package typically includes:
- Rinnai REU-E430 FER E43 Water Heater Unit
- Wired Remote Control
- Instruction Manual
- Warranty Certificate
- Mounting Screws and Wall Plugs
Figure 2: Top view showing the exhaust vent and air intake connections.
Figure 3: Internal components of the water heater, including the coil-less heat exchanger.
4. Operating Instructions
The Rinnai REU-E430 FER E43 is designed for user-friendly operation via its digital remote control.
4.1 Automatic Ignition
The appliance features automatic ignition. When in standby mode, it will automatically activate upon detection of water flow (e.g., opening a shower or faucet).
4.2 Digital Remote Control
The wired digital remote control allows you to set and monitor the water heater's functions.

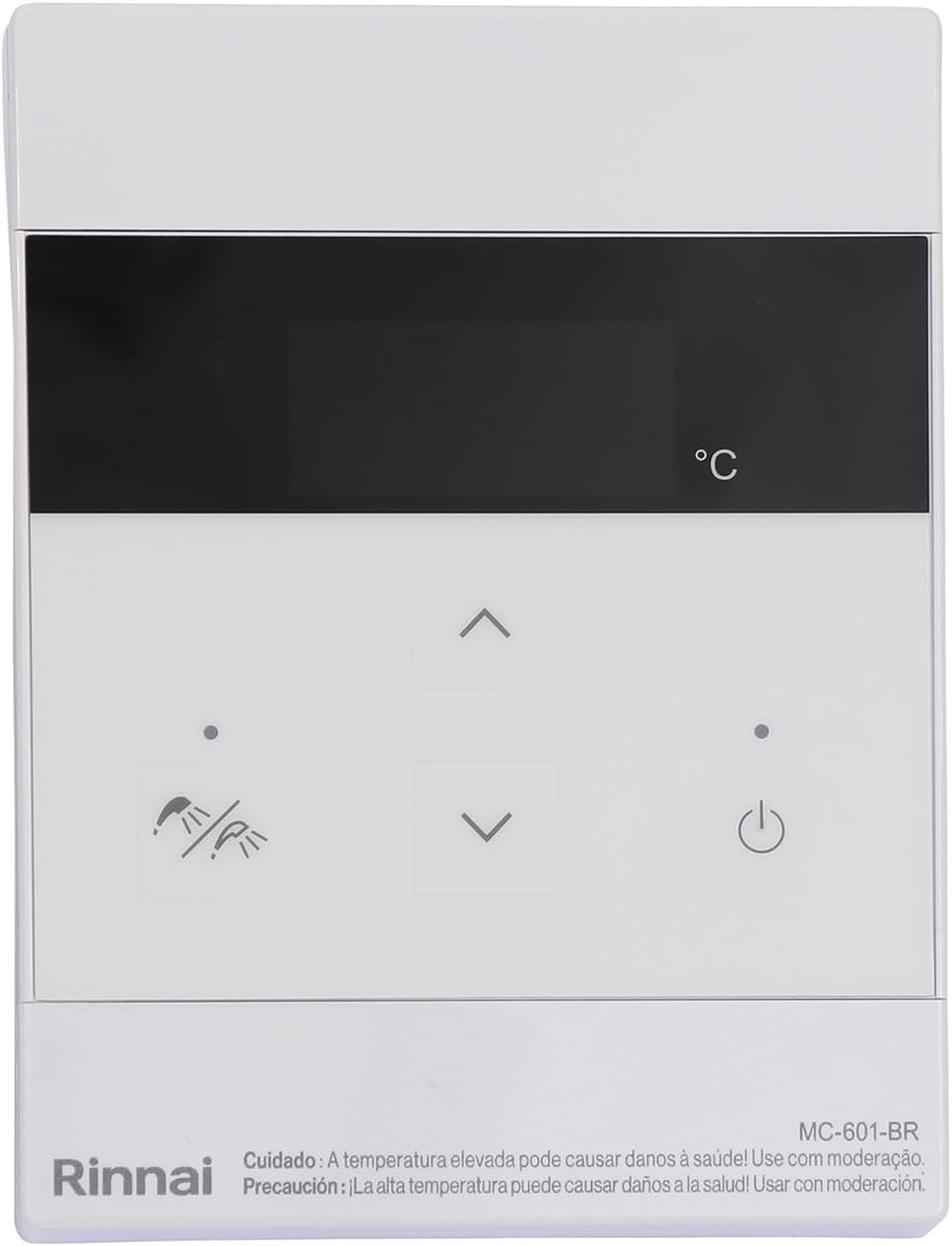

Figure 4: Digital Remote Control (MC-601-BR).
- Temperature Adjustment: Use the up and down arrows on the remote control to set your desired water temperature. The digital display will show the current setting.
- Automatic Flame Modulation: The heater automatically adjusts the flame intensity based on water flow and programmed temperature, ensuring consistent hot water and gas efficiency.
- Digital Fault Identification: The remote control can display error codes, assisting in troubleshooting. Refer to the troubleshooting section or contact support if an error code appears.
- Safety Timer: The unit includes a safety timer feature.
5. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your Rinnai gas water heater. All maintenance procedures should be performed by qualified personnel.
- Annual Inspection: It is recommended to have the appliance inspected annually by a certified technician. This includes checking gas connections, water connections, exhaust system, and internal components.
- Cleaning: Keep the exterior of the unit clean. Do not use abrasive cleaners or solvents.
- Ventilation: Ensure that the ventilation openings are never obstructed.
6. Troubleshooting
If you experience issues with your water heater, consult the following general troubleshooting steps. For complex problems or error codes displayed on the remote control, contact a qualified service technician.
- No Hot Water:
- Check if the gas supply is on.
- Verify the water supply is open and flowing.
- Ensure the electrical power to the unit is active.
- Check the remote control for any error codes.
- Inconsistent Water Temperature:
- Ensure the desired temperature is correctly set on the remote control.
- Check for sufficient water flow and pressure.
- Unusual Noises or Odors:
Immediately turn off the gas supply and power to the unit. Contact a qualified technician. Do not attempt to operate the unit if you detect gas odors.
7. Specifications
Detailed technical specifications for the Rinnai REU-E430 FER E43 Digital Gas Water Heater.
Figure 5: Energy Efficiency Label (ENCE).
| Feature | Specification |
|---|---|
| Manufacturer | Rinnai Brasil Tecnologia de Aquecimento Ltda |
| Model Number | E43 |
| Certification | Inmetro Registration 000170/2023, NCC Certificate 22.09720 |
| Color | White |
| Material | Steel Alloy, Metal, Plastic |
| Power Source Type | Natural Gas |
| Energy Efficiency (ENCE) | 0.85 |
| Number of Products | 1 |
| Flow Rate | 45 Liters per minute |
| Mounting Type | Wall |
| Special Features | Detachable Digital Control (wired), Digital Fault Identification, Safety Timer, Coil-less Heat Exchanger |
| Battery Operated | No |
| Length | 24 cm |
| Width | 47 cm |
| Height | 60 cm |
| Product Dimensions | 24 x 47 x 60 cm; 25 kg |
| ASIN | B0CBCZPPTX |
| EAN | 7896576408325 |
8. Warranty and Support
8.1 Warranty Information
The warranty terms and conditions are detailed in the Warranty Certificate included with your product. Please consult this document for specific coverage, duration, and validity requirements. Retain your proof of purchase for warranty claims.
8.2 Technical Support
For installation, maintenance, or troubleshooting beyond the scope of this manual, please contact a Rinnai Authorized Technical Assistance provider. Only qualified and certified technicians should perform service on this appliance.
