HTBCCHB 8.5x3.0 Pneumatic Tire with Inner Tube for Electric Scooters User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your HTBCCHB 8.5x3.0 pneumatic tire and inner tube. Designed for specific electric scooter models, this tire offers enhanced performance and ride comfort. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Product Overview

2.1 Features

• Superior Performance: The 8.5x3.0 scooter tire and inner tube are designed for durability and performance.
• Advanced Shock Absorption: Provides a comfortable and stable riding experience, even on varied terrain.
• High-Quality Construction: Manufactured from durable rubber to resist wear and tear, ensuring reliable performance.

2.2 Compatibility

This 8.5x3.0 tire and inner tube are compatible with the following electric scooter models:

• VSETT 8
• VSETT 9
• Macury Zero 8
• Zero 9 PRO
• Inokim Light 2

2.3 Specifications

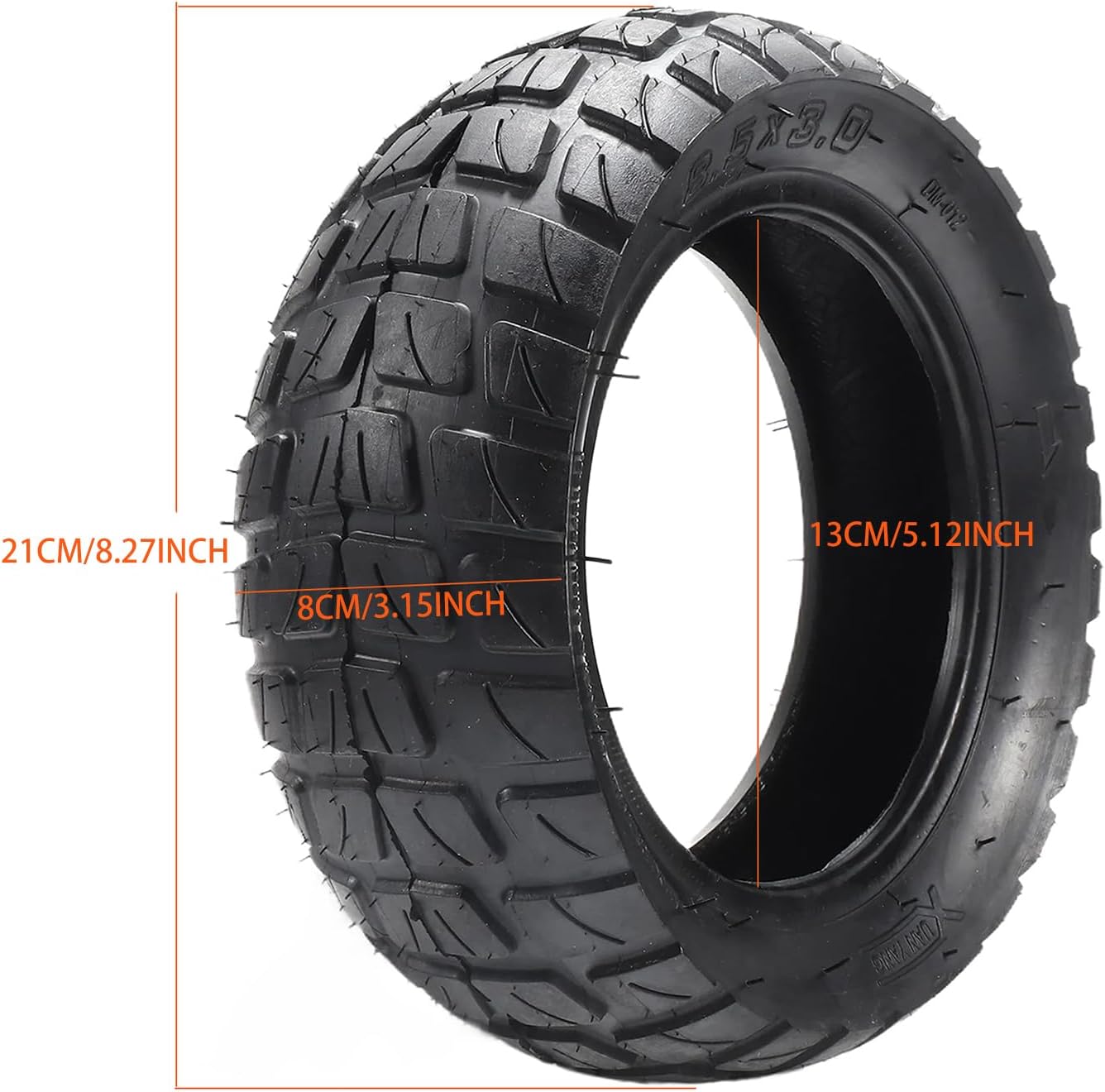

Figure 1: Tire Dimensions. This image illustrates the key measurements of the 8.5x3.0 tire, including its outer diameter, width, and inner diameter.

Figure 2: Maximum Load and Pressure Markings. This image displays the maximum load capacity (75 kg / 165 lbs) and recommended inflation pressure (50 psi / 340 kPa) printed on the tire's sidewall.

Figure 3: Tire Size Marking. This image highlights the "8.5X3.0" size designation on the tire's sidewall, confirming its dimensions.

3. Safety Information

• Always ensure the tire is correctly installed and inflated to the recommended pressure before riding.
• Regularly inspect tires for wear, cuts, or punctures. Replace damaged tires immediately.
• Improper installation or maintenance can lead to tire failure and potential injury. If unsure, seek professional assistance.
• Do not exceed the maximum load capacity or inflation pressure specified on the tire sidewall.

4. Setup and Installation

Replacing an electric scooter tire and inner tube can be challenging. It is highly recommended to have this procedure performed by a qualified technician or an experienced individual. The following steps are a general guide and may vary depending on your specific scooter model.

4.1 Required Tools

• Tire levers (often included with the tire, as shown in Figure 4)
• Wrenches or sockets (for wheel removal)
• Air pump with pressure gauge
• Soapy water (for lubrication)

Figure 4: HTBCCHB 8.5x3.0 Tire and Inner Tube. This image shows the pneumatic tire, inner tube, and included tire levers, which are essential tools for installation.

4.2 Installation Steps (General Guide)

1. Prepare the Scooter: Ensure the scooter is powered off and stable. Remove the wheel assembly from the scooter frame.
2. Deflate the Old Tire: If replacing an existing tire, completely deflate the old inner tube.
3. Remove the Old Tire: Use tire levers to carefully pry the old tire bead off the rim. Remove the old inner tube.
4. Inspect the Rim: Check the rim for any sharp edges or debris that could damage the new inner tube. Clean if necessary.
5. Install the New Inner Tube: Lightly inflate the new inner tube (just enough to give it shape). Insert it into the new tire.
6. Mount the Tire: Place one bead of the new tire onto the rim. Apply soapy water to the second bead and use tire levers to carefully work it onto the rim. Be cautious not to pinch the inner tube.
7. Inflate the Tire: Slowly inflate the tire to the recommended pressure (refer to Section 5.1). Ensure the tire beads are properly seated on the rim.
8. Reinstall the Wheel: Mount the wheel assembly back onto the scooter, ensuring all fasteners are securely tightened.

5. Operating Instructions

5.1 Recommended Tire Pressure

Maintain the tire pressure at the recommended level for optimal performance, safety, and tire longevity. The maximum recommended pressure for this tire is 50 PSI (340 kPa). Check tire pressure regularly, at least once a week, as it can fluctuate due to temperature changes and normal air loss.

• Under-inflation: Can lead to increased rolling resistance, reduced range, poor handling, and premature tire wear.
• Over-inflation: Can result in a harsher ride, reduced grip, and increased risk of punctures or tire damage from impacts.

6. Maintenance

• Regular Inspection: Visually inspect the tires before each ride for any signs of damage, such as cuts, cracks, bulges, or embedded objects.
• Tread Wear: Monitor the tread depth. Replace tires when the tread is significantly worn to maintain grip and safety.
• Cleaning: Keep tires clean from dirt, mud, and debris. Use a damp cloth to wipe them down. Avoid harsh chemicals that could degrade the rubber.
• Storage: If storing the scooter for an extended period, ensure tires are properly inflated and stored in a cool, dry place away from direct sunlight and ozone-producing equipment.

7. Troubleshooting

8. Warranty and Support

For any questions regarding your HTBCCHB 8.5x3.0 pneumatic tire and inner tube, or for warranty inquiries, please contact the manufacturer or your point of purchase. Keep your purchase receipt as proof of purchase.

Manufacturer: HTBCCHB

For further assistance, please visit the HTBCCHB brand store on Amazon.
