Introduction
Thank you for choosing the JISULIFE Handheld Portable Mini Fan. This manual provides essential information for the safe and efficient operation of your new device. Please read it thoroughly before use and retain it for future reference.
This compact and powerful fan is designed to provide personal cooling wherever you go. Its key features include:
- 4500mAh Rechargeable Battery: Offers extended use and easy recharging via USB.
- 3 Wind Speed Gears: Customize your airflow from light breeze to strong wind with a single button.
- Portable Design: Lightweight and compact, easily fitting into small bags for on-the-go cooling.
- Convenient Operation: Simple 1-click design for power and speed adjustments.
What's in the Box
Upon opening the package, please ensure all the following components are present:
- Handheld Fan
- Type-C Charging Cable
- User Manual
Setup
Charging the Fan
Before first use, it is recommended to fully charge the fan. The fan features a built-in 4500mAh rechargeable battery.
- Locate the Type-C charging port on the fan's handle.
- Connect the provided Type-C charging cable to the fan's charging port.
- Connect the other end of the USB charging cable to a compatible USB power source (e.g., wall adapter, laptop, power bank). For quick charging, ensure the power source meets 5V/2A current.
- The fan will be fully charged in approximately 4.5 hours.

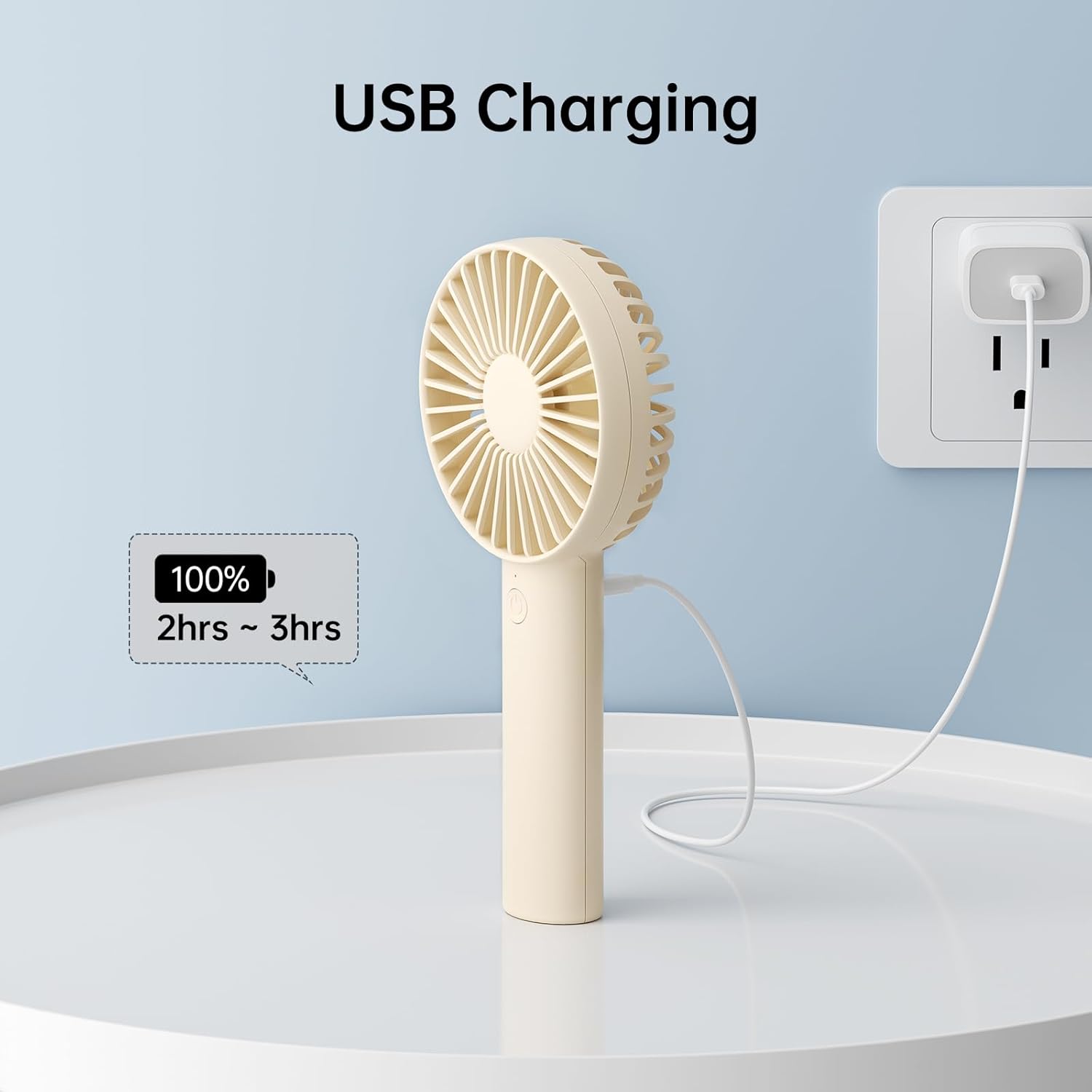

Image: The fan connected to a USB power source for charging.
Operating Instructions
Power On/Off and Speed Adjustment
The fan operates with a simple one-button control:
- To Power On: Short press the power button once. The fan will start at Speed 1 (light wind).
- To Adjust Speed: Continue to short press the power button to cycle through the speeds: Speed 1 (light wind), Speed 2 (soft wind), and Speed 3 (strong wind).
- To Power Off: Long press the power button for 3 seconds from any speed setting.
Battery Life per Speed Setting:
- Speed 1 (Light Wind): Approximately 16 hours
- Speed 2 (Soft Wind): Approximately 9 hours
- Speed 3 (Strong Wind): Approximately 4.5 hours

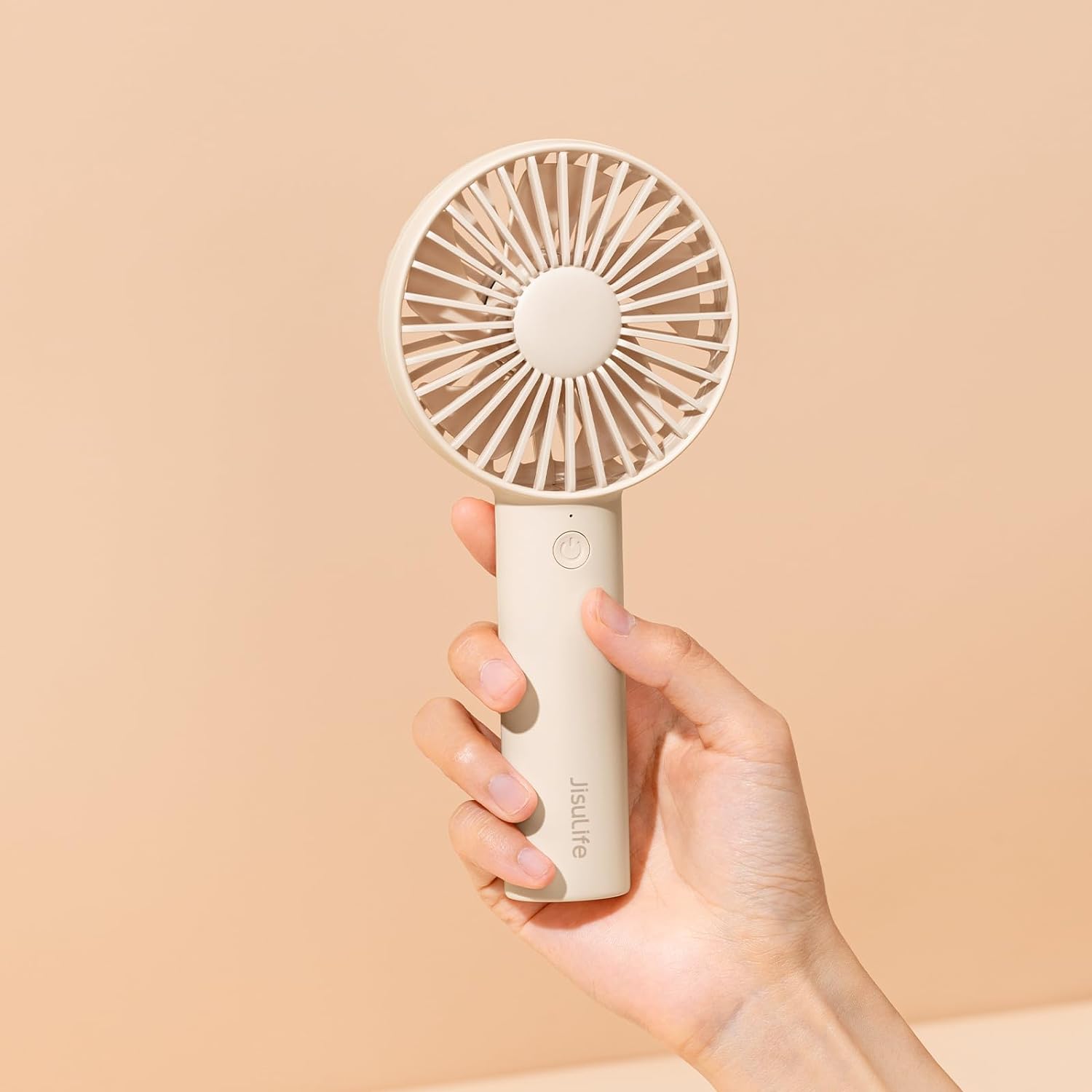

Image: A hand holding the JISULIFE Handheld Portable Mini Fan, demonstrating its compact size.
Image: A person enjoying the fan's cooling effect outdoors, highlighting its long-lasting chill.
Image: An illustration detailing the powerful air output and strong motor of the fan.
Maintenance
To ensure the longevity and optimal performance of your JISULIFE Handheld Portable Mini Fan, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe the exterior of the fan. Do not use abrasive cleaners or immerse the fan in water.
- Storage: When not in use for extended periods, store the fan in a cool, dry place away from direct sunlight and extreme temperatures.
- Avoid Obstructions: Ensure the fan blades and air inlets/outlets are free from dust, lint, or other obstructions to maintain optimal airflow.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | Battery is depleted. | Charge the fan fully using the provided USB cable. |
| Weak airflow. | Obstruction in fan blades or vents. | Ensure no foreign objects are blocking the fan blades or air vents. Clean if necessary. |
| Fan stops unexpectedly. | Low battery. | Recharge the fan. |
| Charging light not illuminating. | Cable or power source issue. | Try a different USB port or power adapter. Ensure the cable is securely connected. |
Specifications
| Feature | Detail |
|---|---|
| Brand | JISULIFE |
| Model Name | FA21 |
| Color | Beige |
| Power Source | Battery Powered |
| Battery Capacity | 4500mAh (Lithium Ion) |
| Number of Power Levels | 3 |
| Product Dimensions | 1.35"D x 3.62"W x 7.67"H |
| Item Weight | 6.5 ounces (185 Grams) |
| Voltage | 5 Volts |
| Wattage | 5 watts |
| Control Method | Touch |
| Connector Type | USB Type A |
| Blade Material | Plastic |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Manufacture Year | 2023 |
| Specification Met | CE, UKCA, PSE, FCC, RoHS |
Warranty and Support
JISULIFE products are manufactured to the highest quality standards. For any questions, technical support, or warranty claims, please refer to the contact information provided on the product packaging or visit the official JISULIFE website.
Please retain your purchase receipt as proof of purchase for warranty purposes.
