1. Introduction
Thank you for choosing the Brennenstuhl JARO 3060 LED Floodlight. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new floodlight. Please read these instructions carefully before use and retain them for future reference.
The Brennenstuhl JARO 3060 is a powerful and energy-efficient LED floodlight designed for outdoor use, offering 2300 lumens of cool white light with a 20W power consumption and an IP65 rating for weather resistance.
Image 1.1: Brennenstuhl JARO 3060 LED Floodlight, front view.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Ensure the power supply is disconnected before installation, maintenance, or cleaning.
- Installation should be performed by a qualified electrician in accordance with local wiring regulations.
- Do not look directly into the LED light source when it is illuminated, as this may cause eye damage.
- Do not modify the floodlight in any way. Unauthorized modifications can lead to electric shock, fire, or product damage.
- Ensure the mounting surface is strong enough to support the weight of the floodlight.
- This product is rated IP65 for outdoor use, meaning it is protected against dust ingress and low-pressure water jets. However, it should not be submerged in water.
- Keep packaging materials out of reach of children.
3. Product Components and Features
The Brennenstuhl JARO 3060 LED Floodlight is constructed with durable materials and features designed for longevity and performance.
Image 3.1: Key features including safety glass front screen, 20W power, and adjustable mounting bracket.
- Safety Glass Front Screen: Provides protection for the LED array.
- 20W Power: Delivers efficient illumination.
- Adjustable Mounting Bracket: Allows for flexible positioning and aiming of the light.
Image 3.2: Additional features highlighting the LED technology and construction.
- Everlight SMD LEDs: High-quality LEDs designed for a long operational lifetime.
- Solid, Modern Aluminum Housing: Ensures durability and efficient heat dissipation.
- 2300 Lumens: Bright light output for various outdoor applications.
Image 3.3: Detail of the wiring connection and weather protection rating.
- Watertight Spring-Loaded Clamp: Facilitates user-friendly and secure electrical connection.
- IP65 Rating: Indicates protection against dust and water jets, suitable for outdoor environments.
4. Setup and Installation
The Brennenstuhl JARO 3060 LED Floodlight is designed for wall mounting. Follow these steps for proper installation:
- Choose a Location: Select a suitable outdoor location for mounting the floodlight. Ensure the surface is stable and can support the fixture's weight. Consider the desired light coverage area.
- Disconnect Power: Before starting any electrical work, ensure the main power supply to the installation area is switched off at the circuit breaker.
- Mount the Bracket: Use appropriate screws and wall plugs (not included) to securely attach the adjustable mounting bracket to the chosen surface. The bracket allows for angle adjustment after mounting.
- Wire the Floodlight: Connect the floodlight to your electrical system using the watertight spring-loaded clamp. Ensure correct polarity (Live, Neutral, Earth) according to local electrical codes. The external clamp is designed for user-friendly and secure wiring.
- Secure the Floodlight: Attach the floodlight body to the mounted bracket using the provided hardware.
- Adjust Angle: Loosen the screws on the side of the mounting bracket to adjust the floodlight's angle, then tighten them securely to fix the position.
- Restore Power: Once installation is complete and all connections are secure, restore power to the circuit.

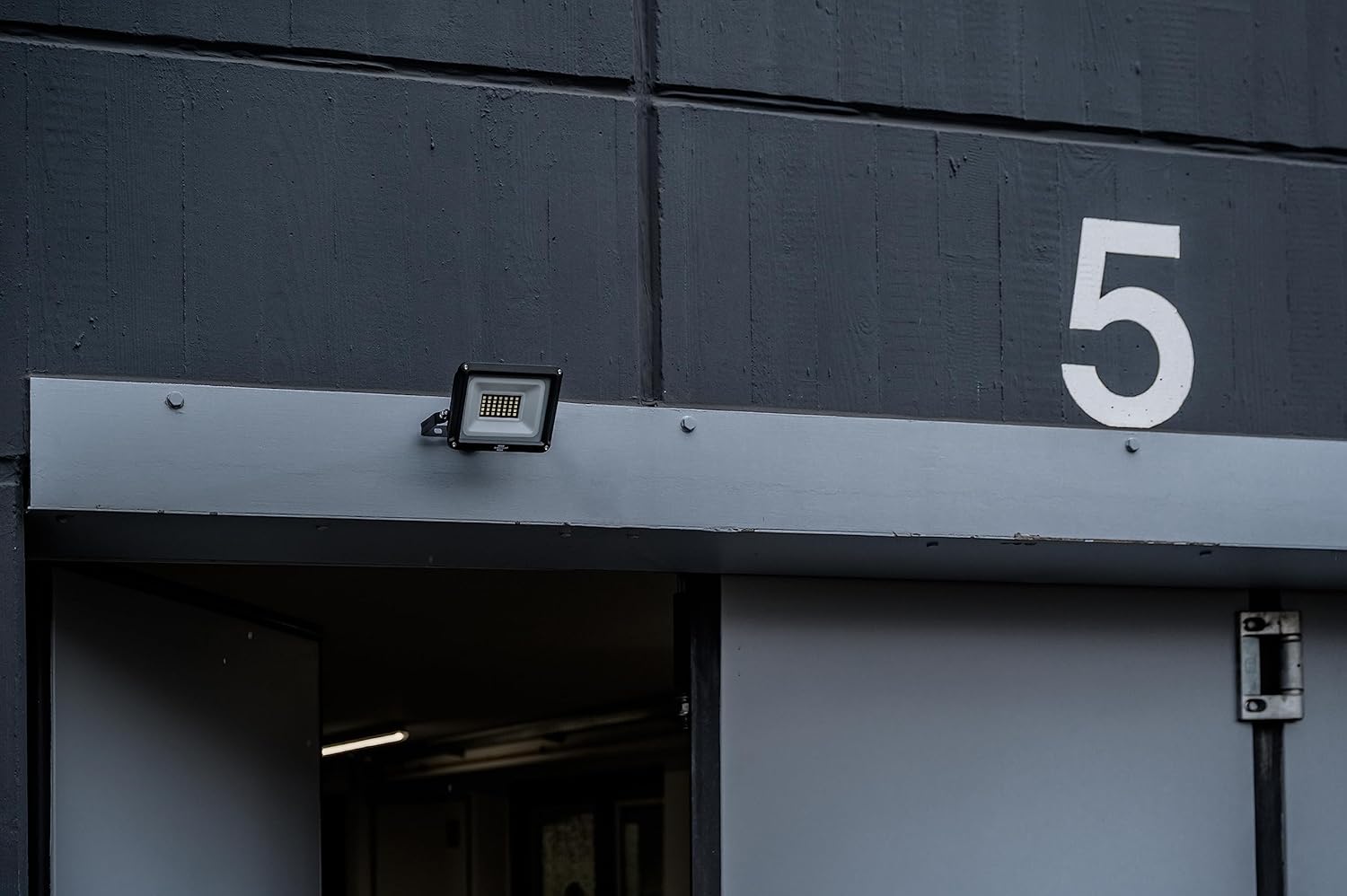

Image 4.1: Example of the floodlight installed above an entrance, providing illumination.
Image 4.2: Close-up view of the floodlight mounted on an exterior wall, showing its compact design.
5. Operating Instructions
The Brennenstuhl JARO 3060 LED Floodlight operates via a direct power connection and is controlled by an external switch (not included) or a touch control method as specified. Once installed and powered, the floodlight will illuminate.
- Power On/Off: Use the wall switch connected to the floodlight's circuit to turn the light on or off.
- Touch Control: The product features a touch control method. Specific instructions for this functionality may vary based on the exact model variant or external accessories. Refer to any additional documentation provided with your specific setup for detailed touch control operation.
Image 5.1: The floodlight providing bright illumination to a garage entrance at night.
Image 5.2: The floodlight mounted on a building corner, demonstrating its discreet presence during daylight hours.
6. Maintenance
The Brennenstuhl JARO 3060 LED Floodlight requires minimal maintenance.
- Cleaning: Periodically clean the floodlight's exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or the safety glass. Ensure the power is off before cleaning.
- Inspection: Regularly inspect the floodlight for any signs of damage to the housing, cable, or mounting bracket. If any damage is found, disconnect power immediately and have the unit inspected by a qualified professional.
- LED Replacement: The Everlight SMD LEDs are designed for a long lifetime and are not user-replaceable. If the LEDs fail, the entire unit may need replacement.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Floodlight does not turn on. | No power supply; loose wiring connection; faulty switch; internal fault. | Check power supply and circuit breaker. Verify all wiring connections are secure. Test the switch. If problem persists, consult a qualified electrician. |
| Light output is dim or flickers. | Unstable power supply; internal component issue. | Ensure stable power. If flickering continues, disconnect power and consult a qualified electrician. |
| Water ingress or condensation inside. | Improper installation; damaged seal. | Disconnect power immediately. Inspect seals and ensure proper installation. If damaged, the unit may need replacement. |
8. Specifications
Detailed technical specifications for the Brennenstuhl JARO 3060 LED Floodlight:
| Specification | Value |
|---|---|
| Brand | Brennenstuhl |
| Model Name | JARO 3060 |
| Part Number | 1171250241 |
| Light Source Type | LED (Everlight SMD LEDs) |
| Wattage | 20 watts |
| Brightness | 2300 lumens |
| Light Color | Cool White |
| Voltage | 230 Volts |
| Indoor/Outdoor Usage | Outdoor |
| Water Resistance Level | IP65 (Water Resistant) |
| Material | Aluminum |
| Finish Type | Powder Coated |
| Product Dimensions (L x W x H) | 2.99" x 5.91" x 5.35" (approx. 7.6 cm x 15 cm x 13.6 cm) |
| Item Weight | 14.8 ounces (approx. 0.42 kg) |
| Control Method | Touch |
| Assembly Required | Yes |
| Specification Met | CE |
For detailed energy efficiency information, please refer to the EU EPREL database:
View EU EPREL Product Information Sheet
Image 8.1: EU Energy Label indicating Energy Class D and energy consumption.
9. Warranty and Support
The Brennenstuhl JARO 3060 LED Floodlight comes with a limited warranty. Please refer to the warranty documentation included with your purchase for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact Brennenstuhl customer service or your local distributor.
Manufacturer: Brennenstuhl
Website: www.brennenstuhl.com (Note: This is a general link; specific regional support may vary.)
