Yes4All Adjustable Squat Rack (Model QWJO) Instruction Manual

Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your Yes4All Adjustable Squat Rack, Model QWJO. Please read all instructions carefully before use to ensure proper setup and to prevent injury.

The Yes4All Adjustable Squat Rack is designed for home gym use, offering versatility for various strength training exercises including squats, bench presses, dips, and overhead lifting. It features adjustable height and width settings, integrated weight plate storage, and a robust steel construction.

Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury or death.

• Consult a physician before beginning any exercise program.
• Always inspect the squat rack for damaged or worn parts before each use. Do not use if any components are compromised.
• Ensure all bolts, nuts, and adjustment pins are securely tightened before and during exercise.
• Do not exceed the maximum weight capacity of 690 LBS (313 kg).
• Use spotter arms when performing heavy lifts, especially squats and bench presses, to prevent injury.
• Maintain a clear area around the squat rack during use.
• Keep children and pets away from the equipment during operation.
• Always use proper lifting techniques to avoid injury.
• Place the squat rack on a flat, stable surface.

What's in the Box

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Multifunction Barbell Squat Rack components
• Assembly hardware (bolts, nuts, washers, adjustment pins)
• Instruction Manual

Image: Exploded view of the squat rack components, showing handles, barbell shelf, safety locking pin, spotter arm, weight plate storage, and anti-slip pads.

Assembly Instructions

Assembly is designed to be quick and straightforward. It is recommended to have a second person assist with assembly for safety and ease.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the "What's in the Box" list.
2. Attach Base Stabilizers: Secure the main vertical posts to the base stabilizers using the provided bolts and nuts. Ensure the anti-slip pads are correctly positioned on the bottom of the base.
3. Install Crossbar: Connect the two main vertical posts with the adjustable crossbar. This bar allows for width adjustments.
4. Mount Barbell Shelves and Spotter Arms: Attach the barbell shelves (J-hooks) and spotter arms to the vertical posts. Use the safety locking pins to secure them at the desired height.
5. Install Dip Handles (if applicable): If your model includes dip handles, attach them to the designated points on the vertical posts.
6. Attach Weight Plate Holders: Secure the weight plate storage pegs to the rear of the base.
7. Final Check: Once assembled, double-check all bolts, nuts, and pins to ensure they are fully tightened and secure before first use.

Image: An assembled Yes4All Squat Rack showing its adjustable height (up to 62 inches) and width (up to 46 inches) capabilities, along with the spotter arm height range (24.8-31 inches).

Operating Instructions

The Yes4All Adjustable Squat Rack is designed for a variety of exercises. Always ensure the rack is stable and adjusted correctly for your specific exercise and body type.

Adjusting Height and Width

• Height Adjustment: The main barbell holders can be adjusted to 13 different levels, ranging from 36.9 to 60.3 inches. To adjust, remove the safety locking pin, slide the barbell holder to the desired height, and re-insert the pin securely.
• Width Adjustment: The rack's width can be adjusted to 10 levels, from 27.2 to 44.9 inches. Loosen the securing knobs on the crossbar, slide the vertical posts to the desired width, and re-tighten the knobs firmly.
• Spotter Arm Height: The spotter arms have 8 levels of adjustment, from 23 to 36.1 inches. Adjust these to a height that provides safety during your lifts, typically just below your lowest point of movement.

Image: A detailed diagram illustrating the adjustable height of the barbell holders (Max 64.5in, Min 41.5in, 13 levels), adjustable width (Max 28.5in, Min 45.5in, 10 levels), and spotter arm height (Max 36.5in, Min 23in, 8 levels). Also highlights NBR foam handles, 2-inch barbell holders, spotter arms, and 1" & 2" weight plate holders.

Performing Exercises

• Squats: Adjust the barbell holders to a height slightly below your shoulders. Load the barbell, step under, unrack, perform your squats, and re-rack safely. Ensure spotter arms are set correctly.
• Bench Press: Position a weight bench between the uprights. Adjust the barbell holders to a height that allows you to unrack and re-rack the barbell comfortably from a lying position. Set spotter arms to prevent the bar from crushing you if you fail a lift.
• Dips: Use the integrated dip handles. Ensure they are securely attached and at a comfortable height.
• Overhead Press: Adjust the barbell holders to a height that allows for a safe unrack and re-rack for overhead movements.

Image: A person performing a barbell squat using the Yes4All Adjustable Squat Rack, demonstrating proper form and equipment use.

Image: A person performing a barbell bench press with a weight bench positioned within the Yes4All Adjustable Squat Rack, highlighting its versatility.

Maintenance

Regular maintenance ensures the longevity and safe operation of your squat rack.

• Cleaning: Wipe down the frame with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and pins for tightness. Re-tighten as necessary.
• Lubrication: Apply a small amount of silicone-based lubricant to moving parts or adjustment points if they become stiff.
• Storage: When not in use, store the rack in a dry environment to prevent rust. Utilize the integrated weight plate storage to keep your workout area organized.

Troubleshooting

Specifications

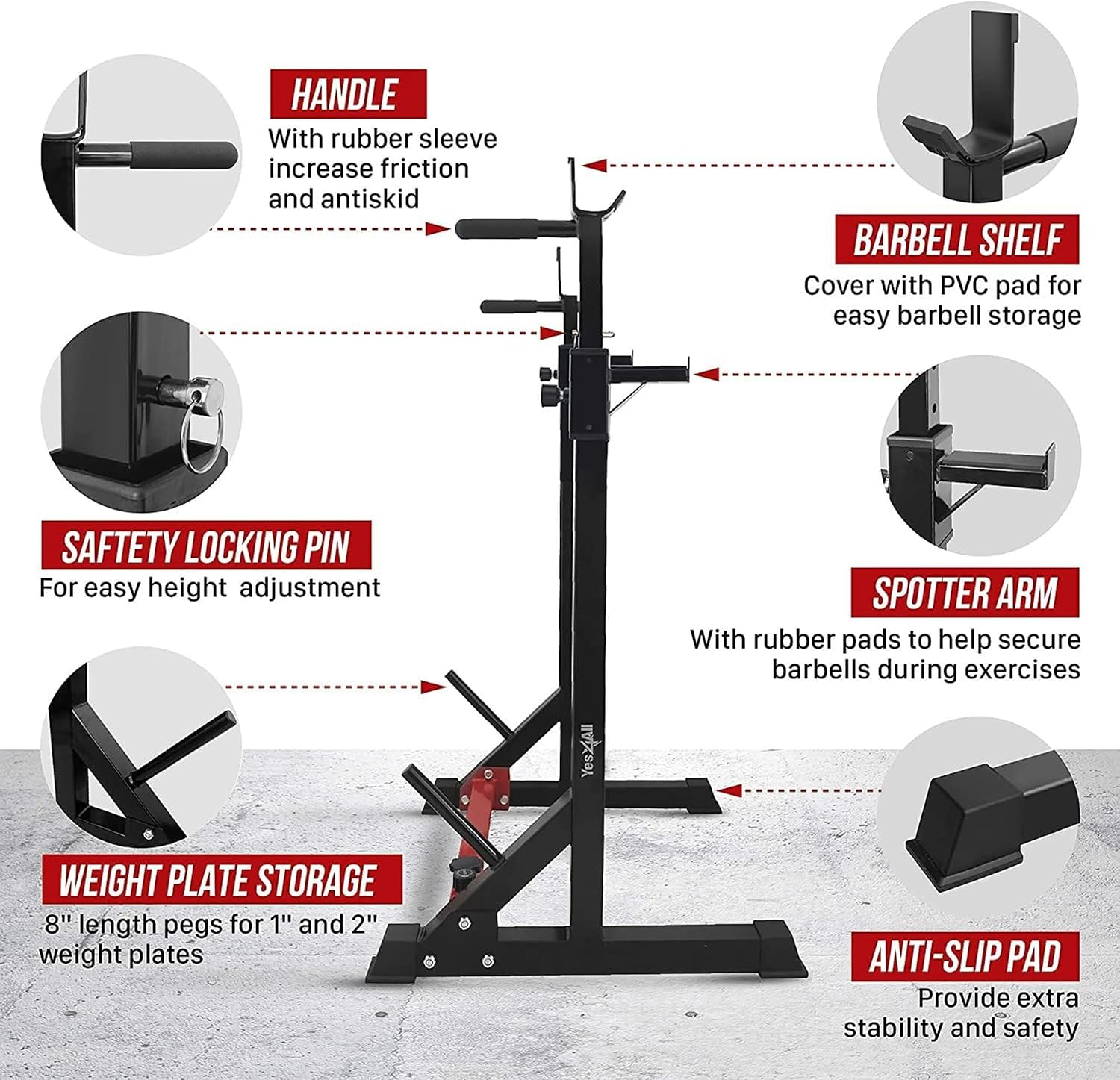

Image: Close-up view of the squat rack highlighting key features: NBR foam handles for grip, barbell shelf with PVC pad, safety locking pin for height adjustment, spotter arm with rubber pads, 8-inch weight plate pegs for 1" and 2" plates, and anti-slip pads for stability.

Warranty and Support

This Yes4All product comes with a 1-year warranty. For returns, a 30-day return policy is applicable. For any questions, missing parts, or warranty claims, please contact Yes4All customer support through their official channels or the retailer where the product was purchased.

Please retain your proof of purchase for warranty validation.
