XLC Carrier LR-F03 Universal Front Rack User Manual

1. Introduction

The XLC Carrier LR-F03 Universal Front Rack is a high-quality bicycle rack designed for mounting on the front of your bicycle. It provides a practical and secure solution for transporting luggage or other items. Constructed from robust materials, this carrier offers a stable design and is engineered for ease of assembly. It is specifically developed for Winora Yakun and Radius2 bicycle models, but its universal fit design may allow compatibility with other bicycles.

Key Features:

• Precision welded construction for durability.
• Integrated rear light mount for enhanced visibility.
• Equipped with a pump hook for convenient storage.
• Designed for front mounting on bicycles.

Image 1.1: The XLC Carrier LR-F03 Universal Front Rack. This image shows the overall design and structure of the front rack, highlighting its robust construction and mounting points.

2. Safety Information

Before installing and using the XLC Carrier LR-F03, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to your bicycle or the carrier.

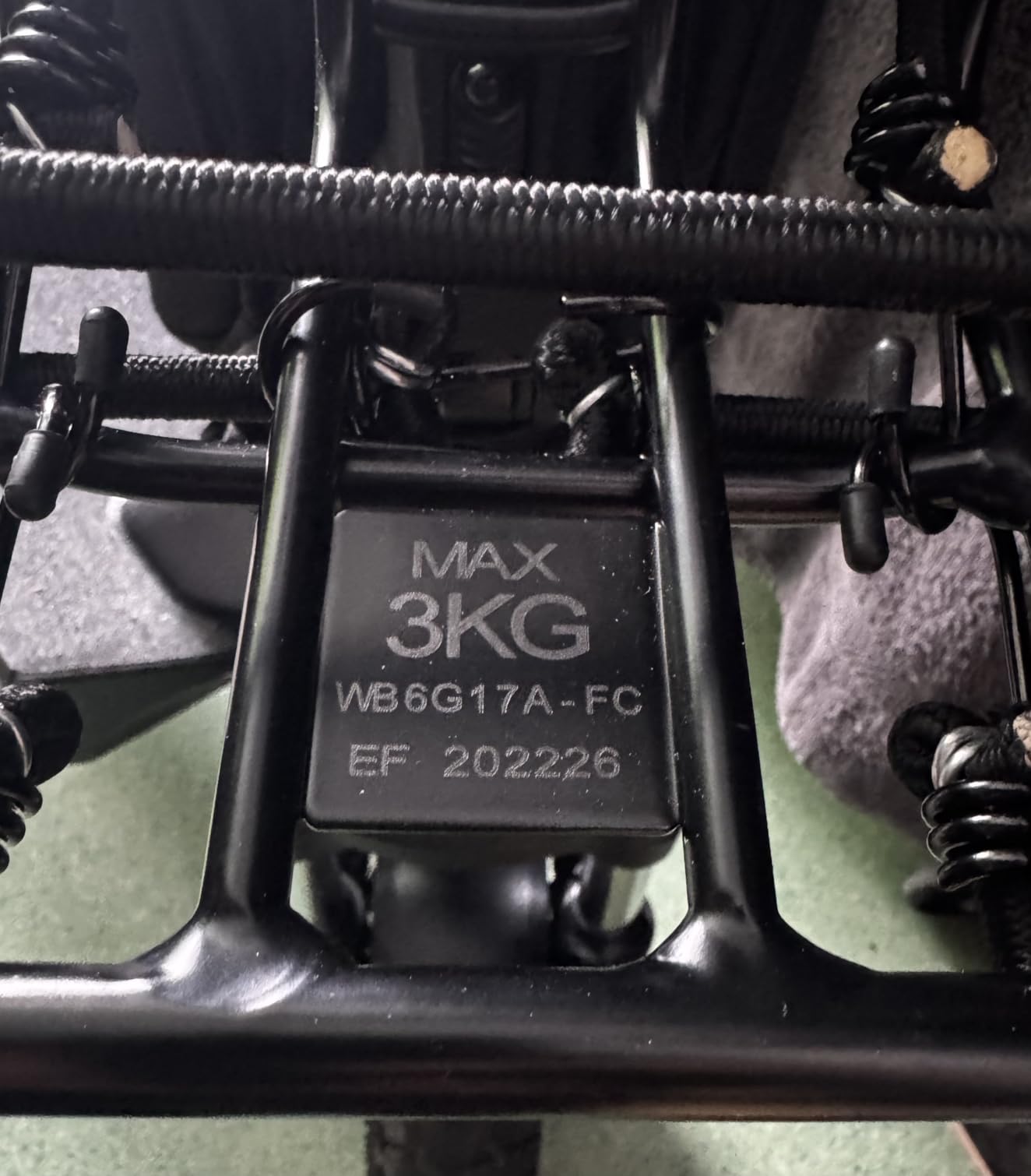

• Maximum Load Capacity: The official stated load capacity for this carrier is 25 kg (55 lbs). However, some product labels may indicate a lower maximum load (e.g., 3 kg). Always adhere to the lowest stated load capacity found on the product or in its documentation to prevent overloading. Overloading can compromise bicycle stability and lead to accidents.
• Secure Mounting: Ensure the carrier is securely attached to your bicycle according to the installation instructions. Regularly check all bolts and fasteners for tightness, especially after initial installation and before each ride.
• Load Distribution: Distribute the load evenly on the carrier. Avoid placing heavy or unbalanced items that could affect your bicycle's steering or stability.
• Visibility: Ensure that any items carried do not obstruct your bicycle's lights, reflectors, or your view of the road. Utilize the integrated rear light mount if applicable.
• Braking and Handling: Carrying a load, especially on the front, can alter your bicycle's handling and braking characteristics. Practice riding with a loaded carrier in a safe environment before riding in traffic.
• Regular Inspection: Periodically inspect the carrier for any signs of wear, damage, or loose components. Replace any damaged parts immediately.

3. Package Contents

The XLC Carrier LR-F03 Universal Front Rack package typically includes:

• 1 x XLC Carrier LR-F03 Universal Front Rack

Note: Mounting hardware for attachment to a KlickFix adapter or similar handlebar mounting system is usually supplied with the adapter itself and is not included with the carrier. Please ensure you have the necessary mounting components for your specific bicycle setup.

4. Setup and Installation

The XLC Carrier LR-F03 is designed for simple assembly and is compatible with KlickFix handlebar adapters. Follow these general steps for installation:

1. Prepare your Bicycle: Ensure your bicycle's handlebar area is clean and free from obstructions where the KlickFix adapter (or similar mounting system) will be attached.
2. Install KlickFix Adapter (if not already present): If you do not have a KlickFix handlebar adapter, install it according to its manufacturer's instructions. Ensure it is securely fastened and correctly aligned.
3. Attach the Carrier: Align the XLC Carrier LR-F03 with the KlickFix adapter. The carrier is designed to click securely into place. Listen for an audible click to confirm proper engagement.
4. Verify Security: Gently pull on the carrier to ensure it is firmly attached and does not wobble. Check that it is level and does not interfere with steering or braking.
5. Adjust for Alignment: Some users have reported that the carrier may appear slightly angled or not perfectly flat when mounted. If this occurs, carefully inspect the mounting points and the carrier's alignment. Minor adjustments to the KlickFix adapter's position or the carrier's attachment might be necessary.

Image 4.1: The XLC Carrier LR-F03 mounted on a bicycle. This image illustrates how the front rack attaches to the handlebar area, ready for use.

5. Operating Instructions

Once installed, the XLC Carrier LR-F03 is ready for use. Follow these guidelines for optimal operation:

• Loading Items: Place items onto the carrier's platform. Ensure that the weight is distributed as evenly as possible to maintain bicycle balance.
• Securing Load: Always secure your items to the carrier using bungee cords, straps, or a cargo net (not included). This prevents items from shifting, falling off, or interfering with your bicycle's moving parts.
• Visibility: Do not load items in a way that obstructs your view of the road, your bicycle's headlight, or any reflectors.
• Rear Light Mount: If you have a rear light, utilize the integrated rear light mount on the carrier for improved visibility, especially when riding in low-light conditions.
• Pump Hook: Use the integrated pump hook to securely store your bicycle pump when not in use.

6. Maintenance

Regular maintenance will prolong the life of your XLC Carrier LR-F03 and ensure safe operation:

• Cleaning: Clean the carrier regularly with a damp cloth and mild soap. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspection: Periodically inspect the carrier for any signs of wear, cracks, bends, or corrosion. Pay close attention to welded joints and mounting points.
• Fasteners: Check all bolts and fasteners for tightness. Re-tighten if necessary, but do not overtighten.
• Storage: If removing the carrier for storage, keep it in a dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your XLC Carrier LR-F03, consider the following:

• Carrier feels unstable or wobbly:
  • Ensure the KlickFix adapter (or other mounting system) is correctly and tightly installed on your handlebar.
  • Verify that the carrier is fully engaged with the adapter. Remove and re-attach if necessary.
  • Check for any loose bolts on the carrier itself.
• Loading surface is not flat or appears angled:
  • Some users have noted that the carrier's platform may not be perfectly horizontal or flat. This can be due to manufacturing variations or specific bicycle geometry.
  • Ensure your KlickFix adapter is installed level. If the issue persists, consider using additional straps or padding to secure items that require a flat surface.
  • If the angle is significant and causes items to slide, ensure the carrier is correctly seated in the adapter.
• Items fall off or shift during riding:
  • Always use appropriate securing methods such as bungee cords, straps, or a cargo net.
  • Re-evaluate load distribution. Heavy items should be placed centrally and low.
• Interference with bicycle components:
  • Ensure the carrier does not obstruct brake cables, gear shifters, or your bicycle's lights. Adjust the position of the KlickFix adapter if possible, or re-route cables if necessary.

8. Specifications

9. Warranty and Support

Warranty: No explicit warranty information is provided for this product in the available documentation.

Support: For further assistance, product inquiries, or to report any issues, please visit the official XLC brand store or contact XLC customer service. You can find more information at the XLC Brand Store.
