Advwin 23L Towel Cabinet Warmer Heater User Manual

Introduction

Thank you for choosing the Advwin 23L Towel Cabinet Warmer Heater. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions:

• Read all instructions before using the appliance.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors. This appliance is for indoor use only.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
• Use this appliance only for its intended use as described in this manual.
• Close supervision is necessary when any appliance is used by or near children.
• Avoid contact with moving parts.
• Do not block any ventilation openings.
• Do not place towels or other items directly on the heating element.

Product Overview

Components

Figure 1: Front view of the Advwin Towel Warmer with door open, displaying its interior and included tongs.

Figure 2: Detailed view of key components including the handle, door construction, stainless steel interior, and removable drip tray.

• Main Unit: The primary housing for heating and sterilization.
• Door: Front-opening door with a handle for access to the interior.
• Internal Racks: Removable stainless steel shelves for organizing towels.
• Water Drip Tray: Collects condensation or excess moisture.
• Power Button: Controls the appliance's power.
• Indicator Lights: Show operational status (e.g., heating, UV).

Features

Figure 3: Illustration of the internal capacity (23L) and dimensions, indicating it can hold 50-60 facial towels.

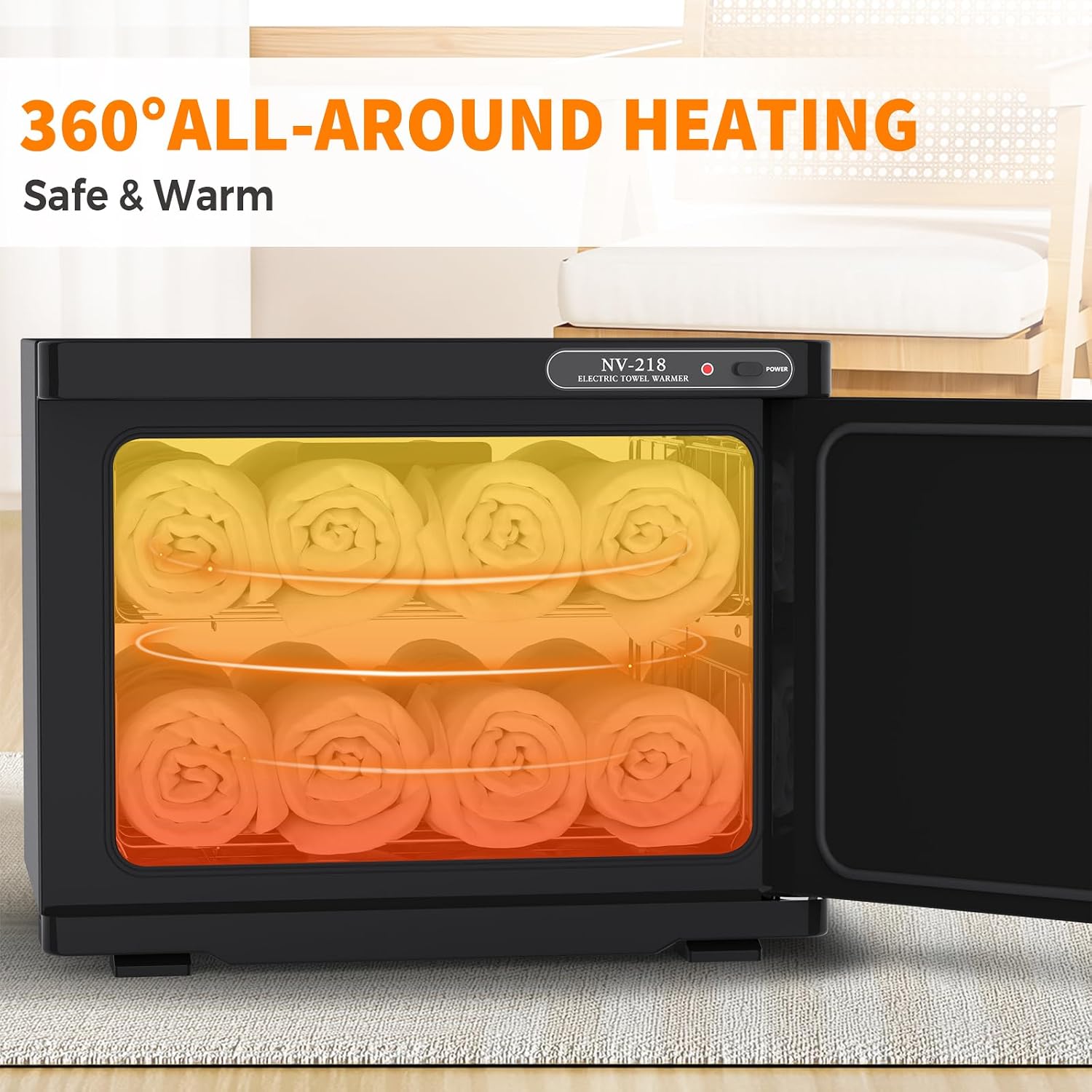

Figure 4: Visual representation of the 360-degree heating system, ensuring even warmth for towels.

Figure 5: Depiction of the integrated UV sterilizer, highlighting its function in keeping towels germ-free.

• 23-Liter Capacity: Accommodates a significant number of towels, typically 50-60 facial towels.
• 360° All-Around Heating: Ensures even and consistent warming of towels.
• Built-in UV Sterilizer: Helps maintain hygiene by sterilizing towels during the warming process.
• Durable Construction: Features a thickened door and stainless steel interior racks for longevity.

Setup Guide

1. Unpack: Carefully remove the towel warmer from its packaging. Retain packaging materials for future transport or storage.
2. Placement: Place the unit on a stable, flat, heat-resistant surface. Ensure there is adequate ventilation around the unit (at least 10 cm clearance on all sides). Do not place near water sources or flammable materials.
3. Drip Tray Installation: Insert the water drip tray into its designated slot at the bottom of the unit.
4. Power Connection: Ensure the power switch is in the 'OFF' position. Plug the power cord into a grounded electrical outlet.

Operating Instructions

Preparing Towels

1. Dampen Towels: For best results, slightly dampen towels with clean water before placing them in the warmer. This helps in achieving optimal warmth and moisture.
2. Roll or Fold: Neatly roll or fold towels to maximize capacity and ensure even heating.

Using the Warmer

1. Load Towels: Open the door and arrange the prepared towels on the internal racks. Do not overfill the unit, as this can impede heating and sterilization.
2. Close Door: Securely close the door. Ensure it latches properly.
3. Power On: Press the 'POWER' button. The indicator light will illuminate, signifying that the unit is operating.
4. Heating Time: Allow approximately 15-30 minutes for towels to reach the desired temperature. Heating time may vary based on towel quantity and initial temperature.
5. UV Sterilization: The UV sterilization function operates concurrently with the heating.
6. Remove Towels: Use the provided tongs or heat-resistant gloves to safely remove warm towels.
7. Power Off: After use, press the 'POWER' button to turn off the unit and unplug it from the power outlet.

Maintenance and Care

Cleaning

• Unplug: Always unplug the unit from the power outlet and allow it to cool completely before cleaning.
• Exterior: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Interior: Remove the internal racks and drip tray. Wash them with mild soap and water, then rinse and dry thoroughly. Wipe the interior of the unit with a damp cloth.
• Drip Tray: Regularly empty and clean the drip tray to prevent water buildup and maintain hygiene.

Storage

When not in use for extended periods, ensure the unit is clean and dry. Store it in a cool, dry place, away from direct sunlight and moisture. It is recommended to store it in its original packaging if available.

Troubleshooting

Product Specifications

Warranty and Customer Support

Warranty information for this product was not provided in the available documentation. For specific warranty details or customer support, please contact Advwin directly through their official website or the retailer where the product was purchased. Please have your purchase receipt and product model number (Towel Warmer Cabinet) ready when contacting support.
