1. Product Overview
The Ctronics 4K CTIPC-660C surveillance camera offers exceptional 8-megapixel image quality, capturing every detail with stunning clarity. Its lens, pivoting 355° horizontally and 90° vertically, allows you to monitor an extended area without blind spots. Powerful 25-meter night vision ensures continuous surveillance even in total darkness. Designed for outdoor security, this camera offers advanced functionalities and a robust construction, providing lasting peace of mind.
Key features include 4K (3840x2160) resolution with a SONY 1/2.8” IMX415 CMOS sensor, advanced backlight compensation, dual-band 2.4G/5G Wi-Fi and wired LAN connectivity, IK10 vandal resistance, IP66 weatherproofing, and AI-powered detection for humans, vehicles, and animals.
Figure 1: Ctronics 4K CTIPC-660C Outdoor Surveillance Camera.
2. Setup and Installation
2.1 Package Contents
- Ctronics 4K Surveillance Camera
- Power Adapter
- Mounting Screws and Wall Plugs
- Waterproof Kit for Network Cable
- Quick Start Guide
2.2 Physical Installation
The camera supports both ceiling and wall mounting. A wall mount bracket is sold separately if required. Ensure the mounting surface is strong enough to support the camera's weight (approximately 1 kg).
- Choose a suitable location for installation, ensuring optimal viewing angle and Wi-Fi signal strength.
- Use the provided drilling template (if included) to mark the screw holes on the mounting surface.
- Drill holes and insert wall plugs.
- Secure the camera base to the surface using the provided screws.
- Connect the power adapter to the camera and a power outlet.
Figure 2: Proper ceiling installation of the camera. The camera is designed for easy installation without complex disassembly.
2.3 Network Connection
The camera supports both wired (LAN) and wireless (2.4G/5G Wi-Fi) connections.
- Wired Connection: Connect an Ethernet cable from your router to the camera's LAN port.
- Wireless Connection: The camera supports dual-band Wi-Fi (2.4GHz and 5GHz). Follow the in-app instructions to connect the camera to your Wi-Fi network. The 2.4GHz band offers a longer transmission distance, while the 5GHz band provides a stronger network signal.
Figure 3: Dual-band Wi-Fi connectivity. The camera supports both 2.4GHz for longer range and 5GHz for stronger signal.
2.4 App and Software Installation
To manage and view your camera feed, download the Ctronics Pro app on your smartphone or tablet. PC client software is also available.
- Mobile App: Search for "Ctronics Pro" in your device's app store (iOS/Android).
- PC Client: Download the "HiP2P Client" software from the official Ctronics website for Windows or Mac OS.

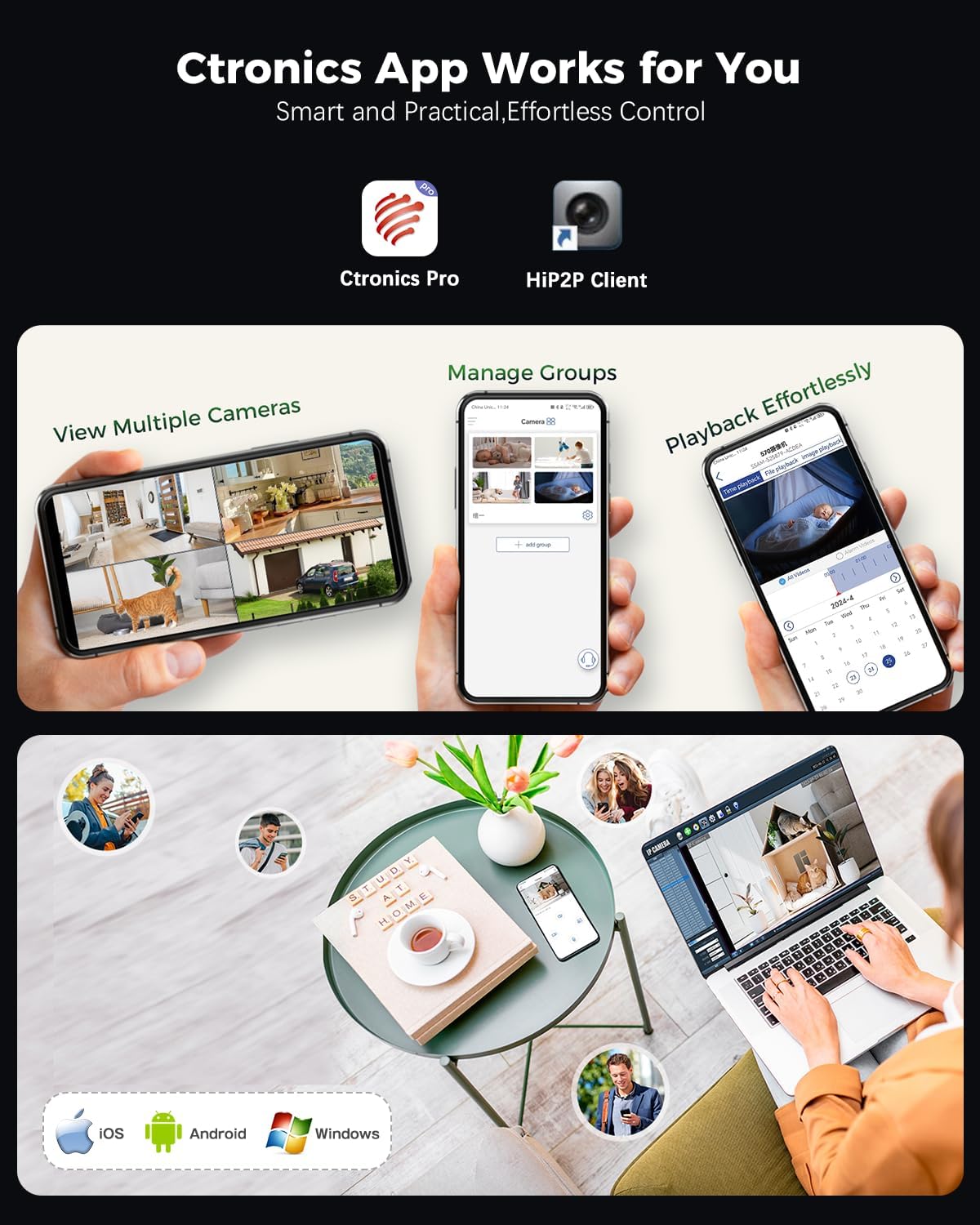

Figure 4: Ctronics Pro app interface for managing multiple cameras, playback, and group management.
3. Operation
3.1 Live View and Remote Access
Access your camera feed anytime, anywhere via the Ctronics Pro app or PC client. The camera provides 24/7 surveillance capabilities.

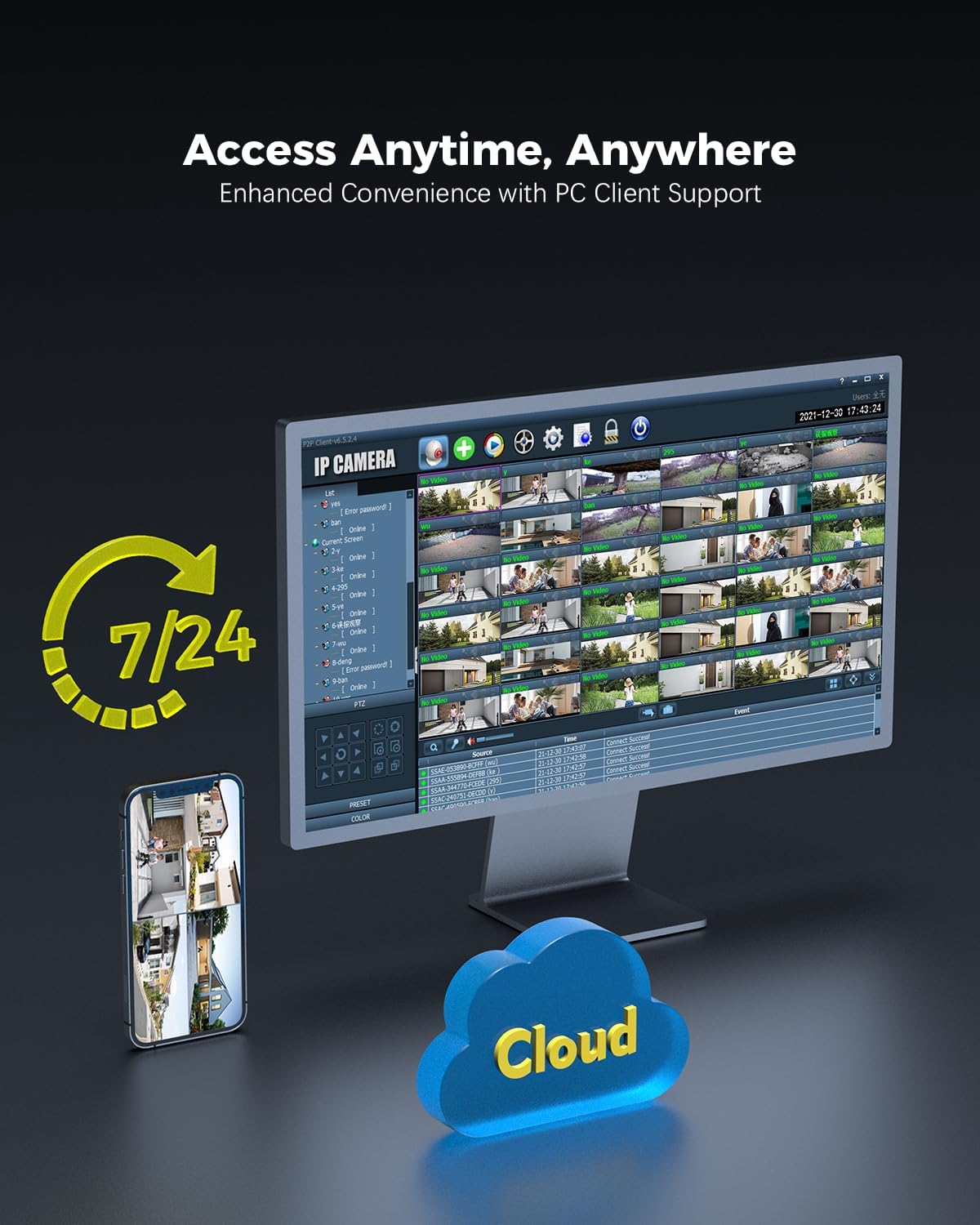

Figure 5: Remote access to camera feeds via PC client and smartphone app, with cloud storage options.
3.2 AI Detection and Auto Tracking
The camera features advanced AI detection to identify and track people, vehicles, and animals. When motion is detected, the camera can automatically track the subject and send instant push notifications to your device.
Figure 6: Smart detection and tracking capabilities. The camera identifies and tracks humans, vehicles, and animals.
3.3 Pan-Tilt Control and Preset Positions
Control the camera's pan (355°) and tilt (90°) movements remotely via the app. You can configure up to 8 preset positions for quick access to specific viewing angles. Customize detection zones and sensitivity settings to suit your surveillance needs.
Figure 7: Setting preset positions and customizing motion detection zones for tailored security.
3.4 Storage Options
The camera offers flexible storage solutions for recorded footage:
- MicroSD Card: Supports up to 256GB MicroSD cards for local storage.
- NVR (Network Video Recorder): Compatible with ONVIF-enabled NVRs for centralized recording.
- FTP (File Transfer Protocol): Supports FTP for uploading recordings to a server.
- Cloud Storage: Cloud storage options are available (subscription may be required).
Figure 8: Multiple storage options including MicroSD card, NAS, and FTP for secure data access.
4. Maintenance
- Cleaning: Periodically clean the camera lens and housing with a soft, damp cloth to ensure clear image quality. Do not use harsh chemicals.
- Firmware Updates: Check for and install firmware updates regularly through the Ctronics Pro app or official website to ensure optimal performance and security.
- Cable Inspection: Inspect power and network cables for any signs of wear or damage, especially for outdoor installations.
- Storage Management: Regularly review recorded footage and manage storage space, especially if using a MicroSD card, to prevent it from becoming full.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Camera not powering on | No power supply; faulty adapter. | Check power connection. Ensure the adapter is working and connected to a live outlet. |
| Unable to connect to Wi-Fi | Incorrect Wi-Fi password; camera too far from router; router issues. | Verify Wi-Fi password. Move camera closer to the router or use a Wi-Fi extender. Restart your router. Ensure you are connecting to the correct 2.4GHz or 5GHz band. |
| QR code not scanning during setup | Poor lighting; dirty lens; incorrect distance. | Ensure sufficient lighting. Clean the camera lens. Adjust the distance between the camera and the QR code on your phone screen. |
| No image/video feed | Network disconnection; camera malfunction. | Check network connection (wired/wireless). Restart the camera. If the problem persists, contact support. |
| Motion detection not working | Detection settings incorrect; environmental factors. | Review motion detection settings in the app (sensitivity, zones). Ensure no obstructions are blocking the camera's view. |
6. Product Specifications
| Feature | Detail |
|---|---|
| Model Number | CTIPC-660C |
| Resolution | 4K (3840x2160), 8 Megapixels |
| Sensor | SONY 1/2.8” IMX415 CMOS |
| Pan/Tilt Angle | Pan 355°, Tilt 90° |
| Night Vision Range | Up to 25 meters (Starlight) |
| Connectivity | Wired (LAN), Wi-Fi (2.4GHz/5GHz) |
| Storage Options | MicroSD (up to 256GB), ONVIF NVR, FTP, Cloud |
| Impact Protection | IK10 Vandal-Resistant |
| Weather Resistance | IP66 |
| Power Source | AC Power, 24 Watts |
| Frame Rate | 15 frames per second |
| View Angle | 90 Degrees |
| Zoom Type | Digital Zoom (4x ratio) |
| Compatible Devices | Computer, Laptop, Smartphone, Tablet |
| Dimensions (L x W x H) | 13 x 13 x 19 cm |
| Weight | 1 kilogram |
Figure 9: Internal lens structure highlighting the SONY 415 CMOS sensor for high-quality imaging.
Figure 10: IK10 vandal-resistant design, built to withstand impact and protect the camera.
7. Warranty Information
Ctronics products typically come with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official Ctronics website for detailed warranty terms and conditions specific to your region and purchase date. Keep your proof of purchase for warranty claims.
8. Customer Support
For technical assistance, product inquiries, or support, please contact Ctronics customer service through one of the following methods:
- Official Website: Visit the Ctronics official website for FAQs, support articles, and contact forms.
- Email Support: Refer to your product packaging or the official website for the customer support email address.
- In-App Support: Some issues can be resolved directly through the Ctronics Pro application's support section.
When contacting support, please have your product model number (CTIPC-660C) and purchase information ready.
