1. Introduction
This manual provides essential information for the safe and efficient use of your ZKSJ 40mm Mini EDF (Electric Ducted Fan) 8 Blades RC Brushless Motor. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the product.
The ZKSJ 40mm EDF is designed for RC jet airplanes and aircraft, featuring an 8-blade design for efficient thrust generation. It incorporates a 6500KV brushless motor and is compatible with 3S-4S battery configurations.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury, damage to the product, or property damage.
- Always operate the EDF in a well-ventilated area.
- Keep fingers, loose clothing, and other objects clear of the fan blades during operation. The blades rotate at very high speeds and can cause severe injury.
- Ensure all electrical connections are secure and properly insulated to prevent short circuits.
- Use only recommended ESC (Electronic Speed Controller) and battery configurations. An incompatible ESC can lead to overheating and failure.
- Do not modify the EDF unit. Unauthorized modifications can compromise safety and performance.
- Store the EDF in a dry, cool place away from direct sunlight and moisture.
- This product is not a toy. It is intended for use by experienced RC hobbyists.
3. Package Contents
Upon opening the package, verify that all components are present and undamaged.
- 1x ZKSJ 40mm Mini EDF Unit (Brushless Motor and Ducted Fan Assembly)
Image: Assembled ZKSJ 40mm Mini EDF unit, showing the blue housing, black motor, and three motor wires with gold bullet connectors.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | ZKSJ |
| Model Name | PX-40MM-EDF-CCW |
| Item Model Number | PX40-CW |
| Fan Diameter | 40mm |
| Number of Blades | 8 |
| Motor Type | Brushless |
| KV Rating | 6500KV |
| Maximum RPM | 80,000 rpm (approx.) |
| Operating Voltage | 11.1V - 14.8V (3S-4S LiPo) |
| Maximum Current (4S) | 41.2A |
| Maximum Thrust (4S) | 575g |
| Recommended ESC | 70A ESC |
| Material | Composite housing, Metal motor components |
| Item Weight | 41g (1.76 ounces) |
| Dimensions (approx.) | Refer to technical drawing for detailed measurements. |
Image: Technical drawing showing the dimensions of the 40mm EDF unit and a table detailing performance metrics (voltage, current, RPM, thrust, power) for 3S and 4S configurations.
5. Setup
- Mounting the EDF Unit:
Integrate the 40mm EDF unit into your RC aircraft's airframe. Ensure the mounting is secure and rigid to prevent vibrations and ensure optimal thrust alignment. The EDF housing features mounting tabs for secure installation.

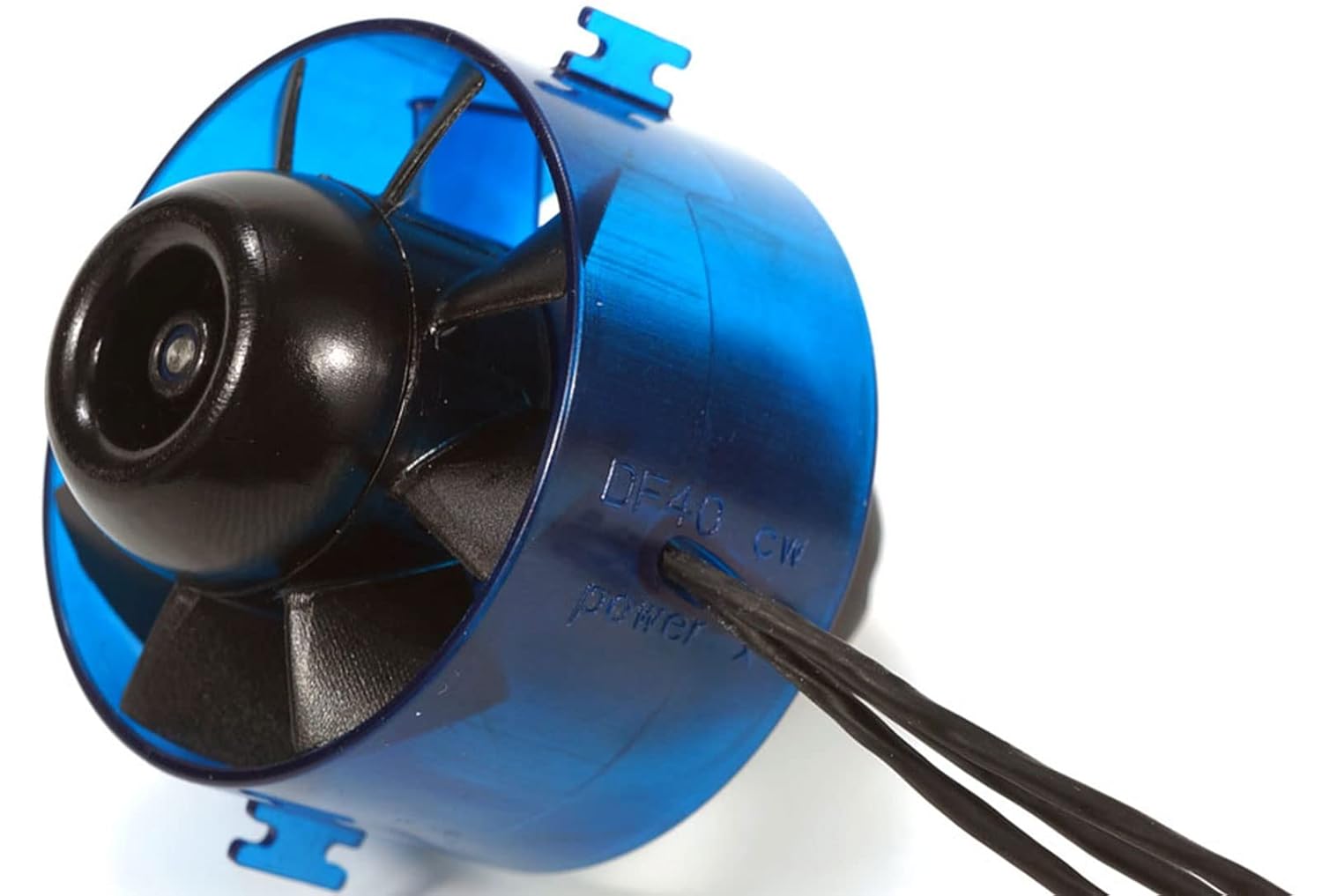

Image: Side view of the ZKSJ 40mm Mini EDF unit, highlighting the blue housing and the integrated mounting tabs.
- Electrical Connections:
Connect the three motor wires from the EDF unit to your 70A (or higher rated) ESC. Ensure the connections are firm and correctly phased. Incorrect phasing will cause the motor to run inefficiently or not at all. If the motor spins in the wrong direction, swap any two of the three motor wires connected to the ESC.
Connect the ESC to your receiver's throttle channel and to a compatible 3S or 4S LiPo battery. Always observe correct polarity when connecting the battery.
- Direction of Rotation:
This EDF unit is available in both CCW (Counter-Clockwise) and CW (Clockwise) versions. Ensure you have the correct rotation for your application. The CCW version is typically used for standard thrust applications.

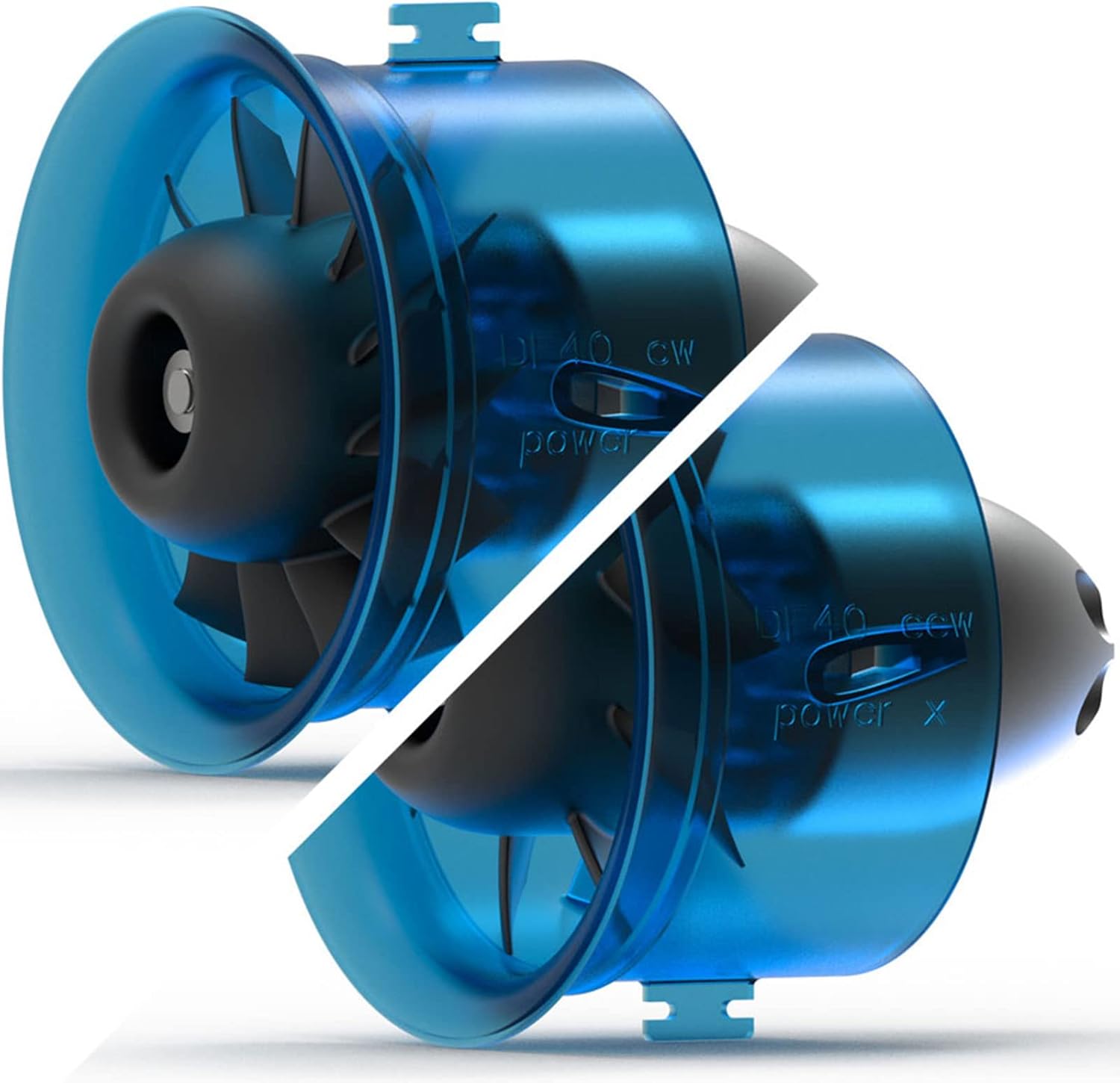

Image: A split image illustrating the difference between the CW (Clockwise) and CCW (Counter-Clockwise) versions of the ZKSJ 40mm EDF unit, showing the fan blade orientation.
6. Operating Instructions
- Pre-Flight Check:
Before each operation, visually inspect the EDF unit for any damage to the housing or blades. Ensure all connections are secure.
- Power On Sequence:
Connect the flight battery to the ESC. The ESC will typically emit a series of beeps indicating successful initialization. Ensure your transmitter is on and the throttle stick is at its lowest position.
- Throttle Control:
Gradually increase the throttle to spin up the EDF. Observe the thrust output and motor sound. Avoid sudden, full-throttle inputs, especially from a standstill, as this can stress the motor and ESC.
- Monitoring:
During operation, monitor the motor and ESC temperatures. Excessive heat can indicate an overloaded system or insufficient cooling. If temperatures are too high, reduce throttle or land the aircraft to allow cooling.
- Power Off Sequence:
Reduce throttle to zero. Disconnect the flight battery from the ESC immediately after use to prevent accidental startup and battery discharge.
7. Maintenance
- Cleaning: Periodically inspect and clean the fan blades and housing to remove any debris (dust, grass, small stones) that may accumulate. Debris can unbalance the fan, reduce efficiency, and cause damage. Use a soft brush or compressed air.
- Blade Inspection: Regularly check the fan blades for cracks, chips, or deformation. Damaged blades must be replaced immediately to prevent catastrophic failure during high-speed rotation.
- Motor Bearings: The brushless motor bearings are generally maintenance-free. However, if you notice unusual noise or resistance, the motor may require servicing by a qualified technician.
- Storage: When not in use, store the EDF unit in a protective environment to prevent physical damage and exposure to dust or moisture.
Image: Disassembled ZKSJ 40mm Mini EDF unit, showing the separate blue intake ring, the main blue housing, and the black motor with its fan blades exposed.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not spin or stutters | Incorrect ESC calibration; Loose motor/ESC connections; Incorrect motor phasing; Damaged motor/ESC. | Recalibrate ESC; Check and secure all connections; Swap any two motor wires; Inspect motor/ESC for damage and replace if necessary. |
| Low thrust or excessive vibration | Damaged or unbalanced fan blades; Debris in the fan; Insufficient battery power; Incorrect mounting. | Inspect and replace damaged blades; Clean fan area; Ensure battery is fully charged and capable of high discharge rates; Securely mount the EDF unit. |
| Motor/ESC overheating | Over-propped (not applicable for EDF); Insufficient cooling; ESC not rated high enough; Battery voltage too high. | Ensure adequate airflow for cooling; Use a 70A or higher rated ESC; Verify battery voltage is within 3S-4S range. |
| Motor spins in wrong direction | Incorrect motor phasing. | Swap any two of the three motor wires connected to the ESC. |
9. Warranty and Support
Specific warranty information for the ZKSJ 40mm Mini EDF unit is not provided in this manual. Please refer to the retailer or manufacturer's website for details regarding warranty coverage and return policies.
For technical support or inquiries, please contact your product vendor or the ZKSJ customer service channels available through their official website or product listings.
