Introduction
Thank you for purchasing the RAF 6-Liter 1500W Air Fryer, Model R.5332B. This appliance is designed to provide a healthier way to cook your favorite foods with little to no oil. Please read this instruction manual thoroughly before first use to ensure safe operation, optimal performance, and to prevent damage. Keep this manual for future reference.
Important Safety Instructions
- Always place the air fryer on a stable, heat-resistant surface, away from walls and other appliances to allow for proper ventilation.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
- Close supervision is necessary when any appliance is used by or near children.
- Do not operate the appliance if the plug, power cord, or the appliance itself is damaged.
- Unplug the air fryer from the outlet when not in use and before cleaning. Allow it to cool down completely before handling.
- Do not use accessories or parts not recommended by the manufacturer.
- The air fryer is not dishwasher safe. Refer to the cleaning section for proper maintenance.
Product Overview
The RAF Air Fryer features a 6-liter capacity, 1500W power, and a smart interface with an intuitive digital control panel. It utilizes a rapid air circulation system for high-quality, low-fat cooking.
Key Components
- Main Unit: Houses the heating element and fan.
- Control Panel: Features temperature and timer dials for precise cooking.

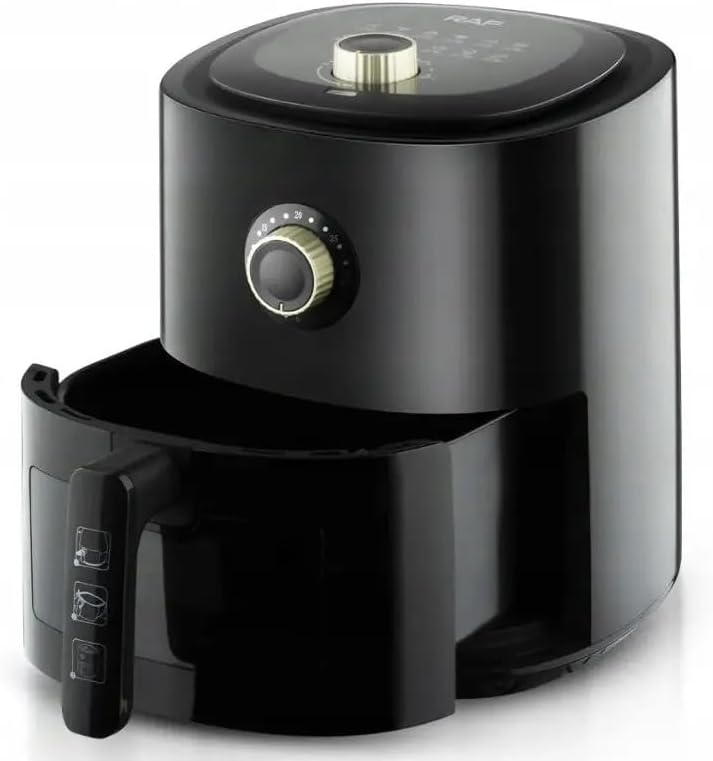

- Cooking Basket: Removable basket for holding food during frying.
- Handle: For safe removal and insertion of the cooking basket.
The air fryer is designed for convenience, offering pre-set programs for various dishes including French fries, nuggets, grilled chicken, pizza, meat, fish, vegetables, and desserts.
Setup
Unpacking and First Use
- Remove all packaging materials, stickers, and labels from the appliance.
- Clean the cooking basket and the interior of the appliance with a non-abrasive sponge, warm water, and mild dish soap. Rinse thoroughly and dry completely.
- Wipe the exterior of the appliance with a damp cloth.
- Ensure all parts are dry before plugging in the appliance.
Placement
Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 10 cm of free space on the back and sides, and 10 cm of free space above the appliance to allow for adequate air circulation.
Operating Instructions
Basic Operation
- Plug the air fryer into a grounded wall outlet.
- Carefully pull the cooking basket out of the air fryer.
- Place your ingredients into the cooking basket. Do not exceed the MAX fill line.
- Slide the cooking basket back into the air fryer. Ensure it is fully closed.
- Set the desired temperature using the temperature control dial.
- Set the desired cooking time using the timer dial. The air fryer will start cooking automatically.
- Some ingredients may require shaking halfway through the cooking time. Pull out the basket by the handle, shake it, and then slide it back in.
- When the cooking time has elapsed, the timer bell will ring. Carefully pull out the basket and remove the cooked food.
Pre-set Programs
The air fryer includes convenient pre-set programs for common foods. These programs automatically adjust the temperature and time for optimal results. Refer to the icons on the control panel for specific program settings. Available programs include:
- French fries
- Nuggets
- Grilled chicken
- Pizza
- Meat
- Fish
- Vegetables
- Desserts
Cooking Tips
- For crispier results, lightly brush or spray food with oil.
- Do not overfill the basket to ensure even cooking. Cook in batches if necessary.
- Preheating the air fryer for 3-5 minutes can improve cooking results for some foods.

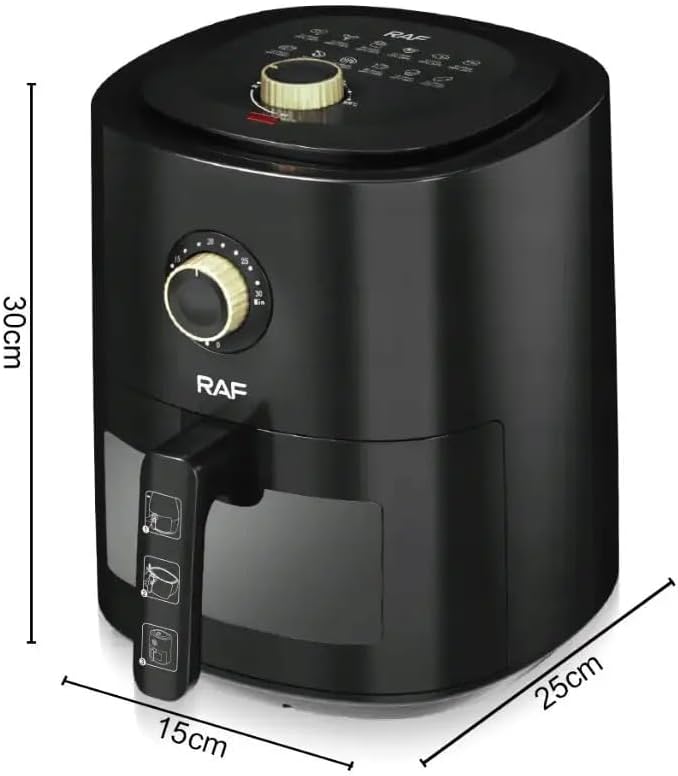

This video demonstrates the RAF Air Fryer's dimensions, 6-liter capacity, and how to set the cooking time and temperature using the control dials.
Maintenance and Cleaning
Proper cleaning and maintenance will extend the life of your air fryer and ensure safe operation.
Cleaning the Cooking Basket and Interior
- Always unplug the air fryer and allow it to cool down completely before cleaning.
- Remove the cooking basket. Wash it with hot water, dish soap, and a non-abrasive sponge.
- For stubborn food residue, soak the basket in hot water with dish soap for about 10 minutes.
- Clean the interior of the air fryer with a damp cloth. Do not use abrasive cleaners or metal scouring pads.
- The cooking basket and other internal components are not dishwasher safe. Hand wash only.
Cleaning the Exterior
Wipe the exterior of the air fryer with a damp cloth. Never immerse the main unit in water or any other liquid.
Troubleshooting
If you encounter any issues with your air fryer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in or power outlet is not working. | Ensure the power cord is securely plugged into a working electrical outlet. |
| Food is not cooked evenly. | Basket is overcrowded or food was not shaken. | Do not overfill the basket. Shake the basket halfway through cooking for even results. |
| White smoke comes from the appliance. | Grease residue from previous use or fatty ingredients. | Clean the basket and interior thoroughly after each use. For fatty foods, drain excess oil. |
| Food is not crispy. | Not enough oil or incorrect temperature/time. | Lightly brush or spray food with oil. Adjust temperature and time as needed. |
If the problem persists after trying these solutions, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Name/Number | R.5332B |
| Brand | RAF |
| Product Type | Air Fryer |
| Capacity | 6 Liters |
| Power Output | 1500 Watt |
| Voltage | 220 Volt |
| Control Method | Touch |
| Controller Type | Manual Control |
| Inner Material | Plastic |
| Outer Material | Aluminum |
| Color | Black |
| Product Dimensions (D x W x H) | 30 cm x 30 cm x 30 cm |
| Item Weight | 3 Kilograms |
| Recommended Uses | Reheating, Baking, Steaming |
| Dishwasher Safe | No |
| Country of Manufacture | China |
| Special Features | Temperature Control |
Warranty and Support
Warranty Information
This RAF Air Fryer, Model R.5332B, comes with an International Warranty. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects under normal use conditions.
Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your retailer or the authorized service center. Contact details can typically be found on the product packaging or the retailer's website.
