1. Introduction
Thank you for choosing the RAF R.5234 Digital Air Fryer. This appliance is designed to cook your favorite foods with little to no oil, providing a healthier alternative to traditional frying. Please read this manual carefully before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions before use.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface.
- Do not block any ventilation openings.
3. Product Overview
The RAF R.5234 Air Fryer features a smart interface with an intuitive digital control panel, allowing for precise temperature control and convenient preset programs. Its rapid air circulation system ensures high-quality performance and even cooking with low power consumption. With a 5.8-liter capacity, it is suitable for preparing family-sized meals.
Components:
- Main Unit with Digital Control Panel
- Removable Frying Basket
- Removable Frying Pan
- Power Cord
Image: The RAF R.5234 Digital Air Fryer, showcasing its sleek black design with gold accents, alongside its product packaging. A cooked chicken is visible within the air fryer's basket, demonstrating its cooking capability.
4. Setup
- Unpacking: Carefully remove the air fryer and all packaging materials. Keep packaging for storage or disposal.
- Initial Cleaning: Before first use, clean the frying basket and pan with warm soapy water. Wipe the exterior of the appliance with a damp cloth. Ensure all parts are completely dry before use.
- Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance, and 10 cm (4 inches) above it, to allow for proper air circulation.
- Power Connection: Plug the power cord into a grounded wall outlet (220V).

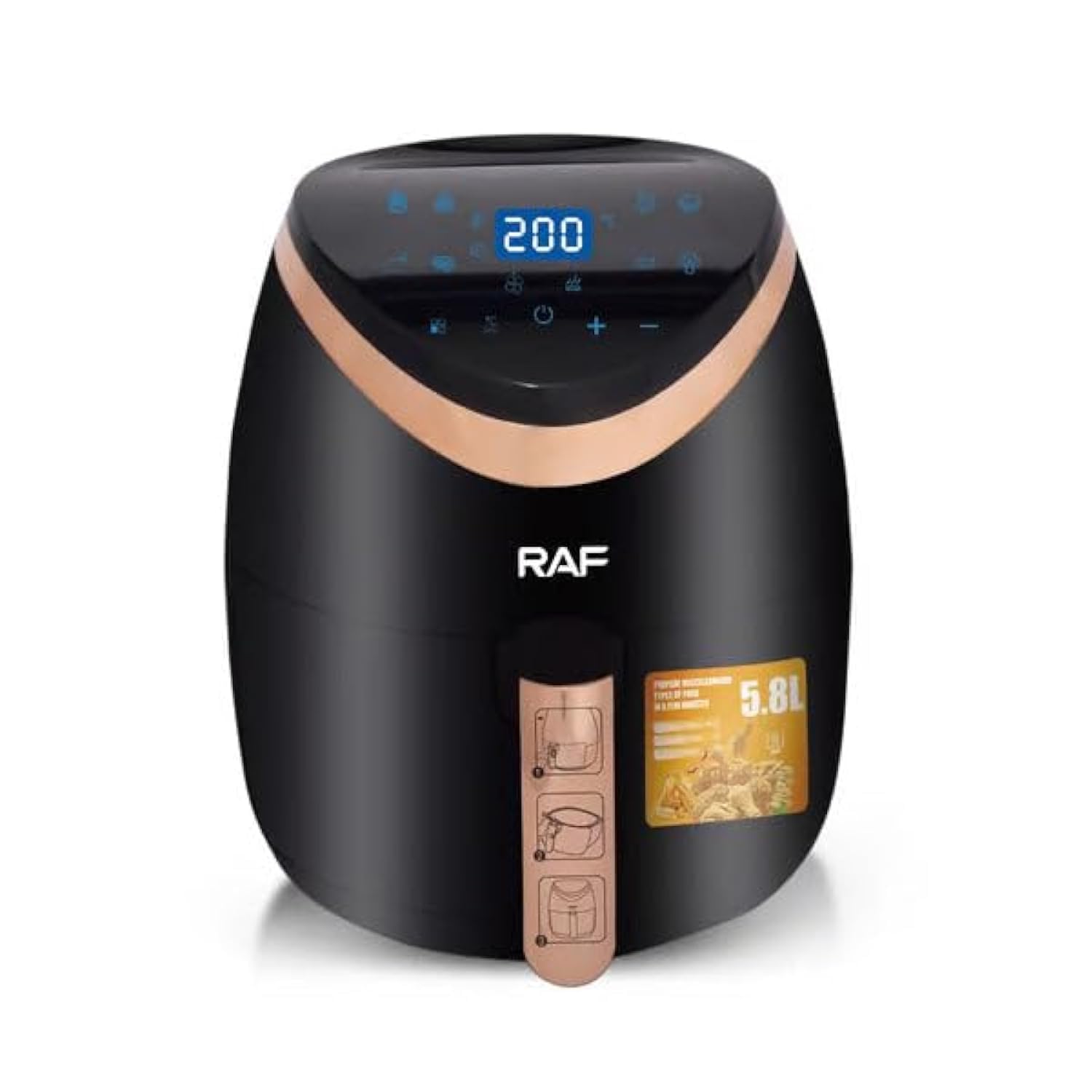

Image: A front view of the RAF R.5234 Digital Air Fryer, highlighting its digital touch control panel and the overall design. The product box is visible in the background.
5. Operating Instructions
Basic Operation:
- Prepare Food: Place the food you wish to air fry into the frying basket. Do not overfill the basket.
- Insert Basket: Slide the frying pan with the basket back into the air fryer until it clicks into place.
- Power On: Plug the appliance into the power outlet. The digital display will light up.
- Set Temperature and Time: Use the touch controls on the digital panel to set the desired cooking temperature and time. The temperature control feature allows for precise adjustments.
- Use Preset Programs: The air fryer comes with convenient preset programs for common foods like fries, nuggets, grilled chicken, pizza, meat, fish, vegetables, and sweets. Select the appropriate preset for your dish.
- Start Cooking: Press the start button to begin the air frying process.
- Shake/Flip Food: For even cooking, some foods may require shaking or flipping halfway through the cooking time. The appliance may beep to remind you. Carefully remove the basket, shake/flip, and reinsert.
- Completion: Once the cooking time is complete, the air fryer will beep. Carefully pull out the frying pan and basket.
- Serve: Remove the cooked food from the basket using tongs. Be cautious of hot steam.
6. Maintenance and Cleaning
Proper maintenance ensures the longevity and optimal performance of your air fryer. Always unplug the appliance and allow it to cool completely before cleaning.
- Cleaning the Basket and Pan: The frying basket and pan are not dishwasher safe. Hand wash them with warm soapy water and a non-abrasive sponge. Since there is no non-stick coating, avoid harsh scrubbing that could damage the aluminum material. Rinse thoroughly and dry completely.
- Cleaning the Interior: Wipe the interior of the appliance with a damp cloth. For stubborn food residue, use a mild detergent. Ensure no water enters the electrical components.
- Cleaning the Exterior: Wipe the exterior of the air fryer with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
- Storage: Store the cleaned and dried air fryer in a cool, dry place.

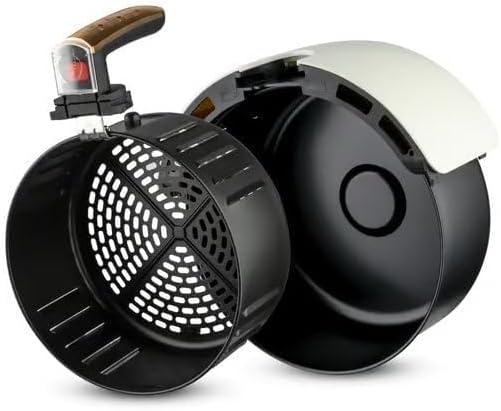

Image: The frying basket and the main pan of the RAF R.5234 Air Fryer are shown separated, illustrating how they can be detached for cleaning.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in. | Plug the power cord into a grounded wall outlet. |
| Frying pan is not inserted correctly. | Push the frying pan into the appliance until it clicks into place. | |
| Food is not cooked evenly. | Too much food in the basket. | Reduce the amount of food. Cook in smaller batches. |
| Food was not shaken/flipped. | Shake or flip food halfway through cooking. | |
| White smoke comes from the appliance. | Grease residue from previous use. | Clean the frying pan and basket thoroughly after each use. |
| Fatty ingredients are being cooked. | This is normal for fatty foods. Ensure the pan is clean. |
8. Specifications
- Model Number: R.5234
- Brand: RAF
- Capacity: 5.8 Liters
- Power: 1500 Watts
- Voltage: 220 Volts
- Control Method: Touch (Digital Control Panel)
- Special Features: Temperature Control
- Dimensions (D x W x H): 30 cm x 30 cm x 30 cm
- Item Weight: 3 kg
- Color: Black
- Exterior Material: Plastic
- Internal Material: Stainless Steel (Basket/Pan: Aluminum)
- Non-stick Coating: No
- Dishwasher Safe: No
- Care Instructions: Hand Wash
- Recommended Uses: Reheating, Baking, Air Frying
9. Warranty and Support
This RAF R.5234 Digital Air Fryer comes with an International Warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.
For technical support, service, or warranty claims, please contact your local distributor or the point of purchase. Keep your proof of purchase for warranty validation.
