UpBright 31V AC/DC Adapter Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and efficient use of your UpBright 31V AC/DC Adapter. This adapter is specifically designed to provide power and charge the battery for compatible Honiture S14 and S14-US series cordless stick vacuum cleaners. Please read this manual thoroughly before use and retain it for future reference.

Image 1.1: The UpBright 31V AC/DC Adapter. This image displays the compact black power adapter with its attached DC output cable and barrel connector. The adapter features standard US-style prongs for wall outlets and includes regulatory markings such as CE and FCC.

2. Important Safety Information

To ensure safe operation and prevent damage, observe the following safety precautions:

• Input Voltage: The adapter is designed for a worldwide input voltage range of 100-240VAC, 50/60Hz. Ensure your power outlet matches these specifications.
• Protection Features: This adapter incorporates multiple safety circuits including:
  • OVP (Over Voltage Output Protection): Prevents excessive voltage output.
  • OCP (Over Current Output Protection): Guards against excessive current flow.
  • SCP (Short Circuit Output Protection): Protects against short circuits.
  • Overcharge Protection: Prevents battery overcharging.
  • Lightning Protection: Offers defense against lightning surges.
  • Temperature Protection: Monitors and regulates operating temperature.
• Compatibility: Use this adapter only with compatible devices as specified in this manual. Using it with incompatible devices may cause damage.
• Environment: Do not expose the adapter to water, moisture, or extreme temperatures. Use in a well-ventilated area.
• Damage: Do not use the adapter if the cable or plug is damaged. Do not attempt to open or repair the adapter.

Image 2.1: Illustration of UpBright adapter's safety features. This graphic depicts an umbrella symbolizing protection, alongside icons representing overcharge, overcurrent, shortage, lightning, overvoltage, and temperature protection, highlighting the built-in safety mechanisms of the adapter.

3. Setup and Compatibility

Before connecting the adapter, ensure your device is compatible.

3.1. Compatible Devices

This UpBright 31V AC/DC Adapter is compatible with the following models of cordless stick vacuum cleaners:

• Honiture S14
• Honiture S14-US
• Honiture S14US
• Vacuum cleaners using 25.9V 2200mAh Li-ion Battery Model HQ-7C-SF22
• Csec Model CS20A310050FUF

Note: The vacuum cleaner's battery voltage is 25.9V. The charger's output voltage is 31V. This is the correct specification for charging these devices. Always verify compatibility with your specific unit before use.

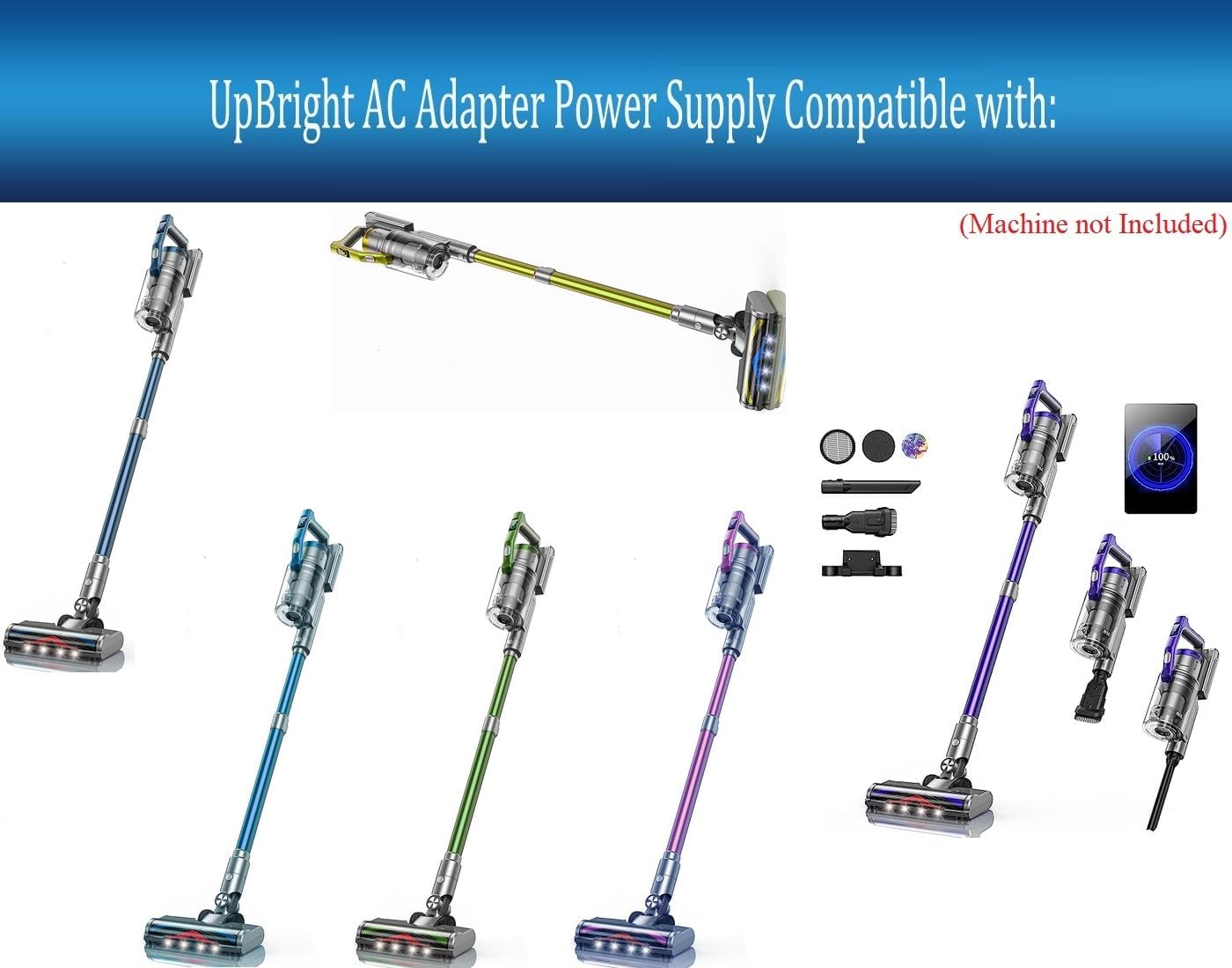

Image 3.1: Various Honiture S14 series cordless stick vacuum cleaners. This image displays multiple color variations of the Honiture S14 and S14-US cordless stick vacuum cleaners, illustrating the range of compatible devices for the UpBright AC adapter. The vacuum machines themselves are not included with the adapter.

3.2. Connecting the Adapter

1. Ensure the adapter's output connector (barrel plug) matches the input port on your Honiture S14/S14-US vacuum cleaner or its charging base.
2. Insert the barrel plug firmly into the vacuum cleaner's charging port.
3. Plug the AC prongs of the adapter into a standard wall outlet (100-240VAC).
4. Confirm that the charging indicator on your vacuum cleaner (if present) illuminates, indicating a successful connection and charging process.

Image 3.2: Examples of international plug adapters. This image shows three different types of international plug adapters (AU, EU, UK), indicating that the product may come with a suitable adapter for the user's region for international orders. This ensures compatibility with various wall outlets globally.

4. Operating Instructions

Once connected, the adapter will begin charging the battery of your Honiture S14/S14-US vacuum cleaner. The charging process is automatic.

• Allow the vacuum cleaner to charge fully before its first use or after extended periods of non-use. Refer to your vacuum cleaner's manual for specific charging times.
• Disconnect the adapter from the wall outlet and the vacuum cleaner once charging is complete or when the vacuum is not in use for prolonged periods.
• Avoid interrupting the charging cycle frequently.

5. Maintenance

Proper care will extend the life of your UpBright AC/DC Adapter:

• Cleaning: Disconnect the adapter from power before cleaning. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners.
• Storage: Store the adapter in a cool, dry place away from direct sunlight and moisture when not in use. Avoid wrapping the cable too tightly around the adapter.
• Cable Care: Do not bend, twist, or pull the cable excessively. Inspect the cable and connector regularly for any signs of damage.

6. Troubleshooting

If you encounter issues with your adapter, consider the following:

• No Charging Indicator:
  • Ensure the adapter is securely plugged into both the wall outlet and the vacuum cleaner.
  • Try a different wall outlet to rule out a power supply issue.
  • Inspect the adapter's cable and connector for any visible damage.
• Vacuum Cleaner Not Holding Charge:
  • Important Note: Rechargeable batteries have a limited lifespan, typically 1 to 3 years. If the vacuum cleaner's battery is old or degraded, it may no longer accept a charge, even with a functional adapter. This is a battery issue, not an adapter malfunction.
  • Consult your vacuum cleaner's manual for battery health indicators or replacement procedures.
• Adapter Overheating:
  • Disconnect the adapter immediately.
  • Ensure the adapter is used in a well-ventilated area, not covered by cloths or other materials.
  • If overheating persists, discontinue use and contact support.

7. Specifications

8. Warranty and Support

8.1. Warranty Information

Your UpBright AC/DC Adapter comes with a limited warranty:

• 30-Day Refund: Eligible for a refund within 30 days of purchase.
• 24-Month Exchange: Eligible for an exchange within 24 months of purchase for manufacturing defects.

Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

8.2. Customer Support

For technical assistance, warranty claims, or further inquiries, please refer to the contact information provided with your purchase or visit the official UpBright website. When contacting support, please have your product model number and purchase details ready.
