Yaheetech Office Chair Model 592590 Instruction Manual

1. Introduction

Thank you for choosing the Yaheetech Office Chair Model 592590. This manual provides essential information for the safe assembly, operation, and maintenance of your new office chair. Please read these instructions carefully before use and retain them for future reference.

2. Safety Information

• Maximum Load Capacity: The chair is designed to support a maximum weight of 136 kg (300 lbs). Do not exceed this limit.
• Do Not Stand on the Chair: For your safety, avoid standing on the chair.
• Assembly: Ensure all components are securely fastened before using the chair. Refer to the assembly instructions provided.
• Children: Keep children away from the chair during assembly.
• Movement: Use caution when moving the chair, especially on uneven surfaces.

3. Package Contents

Upon opening the package, please verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• 1 × Office Chair (disassembled components)
• 1 × Assembly Instruction Manual
• Necessary assembly tools (usually an Allen key)

4. Setup and Assembly

Assembly is required for this office chair. Please follow the detailed assembly instructions included in your package. A general overview of the assembly process is provided below:

1. Attach the casters to the five-star base.
2. Insert the gas lift cylinder into the center of the five-star base.
3. Attach the seat plate mechanism to the underside of the seat cushion.
4. Connect the backrest to the seat cushion using the provided screws.
5. Attach the armrests to the seat cushion and backrest.
6. Place the assembled seat and backrest onto the gas lift cylinder.

Ensure all screws are tightened securely, but do not overtighten.

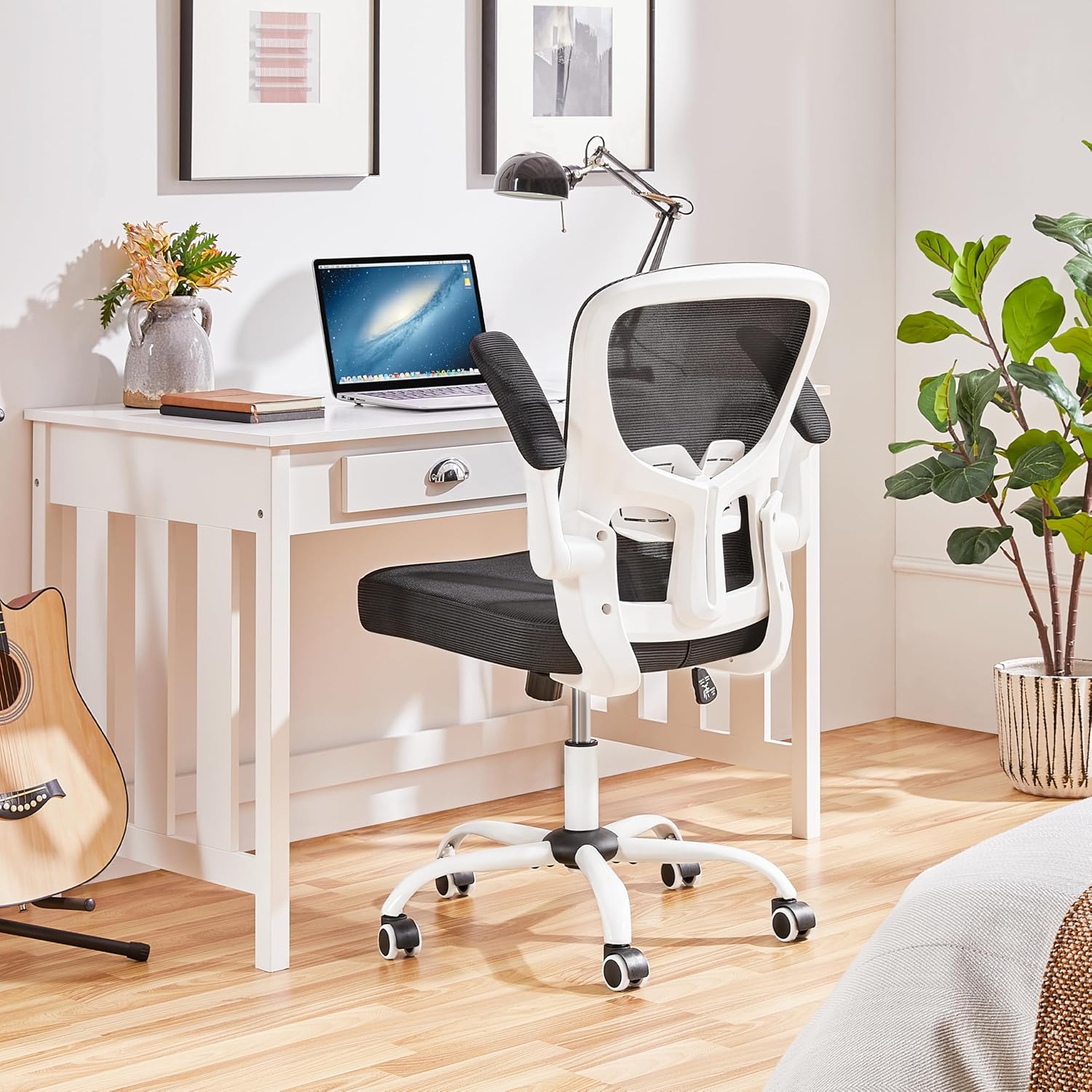

Image: The Yaheetech Office Chair, Model 592590, shown fully assembled in a typical home office environment. This image provides a visual reference for the completed product.

5. Operating Instructions

Your Yaheetech Office Chair is designed with several adjustable features to enhance comfort and support.

5.1. Seat Height Adjustment

To adjust the seat height, locate the lever on the right side beneath the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up and pull the lever up. Release the lever at the desired height to lock it in place. The pneumatic cylinder allows for stable and secure adjustment.

5.2. Reclining Backrest and Tilt Tension

The backrest can recline for comfortable relaxation. To adjust the tilt, locate the knob under the seat. Turn the knob clockwise to increase tilt tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline). Some models may have a separate lever to lock the backrest in an upright position.

5.3. Folding Armrests

The armrests of this chair are designed to fold up, providing more freedom of movement and allowing the chair to be pushed closer to a desk. Simply lift the armrests upwards to fold them. The armrests are padded for comfort.

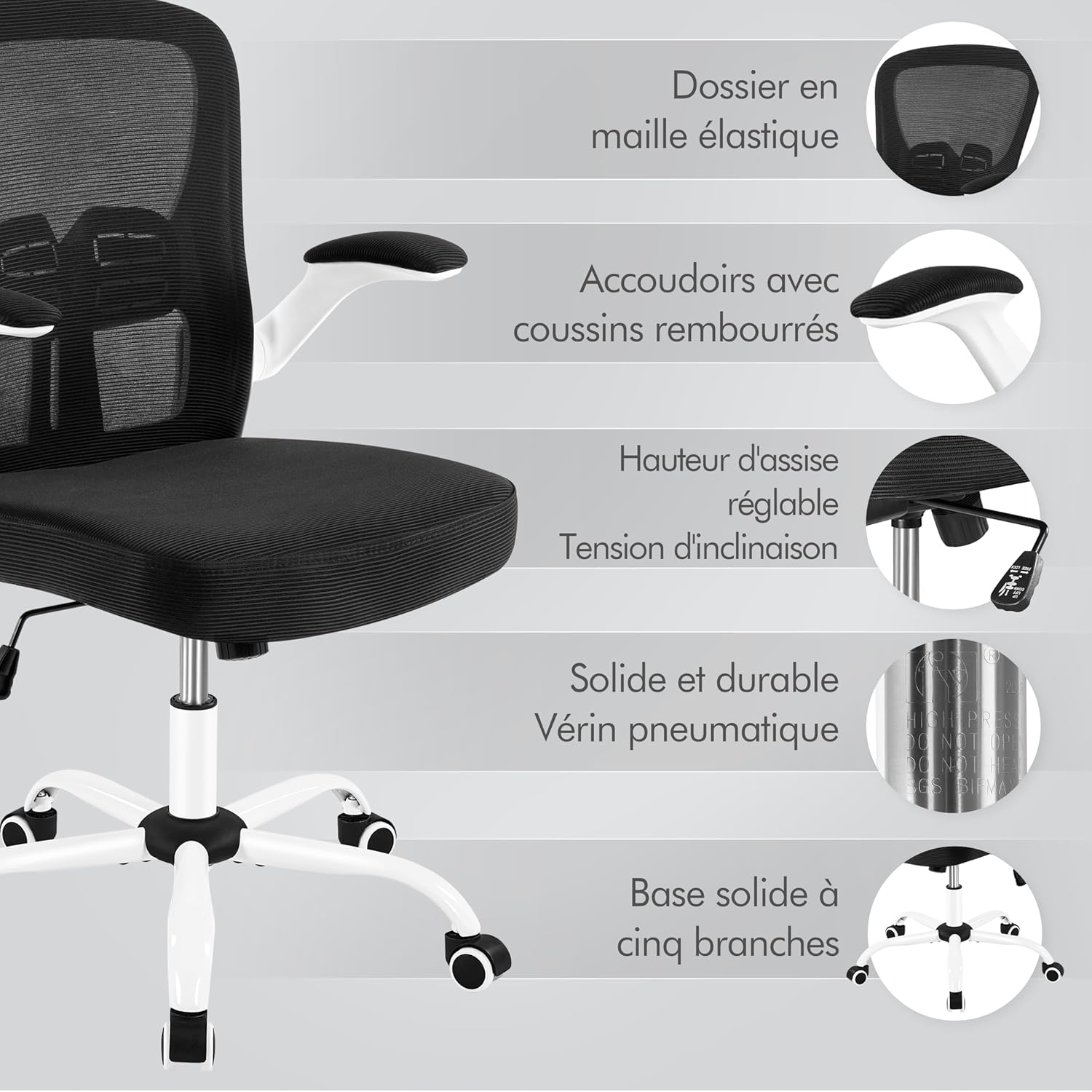

Image: This diagram highlights key adjustable features including the elastic mesh backrest, padded armrests, adjustable seat height, tilt tension knob, durable pneumatic cylinder, and solid five-star base.

5.4. Ergonomic Design Features

The chair features an ergonomic design with a breathable mesh backrest, adjustable lumbar support, and an S-shaped backrest to promote good posture and comfort during extended use.

Image: This illustration details the ergonomic design, pointing out the back support, spinal support, and lumbar support areas of the chair.

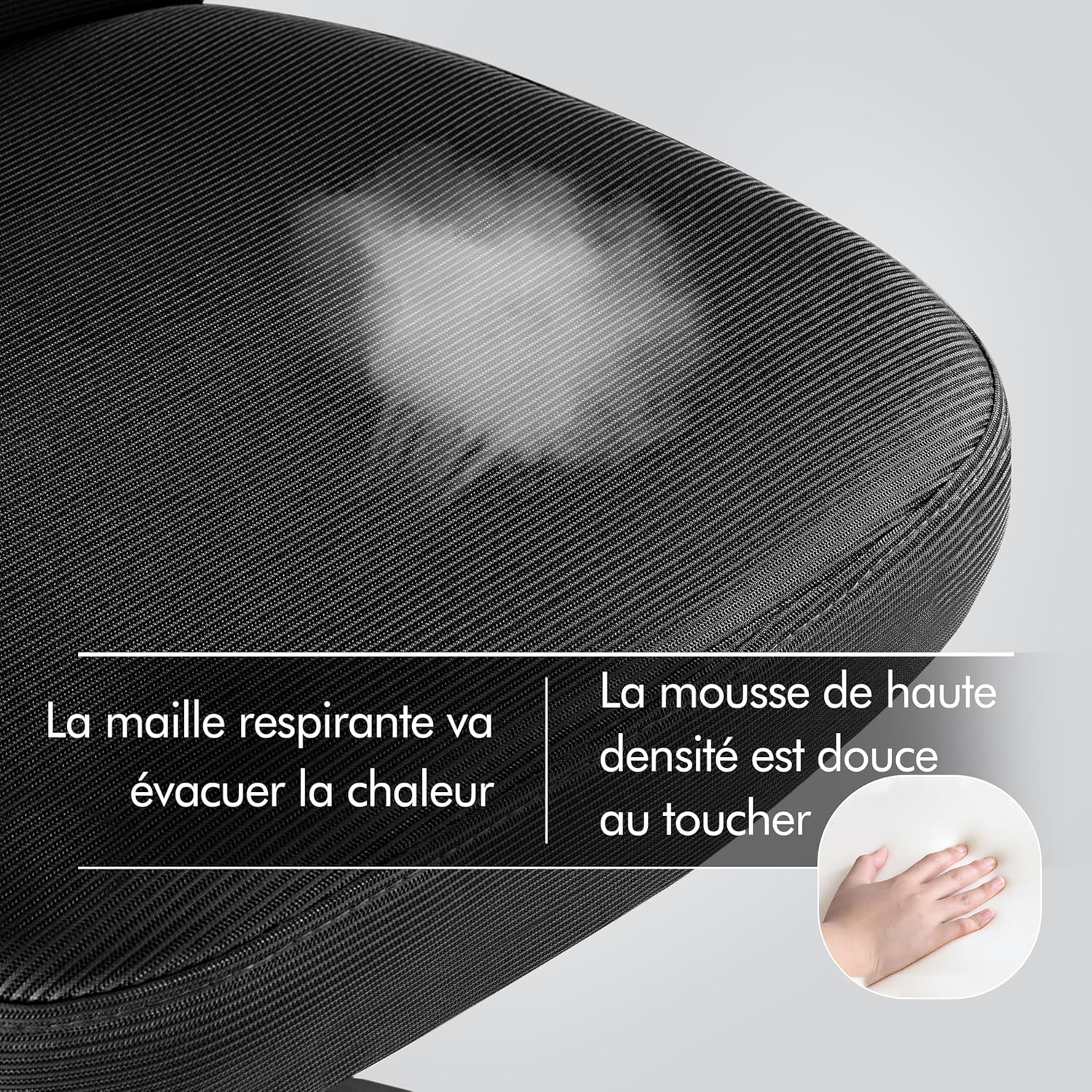

Image: A close-up view illustrating the breathable mesh material of the backrest, designed to dissipate heat, and the high-density foam of the seat, providing soft yet firm support.

6. Maintenance

Regular maintenance will help prolong the life and appearance of your office chair.

• Cleaning: Wipe down the chair with a soft, damp cloth. For mesh areas, a gentle brush can be used to remove dust. Avoid harsh chemicals or abrasive cleaners.
• Inspection: Periodically check all screws and bolts to ensure they are tight. Retighten if necessary.
• Casters: Keep casters clean and free of debris (hair, dust) to ensure smooth movement.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading of materials.

7. Troubleshooting

If you encounter any issues with your chair, refer to the following common solutions:

• Chair Sinks or Does Not Stay Up: This usually indicates an issue with the gas lift cylinder. Contact customer support for a replacement.
• Chair Wobbles: Check all assembly screws and bolts. Ensure they are securely tightened. Also, verify that the five-star base is properly seated on the gas lift.
• Casters Not Rolling Smoothly: Clean any debris (hair, dust, lint) from the caster wheels. If they are still stiff, they may need lubrication or replacement.
• Squeaking Noises: Identify the source of the squeak. It might be loose screws, or friction between parts. Tighten screws or apply a small amount of silicone lubricant to moving parts (avoiding fabric).

8. Specifications

Detailed specifications for the Yaheetech Office Chair Model 592590:

Please note: A measurement tolerance of ±1.5 cm should be allowed for all dimensions.

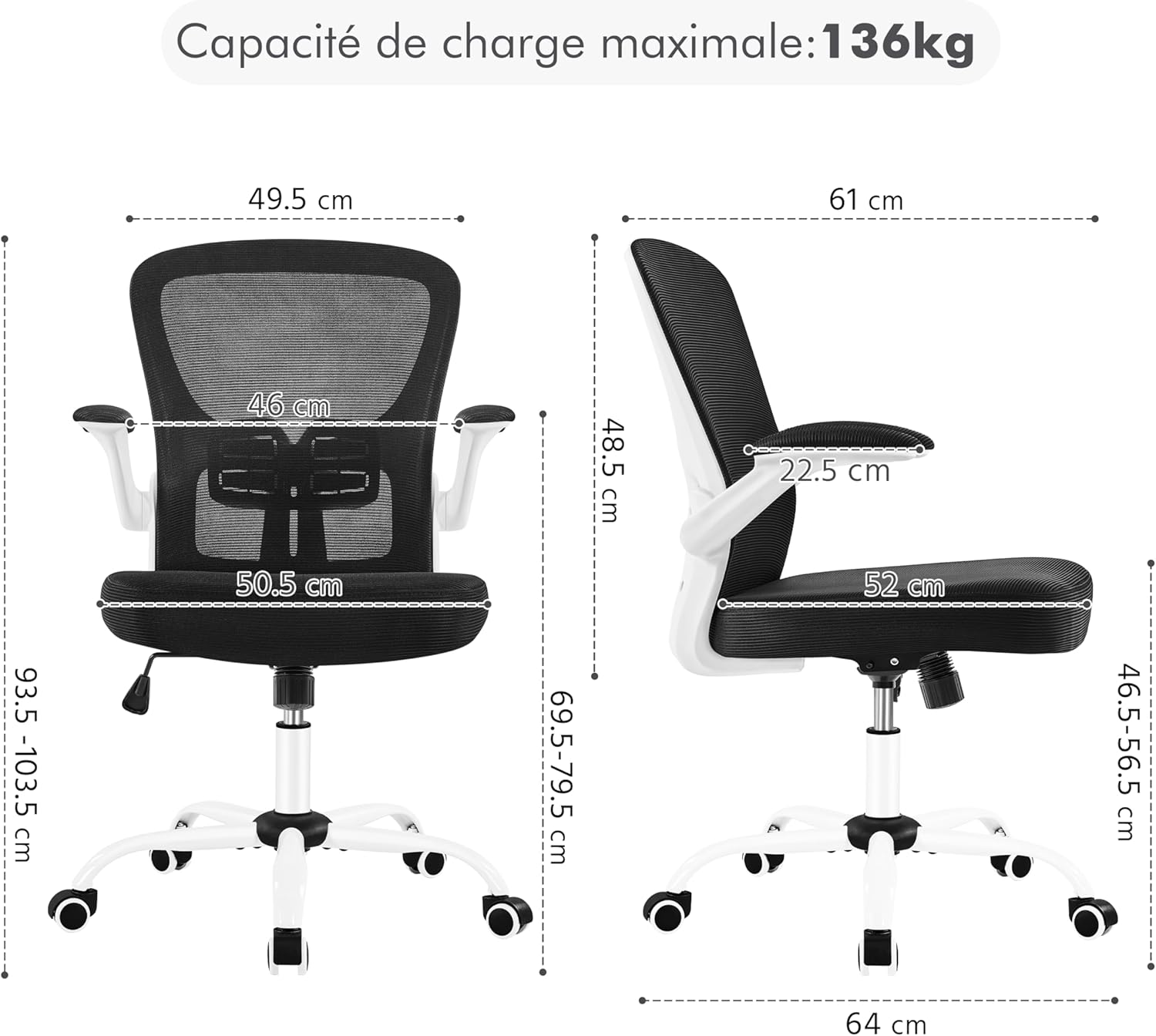

Image: This diagram provides a comprehensive view of the chair's dimensions, including width, depth, and adjustable height ranges, along with its maximum load capacity of 136 kg.

9. Warranty and Support

For warranty information, product support, or to order replacement parts, please refer to the contact details provided with your purchase documentation or visit the official Yaheetech website. Please have your model number (592590) and purchase date available when contacting support.
