BACKRACK Original Rack Frame & Hardware Kit User Manual

Product Overview

The BACKRACK Original Rack is designed to provide robust protection for your truck's cab and rear window from shifting cargo, while maintaining a professional appearance. Its low-profile design allows for convenient garage parking. Constructed from reinforced steel with a protective black powder coat finish, this rack offers durability and resistance against scratches, chips, and corrosion. This bundle includes the Original Rack (model 15020) and the necessary hardware kit (model 30122TB) for installation.

Setup and Installation

This BACKRACK system is designed for straightforward installation on compatible vehicles. The rack mounts to existing stake pockets in the front of your truck's bed, simplifying the process. Most standard and toolbox hardware kits are designed for no-drill installation on late model full-size trucks. Low Profile Hardware Kits may require minimal drilling.

Compatibility:

• Fits 2020-2025 Chevrolet/GMC Silverado/Sierra 2500/3500 HD models.

Included Components:

• BACKRACK Original Rack (Model 15020)
• Hardware Kit (Model 30122TB)

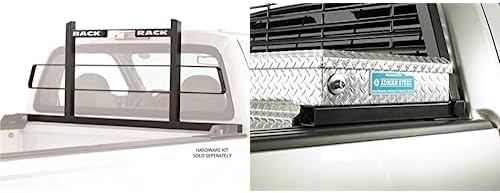

This image illustrates the BACKRACK Original Rack installed on the rear of a truck bed, providing a protective barrier for the cab window. A detailed view also shows how a 21-inch toolbox can be integrated with the rack system, demonstrating the combined functionality for cargo management.

Operating Instructions

The BACKRACK Original Rack serves as a protective barrier for your truck's cab and rear window, preventing damage from shifting cargo during transport. Its open design facilitates easy loading and securing of various items.

Securing Cargo:

• Position items such as ladders or long pieces of lumber between the uprights of the rack.
• Utilize appropriate tie-downs or straps (not included) to secure the cargo firmly to the rack and truck bed.
• Ensure cargo is stable and will not shift during vehicle movement to maintain cab and window protection.

Maintenance

Regular maintenance will help preserve the appearance and functionality of your BACKRACK Original Rack.

Cleaning:

• Clean the powder-coated finish with mild soap and water.
• Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Rinse thoroughly and dry to prevent water spots.

Inspection:

• Periodically inspect all mounting hardware for tightness. Tighten any loose bolts or fasteners.
• Check the powder coat for any signs of scratches, chips, or corrosion. Touch up any damaged areas promptly to prevent further deterioration.

Troubleshooting

If you encounter issues with your BACKRACK Original Rack, consider the following common checks:

• Loose Fitment: Ensure all installation hardware is securely tightened according to the installation instructions. Over time, vibrations can cause fasteners to loosen.
• Unusual Noises: Verify that no components are loose or rubbing against the truck body. Re-check all mounting points.
• Damage to Finish: Minor scratches can be touched up with appropriate automotive paint designed for powder-coated surfaces to prevent rust. For significant damage, professional repair may be necessary.

For issues not resolved by these steps, please refer to the support section.

Specifications

Warranty Information

Each BACKRACK product, including the Original Rack and its accompanying hardware kit, is covered by a One Year Workmanship Warranty. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims or detailed information, please retain your proof of purchase and contact BACKRACK customer support.

Support

For further assistance, technical support, or inquiries regarding your BACKRACK Original Rack, please contact the manufacturer or the seller from whom you purchased the product.
