Devoko 0169
Devoko Massage Gaming Chair User Manual
Brand: Devoko | Model: 0169
1. Product Overview
The Devoko Massage Gaming Chair is designed for both gaming enthusiasts and home office executives, offering superior comfort and ergonomic support. Its robust construction and versatile adjustments make it suitable for extended periods of use.
Figure 1.1: Front view of the Devoko Massage Gaming Chair.
Key Features:
- Ergonomic Design: Contours to your spine, providing support for head, shoulders, and lower back.
- Lumbar Massage Function: Integrated massage feature in the lumbar pillow to promote blood circulation and relieve discomfort during long sessions.
- Retractable Footrest: Provides additional comfort for relaxation and napping.
- Adjustable Recline: Backrest adjusts from 90° (focused work) to 135° (relaxed position).
- High-Quality Materials: Durable PU leather cover and high-density molded sponge for comfort and longevity.
- Stable Construction: Full steel frame with BIFMA certification, supporting up to 150 kg.
- 360° Rotatable: Smooth swivel function for easy movement.
2. Setup and Assembly
Assembly of the Devoko Gaming Chair is designed to be straightforward. All parts are clearly marked, and the instruction manual provides a step-by-step guide for efficient setup.
Assembly Steps:
- Unpack Components: Carefully remove all parts from the packaging and verify against the included parts list. Ensure all screws and tools are present.
- Attach Casters to Base: Insert the five multi-direction silent casters into the holes on the metal base.
- Install Gas Lift: Place the SGS certified gas lift into the center hole of the base.
- Assemble Seat Mechanism: Secure the seat mechanism to the underside of the seat cushion using the provided screws. Ensure the levers are facing the front.
- Connect Backrest: Attach the backrest to the seat cushion using the designated brackets and screws.

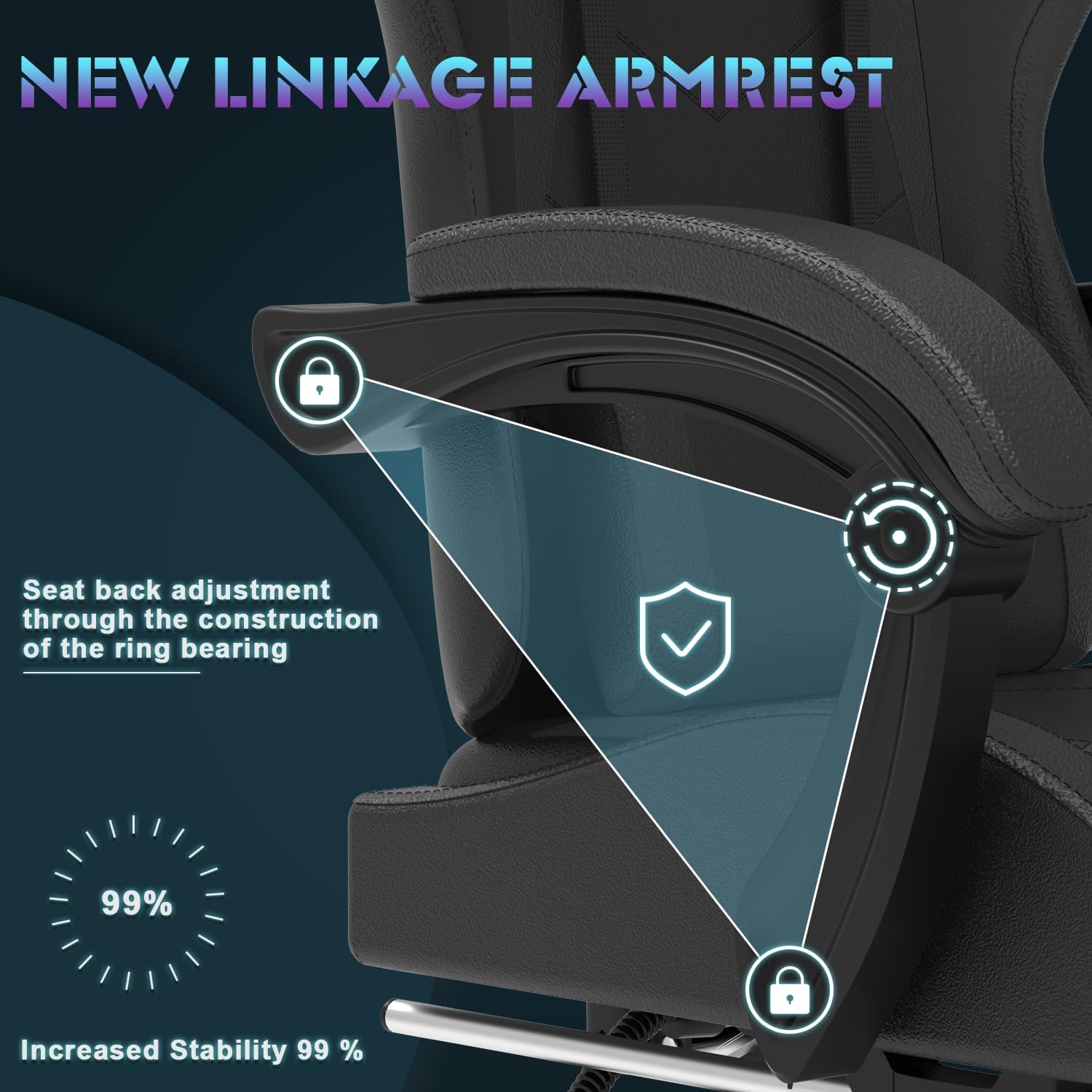

- Attach Armrests: Secure the linkage armrests to both the seat and backrest.
- Mount Seat onto Gas Lift: Carefully place the assembled seat and backrest onto the gas lift.
- Install Lumbar Pillow and Headrest: Position the adjustable lumbar pillow and headrest cushion as desired.
Figure 2.1: Key components including the SGS Certified Gaslift and BIFMA Tested Sturdy Base.
For detailed visual instructions, refer to the assembly diagram included in your product packaging.
3. Operating Instructions
Familiarize yourself with the chair's adjustable features to optimize your comfort and posture.
3.1. Height Adjustment
To adjust the chair's height, locate the lever on the right side beneath the seat. While seated, pull the lever up to lower the chair. To raise the chair, stand up and pull the lever up. Release the lever at your desired height.
Figure 3.1: Height adjustment lever and range.
3.2. Backrest Recline
The backrest can be reclined from 90° to 135°. Pull the recline lever, typically on the left side, and lean back to your desired angle. Release the lever to lock the backrest in place.
Figure 3.2: Illustration of adjustable recline angles.
3.3. Retractable Footrest
To extend the footrest, pull it out from beneath the seat. Push it back in when not in use. This feature is ideal for relaxing or taking a short nap.
Figure 3.3: The retractable footrest in use.
3.4. Lumbar Massage Function
The lumbar pillow features a massage function. Connect the USB cable from the lumbar pillow to a compatible USB power source (e.g., computer, power bank, USB wall adapter) to activate the vibration massage.
Figure 3.4: Lumbar pillow with integrated massage function.
3.5. 360° Swivel
The chair is designed to rotate 360 degrees, allowing for easy movement and access to different areas of your workspace without needing to reposition the entire chair.
Figure 3.5: The chair's 360-degree swivel feature.
4. Maintenance
Regular maintenance will extend the life and appearance of your Devoko Gaming Chair.
- Cleaning: Wipe the PU leather with a soft, damp cloth. For tougher stains, use a mild soap solution and immediately wipe dry. Avoid harsh chemicals or abrasive cleaners.
- Caster Care: Periodically check the casters for accumulated dust, hair, or debris. Clean them to ensure smooth rolling and prevent floor damage.
- Tighten Fasteners: Over time, screws and bolts may loosen. Periodically inspect and re-tighten all fasteners, especially those on the armrests and seat mechanism, using the provided Allen key.
- Lubrication: If any moving parts (e.g., recline mechanism) begin to squeak, apply a small amount of silicone-based lubricant.
5. Troubleshooting
This section addresses common issues you might encounter with your gaming chair.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not raise or lower | Gas lift malfunction or lever not engaged. | Ensure the height adjustment lever is fully engaged. If the issue persists, the gas lift may need replacement. |
| Armrests feel loose or wobbly | Mounting screws have loosened over time. | Re-tighten the screws securing the armrests to the seat and backrest using the appropriate Allen key. Regular tightening is recommended. |
| Chair squeaks when moving | Friction between moving parts or loose connections. | Check and tighten all assembly bolts. Apply a small amount of silicone lubricant to moving joints and the gas lift. |
| Casters do not roll smoothly | Debris caught in casters or worn casters. | Remove any hair or debris from the caster wheels. If casters are worn, consider replacing them. |
| Lumbar massage not working | USB power issue or cable disconnection. | Ensure the USB cable is securely connected to a working power source. Try a different USB port or power adapter. |
6. Specifications
| Attribute | Detail |
|---|---|
| Brand | Devoko |
| Model Number | 0169 |
| Colour | Black |
| Product Dimensions | 70 x 70 x 132 cm (L x W x H) |
| Item Weight | 16 kg |
| Load Capacity | Up to 150 kg |
| Special Features | Ergonomic, Lightweight, Head Support, Massage Function |
| Back Style | Cushion Back |
| Recline Angle | 90-135 degrees |
| Swivel | 360 degrees |
| Certification | BIFMA Certified Gaslift |
7. Warranty and Support
The Devoko Massage Gaming Chair is manufactured to high standards and is BIFMA certified, ensuring quality and durability.
For any questions, concerns, or assistance with assembly, operation, or troubleshooting, please contact Devoko customer service. Our team is dedicated to providing satisfactory solutions and support for your product.
Please refer to your purchase documentation for specific warranty terms and contact information.
