1. Introduction
Thank you for choosing the Consciot LED Camping Lantern Flashlight. This versatile device combines a powerful flashlight, a wide-area lantern, and a portable power bank, designed for various outdoor activities and emergency situations. Its robust, waterproof construction ensures reliable performance in diverse environments.

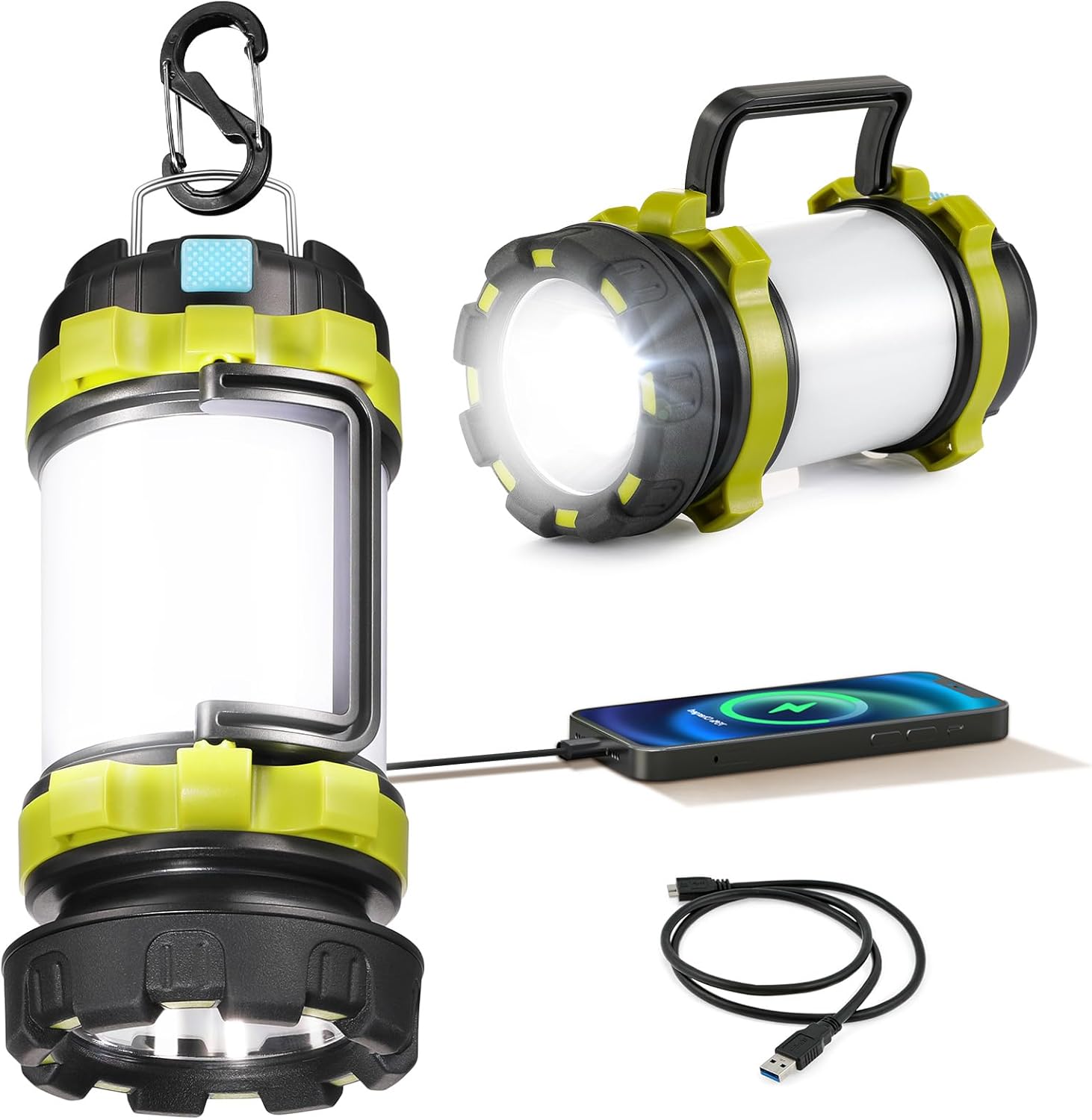

Image: The Consciot LED Camping Lantern Flashlight in both its lantern and flashlight configurations, demonstrating its dual functionality and power bank feature charging a smartphone.
2. Safety Instructions
- Do not look directly into the LED light when it is on, as this may cause temporary vision impairment.
- Keep the device away from extreme temperatures and direct sunlight.
- Do not disassemble or attempt to repair the device. Contact customer support for assistance.
- Ensure the USB port cover is securely closed when not in use to maintain IPX4 water resistance.
- Keep out of reach of children.
3. Package Contents
Verify that all items are present in your package:
- 1 x Consciot Camping Lantern Flashlight (with built-in rechargeable battery)
- 1 x USB-C Charging Cable
- 1 x User Manual (this document)
4. Setup and Charging
Initial Charge
Before first use, fully charge the lantern flashlight. The device features a built-in 3600mAh lithium-ion battery.
- Locate the USB-C input port, typically protected by a rubber cover.
- Connect the provided USB-C cable to the input port on the device.
- Connect the other end of the USB-C cable to a compatible USB power adapter (not included) or a computer USB port.
- The charging indicator light will illuminate. A full charge typically takes approximately 5 hours.
- Once fully charged, disconnect the cable and ensure the rubber cover is sealed to maintain water resistance.
Image: Close-up view of the USB-C input and USB-A output ports on the lantern, illustrating how to charge the device and use it as a power bank.
Using as a Power Bank
The lantern flashlight can also serve as a 3600mAh power bank to charge your mobile devices.
- Open the rubber cover to access the USB-A output port.
- Connect your device's charging cable to the USB-A output port on the lantern.
- Connect the other end of your cable to your mobile device.
- Charging will begin automatically.
5. Operating Instructions
The Consciot LED Camping Lantern Flashlight features 6 distinct lighting modes, accessible via a single power button.
Power Button Operation
Press the power button repeatedly to cycle through the lighting modes in the following order:
- Front Flashlight - High Light Mode: Provides a focused beam at 350 lumens.
- Front Flashlight - Low Light Mode: Provides a focused beam at 120 lumens.
- Side Lantern - High Light Mode: Illuminates a wide area.
- Side Lantern - Low Light Mode: Provides softer, ambient lighting.
- Side Lantern - Red Light (Steady): Useful for preserving night vision or as a warning light.
- Side Lantern - Strobe Red Light (SOS): Flashing red light for emergency signaling.
- Off: After the strobe red light, the next press will turn the device off.
To turn off the device from any mode, press and hold the power button for approximately 2 seconds.
Light Mode Illustrations
Image: Demonstrates the front flashlight in both high and low brightness settings.
Image: Shows the side lantern illuminating an area in both high and low brightness settings.
Image: Illustrates the stable red light for car repair and the strobe red light for emergency signaling.
Portability and Versatility
The lantern flashlight is designed for ease of use and portability:
- Carry Handle: Use the integrated handle for handheld flashlight operation or easy transport.
- Two-Way Hook: The built-in hook allows you to hang the lantern inside a tent, on a backpack, or from branches for overhead lighting.
Image: The lantern flashlight highlighting its lightweight nature (0.76 lbs), comfortable handle for carrying, and a convenient hook for hanging in various scenarios.
6. Maintenance
- Cleaning: Wipe the device with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the lantern flashlight in a cool, dry place when not in use. For prolonged storage, charge the battery every 3-6 months to maintain its lifespan.
- Water Resistance: The device is IPX4 water-resistant, meaning it is protected against splashing water from any direction. Do not submerge the device in water. Ensure all port covers are sealed when exposed to moisture.
Image: The lantern flashlight hanging outdoors amidst wet foliage, demonstrating its IPX4 water-resistant capability suitable for outdoor use.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | Battery is depleted. | Charge the device fully using the provided USB-C cable. |
| Device not charging | Charging cable or adapter is faulty. USB-C cable not properly connected. | Ensure the USB-C cable is securely connected. Try a different USB-C cable or power adapter. |
| Mobile device not charging from power bank | Mobile device cable is faulty. Power bank battery is low. | Ensure the lantern flashlight is sufficiently charged. Try a different charging cable for your mobile device. |
| Water ingress after exposure to moisture | USB port cover was not properly sealed. | Ensure the rubber cover for the USB ports is always securely closed when not in use, especially in wet conditions. Allow the device to dry completely before attempting to use or charge. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | AOL007-US |
| Dimensions | 3.15"L x 3.15"W x 6.5"H |
| Item Weight | 0.76 Pounds (approx. 347g) |
| Brightness (Flashlight High) | 350 lumens |
| Brightness (Flashlight Low) | 120 lumens |
| Battery Capacity | 3600mAh |
| Battery Type | Lithium Ion (built-in) |
| Input Voltage | 5V DC (USB-C) |
| Output Voltage | 5V 1A (USB-A) |
| Water Resistance | IPX4 |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
9. Warranty and Support
Warranty Information
This Consciot product is covered by a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
Customer Support
Should you encounter any issues or have questions regarding your Consciot LED Camping Lantern Flashlight, please do not hesitate to contact our customer service team. We are committed to providing quality products and support.
For assistance, please refer to the contact information provided on the Consciot official website or your purchase platform.
