1. Product Overview

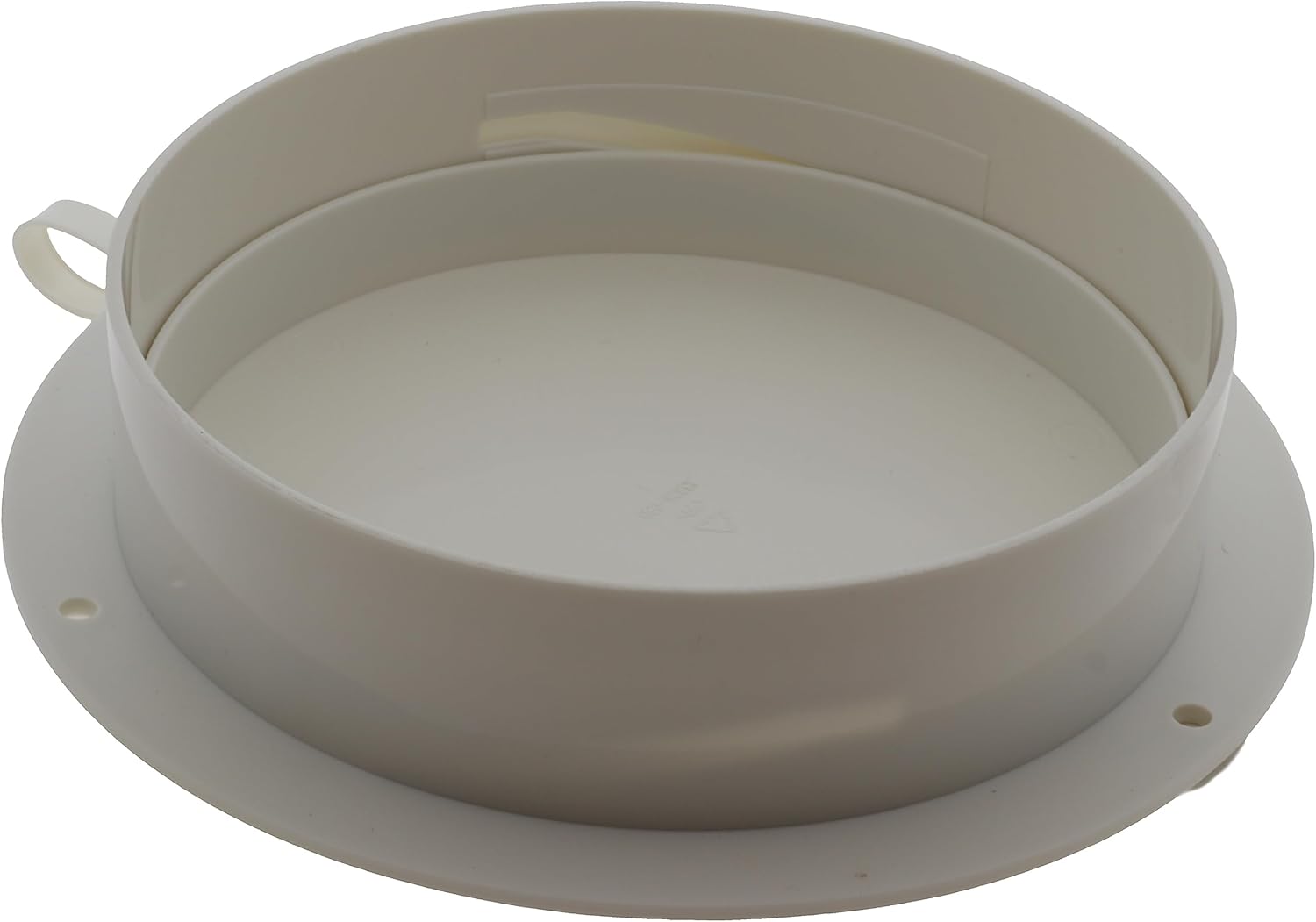

The De'Longhi Wall Adapter Flange (part number A5826-080) is an original spare part designed to facilitate the exhaust of hot air from compatible De'Longhi portable air conditioners through a wall opening. This component ensures a secure and efficient connection for the hot air discharge hose, preventing air leakage and optimizing the performance of your air conditioning unit. It includes a removable cap to seal the opening when the air conditioner is not in use.
The flange features an inner diameter of 143 mm, designed to accommodate the standard hot air exhaust hose of compatible De'Longhi portable air conditioners. The outer diameter of the flange is 179 mm, providing a stable mounting surface for installation into a wall or window panel.
2. Setup and Installation
Proper installation of the wall adapter flange is crucial for efficient operation of your portable air conditioner.
- Prepare the Opening: Ensure you have a circular opening in your wall or window panel with a diameter suitable for the flange's outer diameter (approximately 179 mm). The opening should be clean and free of obstructions.
- Insert the Flange: Carefully insert the De'Longhi Wall Adapter Flange into the prepared opening. Ensure it sits flush with the surface.
- Secure the Flange: If your wall or panel allows, secure the flange using appropriate fasteners (not included) through the designated mounting holes on the flange's outer rim. This will ensure a stable and airtight seal.
- Connect the Exhaust Hose: Once the flange is securely installed, connect the hot air exhaust hose from your De'Longhi portable air conditioner to the inner opening of the flange. Twist or push the hose firmly until it clicks into place or forms a tight seal.
- Seal the Connection: Verify that the connection between the hose and the flange is secure and airtight to prevent hot air from re-entering the room.
3. Operating Instructions
The wall adapter flange itself does not require active operation. Its function is passive, providing a dedicated exhaust port for your portable air conditioner. When the air conditioner is in use, ensure the exhaust hose is properly connected to the flange.
- During AC Operation: Keep the hot air exhaust hose securely connected to the flange. Ensure the path for hot air is clear and unobstructed.
- When AC is Not in Use: When the portable air conditioner is disconnected or not in use, install the provided sealing cap onto the flange. This cap helps to prevent drafts, dust, and insects from entering through the wall opening, maintaining indoor climate control.
4. Maintenance
Regular maintenance of the wall adapter flange ensures its longevity and optimal performance.
- Cleaning: Periodically wipe the flange and its cap with a soft, damp cloth to remove dust and dirt. Do not use abrasive cleaners or solvents.
- Inspection: Regularly inspect the flange for any signs of damage, cracks, or wear, especially around the hose connection area and mounting points. Check the sealing cap for proper fit.
- Hose Connection: Ensure the exhaust hose connection remains tight and secure. A loose connection can lead to hot air leakage and reduced cooling efficiency.
5. Troubleshooting
If you encounter issues related to the wall adapter flange, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hot air leakage around the flange. | Improper installation; loose hose connection; damaged flange. | Ensure the flange is securely mounted. Re-attach the exhaust hose firmly. Inspect the flange for damage; replace if necessary. |
| Difficulty connecting the exhaust hose. | Hose not aligned correctly; debris in the flange opening. | Align the hose carefully with the flange opening. Clear any obstructions from the opening. |
| Sealing cap does not fit securely. | Cap or flange is damaged; debris preventing proper fit. | Inspect the cap and flange for damage. Clean any debris from the cap's rim and the flange's groove. |
6. Specifications
| Feature | Detail |
|---|---|
| Part Number | A5826-080 |
| Inner Diameter (Hose Connection) | 143 mm |
| Outer Diameter (Flange) | 179 mm |
| Approximate Weight | 110 grams |
| Material | Durable Plastic |
| Color | White/Off-white |
7. Compatible De'Longhi Portable Air Conditioner Models
This wall adapter flange is compatible with the following De'Longhi portable air conditioner models:
- PAC ES72 Young
- PAC ES72 Classic
- PAC EL110 ERF WIFI WH
- PAC EL112 CST WIFI WH
- PAC EL92 HP
- PAC EX UV-CARELIGHT WH
- PAC EX105 A+++
Always verify the compatibility with your specific model by checking the product identification plate, usually located on the underside of your appliance, or by contacting De'Longhi customer support.
8. Warranty and Support
As an original spare part, the De'Longhi Wall Adapter Flange is subject to the warranty terms provided by De'Longhi for its spare parts. For specific warranty details, please refer to the documentation that came with your original De'Longhi appliance or visit the official De'Longhi website.
For technical support, inquiries about compatibility, or to purchase additional spare parts, please contact De'Longhi customer service. Contact information can typically be found on the official De'Longhi website or in your appliance's main user manual.
