1. Introduction
Thank you for choosing the Yard Force 16-inch Electric Chain Saw YF1516CS. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your electric chainsaw. Please read this manual thoroughly before initial use and keep it for future reference. This chainsaw is designed for cutting wood and is suitable for various tasks from light trimming to heavy-duty lumber work.
2. Safety Information
WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
2.1 General Safety Rules
- Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and sturdy footwear.
- Keep children and bystanders at a safe distance from the work area.
- Do not operate the chainsaw in wet conditions or in the presence of flammable liquids or gases.
- Ensure the work area is well-lit and clear of obstacles.
2.2 Electrical Safety
- Always use a grounded outlet and an extension cord suitable for outdoor use and the chainsaw's power requirements.
- Inspect the power cord and extension cord for damage before each use.
- Never carry the chainsaw by the cord or yank the cord to disconnect it from the outlet.
2.3 Kickback Safety
Kickback can occur when the moving chain contacts an object at the upper tip of the guide bar or when the wood closes in and pinches the saw chain in the cut. To reduce the risk of kickback:
- Maintain a firm grip with both hands on the chainsaw.
- Do not overreach or cut above shoulder height.
- Be aware of the guide bar tip position.
- Ensure the protective hand guard with kickback chain brake is properly engaged before operation.
Image: The protective hand guard and kickback chain brake, designed to enhance safety by preventing accidental startups and reducing kickback.
3. Product Overview
The Yard Force YF1516CS is a powerful 16-inch electric chainsaw featuring a 15 Amp motor, automatic lubrication, and tool-free chain tensioning for ease of use and reliable performance.
Image: The Yard Force 16-inch Electric Chain Saw YF1516CS, showcasing its overall design and 16-inch bar.
3.1 Key Components
- 16-inch Bar and Chain: Provides optimum cutting capacity.
- 15 Amp Motor: Delivers powerful performance for various cutting tasks.
- Tool-Free Chain Bar Tensioning System: Allows for quick and effortless chain adjustments.
- Automatic Lubrication System: Ensures continuous oil supply to the bar and chain.
- Built-in Safety Switch: Prevents accidental startups.
- Low Kickback Design: Enhances user safety during operation.

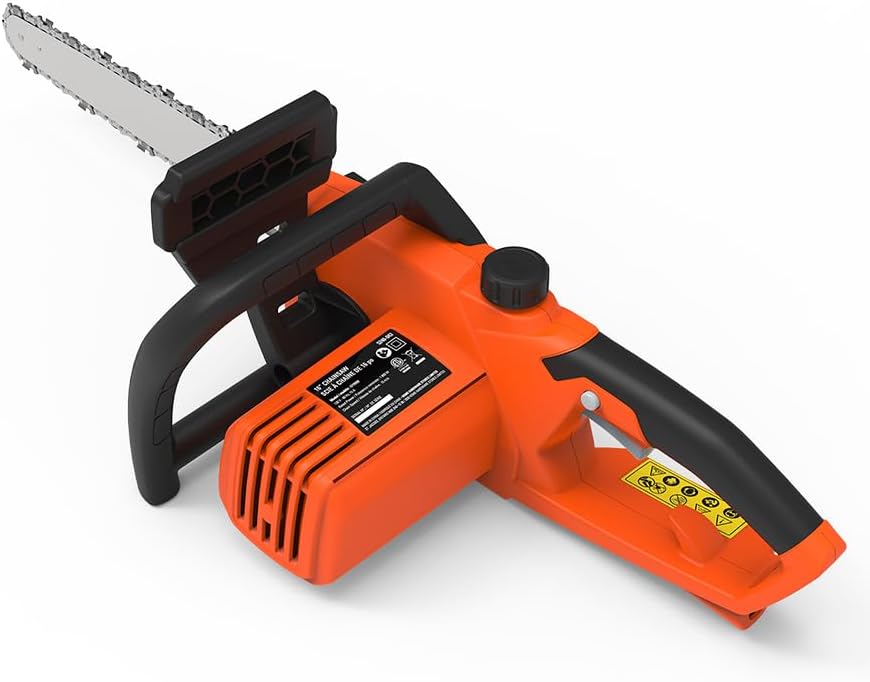

Image: Front view of the chainsaw, highlighting the bar and chain.
Image: Side view of the chainsaw, showing the motor housing and handle.
Image: Back view of the chainsaw, illustrating the rear handle and power cord connection area.
4. Setup and Assembly
4.1 Bar and Chain Installation
- Ensure the chainsaw is unplugged from the power source.
- Remove the chain cover by loosening the tool-free tensioning knob.
- Carefully place the chain around the sprocket and guide bar, ensuring the cutting edges face the correct direction.
- Align the guide bar with the mounting studs and replace the chain cover.
- Tighten the tool-free tensioning knob until the chain is snug but can still be pulled freely around the bar.

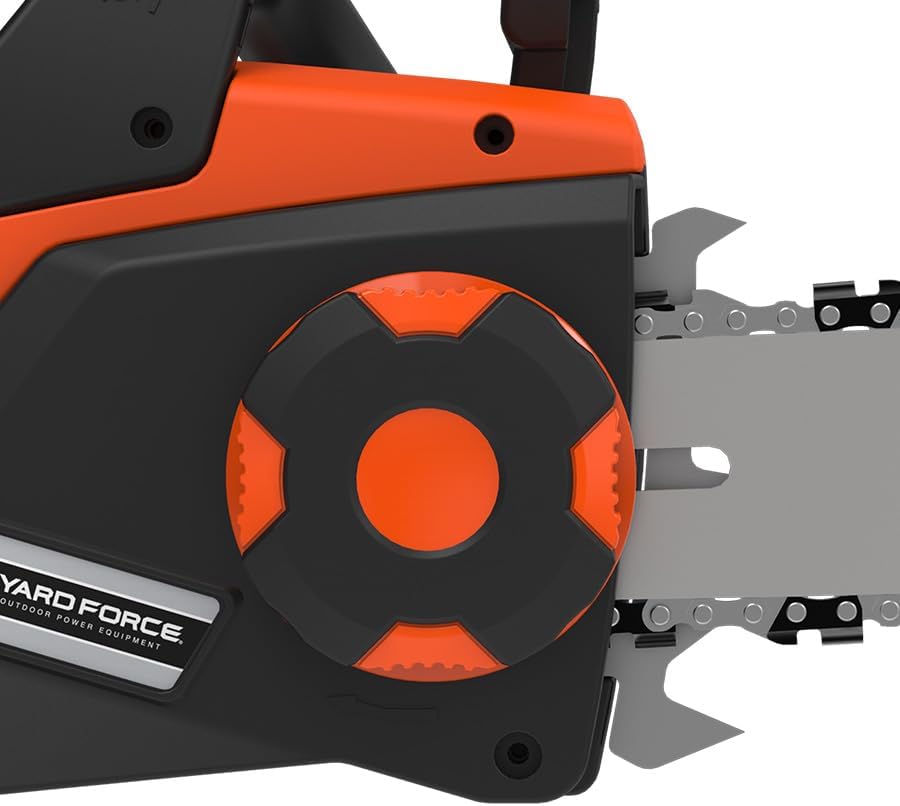

Image: The tool-free chain bar tensioning system, allowing for quick and easy adjustments without additional tools.
4.2 Adding Chain Oil
The chainsaw features an automatic lubrication system. It is crucial to fill the oil reservoir before each use.
- Unscrew the oil cap located on the top of the chainsaw.
- Fill the reservoir with high-quality bar and chain oil. Do not use waste oil or motor oil.
- Replace the oil cap securely.
Image: The oil cap for the automatic lubrication system, which ensures continuous oil supply to the bar and chain during operation.
5. Operating Instructions
5.1 Starting the Chainsaw
- Ensure the chain brake is disengaged.
- Plug the chainsaw into a suitable power outlet using a heavy-duty outdoor extension cord.
- Grip the front handle with one hand and the rear handle with the other.
- Press the safety switch with your thumb, then squeeze the trigger to start the motor.
5.2 Cutting Techniques
- Always stand firmly and maintain balance.
- Allow the chain to reach full speed before contacting the wood.
- Apply light pressure and let the saw do the work.
- Be aware of pinching and kickback risks, especially when cutting logs under tension.
Image: A user demonstrating the Yard Force electric chainsaw in action, cutting through a tree branch. Always ensure proper safety gear is worn during operation.
5.3 Official Product Video
Video: This video provides a visual overview of the Yard Force YF1516CS Electric Chainsaw, highlighting its key features such as the 15 Amp motor, 16-inch Oregon bar and chain, protective hand guard with kickback brake, and onboard auto-oiler. It also shows the chainsaw in use for yard work.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your chainsaw.
6.1 Chain Sharpening
A sharp chain is essential for efficient and safe cutting. Sharpen the chain regularly or replace it when dull. Refer to the chain manufacturer's guidelines for proper sharpening angles and file sizes.
6.2 Bar Maintenance
- Clean the guide bar groove regularly to remove sawdust and debris.
- Flip the guide bar periodically to ensure even wear.
- Check the guide bar for burrs and remove them with a flat file.
6.3 Cleaning and Storage
- After each use, unplug the chainsaw and clean off sawdust and debris from the motor housing, bar, and chain.
- Store the chainsaw in a dry, secure location, out of reach of children.
- Always empty the chain oil reservoir before long-term storage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chainsaw does not start | No power, safety switch not engaged, chain brake engaged | Check power connection, ensure safety switch is pressed, disengage chain brake |
| Chain not moving | Chain brake engaged, chain too tight, chain jammed | Disengage chain brake, adjust chain tension, clear any obstructions |
| Poor cutting performance | Dull chain, incorrect chain tension, insufficient oil | Sharpen or replace chain, adjust chain tension, fill oil reservoir |
| Oil leaking from chainsaw | Overfilled reservoir, loose oil cap, normal seepage during storage | Do not overfill, tighten oil cap, store on absorbent material or drain for long periods |
8. Specifications
- Model: YF1516CS
- Power Source: AC Electric
- Bar Length: 16 inches
- Motor: 15 Amp
- Product Dimensions: 32.3 x 10 x 8 inches (82.04 x 25.4 x 20.32 cm)
- Item Weight: 12.87 pounds (5.85 kg)
- UPC: 846325014342
- Manufacturer: Yard Force
- Country of Origin: China
9. Warranty and Support
Yard Force products are manufactured to high-quality standards. For warranty information, technical support, or to purchase replacement parts, please refer to the warranty card included with your product or visit the official Yard Force website. Keep your purchase receipt as proof of purchase for warranty claims.
