1. Introduction
Thank you for choosing the RAF R.5330 Digital Air Fryer. This appliance is designed to cook a variety of foods with little to no oil, utilizing rapid air circulation technology for healthier and efficient cooking. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.
Image: Front view of the RAF R.5330 Digital Air Fryer with food visible through the window.
2. Important Safety Instructions
- Always ensure the appliance is placed on a stable, heat-resistant surface, away from walls and other appliances to allow for proper ventilation.
- Do not immerse the main unit, cord, or plug in water or any other liquid.
- Keep children and pets away from the appliance during operation. The exterior surfaces can become hot.
- Unplug the air fryer from the power outlet when not in use and before cleaning. Allow it to cool completely before handling.
- Do not block the air inlet or outlet vents.
- Do not use accessories or parts not recommended by the manufacturer.
- Regularly inspect the power cord for any damage. If damaged, do not use the appliance.
- Exercise extreme caution when removing the hot air fryer basket and pan.
3. Product Overview and Components
The RAF R.5330 Air Fryer features a digital control panel and a spacious 6-liter capacity. Key components include the main unit, removable frying basket, and pan.
Image: Infographic highlighting key features of the RAF R.5330 Air Fryer, including power, cleaning, oil reduction, and air circulation.
Main Features:
- Digital Control Panel: Easy-to-use touch interface for setting time and temperature.
- Rapid Air Circulation: Ensures even cooking and crispy results with minimal oil.
- 6-Liter Capacity: Suitable for preparing family-sized meals.
- Preset Programs: Convenient one-touch cooking options for various dishes.
4. Setup
Unpacking:
- Carefully remove the air fryer and all packaging materials from the box.
- Remove any stickers or labels from the appliance.
- Ensure all components are present: main unit, frying pan, and frying basket.

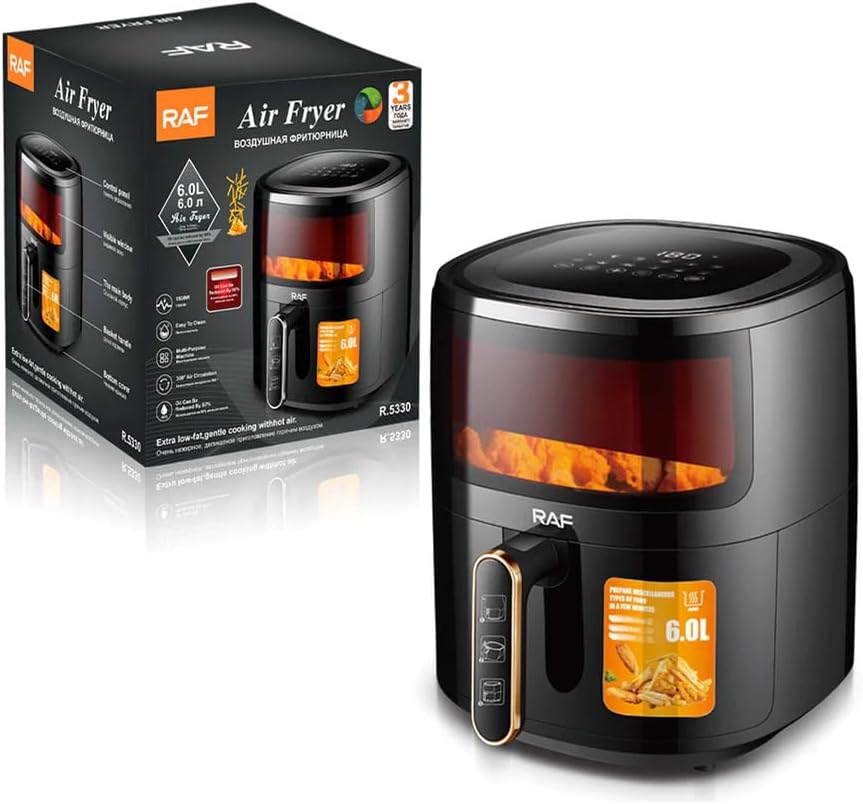

Image: The RAF R.5330 Digital Air Fryer shown alongside its retail packaging.
Initial Cleaning:
- Wash the frying pan and basket with hot water, a mild dish soap, and a non-abrasive sponge.
- Rinse thoroughly and dry completely.
- Wipe the inside and outside of the main unit with a damp cloth.
Placement:
- Place the air fryer on a stable, level, and heat-resistant surface.
- Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance, and above it, for adequate air circulation.
First Use:
- It is recommended to run the air fryer empty for about 10-15 minutes at 180°C (350°F) before cooking food for the first time. This helps to burn off any manufacturing residues and odors.
- A slight odor or smoke may be present during this initial use; this is normal. Ensure the area is well-ventilated.
5. Operating Instructions
Powering On/Off:
- Plug the power cord into a grounded electrical outlet. The digital display will illuminate.
- Press the power button to turn the appliance on or off.
Using the Digital Control Panel:
- Temperature Control: Use the temperature adjustment buttons (usually '+' and '-') to set the desired cooking temperature. The range is typically between 80°C (175°F) and 200°C (400°F).
- Time Control: Use the time adjustment buttons to set the desired cooking time. The timer can usually be set up to 60 minutes.
- Preset Programs: The air fryer comes with several preset cooking programs for common foods. Select the desired program by pressing the corresponding icon. The appliance will automatically set the optimal time and temperature.
Cooking Process:
- Place the food into the frying basket. Do not overfill the basket to ensure even cooking.
- Slide the frying pan with the basket back into the main unit until it clicks into place.
- Set the desired temperature and time manually, or select a preset program.
- Press the start button to begin cooking.
- During cooking, you may pull out the pan to shake or flip the food for more even results. The air fryer will pause automatically and resume when the pan is reinserted.
- Once the timer reaches zero, the air fryer will beep, indicating that cooking is complete.
- Carefully pull out the pan and place it on a heat-resistant surface.
- Remove the food from the basket using tongs.
6. Cooking Guide
The RAF R.5330 Air Fryer includes convenient preset programs for various food types. These programs offer optimized time and temperature settings for best results.
Preset Programs:
- French Fries: Ideal for crispy potato fries.
- Nuggets: Perfect for chicken nuggets or similar breaded items.
- Grilled Chicken: For cooking chicken pieces to perfection.
- Pizza: Reheat or cook small pizzas.
- Meats: Suitable for various cuts of meat.
- Fish: For cooking fish fillets or other seafood.
- Vegetables: Great for roasting or crisping vegetables.
- Sweets: For baking small desserts or pastries.
Note: Cooking times and temperatures may vary based on food quantity, density, and desired crispness. Always check food for doneness before serving.
7. Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your air fryer and ensure hygienic operation.
Cleaning Instructions:
- Always unplug the air fryer and allow it to cool completely before cleaning.
- Frying Pan and Basket: These components are not dishwasher safe. Hand wash them with hot water, a mild dish soap, and a non-abrasive sponge. For stubborn food residues, soak them in hot water for about 10 minutes before cleaning.
- Interior: Wipe the interior of the appliance with a damp cloth. If necessary, use a mild detergent. Avoid abrasive cleaners or scouring pads.
- Exterior: Clean the exterior with a damp cloth. Do not use harsh chemicals or abrasive materials.
- Ensure all parts are completely dry before storing or using the air fryer again.
Storage:
Store the cleaned and dried air fryer in a cool, dry place, away from direct sunlight and out of reach of children.
8. Troubleshooting
If you encounter any issues with your RAF R.5330 Air Fryer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in. Power outlet not working. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. |
| Food is not cooked evenly. | Basket is overfilled. Food pieces are too large. | Do not overfill the basket. Shake or flip food halfway through cooking. Cut food into smaller, more uniform pieces. |
| White smoke comes from the appliance. | Fat residue from previous use. Excess oil on food. | Clean the pan and basket thoroughly after each use. Pat food dry to remove excess oil before air frying. |
| Food is not crispy. | Not enough oil (if using a small amount). Temperature too low or time too short. | Lightly brush or spray food with oil. Increase temperature or cooking time. |
If the problem persists after checking these solutions, please contact customer support.
9. Specifications
Detailed technical specifications for the RAF R.5330 Digital Air Fryer:
| Feature | Detail |
|---|---|
| Model Name/Number | R.5330 |
| Brand Name | RAF |
| Capacity | 6 Liters |
| Power Output | 1500W |
| Voltage | 220V |
| Control Method | Touch |
| Controller Type | Manual Control (Digital) |
| Air Frying Technology | Rapid Air Circulation |
| Special Features | Temperature Control |
| Product Dimensions (D x W x H) | 30cm x 30cm x 30cm |
| Item Weight | 3 kg |
| Color | Black |
| External Materials | Plastic |
| Internal Materials | Metal, Aluminum |
| Non-stick Coating | No |
| Dishwasher Safe | No (Hand wash recommended) |
| Recommended Uses | Reheating, Baking, Steaming |
Image: Dimensions of the RAF R.5330 Digital Air Fryer.
10. Warranty and Support
The RAF R.5330 Digital Air Fryer comes with an international warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or contact the manufacturer directly.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact RAF customer service through their official channels. Keep your purchase receipt and model number (R.5330) handy when contacting support.
