Introduction
This manual provides essential information for the installation, operation, and maintenance of your ClimaTek Refrigerator Water Valve, model 2223469. This high-quality replacement part is designed to fit Whirlpool refrigerators and other compatible models, ensuring reliable water dispensing and ice production.
Please read these instructions carefully before proceeding with installation or any maintenance to ensure safe and correct usage.
Product Overview

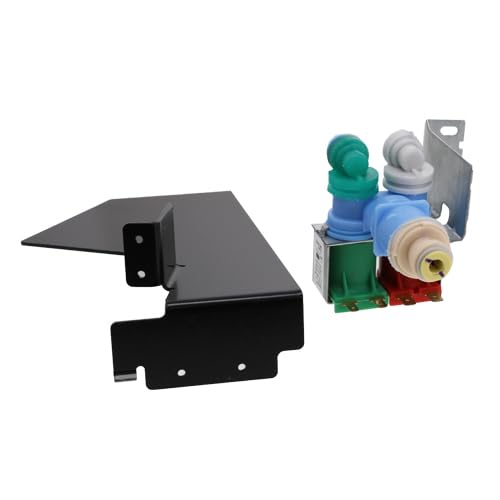

Image: The ClimaTek Refrigerator Water Valve, model 2223469, shown with its black metal mounting bracket. The valve itself features multiple colored ports (green, blue, red, and beige) for water line connections, indicating its multi-port design.
The ClimaTek Refrigerator Water Valve (Part # 2223469) is a critical component for controlling water flow to your refrigerator's ice maker and water dispenser. It is a direct replacement part, engineered for durability and compatibility with various refrigerator brands, including Whirlpool.
Key features include:
- Direct replacement for part # 2223469.
- Constructed from durable Brass and Stainless Steel.
- Features a Ball Valve type mechanism.
- Equipped with 2 ports and NPT outlet connection type.
Safety Information
Always disconnect power to the refrigerator before attempting any installation or maintenance. Turn off the water supply to the refrigerator before disconnecting any water lines. Wear appropriate personal protective equipment, such as gloves and eye protection. If you are unsure about any step, consult a qualified appliance technician.
Setup and Installation
Installation of the water valve typically involves replacing the existing valve. The following steps are general guidelines. Refer to your refrigerator's specific service manual for detailed instructions.
- Disconnect Power and Water: Unplug the refrigerator from the electrical outlet. Turn off the main water supply valve to the refrigerator.
- Access the Valve: Locate the existing water valve, usually at the back or bottom of the refrigerator. You may need to remove a rear access panel.
- Drain Water Lines: Place a towel or shallow pan under the valve to catch any residual water. Disconnect the water supply line and the lines leading to the ice maker and water dispenser from the old valve.
- Remove Old Valve: Unscrew or unclip the old water valve from its mounting bracket.
- Install New Valve: Attach the new ClimaTek water valve (model 2223469) to the mounting bracket. Ensure it is securely fastened.
- Connect Water Lines: Reconnect the water supply line and the lines to the ice maker and water dispenser to the new valve's appropriate ports. Ensure all connections are tight to prevent leaks.
- Restore Water and Power: Turn the main water supply back on. Check for any leaks around the connections. Once confirmed, plug the refrigerator back into the electrical outlet.
- Test Operation: Allow time for the ice maker to cycle and the water dispenser to prime. Dispense water and check for ice production to confirm proper operation.
Note: Some installations may require specific tools or procedures. If you encounter difficulties, professional assistance is recommended.
Operation
The ClimaTek Refrigerator Water Valve operates automatically to regulate water flow. Once installed, it will open and close as needed to supply water for ice production and water dispensing when activated by the refrigerator's internal controls.
- Water Dispenser: Press the dispenser lever on your refrigerator to activate water flow through the valve.
- Ice Maker: The valve will automatically supply water to the ice maker when it calls for a refill, typically after a batch of ice has been ejected.
Maintenance
The ClimaTek Refrigerator Water Valve is designed for long-term, maintenance-free operation. However, periodic checks can help ensure its longevity:
- Leak Inspection: Periodically inspect the water lines and connections around the valve for any signs of leaks. Address any leaks immediately by tightening connections or replacing damaged lines.
- Filter Replacement: Ensure your refrigerator's water filter is replaced according to the manufacturer's recommendations. A clogged filter can put strain on the water valve.
- Cleanliness: Keep the area around the valve clean and free of dust or debris.
Troubleshooting
If you experience issues with your refrigerator's water dispensing or ice production, the water valve may be a factor. Here are some common issues and potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No water from dispenser |
|
|
| Slow water flow |
|
|
| No ice production |
|
|
| Water leak at valve |
|
|
If troubleshooting steps do not resolve the issue, it may indicate a more complex problem requiring professional diagnosis or replacement of the valve.
Specifications
| Attribute | Detail |
|---|---|
| Model Number | 2223469 |
| Brand | ClimaTek |
| Product Dimensions | 7 x 9 x 5 inches; 1.56 Pounds |
| Material | Brass, Stainless Steel |
| Valve Type | Ball Valve |
| Number of Ports | 2 |
| Outlet Connection Type | NPT |
Warranty and Support
This ClimaTek replacement part is built to last and is backed by the manufacturer's commitment to quality. For specific warranty information, please refer to the documentation provided with your purchase or contact ClimaTek customer support.
For technical assistance or further inquiries, please contact your retailer or the manufacturer directly. When contacting support, please have your product model number (2223469) and purchase details ready.
Note: The product is from a small business brand. Support small businesses.
