DOKIO 2PC-DSP400M

DOKIO 800W Monocrystalline Plug and Play Solar Kit User Manual

Model: 2PC-DSP400M

1. Product Overview

The DOKIO 800W Monocrystalline Plug and Play Solar Kit is a comprehensive photovoltaic system designed for easy installation and efficient energy generation. This kit includes two 400W solar panels, an 800W micro inverter with APP/WIFI monitoring capabilities, and a 10-meter connection cable, providing a complete solution for generating clean energy for your home or balcony.

DOKIO 800W Solar Kit components: two solar panels, micro inverter, connection cable, and mounting accessories.

Figure 1.1: Complete DOKIO 800W Solar Kit showing panels, inverter, and accessories.

2. What's in the Box

Upon opening your DOKIO Solar Kit, please verify that all components listed below are present and undamaged. Due to the size of the product, your order may be shipped in multiple packages.

1 x 800W Micro Inverter
2 x 400W Monocrystalline Solar Panels
1 x 10-meter Connection Cable
Necessary mounting accessories (bolts, nuts, etc.)

Important notice about order shipping in 3 packages.

Figure 2.1: Shipping information indicating the order may arrive in multiple packages.

3. Key Features

High Efficiency Monocrystalline Cells: Equipped with Grade A+ monocrystalline cells, achieving up to 22% conversion efficiency.
Plug and Play Installation: Designed for easy and quick setup, making it accessible for all users.
Intelligent Monitoring: Integrated WIFI and APP functionality allow real-time monitoring of electricity generation and savings.
Durable Construction: Features a corrosion-resistant aluminum frame and IP67 waterproof rating for enhanced longevity and performance in various weather conditions.
Optimized Design: Includes 8 mounting holes for flexible and secure installation.

Solar panel with Grade A+ Mono Cells and 22% conversion efficiency.

Figure 3.1: High-efficiency monocrystalline solar cells.

Detailed view of solar panel features including Grade A+ cells, corrosion-resistant aluminum frame, IP67 MC4 cable, and 8 mounting holes.

Figure 3.2: Key structural and electrical features of the solar panel.

Diagram showing the multi-layer construction of the solar panel, including tempered glass, EVA film, monocrystalline cells, and aluminum frame.

Figure 3.3: Multi-material construction for durability and performance.

Diagram of the DOKIO Micro Inverter GT-600 showing input/output ports and certifications like CE, RoHS, ISO, VDE, IEC, LVD.

Figure 3.4: Micro Inverter GT-600 with connection points and certifications.

4. Setup and Installation

The DOKIO Solar Kit is designed for a straightforward "Plug and Play" installation. Follow these steps to set up your system:

Panel Placement: Choose a sunny location without shadows to maximize power generation. Securely mount the solar panels using the provided mounting holes.
Connect Panels to Inverter: Connect the DC cables from the solar panels to the DC input ports on the 800W micro inverter. Ensure correct polarity (+ to + and - to -).
Connect Inverter to Grid: Connect the AC output cable from the inverter to the 10-meter connection cable. Then, plug the 10-meter cable into a standard electrical socket.
Verify Connection: Once plugged in, the inverter will begin converting DC power from the panels into AC power for your home grid.

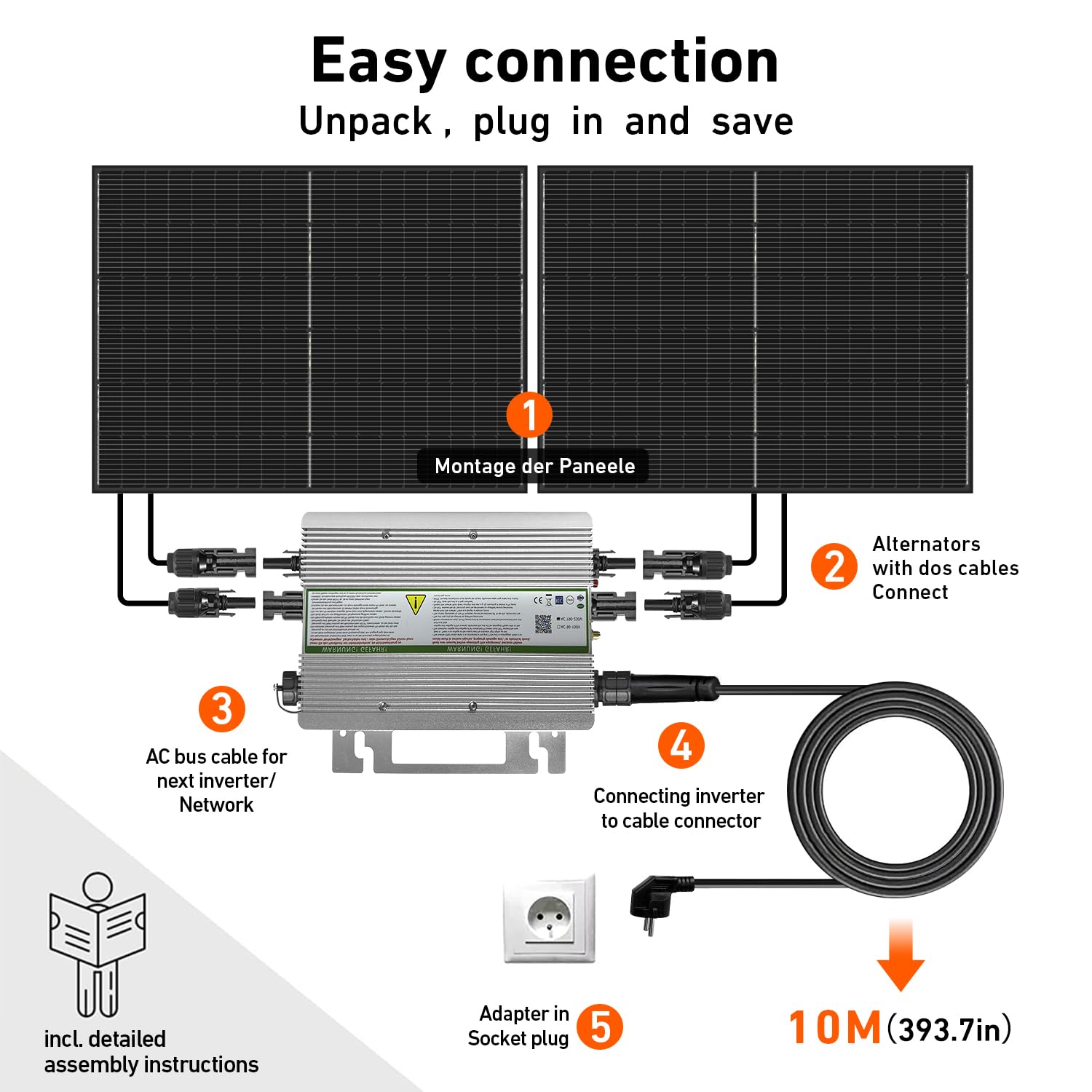

Step-by-step diagram for easy connection of solar panels to inverter and then to the grid via a socket.

Figure 4.1: Easy connection process for the solar kit.

Images demonstrating installing solar panels, plugging into a socket, and generating electricity for household appliances.

Figure 4.2: Visual guide to the Plug-and-Play installation and electricity generation.

Diagram showing dimensions of the solar panels and inverter when installed on a roof, indicating a balcony power plant setup.

Figure 4.3: Example dimensions for a balcony power plant setup.

Image showing a person setting up a solar panel, highlighting easy setup and compatibility with various roof types.

Figure 4.4: Easy setup and adaptability for different installations.

5. Operation

Once installed and connected, the DOKIO Solar Kit operates automatically. The solar panels convert sunlight into DC electricity, which is then fed into the micro inverter. The inverter converts this DC electricity into usable AC electricity, which is then fed into your home's electrical system, reducing your reliance on grid power and lowering your electricity bills.

The system is designed to generate power during daylight hours. The intelligent monitoring system (see Section 6) allows you to track its performance.

6. Intelligent Monitoring (APP/WIFI)

The DOKIO 800W Micro Inverter features integrated WIFI connectivity and a dedicated mobile application for intelligent data monitoring. This allows you to:

View real-time electricity generation.
Track your energy savings over time.
Monitor system performance and status from your smartphone or tablet.

Refer to the inverter's specific manual for detailed instructions on connecting to WIFI and using the mobile application.

Diagram showing intelligent WLAN data monitoring with a solar panel, a person using a smartphone app, and the inverter.

Figure 6.1: Intelligent WLAN data monitoring setup.

Figure 6.2: Example of WLAN data monitoring in a home setting.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your DOKIO Solar Kit:

Cleaning: Periodically clean the surface of the solar panels with water and a soft brush or cloth to remove dust, dirt, and debris. Avoid abrasive materials or harsh chemicals.
Inspection: Regularly inspect all cables and connections for any signs of wear, damage, or loose connections. Ensure the inverter is free from obstructions and has adequate ventilation.
Environmental Protection: The panels are designed with IP67 waterproof quality, ensuring protection against water ingress.

Solar panel being rained on, demonstrating advanced waterproof quality with IP67 rating.

Figure 7.1: IP67 waterproof rating for all-weather durability.

House with solar panels in foreground, highlighting IP67 waterproof and 2400P Pa high wind resistance.

Figure 7.2: Durability features including IP67 waterproofing and wind resistance.

8. Troubleshooting

If you encounter issues with your DOKIO Solar Kit, consider the following common problems and solutions:

Problem	Possible Cause	Solution
No power generation / Low output	Insufficient sunlight or shading on panels. Dirty solar panels. Loose or incorrect wiring connections. Inverter error or overheating.	Ensure panels are in direct sunlight and free from shadows. Clean panel surfaces as per maintenance instructions. Check all DC and AC connections for secure fit. Ensure inverter has adequate ventilation. If it overheats and shuts down (e.g., at 65°C), allow it to cool and ensure it's not in direct sunlight or an enclosed space.
Inverter indicator light is off	No DC input from panels. No AC power from grid. Inverter malfunction.	Check panel connections and ensure sufficient sunlight. Verify the AC plug is securely inserted into the socket and the socket has power. Contact customer support if the issue persists after checking connections and power.

9. Specifications

Attribute	Value
Product Model Number	2PC-DSP400M
Total Power Output	800W
Solar Panel Type	Monocrystalline (2 x 400W)
Inverter Type	Micro Inverter (800W)
Connectivity	APP/WIFI Monitoring
Cable Length	10m
Package Dimensions	175 x 115 x 5 cm; 24 kg
Waterproof Rating	IP67

10. Warranty and Support

DOKIO is committed to providing high-quality products and customer satisfaction. If you have any questions, concerns, or require technical assistance with your solar kit, please do not hesitate to contact us. We aim to respond to all inquiries within 24 hours and provide a satisfactory resolution.

For support, please refer to the contact information provided with your purchase or visit the official DOKIO website.
