Devoko Outdoor Storage Shed 8x6 FT Instruction Manual

1. Important Safety Information

• Always wear appropriate safety gear, including gloves, during assembly.
• Ensure the assembly area is clear of obstructions and children.
• Two adults are recommended for safe and efficient assembly.
• After assembly, place the plastic protective caps over all exposed screw tips to prevent injury.
• Do not overtighten screws, as this may strip the material.

2. Package Contents

The Devoko Outdoor Storage Shed is shipped in two separate boxes. Please ensure you have received both boxes before beginning assembly. Carefully unpack all components and verify against the parts list provided in your physical instruction manual.

Note: If you only receive one box initially, the second box is likely in transit. Please allow additional time for delivery or contact customer support if there are prolonged delays.

Image: The Devoko 8x6 FT Outdoor Storage Shed in Gray, showcasing its overall design and double doors.

3. Setup and Assembly

3.1 Site Preparation

• Select a flat, level surface for shed installation. A concrete slab or a constructed wood base is highly recommended to ensure stability and proper alignment of components.
• Ensure the ground is level before placing the shed's base frame.

3.2 Assembly Steps

1. Review Instructions: Carefully read the provided assembly video and instructions before starting. This will significantly improve efficiency.
2. Organize Parts: Remove all components from the boxes and lay them out. Group similar parts and hardware to streamline the assembly process.
3. Assemble Base Frame: Construct the bottom frame of the shed. It is crucial to ensure this frame is perfectly square by measuring diagonal corners to confirm equal distances. Secure the bottom frame to your prepared base (if applicable) to maintain squareness during subsequent steps.
4. Attach Panels: Begin attaching the wall panels according to the instructions. If screw holes do not align, re-evaluate the previous steps, as components may have been installed incorrectly.
5. Install Doors: Mount the double doors. The design allows for flexible closure of the left door.
6. Roof Assembly: Carefully attach the roof panels and frame. Pay close attention to corner alignment to ensure roof panels fit correctly.
7. Protective Film: Many panels come with a protective plastic film. This film can be difficult to remove. It is recommended to remove it as you assemble each panel or gradually over time.
8. Final Touches: Install all protective caps on exposed screw tips and corner protection caps.

Image: Detailed view of the screw protection cap, lockable metal latch, and corner protection cap, highlighting key safety and security features.

Image: Interior of the shed showing organized garden tools, demonstrating the spacious storage capacity.

4. Operating Instructions

4.1 Door Operation

The shed features double doors for easy access. The left door can be secured independently or closed along with the right door. Ensure both doors are properly aligned and closed to protect contents from weather and unauthorized access.

4.2 Locking Mechanism

The shed is equipped with a lockable metal latch. For enhanced security, it is recommended to use a padlock (not included) with the latch to prevent accidental opening or unauthorized entry.

4.3 Ventilation

Integrated vents promote air circulation within the shed, helping to reduce condensation and maintain a suitable environment for stored items.

5. Maintenance

5.1 General Care

• The shed is constructed from electro-galvanized steel with a paint treatment, offering anti-corrosion properties suitable for various climates. Regular cleaning with mild soap and water will help maintain its appearance and longevity.
• Avoid using abrasive cleaners or tools that could scratch the painted surface.
• The all-metal construction is designed to resist deformation from sun exposure and provides excellent moisture-proof performance.

5.2 Roof Maintenance

The roof features 3-beam reinforcement for strength against wind and snow. Its pitched design reduces stress areas, and a groove system helps prevent water accumulation. Periodically inspect the roof for any debris or blockages in the grooves to ensure proper drainage.

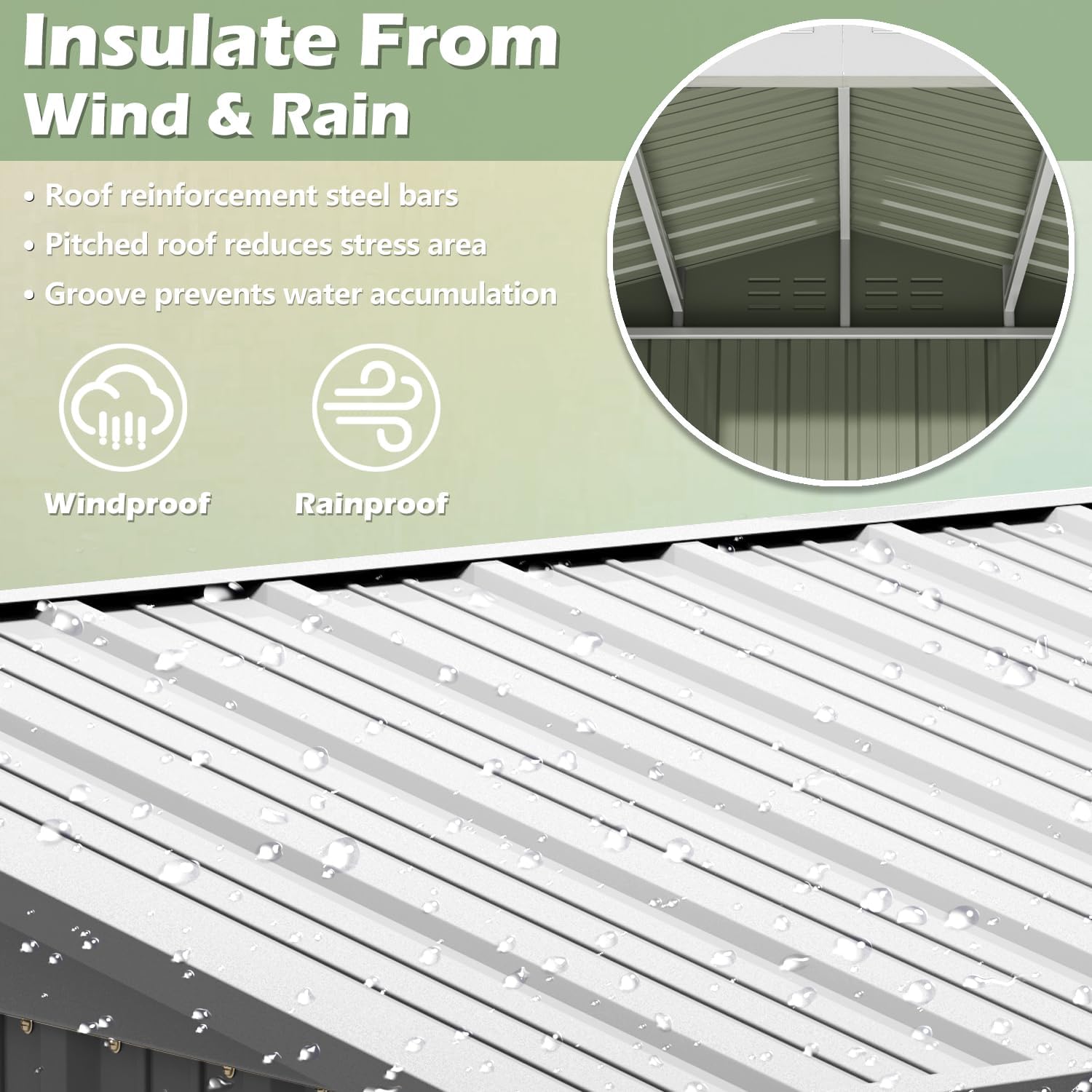

Image: Close-up of the shed's roof, illustrating the reinforcement steel bars and the pitched design for wind and rain resistance.

6. Troubleshooting

• Screw Holes Not Aligning: If you encounter issues with screw holes not lining up, it is likely that a previous step was assembled incorrectly. Disassemble the relevant section and re-check the instructions and component orientation.
• Stripped Screws: Avoid using excessive force or overtightening screws, especially with power tools, as this can strip the material. If a screw is stripped, it may need to be replaced or a slightly larger screw used with caution.
• Water Leaks: In rare cases, minor leaks may occur around roof panel screws. Applying a small dab of acrylic sealant to the exposed roof panel screws can help ensure a watertight seal.

7. Specifications

Image: Dimensional diagram of the Devoko storage shed, indicating width, depth, and height measurements.

8. Warranty and Support

8.1 Quality Assurance

Devoko is committed to providing quality products. This storage shed is designed for durability and functionality.

8.2 Returns and Customer Service

• The product is eligible for 30-day easy returns. Please refer to the retailer's return policy for details.
• For detailed tracking information, missing parts, or any other product-related questions, please contact Devoko customer support via Amazon message.
