Egretech Sonic 1200W Portable Power Station User Manual

Introduction

The Egretech Sonic 1200W Portable Power Station is a versatile and compact power solution designed for various applications, including outdoor activities, emergency backup, and home use. With a 999Wh capacity and 1200W AC output (2400W peak), it provides reliable power for a wide range of devices. This manual provides essential information for the safe and efficient operation of your power station.

Safety Information

Please read all safety instructions carefully before using the Egretech Sonic 1200W Portable Power Station. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not disassemble, repair, or modify the unit. Incorrect reassembly may cause fire or electric shock.
• Keep the unit away from water, moisture, and high temperatures. Do not expose it to direct sunlight for extended periods.
• Ensure proper ventilation during use. Do not block the ventilation openings.
• Use only original or certified charging cables and accessories.
• Keep out of reach of children and pets.
• Do not use the unit if it is damaged or has been dropped.
• Dispose of the product according to local regulations. Do not dispose of it with household waste.

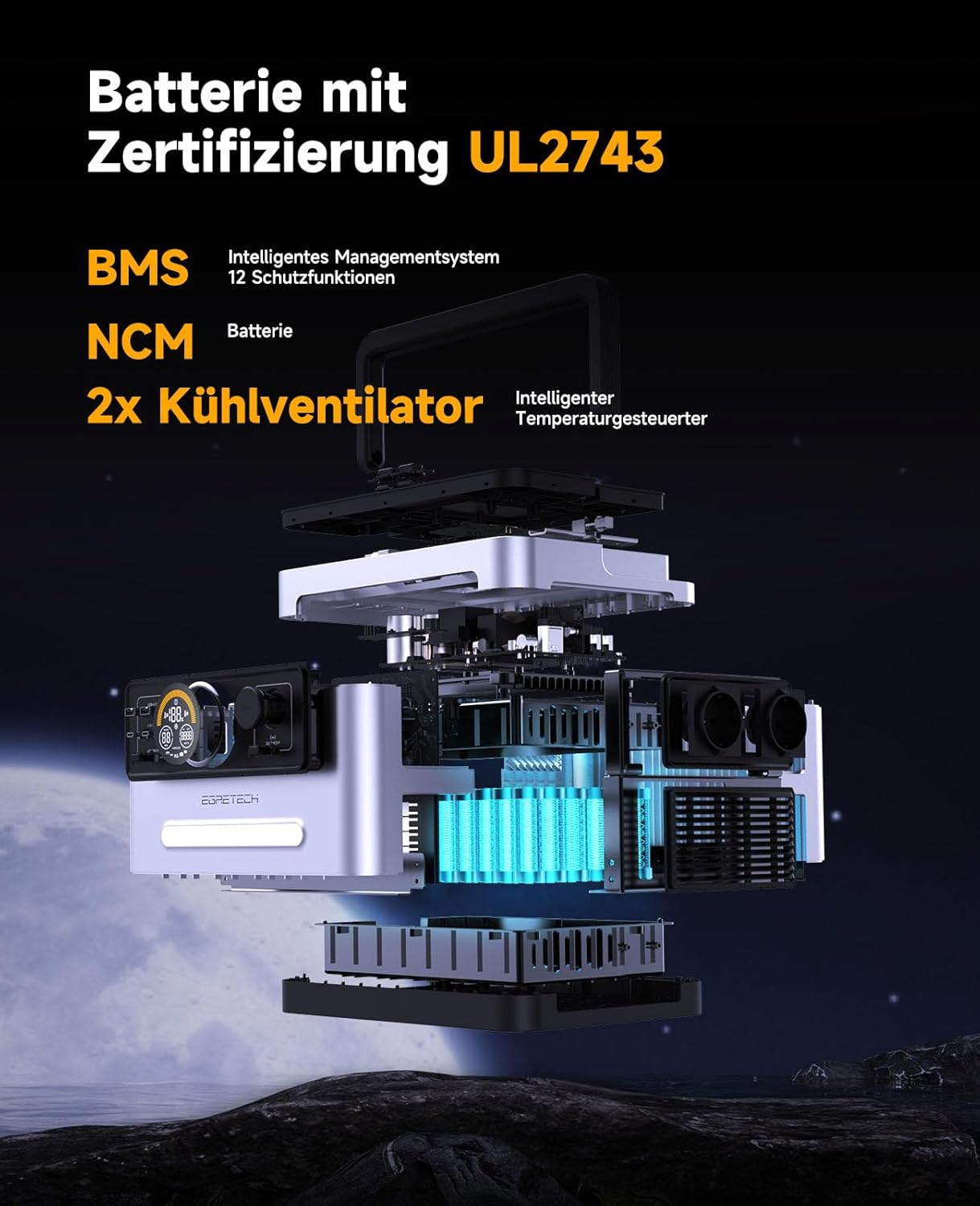

Figure 1: Internal Components and Safety Features. This image illustrates the internal structure of the Egretech Sonic 1200W, highlighting its UL2743 certified battery, Battery Management System (BMS) with 12 protection functions, NCM battery type, and two intelligent temperature-controlled cooling fans, all contributing to safe and reliable operation.

Package Contents

Please check the package contents upon unboxing:

• 1 x Egretech Sonic 1200W Portable Power Station
• 1 x User Manual
• 1 x AC Charging Cable
• 1 x Car Charging Cable

Product Overview

Familiarize yourself with the various ports and features of your Egretech Sonic 1200W Portable Power Station.

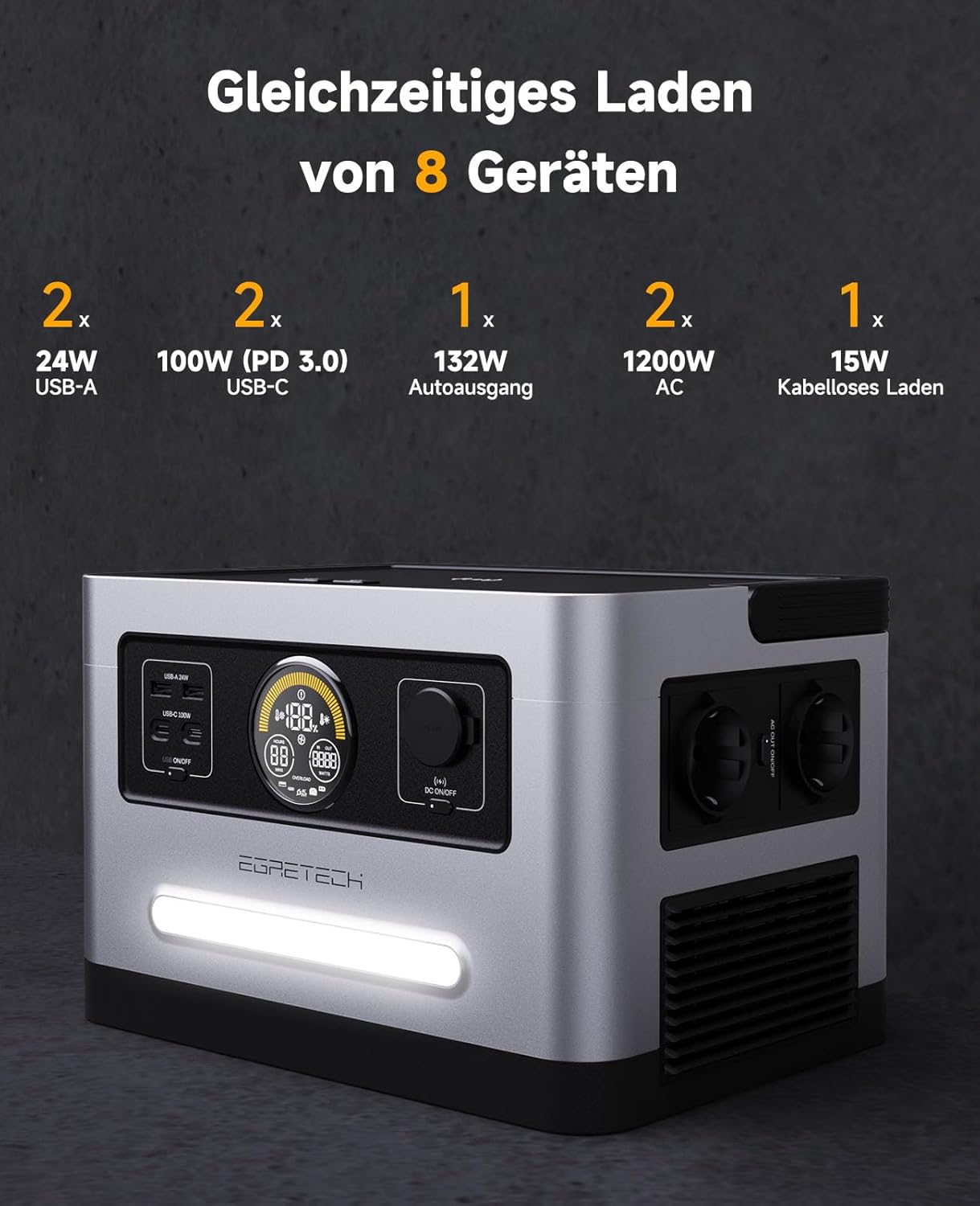

Figure 2: Front Panel and Output Ports. This image displays the front panel of the power station, featuring the LCD screen, power button, and various output ports including USB-A, USB-C, DC car output, AC outlets, and a wireless charging pad.

Output Ports:

• AC Output: 2 x 1200W Pure Sine Wave AC outlets (2400W Power Lifting)
• USB-A Output: 2 x 24W USB-A ports
• USB-C Output: 2 x 100W PD3.0 USB-C ports
• DC Car Output: 1 x 132W DC car port
• Wireless Charging: 1 x 15W Qi wireless charging pad

LCD Display:

The Egretech Sonic 1200W features a unique dashboard-style smart digital screen. This colorful LCD provides a visual representation of the power station's status, including battery level, input/output power, and error indicators.

Setup

Charging the Power Station:

Before first use, fully charge your power station. The Egretech Sonic 1200W supports three charging methods:

1. AC Wall Charging (G-Flow Technology)

Connect the provided AC charging cable to the power station's AC input port and then to a standard wall outlet. The G-Flow bidirectional AC input inverter allows for ultra-fast charging.

Figure 3: AC Fast Charging. This image demonstrates the power station being charged via an AC wall outlet, highlighting its 1000W AC input capability and the ability to reach 80% charge in approximately 1 hour using G-Flow Technology.

Charging Time: Approximately 1.67 hours for a full charge (0-100%).

2. Solar Panel Charging

Connect compatible solar panels (max. 200W) to the power station's solar input port (XT60). The dynamic MPPT algorithm enhances charging speed by 22%.

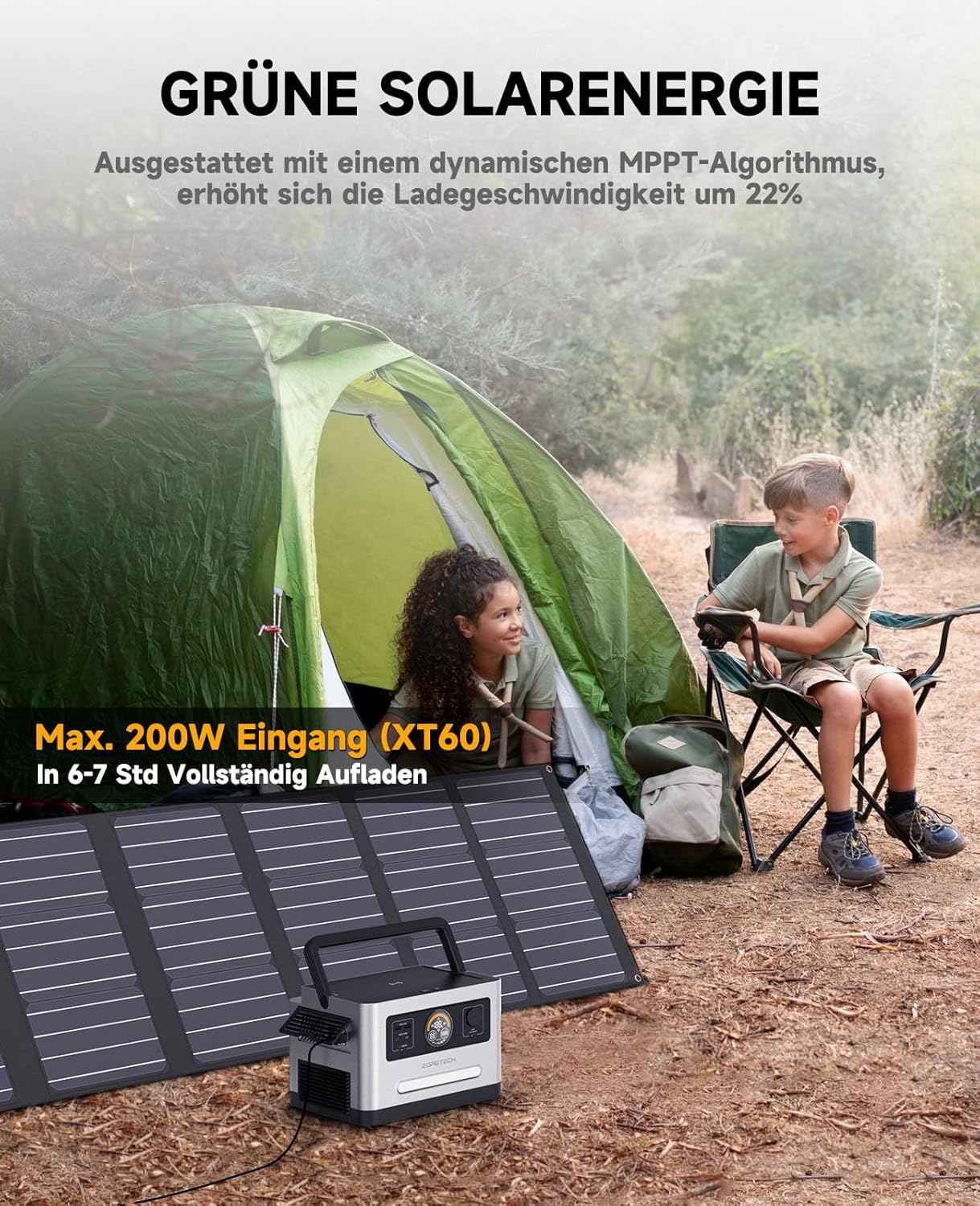

Figure 4: Solar Charging. This image shows the Egretech Sonic 1200W connected to a solar panel, illustrating its capability to be charged using green solar energy with a maximum 200W input via XT60, achieving a full charge in 6-7 hours.

Charging Time: Approximately 6-7 hours for a full charge (with 200W solar input under optimal sunlight).

3. Car Charging

Connect the provided car charging cable to the power station's input port and then to your vehicle's cigarette lighter socket.

Charging Time: Approximately 9 hours for a full charge.

Operating

Turning On/Off:

Press and hold the main power button for a few seconds to turn the unit on or off. The LCD display will illuminate.

Using Output Ports:

Once the unit is on, press the respective button for the desired output type (AC, DC, USB) to activate it. The corresponding icon on the LCD display will light up.

• AC Outputs: Plug your AC devices into the 1200W AC outlets. The G-Wave intelligent inverter technology allows the power station to safely power devices with a maximum surge power of 2400W, protecting against voltage spikes and surges.
• USB Outputs: Connect your USB-A or USB-C devices to the respective ports for fast charging.
• DC Car Output: Use this port for 12V DC devices.
• Wireless Charging: Place your Qi-compatible device on the wireless charging pad.

The Egretech Sonic 1200W allows for simultaneous charging of up to 8 devices, with a total maximum output power of 1570W, making it a versatile power solution.

Special Features:

Integrated Lighting:

The power station includes multiple lighting modes for various situations, providing illumination during power outages or outdoor activities.

Figure 5: Lighting Modes and Car Emergency Power. This image illustrates the power station's utility in providing light with 5 different lighting modes for camping scenarios and its capability to supply additional power for car emergencies, such as jump-starting.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your power station.

• Storage: Store the unit in a cool, dry, and well-ventilated area, away from direct sunlight and corrosive materials.
• Charging Frequency: If not in regular use, fully charge the power station every 3-6 months to maintain battery health.
• Cleaning: Use a dry, soft cloth to clean the exterior of the unit. Do not use abrasive cleaners or solvents.
• Battery Care: Avoid completely draining the battery frequently, as this can reduce its lifespan.

Troubleshooting

If you encounter issues with your Egretech Sonic 1200W, refer to the following common troubleshooting steps:

• Unit Not Turning On: Ensure the battery is charged. If the battery is low, connect it to a power source.
• No Output from Ports: Verify that the specific output port (AC, DC, USB) is activated by pressing its respective button. Check the LCD display for any error messages.
• Slow Charging: For solar charging, ensure panels are in direct sunlight and free from obstructions. For AC charging, verify the cable connection.
• Overload Protection: If an overload occurs, the unit may automatically shut down. Disconnect the overloaded device and restart the power station.
• Unusual Noise/Smell: Immediately turn off the unit and disconnect all devices. Contact customer support.

For persistent issues or technical support, please contact Egretech customer service.

Specifications

Warranty and Support

For warranty information and technical support, please refer to the warranty card included in your package or visit the official Egretech website. Keep your purchase receipt as proof of purchase for any warranty claims.

If you require assistance, please contact Egretech customer service with your product model number and a detailed description of the issue.
