My Mutaomay MTPW01 pressure washer will not start after sitting for a few weeks, even with starter fluid. I have determined the spark plug is only sparking intermittently; should I replace the ignition coil, the spark plug, or both, and can you provide these parts?

Based on the troubleshooting guide for the Mutaomay MTPW01, a fouled spark plug is a primary cause when the engine does not start. Since you have already identified intermittent sparking, follow these steps:Replace the Spark Plug First: This is the most common and least expensive failure point, especially if the unit has been sitting. A spark plug can appear to spark outside the engine but fail under the compression of the combustion chamber.Check the Ignition Coil: If a new spark plug does not resolve the issue, the ignition coil or the spark plug wire/cap may be faulty. Ensure the gap between the coil and the flywheel is correct and that there is no corrosion on the contacts.Fuel Quality: Since the unit sat for a few weeks, ensure the gasoline is fresh (87+ octane). Stale fuel can lead to starting difficulties even if the spark is present.Regarding Parts: Manuals+ provides instructional content and documentation but does not sell or ship replacement parts directly. To obtain a new ignition coil or spark plug, you should:Check the engine manual (often provided separately for the 209CC engine) for specific part numbers.Contact Mutaomay Customer Support via the official website or the contact information provided with your Amazon purchase.Since the unit was "brand new," check if your issue is covered under the manufacturer's warranty before attempting to replace the ignition coil yourself.Note: Always ensure the engine switch is in the "ON" position and the oil level is sufficient, as low oil sensors can also prevent consistent ignition.

Why does my Mutaomay MTPW01 engine die after 3 seconds even with starting fluid, and where is the oil valve mentioned in the manual?

Based on the Mutaomay MTPW01 manual and standard small engine operation, here is a guide to troubleshooting your issue:The "Oil Valve": There is no traditional "oil valve" that needs to be opened for operation. The manual only refers to an oil fill cap (where you add SAE 10W-30 oil) and a dipstick. If you are referring to a fuel-related valve, ensure the fuel valve/petcock (usually a small lever under the choke) is turned to the "ON" or "OPEN" position to allow gas to flow from the tank to the carburetor.Engine Dies After 3 Seconds: Since the engine fires with starting fluid but dies immediately, it is likely not receiving gasoline. Check the following:Fuel Valve: Ensure the fuel lever is fully open.Choke Position: For a cold start, the choke (damper) must be closed. Once it fires, you must gradually move it to the open position. If left closed too long, it will stall; if opened too soon, it may die.Low Oil Sensor: Most 209CC engines have a low-oil shutdown sensor. Even if the oil looks "full," if the unit is not on a perfectly level surface, the sensor may trigger and kill the ignition.Stale Fuel/Carburetor: If the unit has sat with gas in it, the carburetor jets may be clogged, preventing fuel from reaching the combustion chamber.Pressure Release: You mentioned releasing pressure from the hose; ensure you keep the spray gun trigger squeezed while pulling the starter rope to prevent back-pressure from making the engine harder to start or stay running.If the fuel valve is open and the oil is confirmed level but the unit still only runs on starting fluid, the carburetor likely requires cleaning or the unit may be defective as you suspected.

On the Mutaomay MTPW01 3500PSI pressure washer, which lever is the choke and which one is the throttle?

On the 209CC engine used by the Mutaomay MTPW01, the levers are typically positioned on or near the carburetor/air filter assembly. While the manual does not explicitly state the physical color or left/right orientation, standard small engine configurations for this model type usually follow this pattern:Choke Lever (Damper): This is usually the top lever or the one closest to the air filter. For a cold start, you should close the choke (move it to the "Choke" or "Start" position). Once the engine starts, you gradually open it (move it to the "Run" position).Throttle Lever: This lever controls the engine speed and is often located below the choke lever. The manual instructs to open the throttle before starting.To identify them without stickers:The Choke lever is directly connected to a butterfly valve at the air intake of the carburetor. If you remove the air filter cover, you can see which lever moves the metal flap that blocks the air.The Throttle lever is connected to a linkage that goes toward the governor and the internal part of the carburetor to control fuel flow/RPM.For a visual confirmation, you can refer to the instructional video on the Mutaomay MTPW01 manual page, which demonstrates the starting sequence and lever positions.

Mutaomay MTPW01

Mutaomay 3500PSI Gas Pressure Washer Instruction Manual

Model: MTPW01

Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Mutaomay 3500PSI Gas Powered High Pressure Washer, Model MTPW01. Please read this manual thoroughly before operating the unit and keep it for future reference.

Important Safety Information

Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and sturdy footwear.
Never point the spray gun at people, pets, or electrical outlets.
Ensure all connections are secure before starting the unit to prevent leaks.
Operate the pressure washer in a well-ventilated area to avoid carbon monoxide buildup.
Do not operate the unit if any parts are damaged or missing.
Keep children and pets away from the operating area.
Use only recommended fuels and oils as specified in this manual.

Setup Instructions

The following steps outline the initial setup of your pressure washer. For a visual guide, refer to the instructional video in the Operating Instructions section.

Add Engine Oil:
Locate the oil fill cap. Using a funnel, carefully pour SAE 10W-30 motor oil into the engine until it reaches the appropriate level on the dipstick. Do not overfill. Securely replace the oil fill cap. (Refer to the instructional video for demonstration.)
Add Gasoline:
Open the fuel tank cap. Pour 87+ octane gasoline into the fuel tank. Do not use E85 or other alternative fuels. Securely replace the fuel tank cap. (Refer to the instructional video for demonstration.)
Connect Spray Gun:
Attach the high-pressure hose to the spray gun and the pump outlet. Ensure all connections are tight to prevent leaks. (Refer to the instructional video for demonstration.)
Connect Water Supply:
Connect a garden hose to the water inlet on the pressure washer. Important: Ensure the gasket is properly seated in the water pipe connection to prevent leaks. Turn on the water supply fully. (Refer to the instructional video for demonstration.)

Operating Instructions

Starting the Engine:
- Turn the engine switch to the "ON" position.
- Open the throttle.
- Close the damper (choke) for cold starts.
- Pull the starter rope slowly until resistance is felt, then pull hard to start the engine.
- Once the engine starts, gradually open the damper (choke).
Your browser does not support the video tag.
Video: This instructional video demonstrates the complete setup process, including adding engine oil and gasoline, connecting the spray gun and water pipe, and the steps for starting the engine. It also shows nozzle selection and applying soap solution.
Selecting Nozzles:
Your pressure washer comes with 4 quick-connect nozzles (0°, 25°, 40°, and soap) for various tasks. Choose the appropriate nozzle for your cleaning needs.
- 0° (Red): For concentrated, high-impact cleaning on stubborn stains. Use with caution.
- 25° (Green): For general cleaning of most surfaces.
- 40° (White): For gentle cleaning of delicate surfaces like vehicles or windows.
- Soap (Black): For applying detergent.
Image: Close-up of the four quick-connect nozzles, color-coded for different spray patterns.
Applying Soap Solution:
Fill the onboard soap tank with appropriate pressure washer detergent. Connect the black soap nozzle. The unit will automatically draw soap when the soap nozzle is attached and the spray gun is activated. (Refer to the instructional video for demonstration.)
Cleaning Surfaces:
Hold the spray gun firmly and maintain a safe distance from the surface being cleaned. Move the spray gun in a sweeping motion to ensure even cleaning. The 25-foot high-pressure hose provides extended reach for various applications.

Image: A person using the pressure washer to clean mud off a vehicle tire, demonstrating its power.

Image: A person cleaning a patio surface with the pressure washer, showing the cleaning effect.
Shutting Down:
When finished, turn off the engine switch. Turn off the water supply. Squeeze the spray gun trigger to release any remaining pressure in the system. (Refer to the instructional video for demonstration.)

Maintenance

Regular maintenance ensures the longevity and optimal performance of your Mutaomay pressure washer.

Engine Oil: Check engine oil level before each use. Change oil according to the engine manufacturer's recommendations (refer to the engine manual if provided separately).
Fuel: Use fresh gasoline (87+ octane) for optimal performance. Store the unit with a full tank of stabilized fuel or drain the fuel system for long-term storage.
Water Connections: Always ensure gaskets are in place and in good condition when connecting water hoses to prevent leaks.
Nozzles: Clean nozzles regularly to prevent blockages and maintain consistent spray patterns.
Pump: The durable axial cam pump is designed for reliable, long-lasting performance with minimal maintenance. Consult a qualified technician for any pump-related issues.
Storage: Store the pressure washer in a dry, protected area, especially during freezing temperatures to prevent damage to the pump.

Troubleshooting

Problem	Possible Cause	Solution
Engine does not start	No fuel, low oil, engine switch off, choke incorrect, fouled spark plug.	Check fuel and oil levels, ensure switch is ON, adjust choke, inspect/replace spark plug.
Low pressure	Insufficient water supply, clogged nozzle, air in pump, worn pump seals.	Ensure full water supply, clean nozzle, purge air from pump, contact support for pump issues.
Water leaks	Loose connections, missing/damaged gaskets, cracked hose.	Tighten connections, replace gaskets, inspect/replace hose.
Engine runs rough	Stale fuel, dirty air filter, carburetor issues.	Drain old fuel and add fresh, clean/replace air filter, consult technician for carburetor.

Specifications

Feature	Detail
Brand	Mutaomay
Model Number	MTPW01
Power Source	Gas Powered
Maximum Pressure	3500 PSI
Maximum Flow Rate	2.3 GPM
Engine Type	209CC 4-stroke OHV Engine
Hose Length	25 Feet
Wand Length	16 Inches
Nozzles Included	4 Quick-Connect (0°, 25°, 40°, Soap)
Item Weight	55 Pounds
Product Dimensions	23.5"L x 21.5"W x 39.5"H
Fuel Tank Volume	0.2 Gallons
Soap Tank Volume	0.8 Gallons (3L)

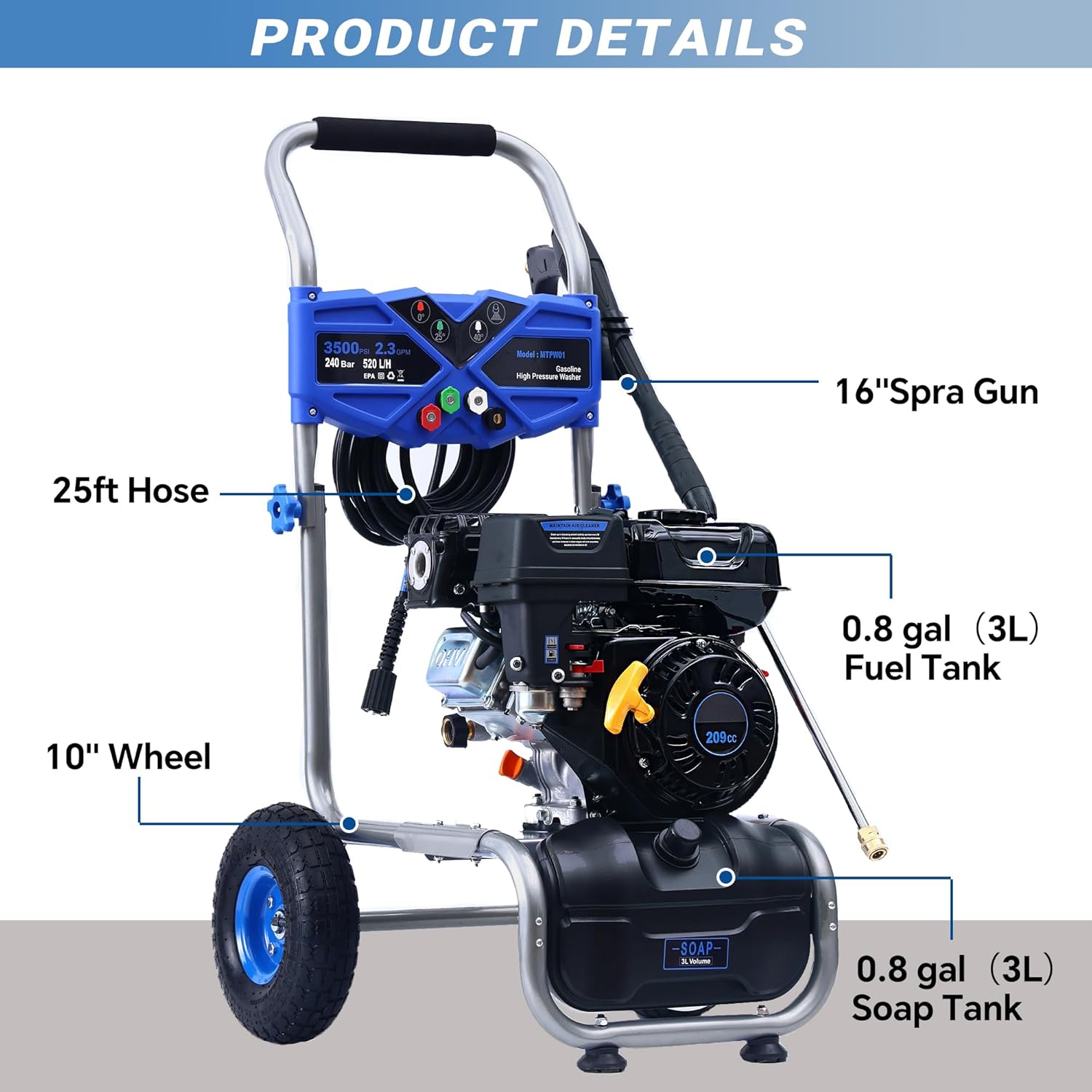

Detailed view of the Mutaomay pressure washer with labels for components like spray gun, hose, fuel tank, soap tank, and wheels.

Image: Product details highlighting key components and their capacities.

Diagram showing the dimensions of the Mutaomay pressure washer: 23 5/8 inches length, 21 5/8 inches width, and 39 3/8 inches height.

Image: Dimensional drawing of the pressure washer.

Warranty and Support

Mutaomay is committed to providing reliable support and service. If you have any questions, require assistance with your product, or need to inquire about warranty information, please contact our customer support team. We are here to help ensure a smooth experience with your pressure washer.

For professional assistance, please refer to the contact information provided with your purchase or visit the official Mutaomay website.
