Ambition Soldier Wireless Tattoo Machine Kit User Manual

1. Safety Information

Read all safety instructions before using the Ambition Soldier Wireless Tattoo Machine Kit. Improper use can lead to injury or damage to the equipment. This device is intended for professional use only. Always maintain a sterile environment and follow all local health and safety regulations for tattooing procedures.

Sterilization: Ensure all needles and contact parts are properly sterilized before each use.
Power Source: Use only the provided charging cable and power adapter.
Battery Care: Do not expose batteries to extreme temperatures or puncture them.
Maintenance: Regular cleaning and maintenance are crucial for optimal performance and hygiene.
Professional Use: This equipment is designed for trained and certified tattoo artists.

2. Package Contents

Verify that all items listed below are present in your Ambition Soldier Tattoo Kit:

Image: Overview of the Ambition Soldier Tattoo Kit contents, including the wireless tattoo machine, extra battery, RCA adapter, silicone RCA cord, power cable, stroke cams, cartridge needles, gloves, pen bags, pen holder, bandages, disposable grips, zipper box, and large zipper case.

1x Wireless Tattoo Pen Machine (4.0mm stroke cam installed)
1x Extra Battery (2400mAh)
1x RCA Adapter
1x Silicone RCA Cord
1x Power Cable
1x Extra 3.5mm Stroke Cam
1x Extra 4.5mm Stroke Cam
120x Tattoo Cartridge Needles (Mixed Sizes: 20x1203RL, 20x1205RL, 20x1207RL, 20x1207RM, 20x1209RM, 20x1211RM)
2x Pairs of Gloves
20x Pen Bags
1x Tattoo Pen Holder
3x Bandages
4x Disposable Grips
1x Zipper Box
1x Large Zipper Case

3. Product Overview

The Ambition Soldier Wireless Tattoo Machine is crafted from space aluminum alloy, featuring a custom coreless motor for efficient and stable performance. Its modular design allows for easy disassembly and maintenance.

Image: Diagram illustrating the product parameters and controls of the Ambition Soldier Wireless Tattoo Machine, including power display, timer, voltage increase/reduction keys, power switch, and output voltage.

Key Features:

Material: Space aluminum alloy, CNC carved.
Motor: Custom Coreless Motor (10V - 9000RPM), suitable for lining, shading, color packing, and lettering.
Stroke Length: 4.0mm (interchangeable with 3.5mm and 4.5mm cams).
Battery: 2400mAh (built-in 3x 800mAh lithium batteries), providing over 10 hours of operation at 8V.
Charging Time: 2-3 hours for a full charge.
Output Voltage: 5V-12V, adjustable in 0.1V increments.
Display: LED screen shows output voltage, battery usage, and working time.

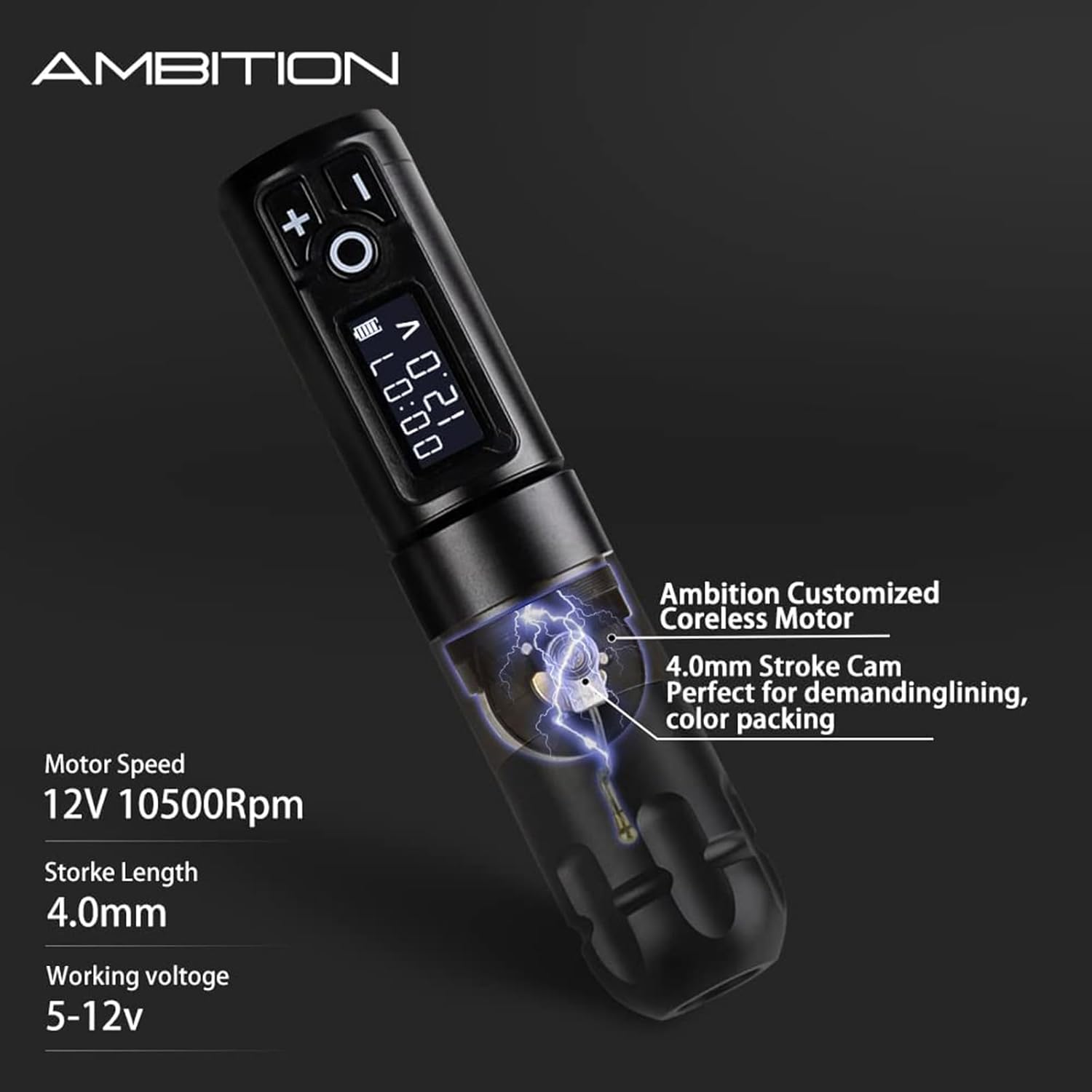

Image: Close-up view of the Ambition Soldier Wireless Tattoo Machine highlighting the customized coreless motor and 4.0mm stroke cam, indicating its suitability for demanding lining and color packing.

4. Setup

4.1 Charging the Battery

Before initial use, fully charge the battery. Connect the power cable to the machine and a suitable USB power adapter. The LED display will indicate charging status and battery level. A full charge typically takes 2-3 hours.

4.2 Attaching a Cartridge Needle

Ensure the machine is powered off. Insert the desired cartridge needle into the machine's grip by pushing it firmly until it clicks into place. Rotate the grip to adjust needle depth as needed.

Sterilized Ambition Glory Tattoo Cartridge Needle

Image: A single Ambition Glory tattoo cartridge needle, individually packaged and labeled as Ethylene Oxide (EO) Gas Sterilized, emphasizing its single-use and sterile nature.

Ambition Tattoo Needle Stabilization System

Image: A close-up of a tattoo needle cartridge held by a gloved hand, illustrating the unique stabilization system of Ambition ultra-sharp needles for durability and strength.

4.3 Changing Stroke Cam (Optional)

The machine comes with a 4.0mm stroke cam installed. To change it:

Power off the machine.
Carefully unscrew the motor housing from the main body.
Remove the existing stroke cam.
Install the desired 3.5mm or 4.5mm stroke cam.
Reassemble the machine, ensuring all parts are securely fastened.

5. Operating Instructions

5.1 Power ON/OFF

To power ON or OFF the machine, long press the "O" key for 3 seconds.

5.2 Adjusting Output Voltage

Press the "+" or "-" keys to adjust the output voltage. Each press changes the voltage by 0.1V. The voltage range is 5V-12V.

5.3 Output Pause/Resume

During operation, short press the "O" key to pause the output. Short press it again to resume the output at the previously set working voltage.

5.4 Monitoring Display

The LED display shows:

Output Voltage Range: Current voltage setting.
Battery Usage: Remaining battery power (4 divisions for full power).
Working Time: Accurate to minutes. This timer resets when the machine is powered off and pauses when output is paused.

5.5 RCA Adapter Use

If you prefer to use a traditional power supply, attach the RCA adapter to the machine and connect it with the silicone RCA cord to your external power supply.

Video: Demonstration of the Ambition Soldier Wireless Tattoo Machine in use, showcasing its performance during a tattoo session. This video highlights the machine's operational capabilities and smooth application.

Video: A short clip demonstrating the Ambition Soldier Tattoo Machine in a professional tattoo studio setting, illustrating its use by a tattoo artist.

6. Maintenance

6.1 Cleaning

After each use, clean the machine thoroughly. The machine is detachable for easier cleaning. Use appropriate disinfectants for tattoo equipment. Do not immerse the entire machine in liquid.

6.2 Storage

Store the machine and accessories in the provided zipper box or large zipper case in a dry, clean, and cool environment, away from direct sunlight and extreme temperatures.

6.3 Battery Care

To prolong battery life, avoid fully discharging the battery frequently. Charge it regularly, even if not in use for extended periods.

7. Troubleshooting

Problem	Possible Cause	Solution
Machine does not turn on.	Low battery or power button not pressed correctly.	Charge the battery. Long press the "O" key for 3 seconds.
Machine stops during operation.	Battery depleted or temporary pause activated.	Check battery level and recharge if necessary. Short press "O" key to resume.
Voltage adjustment not working.	Keys not responding or internal issue.	Ensure keys are pressed firmly. If issue persists, contact support.
Needle not moving correctly.	Improperly seated cartridge or damaged needle.	Re-seat the cartridge. Replace with a new needle if damaged.

8. Specifications

Model: Ambition Soldier
Material: Space Aluminum Alloy
Needle Stroke: 4.0mm (interchangeable 3.5mm, 4.5mm)
Motor: Custom Coreless Motor
Motor Speed: 10V - 9000RPM
Battery Capacity: 2400mAh (3x 800mAh lithium batteries)
Charging Time: 2-3 hours
Operation Time: >10 hours (at 8V)
Output Fixed Current: 2A
Working Voltage: 3.7V
Output Voltage: 5V-12V (0.1V adjustment increments)
Length: 148mm
Weight: 210g

9. Warranty and Support

Ambition Tattoo Equipment provides a warranty for manufacturing defects. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact Ambition customer service through their official channels.

Contact Information: Refer to the packaging or official Ambition website for the most current support details.
