1. Introduction
Thank you for choosing the WORKPRO 18-in-1 Multi-tool Pliers. This versatile tool is designed for a wide range of tasks, from outdoor adventures to household repairs. Crafted from durable stainless steel, it offers reliability and convenience in a compact form. Please read this manual carefully to understand its features, proper operation, and maintenance procedures.
Image 1: The WORKPRO 18-in-1 Multi-tool Pliers, showcasing its various components and included carrying pouch.
2. Product Overview
The WORKPRO 18-in-1 Multi-tool Pliers integrates 18 essential functions into a single, compact device. Each tool is designed for efficiency and durability.
2.1. Included Tools:
- Needle-nose Pliers
- Regular Pliers
- Soft Wire Cutter
- Hard Wire Cutter
- Scissors
- Saw
- Phillips Screwdriver
- Wire Stripper
- Can Opener
- Small Flathead Screwdriver
- File
- Rope Cutter
- Serrated Knife
- Knife
- Flathead Screwdriver
- Belt Clip
- Locking Mechanism
- Protective Pouch
Image 2: A comprehensive diagram illustrating all 18 functions of the multi-tool.
3. Setup and Portability
The multi-tool is designed for easy carrying and quick access. It comes with a protective pouch that can be attached to your belt.
3.1. Attaching the Pouch:
- Fold the multi-tool into its compact form.
- Insert the folded multi-tool into the provided protective pouch.
- Secure the pouch flap.
- The pouch features a loop on the back, allowing it to be conveniently attached to a belt or backpack strap for easy transport.
Image 3: The multi-tool and its protective pouch, demonstrating how it can be carried on a belt or backpack.
4. Operating Instructions
To use any of the integrated tools, carefully unfold the desired component from the main body. Always ensure the tool is fully extended and the safety lock is engaged before applying pressure.
4.1. Pliers and Wire Cutters:
To access the pliers, unfold the two main handles. The pliers include needle-nose tips, regular gripping surfaces, and both soft and hard wire cutters. Use the appropriate section for the task at hand.
Image 4: Demonstrations of the pliers and wire cutter functions.
4.2. Knife, Saw, and File:
Carefully unfold the knife, serrated knife, saw, or file from the handles. These tools are designed for cutting, sawing, and shaping various materials. Always ensure the tool is locked in place before use.
Image 5: Examples of the knife and saw in action, along with the bottle opener.
4.3. Screwdrivers and Can Opener:
The multi-tool includes Phillips and flathead screwdrivers, as well as a can opener. Select the appropriate tool and unfold it for use. The can opener is suitable for opening standard cans and bottles.
5. Safety Information
Your safety is paramount. Always handle the multi-tool with care and follow these guidelines:
- Sharp Edges: The knife, serrated knife, and saw blades are extremely sharp. Exercise extreme caution when deploying, using, and folding these tools.
- Safety Lock: The multi-tool is equipped with a locking mechanism to prevent accidental closure during use. Always ensure the blade or tool is fully extended and the liner lock is securely engaged before applying pressure. Failure to do so may result in injury.
- Proper Use: Use each tool only for its intended purpose. Do not force tools or use them as pry bars unless specifically designed for such tasks.
- Children: Keep the multi-tool out of reach of children.
- Cleaning: After use, especially in dirty or wet conditions, clean the tool thoroughly to prevent rust and maintain functionality.
- Scissor Limitations: The scissor function is not suitable for cutting thick materials such as thick tissue paper, thick cardboard, or metal fittings. Using it on such materials may reduce its cutting effectiveness and damage the scissors.
Image 6: Illustration of the safety lock feature, ensuring tools remain open during use.
6. Maintenance
To ensure the longevity and optimal performance of your WORKPRO Multi-tool Pliers, follow these maintenance tips:
- Cleaning: After each use, especially when exposed to dirt, moisture, or corrosive substances, clean the tool with a damp cloth. For stubborn grime, use a small brush.
- Drying: Thoroughly dry the tool after cleaning to prevent rust, even though it is rust-resistant.
- Lubrication: Periodically apply a small amount of light machine oil to the pivot points and moving parts to ensure smooth operation.
- Sharpening: The knife and serrated knife blades may require sharpening over time. Use appropriate sharpening tools and techniques.
- Storage: Store the multi-tool in its protective pouch in a dry environment when not in use.
7. Troubleshooting
If you encounter any issues with your multi-tool, consider the following:
- Stiff Tools: If tools are stiff to open or close, apply a small amount of lubricant to the pivot points.
- Tools Not Locking: Ensure the tool is fully extended until you hear or feel the lock engage. If the lock still doesn't engage, check for any debris obstructing the mechanism.
- Reduced Cutting Performance: Clean blades and ensure they are sharp. If the scissors are not cutting effectively, ensure you are not attempting to cut materials beyond their capacity (e.g., thick cardboard or metal).
8. Specifications
| Feature | Detail |
|---|---|
| Brand | WORKPRO |
| Model Number | W000330A |
| Material | Stainless Steel |
| Number of Functions | 18 |
| Folded Dimensions | Approx. 100mm (Length) |
| Unfolded Dimensions | Approx. 145mm (Length) |
| Weight | Approx. 275g |
| Color | Blue |
| Batteries Required | No |

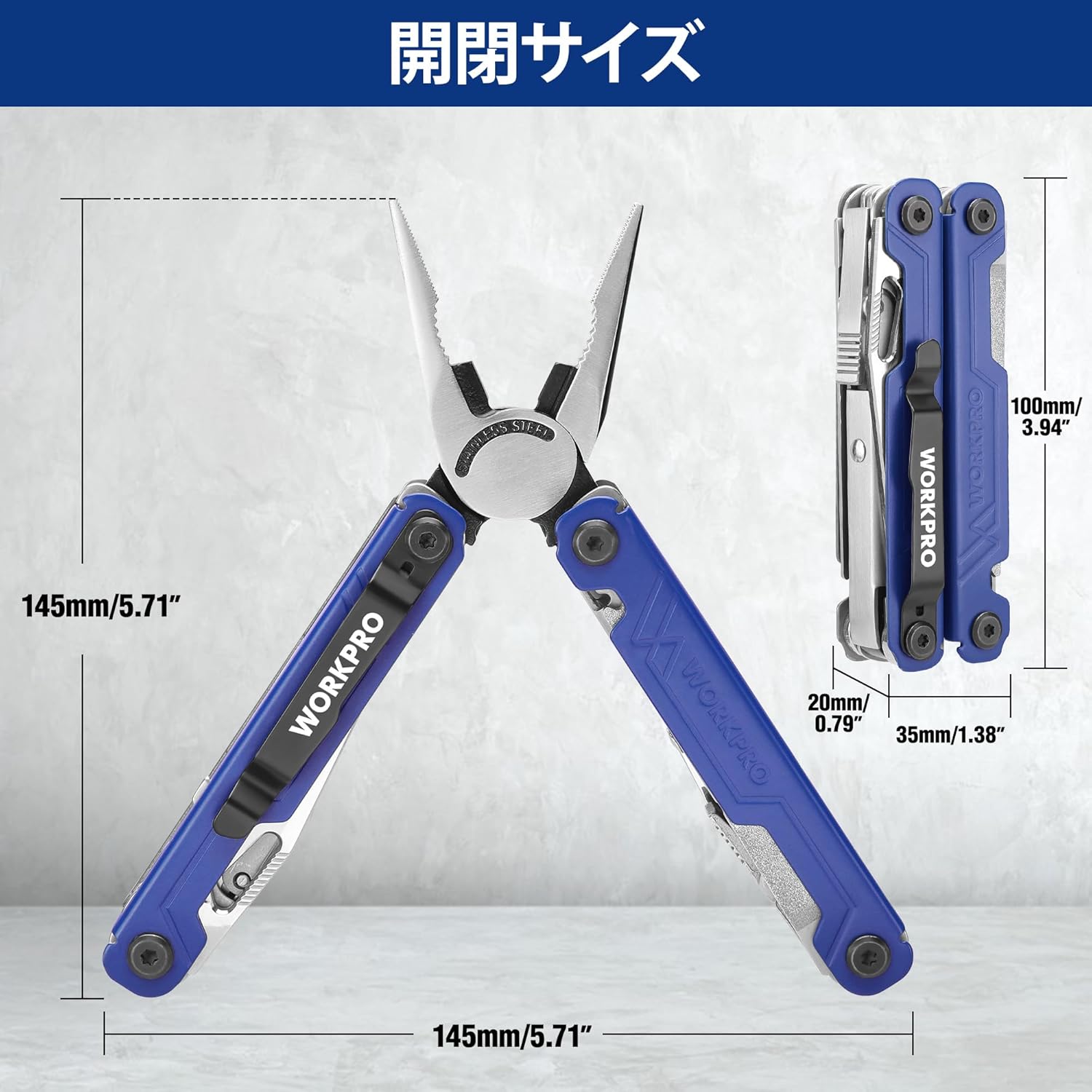

Image 7: Dimensions of the multi-tool in both folded and unfolded states.
9. Warranty and Support
For warranty information or customer support, please refer to the product packaging or contact WORKPRO customer service directly. Keep your purchase receipt as proof of purchase.
