Joy Pebble 1200W Oil Filled Radiator Heater Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation of your Joy Pebble 1200W Oil Filled Radiator Heater. Please read all instructions carefully before use and retain this manual for future reference.

Important Safety Instructions

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following:

• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
• Do not use outdoors.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to off, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• This heater includes a tip-over switch and overheat protection for enhanced safety.

Package Contents

Upon opening the package, ensure all components are present and undamaged:

• Oil Filled Radiator Heater Unit
• Caster Wheels (4)
• U-shaped Bolt (for caster wheel attachment)
• Wing Nuts (4)
• Cord Holders (2)
• Screws (2) for cord holders
• Instruction Manual

Setup and Assembly

Follow these steps to assemble your Joy Pebble Oil Filled Radiator Heater:

1. Prepare the Unit: Carefully unbox the heater. Place the unit on a soft, flat surface to avoid scratching.
2. Attach Caster Wheels:

   Turn the heater upside down. Locate the mounting holes for the caster wheels on the bottom of the unit. Insert the U-shaped bolt through the designated holes on one side of the heater's base. Attach a caster wheel assembly to each end of the U-shaped bolt and secure with wing nuts. Repeat this process for the other side of the heater's base with the remaining caster wheels and wing nuts.



   Image: The bottom of the heater showing the attached caster wheels. The wheels allow for easy movement of the unit.

3. Attach Cord Holders:

   Locate the small holes on the side of the heater's control panel. Attach the two cord holders using the provided screws and a Phillips head screwdriver. These holders are designed for convenient cord storage when the heater is not in use.

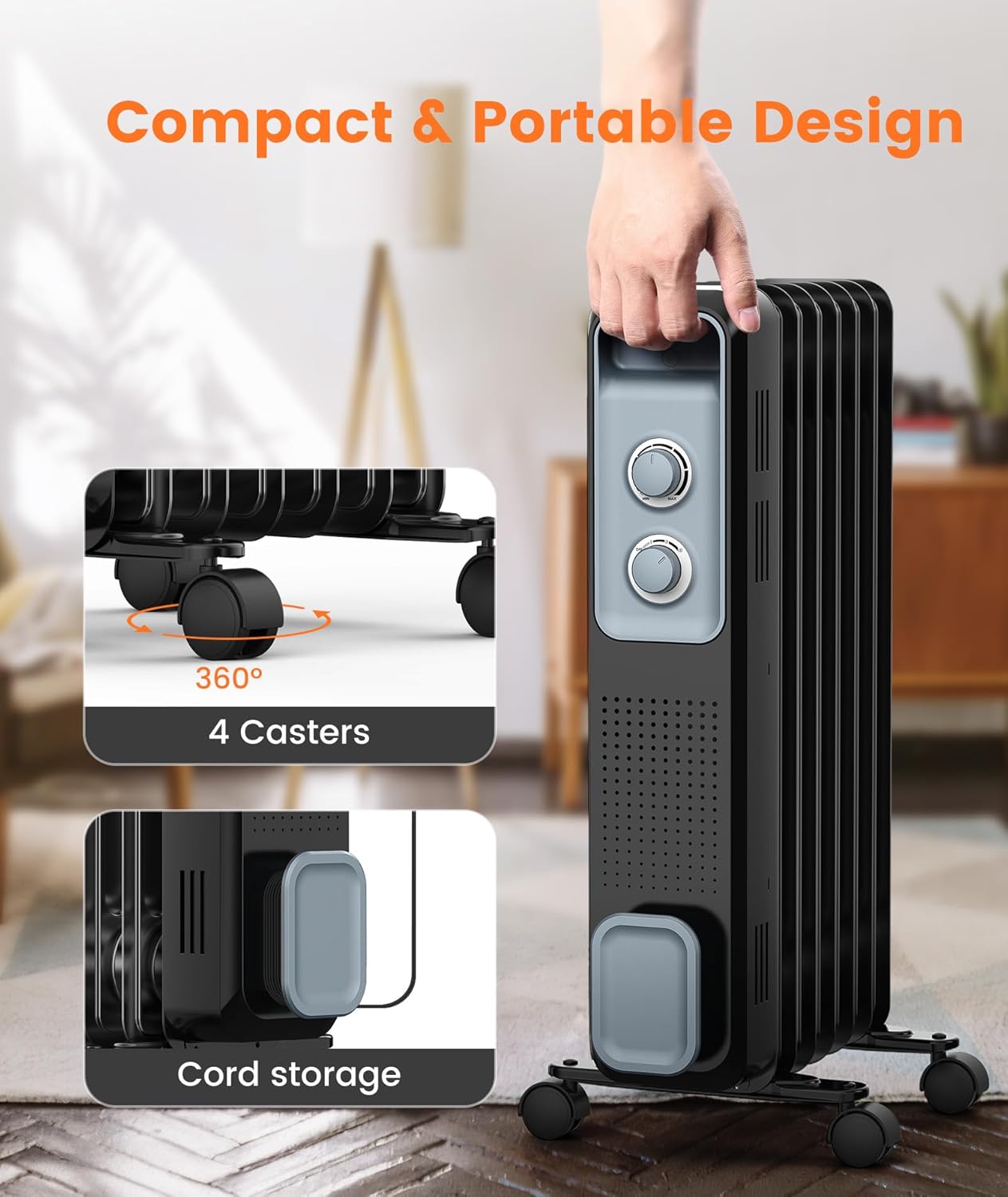

   Image: The side of the heater with the power cord wrapped around the integrated cord holder for tidy storage.

4. Position the Heater: Once assembled, carefully turn the heater upright. Place it on a stable, level surface, ensuring it is at least 3 feet (0.9 meters) away from any walls, furniture, or flammable materials.

Operating Instructions

Your Joy Pebble Oil Filled Radiator Heater features simple controls for ease of use.

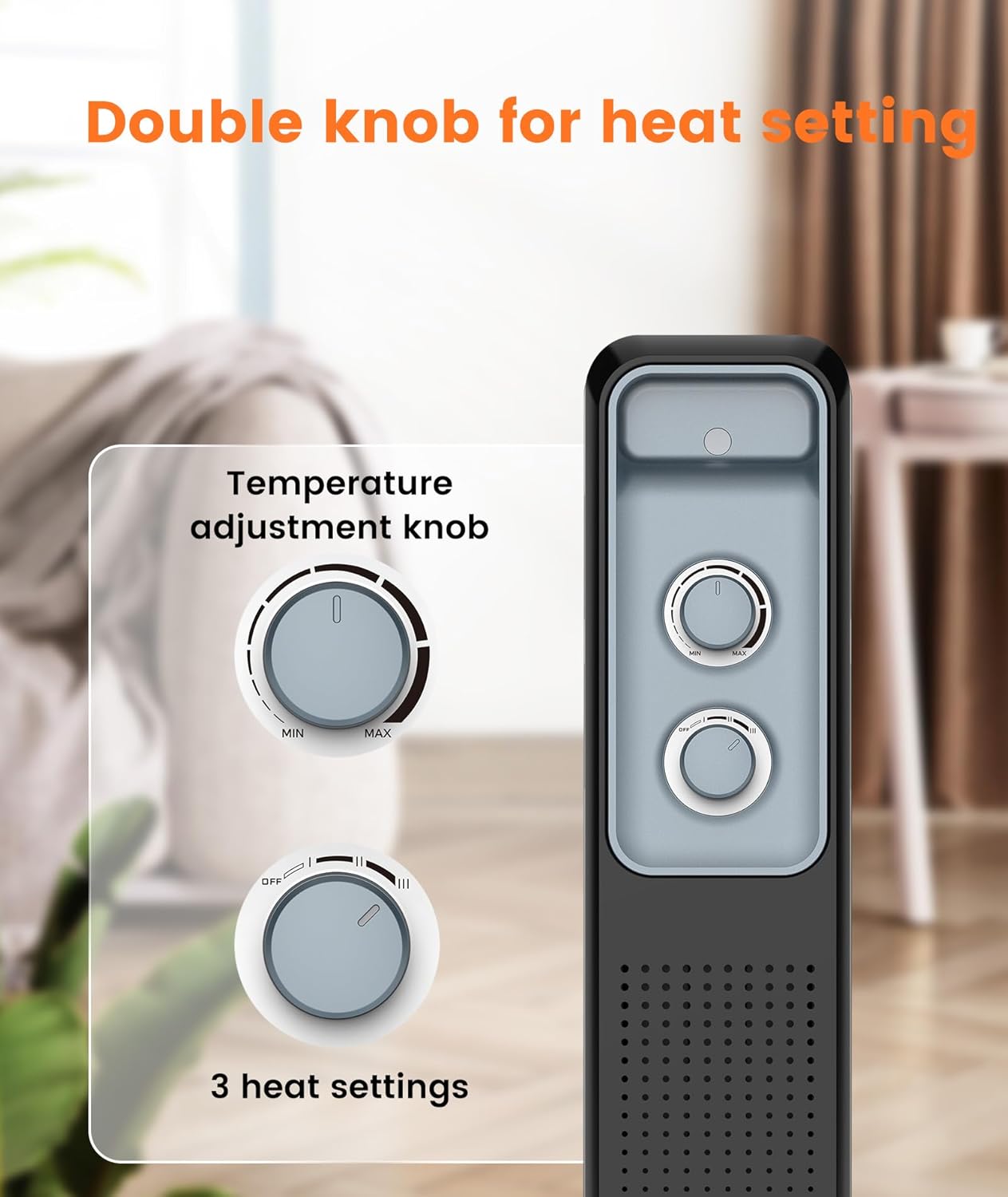

Image: The control panel with two rotary knobs. The top knob controls temperature, and the bottom knob selects power settings.

1. Power Connection: Ensure the heater is plugged directly into a 120V AC wall outlet. Do not use extension cords or power strips. A red indicator light will illuminate when the unit is plugged in and receiving power.
2. Power Settings: Use the lower rotary knob to select one of the three power settings:
   • I (Low): 500W
   • II (Medium): 700W
   • III (High): 1200W

   Select the desired power level based on the room size and heating needs. Higher wattage provides faster and more intense heating.

3. Temperature Control (Thermostat): Use the upper rotary knob to adjust the desired room temperature.
   • Turn the knob clockwise towards "MAX" for a higher temperature setting.
   • Turn the knob counter-clockwise towards "MIN" for a lower temperature setting.

   The heater will cycle on and off to maintain the set temperature. For continuous heating, set the thermostat to "MAX".
4. Initial Use: During the first few hours of operation, a slight odor may be noticeable. This is normal and will dissipate quickly. Ensure adequate ventilation during initial use.
5. Quiet Operation: This oil-filled radiator heater operates silently, making it suitable for bedrooms, offices, and other quiet environments.

Maintenance

Regular maintenance ensures optimal performance and longevity of your heater.

• Cleaning: Always unplug the heater and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
• Storage: When not in use, store the heater in a cool, dry place. Use the integrated cord holders to neatly wrap the power cord.
• Oil: The heater contains permanently sealed oil and does not require refilling or replacement.

Troubleshooting

Specifications

• Brand: Joy Pebble
• Model Number: BLL-JP-U630182-FBA
• Color: BLACK
• Power Output: 1200W (Max)
• Heat Settings: 3 (500W, 700W, 1200W)
• Voltage: 120 Volts
• Amperage: 10 Amps
• Special Features: Energy Efficient, Noiseless, Tip-over Protection, Overheat Protection, Portable with 4 Wheels and Handle
• Form Factor: Pedestal
• Indoor/Outdoor Usage: Indoor
• Product Dimensions: 23.62"D x 9.45"W x 13.78"H
• Item Weight: 14.34 pounds
• Heating Coverage: Up to 150 sq.ft
• Certifications: UL and ETL certified

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Joy Pebble website. Keep your proof of purchase for any warranty claims.
