Product Overview
The EPAuto Air Intake Filter is designed as a replacement and enhancement for Tesla Model 3 vehicles manufactured between 2017 and 2020. This external air inlet vent filter provides an additional layer of filtration, preventing dust, dirt, leaves, and other small debris from entering the vehicle's air intake system. Its primary function is to protect the internal cabin air filter and extend its operational life by pre-filtering the incoming air.
The filter is constructed with pleated paper material, ensuring efficient particle capture while maintaining a high ventilation rate. It is specifically engineered for easy, tool-free installation in the frunk air inlet vent of compatible Tesla Model 3 vehicles.

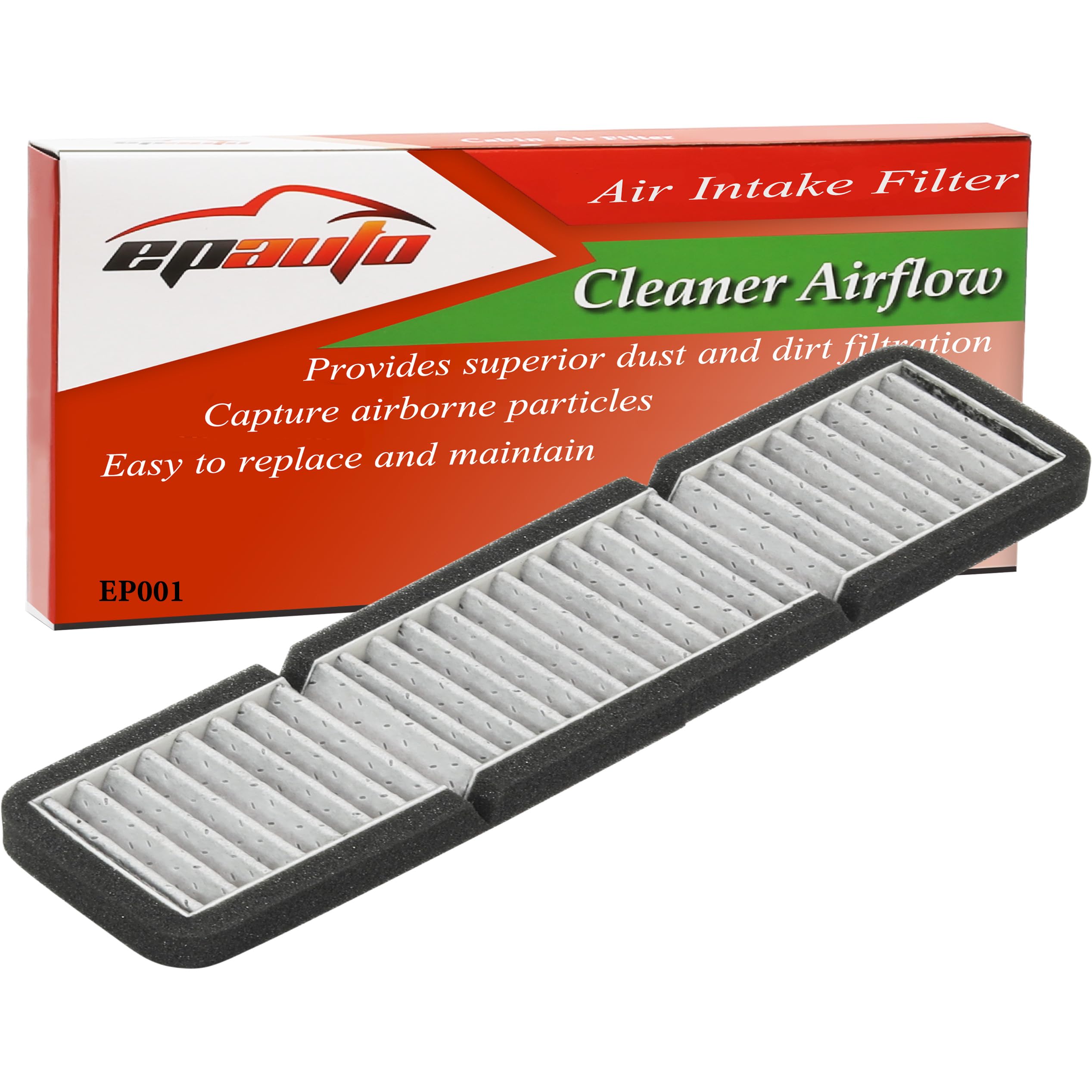

Image: Top view of the EPAuto Air Intake Filter, highlighting its pleated design for effective filtration.
Installation Instructions
This section provides step-by-step instructions for installing the EPAuto Air Intake Filter. No special tools are required for this installation.
- Open the Frunk: Ensure your Tesla Model 3's frunk (front trunk) is open and securely propped.
- Locate the Air Intake Grille Cover: Identify the air intake grille cover, typically located behind the frunk, near the windshield wiper fluid inlet. This cover usually snaps into place.
- Remove the Grille Cover: Carefully lift and unsnap the air intake grille cover. It is designed to be removed without tools. Apply gentle, even pressure to release the clips.
- Insert the Air Intake Filter: The EPAuto Air Intake Filter is designed to fit into the air intake vent opening. Align the filter with the opening. The filter has a flexible foam edge that allows for a snug fit. Gently press the filter into place, ensuring it sits securely within the vent. The filter is typically segmented to fit into the multiple air intake tunnels.
- Reattach the Grille Cover: Once the filter is in place, re-align the air intake grille cover and press it down firmly until it snaps back into its original position. Ensure all clips are engaged to secure the cover.
- Verify Installation: Close the frunk and ensure the filter and cover are properly seated and do not obstruct any moving parts.
Image: Bottom view of the EPAuto Air Intake Filter, illustrating the foam edges that aid in a secure, tool-free installation.
For visual guidance, search for "Tesla Model 3 external air filter installation" on video platforms. While specific videos may vary, the general process for accessing the frunk air intake is consistent.
Operation
The EPAuto Air Intake Filter operates passively as part of your vehicle's air circulation system. Once installed, it continuously filters incoming air before it reaches the internal cabin air filter. No user interaction is required for its operation.
The filter is designed to provide a good ventilation rate, up to 90%, ensuring adequate airflow to the cabin while effectively capturing airborne particles. It acts as a pre-filter, reducing the load on your vehicle's primary cabin air filter.
Maintenance and Replacement
Regular maintenance of the EPAuto Air Intake Filter is crucial to ensure optimal performance and continued protection of your vehicle's cabin air system.
- Inspection: Periodically inspect the filter for accumulation of debris, leaves, or excessive dirt. The frequency of inspection may vary depending on your driving environment (e.g., dusty roads, areas with heavy foliage).
- Replacement Schedule: It is recommended to replace the EPAuto Air Intake Filter every 15,000 miles or more frequently if operating in harsh conditions. This ensures consistent filtration efficiency and prevents airflow restriction.
- Replacement Procedure: To replace the filter, follow the installation steps in reverse:
- Open the frunk.
- Carefully remove the air intake grille cover.
- Remove the old, soiled air intake filter.
- Dispose of the old filter responsibly.
- Insert a new EPAuto Air Intake Filter (Model FG-001-1) as per the installation instructions.
- Reattach the grille cover.
- Companion Cabin Air Filter: This external filter extends the life of your internal cabin air filter (e.g., EPAuto CP681 or Tesla part number 1107681-00-A). Refer to your vehicle's owner's manual for the recommended replacement schedule of the internal cabin air filter.
Image: Angled view of the EPAuto Air Intake Filter, showing its overall construction and dimensions.
Troubleshooting
This section addresses common issues that may arise with the EPAuto Air Intake Filter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Airflow to Cabin | Filter is clogged with excessive debris. | Inspect the filter. If heavily soiled, replace it. Ensure the filter is correctly seated and not obstructing the air intake. |
| Filter Does Not Fit Properly | Incorrect model year or improper alignment during installation. | Verify your Tesla Model 3 is from the 2017-2020 model years. Re-read installation instructions and ensure the filter is aligned correctly with the air intake vent. The foam edges should allow for a snug fit. |
| Unusual Odors in Cabin | While this filter helps, it is primarily for particulate matter. Odors may indicate an issue with the internal cabin air filter or other vehicle systems. | Check and potentially replace your internal cabin air filter (e.g., EPAuto CP681). Consult your vehicle's service manual or a qualified technician if odors persist. |
Product Specifications
- Brand: EPAuto
- Model Number: FG-001-1
- Compatible Vehicles: Tesla Model 3 (2017-2020)
- Material: Pleated Paper
- Product Dimensions (L x W x Th): 11.81 inches x 2.95 inches x 0.83 inches
- Item Weight: Approximately 0.2 Pounds
- UPC: 840323201919
- Recommended Replacement Interval: Every 15,000 miles
- Companion Cabin Air Filter (Internal): CP681 (1107681-00-A)
Image: EPAuto Air Intake Filter with key dimensions (length, width, thickness) indicated for reference.
Warranty and Support
For information regarding product warranty, returns, or technical support, please contact EPAuto customer service directly. Details can typically be found on the product packaging or the official EPAuto website.
When contacting support, please have your product model number (FG-001-1) and purchase information readily available.
