Bmax B7 Power Mini PC User Manual

1. Introduction

Welcome to the user manual for your Bmax B7 Power Mini PC. This document provides essential information for setting up, operating, maintaining, and troubleshooting your device. Please read this manual thoroughly before using your Mini PC to ensure optimal performance and longevity.

2. What's in the Box

Upon opening your Bmax B7 Power Mini PC package, please verify that all components are present and in good condition. The standard package contents include:

• Bmax B7 Power Mini PC Unit
• Power Adapter
• HDMI Cable
• VESA Mount Bracket and Screws
• User Manual (this document)

For a visual guide on unboxing, please refer to the video below:

Image showing the Bmax B7 Power Mini PC unit along with its included accessories, such as the power adapter and cables.

3. Product Overview

The Bmax B7 Power Mini PC is a compact yet powerful desktop computer designed for various applications, from office work and streaming to light gaming and multi-display setups. It features advanced components and efficient design for reliable performance.

3.1 Key Features

• Processor: Intel 11th Generation i7-11390H Processor (up to 5.0GHz, 4-Core, 8-Threads)
• Graphics: Integrated Intel Iris Xe Graphics (supports 4K 60Hz)
• Memory: 32GB DDR4 RAM (expandable up to 64GB)
• Storage: 1TB NVMe SSD (ultrafast for quick boot and app loads)
• Wireless Connectivity: Hyper-fast WiFi 6 (802.11a/b/g/n/ac/ax) and Bluetooth 5.2
• Wired Connectivity: Gigabit Ethernet
• Display Output: Supports triple 4K displays via HDMI and Type-C
• Cooling: Smart fan and dual copper heat pipes with innovative dual mode (Performance/Balance)
• Operating System: Pre-installed Windows 11
• Recovery: Unique Smart Recovery Environment for easy system reset

An overview image highlighting the key features of the Bmax B7 Power Mini PC, including processor, graphics, memory, storage, and connectivity options.

3.2 Ports and Connectivity

The Bmax B7 Power Mini PC offers a comprehensive set of ports for versatile connectivity:

• 2 x HDMI Ports
• 1 x Type-C Port (full features)
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x Gigabit Ethernet Port
• 1 x 3.5mm Headset Jack
• 1 x Clear CMOS Button
• 1 x Power Button

Detailed view of the front and rear ports of the Bmax B7 Power Mini PC, with labels indicating each connection type.

3.3 Performance Overview

Equipped with the Intel Core i7-11390H processor, 32GB DDR4 RAM, and a 1TB NVMe SSD, this mini PC delivers robust performance for demanding tasks. The Intel Iris Xe Graphics ensures smooth 4K video output and supports up to three displays simultaneously.

An image detailing the specifications and benchmark results of the Intel Core i7-11390H processor.

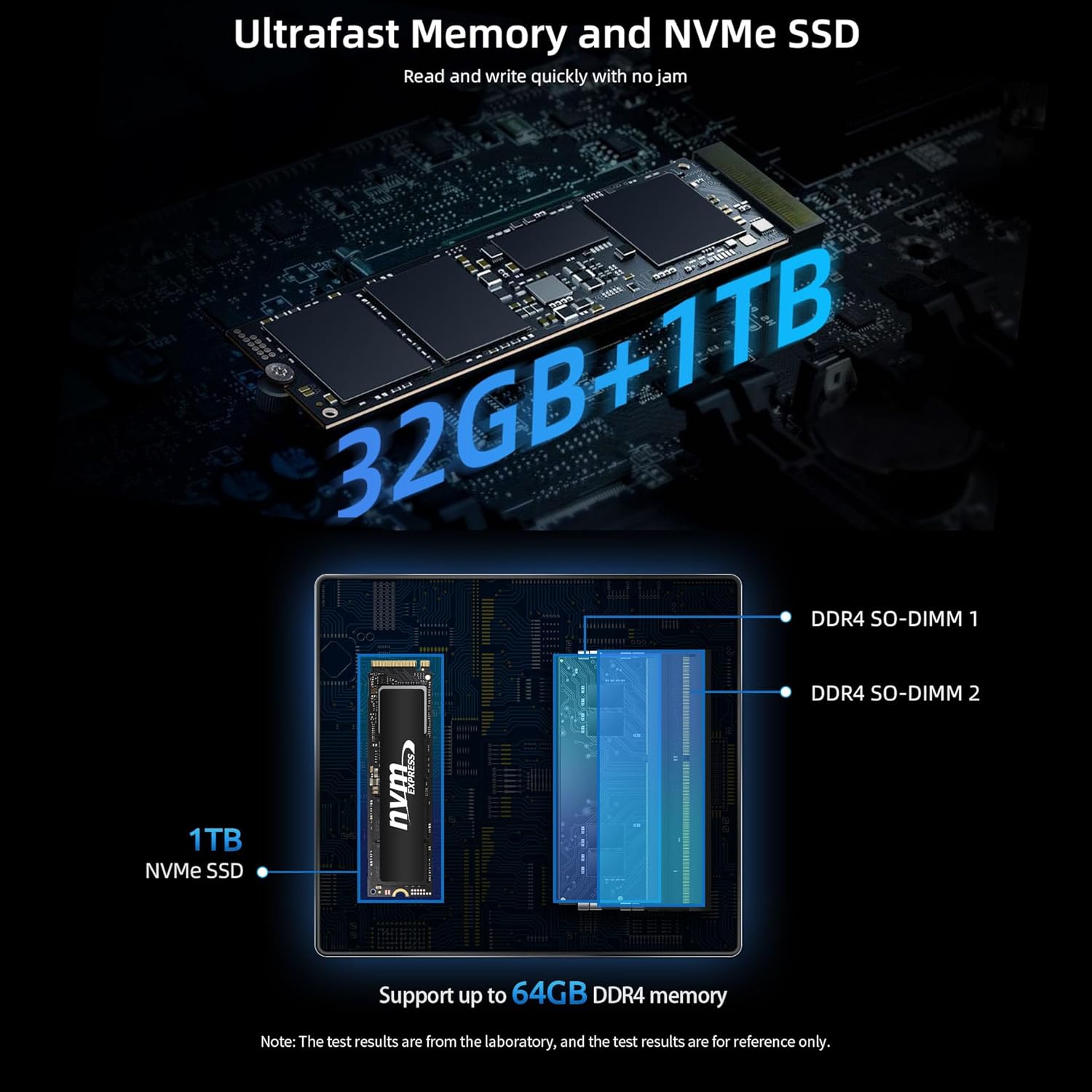

Visual representation of the ultrafast 32GB DDR4 memory and 1TB NVMe SSD, highlighting their components and upgrade potential.

An infographic explaining the benefits of Wi-Fi 6, including faster connections, lower latency, and improved coverage compared to Wi-Fi 5.

3.4 Smart Cooling System

The Bmax B7 Power Mini PC incorporates a smart fan and dual copper heat pipes for efficient heat dissipation. It features a unique dual mode operation:

• Performance Mode: High-speed fans for maximum performance during intensive tasks.
• Balance Mode: Quieter operation with lower fan speeds, ideal for general use and quiet environments.

Diagram illustrating the smart fan and dual copper heat pipes, and explaining the Performance and Balance cooling modes.

3.5 Smart Recovery Environment

The Mini PC includes a Smart Recovery Environment, allowing you to quickly reset your Windows operating system to factory settings. This feature is invaluable for resolving OS issues, slow performance, or preparing the device for a new user.

Screenshot of the Bmax Smart Recovery Environment interface, showing options for Factory Reset and Exit.

4. Setup Guide

Follow these steps to set up your Bmax B7 Power Mini PC:

1. Connect to a Display: Use the provided HDMI cable to connect your Mini PC to a monitor, TV, or projector. You can connect up to three displays using the HDMI and Type-C ports.
2. Connect Peripherals: Plug in your keyboard, mouse, and any other USB devices into the available USB ports.
3. Connect to Network: For wired internet, connect an Ethernet cable to the Gigabit Ethernet port. For wireless internet, the device will prompt you to connect to a Wi-Fi network during the initial Windows setup.
4. Connect Power: Plug the power adapter into the DC-in port on the Mini PC, then plug the adapter into a power outlet.
5. Power On: Press the power button on the front of the Mini PC. The power indicator light will illuminate.
6. Initial Windows Setup: Follow the on-screen instructions to complete the Windows 11 setup, including language, region, network connection, and user account creation.

Image demonstrating flexible placement options for the Mini PC, either on a desk or mounted behind a monitor using the VESA bracket.

5. Operating Instructions

Your Bmax B7 Power Mini PC runs on Windows 11, providing a familiar user experience. Here are some basic operating tips:

• Power On/Off: Press the power button to turn the PC on. To turn off, click the Start button in Windows, then select Power > Shut down.
• Restart: From the Windows Start menu, select Power > Restart.
• Sleep Mode: From the Windows Start menu, select Power > Sleep.
• Connecting to Wi-Fi: After initial setup, you can manage Wi-Fi connections via the Network & Internet settings in Windows.
• Connecting Bluetooth Devices: Pair Bluetooth devices through the Bluetooth & devices settings in Windows.
• Using Multiple Displays: Connect additional monitors to the available HDMI and Type-C ports. Windows will automatically detect them, and you can configure display settings (extend, duplicate, etc.) via Display settings.
• Accessing Smart Recovery: If your system encounters issues, you can access the Smart Recovery Environment to perform a factory reset. Refer to Section 3.5 for more details.

A user working with a triple monitor setup, showcasing the multi-display capabilities of the Bmax B7 Power Mini PC for enhanced productivity.

6. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your Mini PC:

• Keep it Clean: Regularly wipe the exterior with a soft, dry cloth. Use compressed air to clear dust from vents to maintain proper airflow and cooling.
• Software Updates: Keep your Windows operating system and drivers updated to the latest versions for security and performance improvements.
• Antivirus Protection: Install and regularly update antivirus software to protect against malware and viruses.
• Data Backup: Periodically back up important data to an external drive or cloud storage to prevent data loss.
• Avoid Obstructions: Ensure the Mini PC's vents are not blocked to allow for proper heat dissipation.
• Safe Shutdown: Always shut down the PC properly through the operating system rather than simply unplugging it.

7. Troubleshooting

If you encounter issues with your Bmax B7 Power Mini PC, try the following troubleshooting steps:

If these steps do not resolve your issue, please contact Bmax customer support.

8. Specifications

9. Warranty and Support

Bmax products are designed for reliability and performance. For information regarding your product's warranty, please refer to the warranty card included in your package or visit the official Bmax website. For technical support, troubleshooting assistance, or service inquiries, please contact Bmax customer support through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.

You can visit the official Bmax store for more information and support: Bmax Official Store
