1. Introduction and Overview
This manual provides essential information for the safe and efficient operation and maintenance of your A-iPower SUA2301iD 2300-Watt Dual Fuel Portable Inverter Generator. Please read it thoroughly before use.
The A-iPower SUA2301iD is a versatile and portable inverter generator designed for various applications, including backup home use, tailgating, and camping. It features an 80cc OHV 4-cycle engine, offering 2,300 starting watts and 1,800 running watts on gasoline, and 2,000 starting watts and 1,600 running watts on propane. Its inverter technology ensures clean power output (less than 3% THD), making it safe for sensitive electronics. The generator operates quietly at just 61dB and includes a CARB compliant CO sensor for enhanced safety.

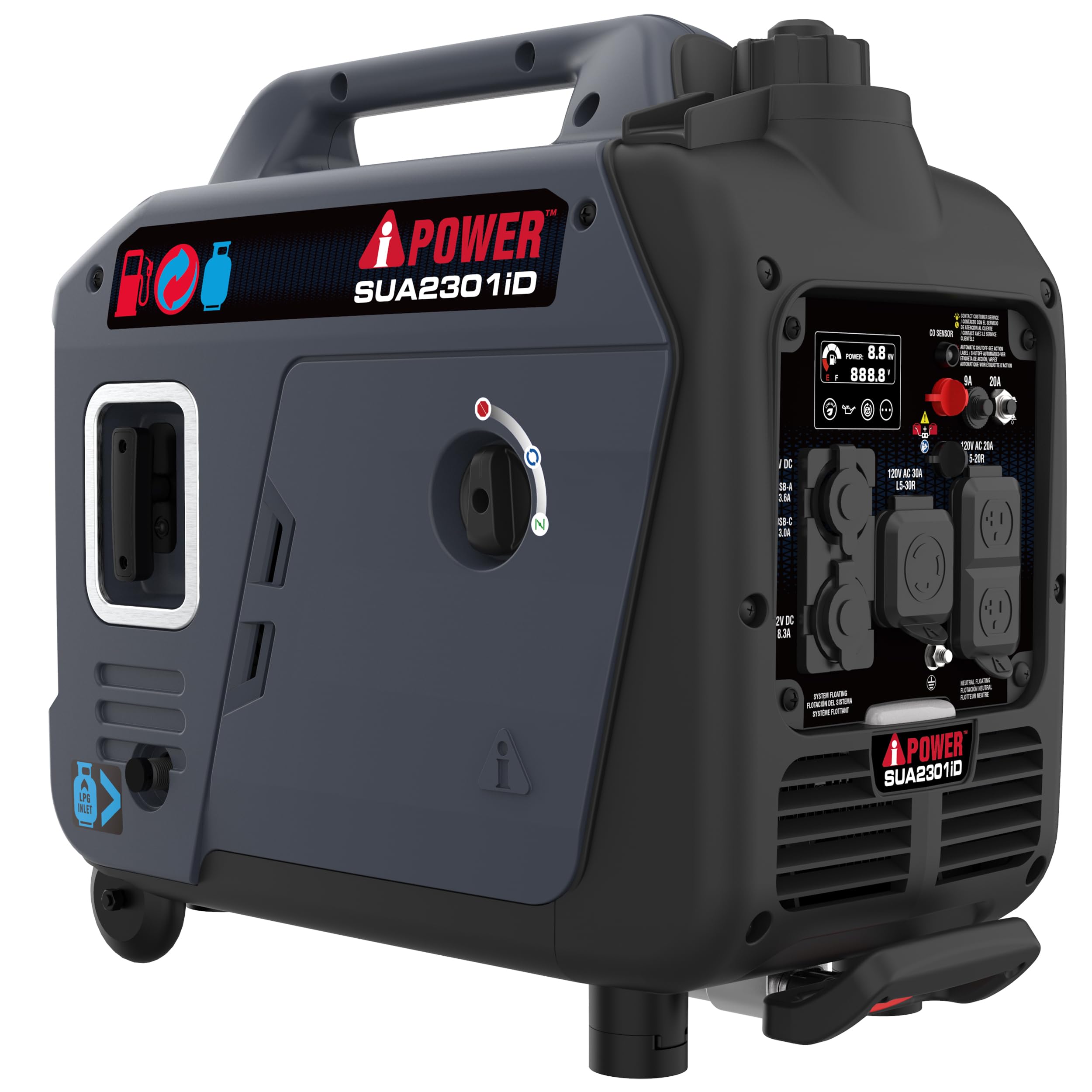

Image 1: The A-iPower SUA2301iD 2300-Watt Dual Fuel Portable Inverter Generator, showcasing its compact design and control panel.
2. Key Features
- Powerful Engine: 80cc OHV high-performance 4-cycle engine for fuel efficiency and reliability.
- High Output & Quiet Operation: 2,300 starting watts (gasoline) / 2,000 starting watts (propane) with a low sound level of 61dB.
- Pure Power: Less than 3% THD for safe operation of sensitive electronics.
- Multi-Featured Control Panel: Includes CO sensor indicator, LED light, data center display, USB ports, and various AC/DC outlets.
- Low Idle Technology & Compact Design: Lightweight with a telescopic handle and flat-free wheels for easy transport.
- Dual Fuel Capability: Operates on gasoline or propane with Fuel Sense technology for automatic switching and extended runtime.
- Parallel Equipped: Allows connection of two units for increased power output.
- CARB Compliant CO Sensor: Equipped with auto-shutdown technology for safety.
Image 2: Illustration of the generator's dual fuel capability, highlighting the Fuel Sense automatic selection technology and runtimes on gasoline and propane.
Image 3: Visual representation of key product features including quiet technology, parallel readiness, clean power, and dual fuel operation.
3. Setup
Before operating your generator, ensure it is placed on a level surface outdoors in a well-ventilated area, away from windows, doors, and vents to prevent carbon monoxide accumulation. Never operate indoors or in partially enclosed spaces.
3.1 Unpacking and Initial Inspection
Carefully remove the generator and all included components from the packaging. Inspect for any damage. The box should contain:
- Oil
- Funnel
- Tool kit
- 30A RV adaptor
- 12V DC charging cables
- Parallel cable
- Manual & Quick Start Guide
- LPG hose & regulator
Image 4: A visual guide to the items included in the product box, such as the manual, oil, funnel, tool kit, and various cables and adaptors.
3.2 Adding Engine Oil
The engine is shipped without oil. Using the provided funnel, add the recommended 10W-30 engine oil (approximately 0.4 quarts or 12.8 oz) to the engine crankcase. Do not overfill.
3.3 Connecting Fuel
For Gasoline: Fill the fuel tank with fresh, unleaded gasoline. The tank volume is 0.9 gallons.
For Propane (LPG): Connect the provided LPG hose and regulator to a propane tank and the generator's propane inlet.
4. Operating Instructions
4.1 Control Panel Overview
The multi-featured control panel provides easy access to all operational controls and indicators.
Image 5: Detailed view of the control panel, showing the data center display, CO sensor light, various outlets (USB, DC, AC), and circuit breakers.
4.2 Starting the Generator
- Ensure the generator is on a level surface and all electrical devices are disconnected.
- Open the fuel cap vent.
- Select your desired fuel source (Gasoline or Propane) using the fuel selector switch.
- Turn the engine switch to the 'ON' position.
- Pull the recoil starter handle firmly and steadily until the engine starts.
- Once the engine is running, allow it to warm up for a few minutes before connecting electrical loads.
4.3 Connecting Electrical Devices
Connect your devices to the appropriate outlets on the control panel. The generator offers: 2x USB 5VDC, 1x 8.3A 12VDC, 1x L5-30R 30A 120V, and 1x Duplex 5-20R 20A 120V outlets.
4.4 Eco Mode
Engage Eco mode for reduced engine speed, lower fuel consumption, and quieter operation when running light loads.
4.5 Parallel Operation
This generator is parallel equipped. Refer to the separate parallel kit instructions for connecting two compatible A-iPower inverter generators to double your power output.
4.6 Stopping the Generator
- Disconnect all electrical loads.
- Turn the engine switch to the 'OFF' position.
- Close the fuel cap vent for storage.
Official Product Video: 2300 Watt Dual Fuel Inverter
Video 1: This video provides a detailed overview of the A-iPower 2300-Watt Dual Fuel Inverter Generator, demonstrating its features and operational aspects. It highlights the dual fuel capability, control panel, and portability, offering a visual guide to its use.
5. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your generator. Always ensure the engine is off and cool before performing any maintenance.
5.1 Engine Oil
Check the engine oil level before each use. Change the oil after the first 20 hours of operation, and then every 100 hours or every 6 months, whichever comes first. Use SAE 10W-30 oil.
5.2 Air Filter
Inspect the air filter regularly and clean or replace it as needed, especially in dusty conditions. A dirty air filter can reduce engine performance and increase fuel consumption.
5.3 Spark Plug
Inspect the spark plug annually or every 100 hours. Clean or replace it if it is fouled or damaged. Refer to the specifications for the correct spark plug type and gap.
5.4 Storage
For extended storage, drain the fuel system completely or add a fuel stabilizer to the gasoline. Store the generator in a clean, dry place.
6. Troubleshooting
This section addresses common issues you might encounter with your generator.
6.1 Engine Will Not Start
- Check fuel level and ensure the correct fuel type is selected.
- Verify engine oil level. The generator will not start if the oil is too low.
- Ensure the engine switch is in the 'ON' position.
- Check the spark plug for fouling or damage.
6.2 No Power Output
- Check if the circuit breakers on the control panel have tripped. Reset if necessary.
- Ensure the generator is not overloaded. Reduce the connected load.
- Verify that all connections are secure.
6.3 CO Sensor Activation
If the CO sensor light illuminates and the generator shuts down, move the generator to an open, well-ventilated area immediately. Allow it to cool down and ventilate before attempting to restart. Do not operate the generator in enclosed or partially enclosed spaces.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | A-iPower |
| Model Name | 2300 Watt Dual Fuel Inverter (SUA2301iD) |
| Engine Type | 80cc OHV 4 Stroke |
| Starting Wattage (Gasoline) | 2300 Watts |
| Running Wattage (Gasoline) | 1800 Watts |
| Starting Wattage (Propane) | 2000 Watts |
| Running Wattage (Propane) | 1600 Watts |
| Fuel Type | Gasoline, Propane |
| Tank Volume | 0.9 Gallons |
| Run Time (25% load, Gasoline) | 9 hours |
| Sound Level | 61 Decibels |
| Total Power Outlets | 5 (2x USB, 1x 12V DC, 1x L5-30R 120V, 1x Duplex 5-20R 120V) |
| Product Dimensions | 21.5"L x 12.8"W x 21.1"H |
| Item Weight | 49.8 pounds |
| Certifications | EPA, PGMA & CARB certified |
Image 6: Visual representation of the generator's dimensions and weight, highlighting its compact and portable nature.
8. Warranty and Support
The A-iPower SUA2301iD Inverter Generator comes with a 3-Year Limited Manufacturer's Warranty. For warranty claims, technical support, or replacement parts, please contact A-iPower customer service directly. Keep your purchase receipt as proof of purchase.
9. Applications
The A-iPower SUA2301iD generator is suitable for a variety of uses due to its portability, quiet operation, and clean power output.
Image 7: A collage illustrating various applications for the A-iPower generator, including tailgating, power tools, RV use, power outages, and camping.
