Product Overview

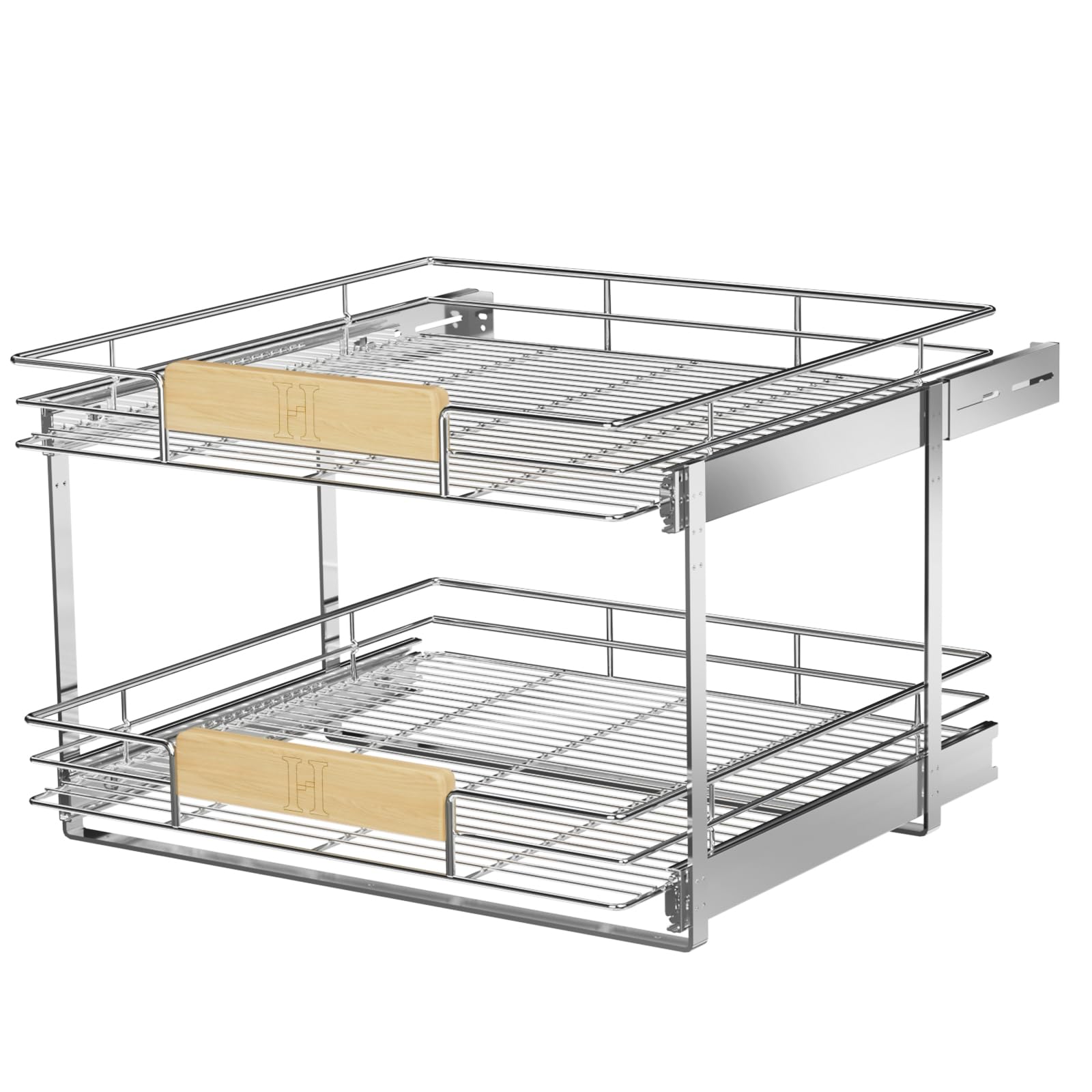

The LOVMOR 2-Tier Pull-Out Cabinet Organizer is designed to maximize storage space and improve accessibility within your kitchen, bathroom, laundry, or pantry cabinets. This organizer features two independent sliding shelves with a sturdy ball bearing system for smooth operation. Each shelf can support up to 50 lbs, making it suitable for various items, including heavy pots and pans. The design includes a high-end oak solid wood handle for comfortable use and adjustable shelf heights to accommodate different item sizes.
Product Dimensions and Cabinet Fit
This organizer measures 22.5 inches (W) x 21.5 inches (D) x 15 inches (H). It is designed to fit cabinet openings of 24 inches or larger. Before installation, accurately measure your cabinet opening from hinge to the opposite side to ensure proper fit. The lower shelf offers two adjustable height options, and the upper shelf provides three adjustable height options, allowing customization for various items.
Setup and Installation
The LOVMOR 2-Tier Pull-Out Cabinet Organizer is designed for quick and easy assembly, typically taking under 20 minutes. All necessary hardware and clear, step-by-step instructions are included. A screw gun is recommended for drilling pilot holes according to the provided mounting template.
Installation Steps:
- Prepare the Cabinet: Ensure the cabinet interior is clean and clear. Measure the cabinet opening to confirm it meets the minimum requirements (24 inches wide or larger).
- Assemble the Base Frame: Attach the slide rails to the base frame. Extend the pull-out ball bearing system to locate the screw holes. Secure the rails to the frame using the provided screws and a screwdriver.
- Position the Mounting Template: Place the mounting template inside the cabinet at the desired location. Use a drill to create pilot holes as indicated on the template.
- Install the Base Frame: Secure the assembled base frame to the cabinet floor using the provided screws, aligning with the pilot holes.
- Attach the Shelves: Slide the upper and lower shelves onto the installed rails. Adjust the height of each shelf as desired. The lower shelf has two adjustable height options, and the upper shelf has three.
- Final Check: Ensure both shelves slide smoothly and are securely fastened.
Operating Instructions
To operate the LOVMOR 2-Tier Pull-Out Cabinet Organizer, simply pull the desired shelf forward using the wooden handle. The smooth ball bearing system allows for full extension, providing easy access to items stored at the back of your cabinet. Each shelf can be pulled out independently.
- Pulling Out Shelves: Gently pull the wooden handle on either the top or bottom shelf to slide it out.
- Pushing In Shelves: Push the shelf back into the cabinet until it is fully retracted.
- Adjusting Shelf Height: To adjust the height of a shelf, remove items, disengage the locking mechanism (if present, refer to assembly diagram), reposition the shelf to the desired height, and re-engage the lock.
Maintenance
To ensure the longevity and smooth operation of your LOVMOR Pull-Out Cabinet Organizer, follow these simple maintenance guidelines:
- Cleaning: Wipe down the metal shelves and wooden handles with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Lubrication: Periodically check the ball bearing slide rails. If they begin to feel stiff, apply a small amount of silicone-based lubricant to ensure continued smooth operation.
- Weight Capacity: Do not exceed the maximum weight capacity of 50 lbs per shelf to prevent damage to the organizer and ensure safe operation.
- Fastener Check: Occasionally check all screws and fasteners to ensure they remain tight. Retighten if necessary.
Troubleshooting
If you encounter any issues with your LOVMOR Pull-Out Cabinet Organizer, refer to the following common troubleshooting tips:
- Shelves Not Sliding Smoothly:
- Check for obstructions on the slide rails or within the cabinet.
- Ensure the shelves are not overloaded, exceeding the 50 lbs capacity.
- Apply a silicone-based lubricant to the ball bearing slides.
- Organizer Feels Loose or Wobbly:
- Verify that all mounting screws securing the base frame to the cabinet are tight.
- Ensure the cabinet itself is stable and securely mounted.
- Difficulty Adjusting Shelf Height:
- Ensure the shelf is empty before attempting to adjust its height.
- Confirm that the locking mechanisms are fully disengaged before attempting to move the shelf.
If these steps do not resolve the issue, please contact LOVMOR customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Model Number | S-424222X-WH-DF |
| UPC | 840349309873 |
| Dimensions (W x D x H) | 22.5" x 21.5" x 15" |
| Material | Metal (Chrome Steel) with Wooden Handle |
| Number of Tiers | 2 |
| Weight Capacity per Shelf | 50 lbs |
| Item Weight | 22.44 Pounds |
| Assembly Required | Yes |
| Adjustable Shelf Height | Lower shelf: 2 options; Upper shelf: 3 options |
| Minimum Cabinet Opening | 24" W x 21.5" D x 15" H |
Warranty and Support
LOVMOR stands behind the quality of its products. For specific warranty information, please refer to the product packaging or contact LOVMOR customer support directly. If you have any questions, require assistance with installation, or need to report a defect, please reach out to our customer service team via the contact information provided with your purchase or through the official LOVMOR website.
